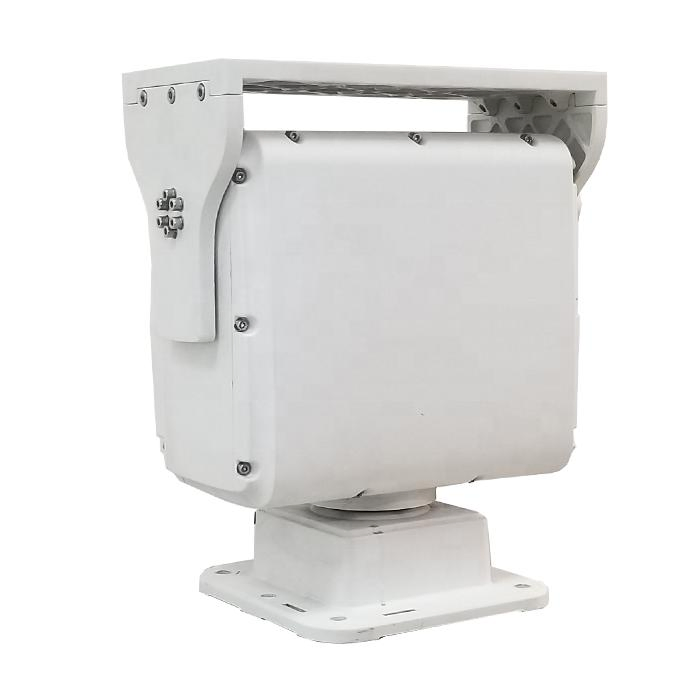

Variable Speed Outdoor Waterproof Heavy Duty Pan Tilt Motorized

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt

Product Description

i
Basic Information
Model NO.
FY-SP2515
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
420tvl
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Resolution
324*256(640*512 Optional)
Interface
RS485
Operation Temperature
-25 ~+65 Celcius
Protection Class
IP66
Max Load
35kg
Product Description

Key Features:

  • Max Load: 10kg/15kg/20kg
  • Support kinds of Lens preset function
  • Pan tilt speed can reach up to 60º/s
  • High resetting accuracy, up to ±0.1º
  • Adopt die-cast aluminum alloy material
  • Adopt high-precision, high-strength gear-driven, self-locked when power is off
  • Pan angle: 0º~360º continuous
  • Protection Class: IP66
  • Optional function: returning data of pan tilt position, focal length, focus etc

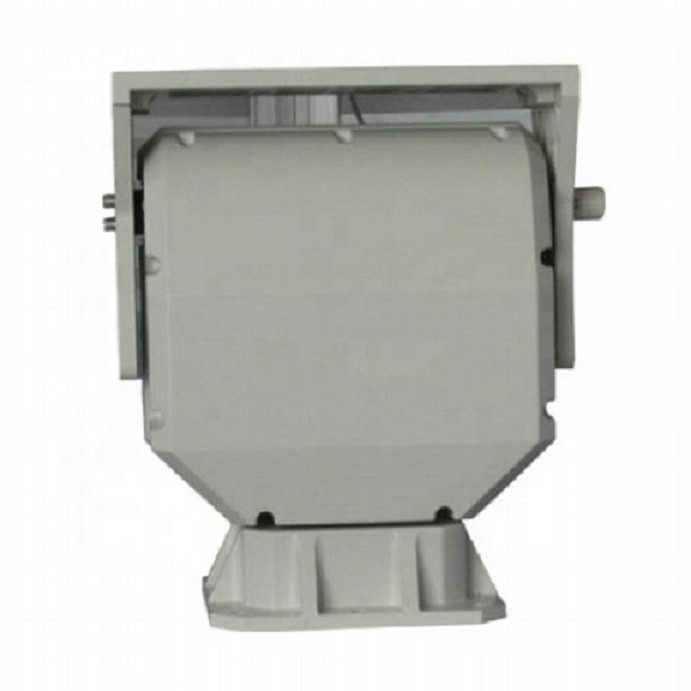

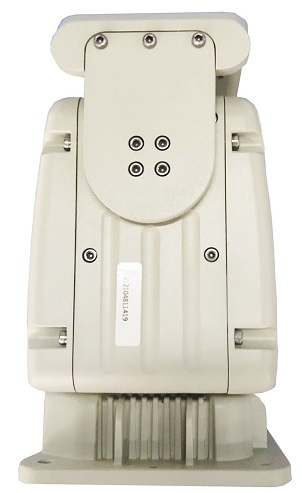

Variable Speed Pan Tilt Motorized

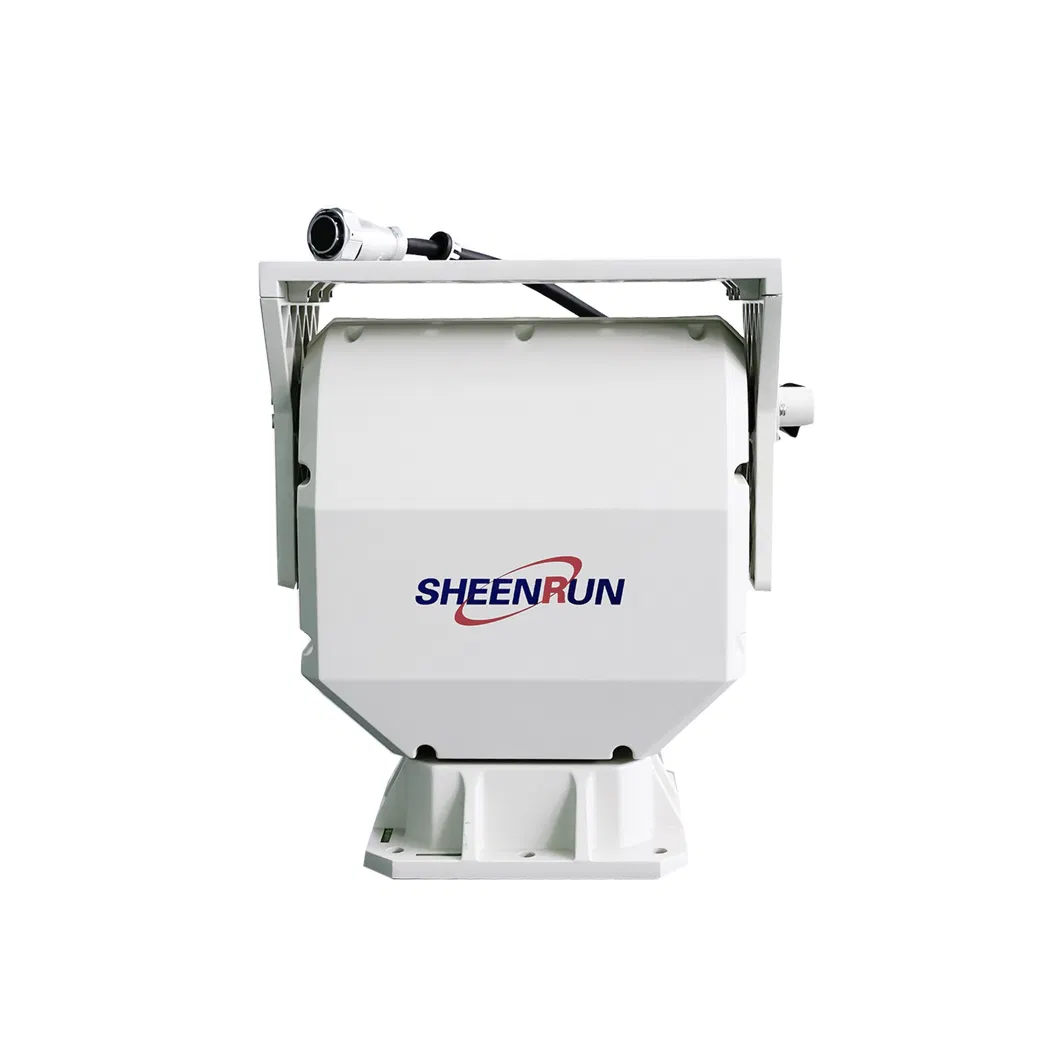

Outdoor Waterproof Heavy Duty Pan Tilt
ModelFY-SP2510FY-SP2515FY-SP2520
Rotating SpeedPan:0.01º~60º/s, Tilt:0.01º~30º/sPan:0.01º~45º/s, Tilt:0.01º~15º/sPan:0.01º~20º/s, Tilt:0.01º~10º/s
Rotation AnglePan:0º~360º continuous, Tilt: +20º~-60º
Number of Presets200
Accuracy±0.1º
ProtocolPelco-D/P
Power Consumption≤70W
Max Load10kg15 kg20 kg
Weight12.5 kg
Dimensions265mm*180mm*315mm

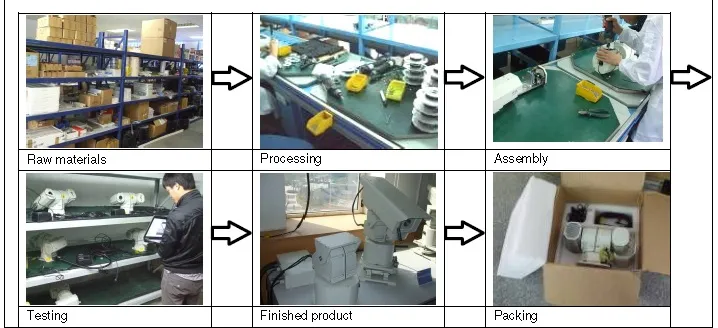

Professional Manufacturing

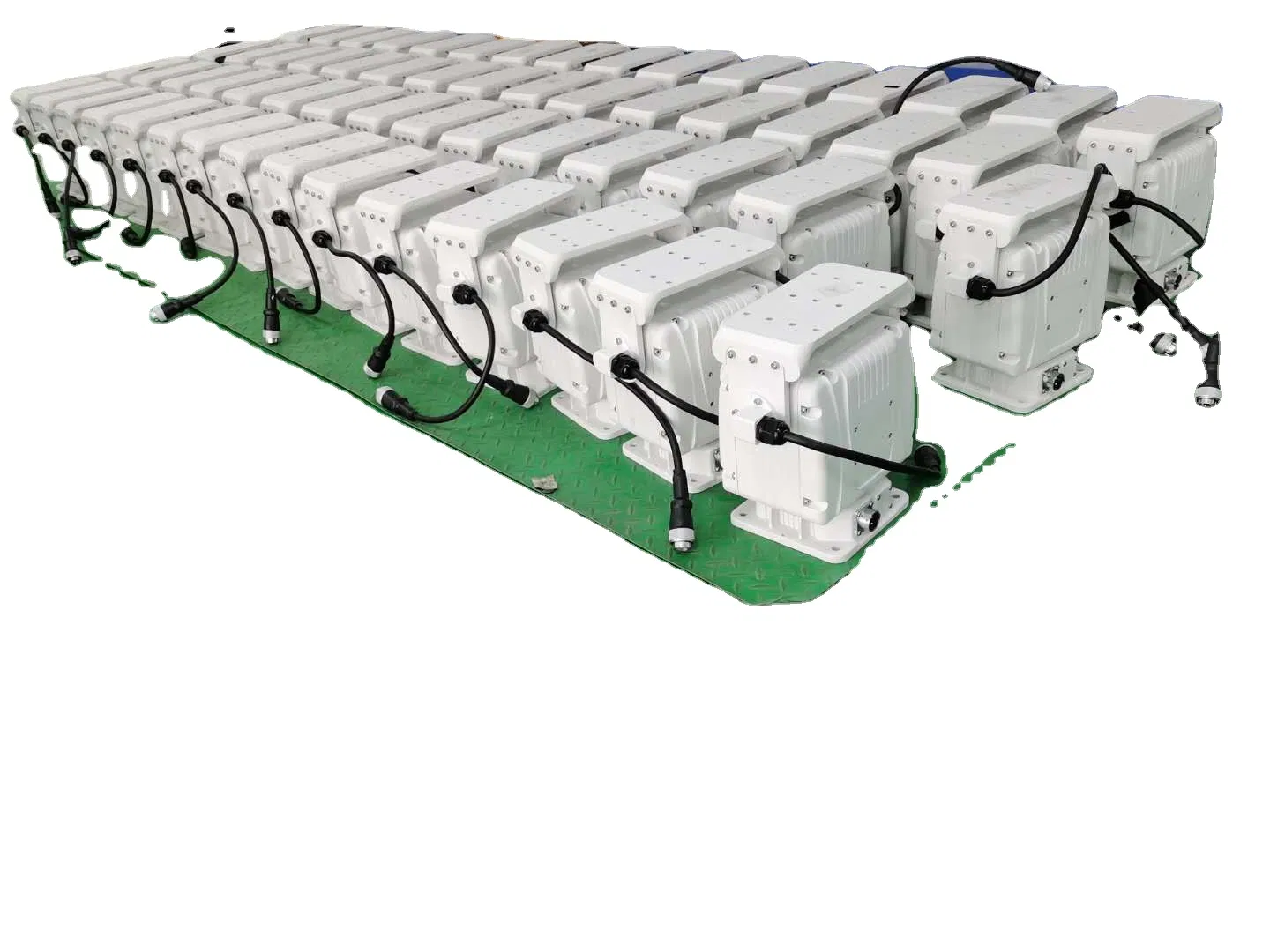

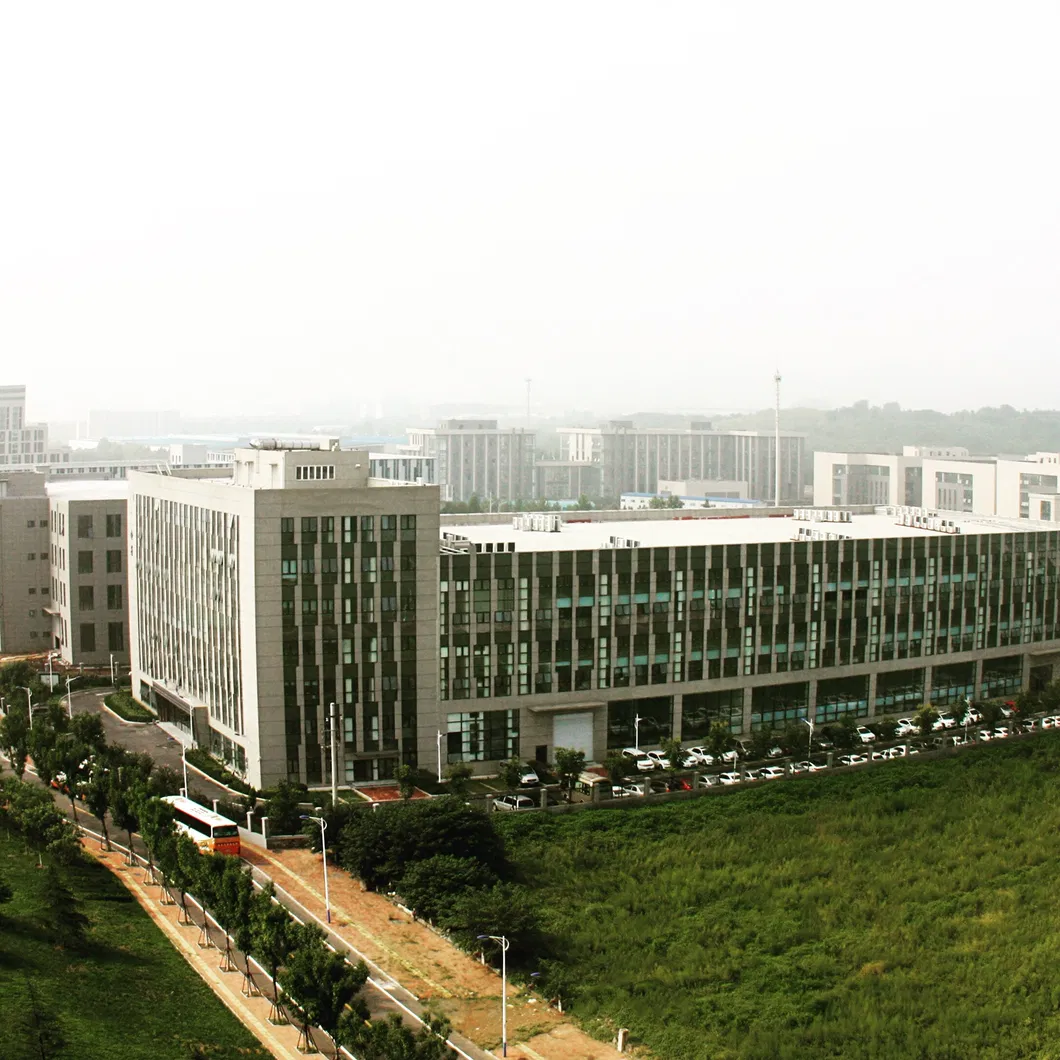

Production Facility

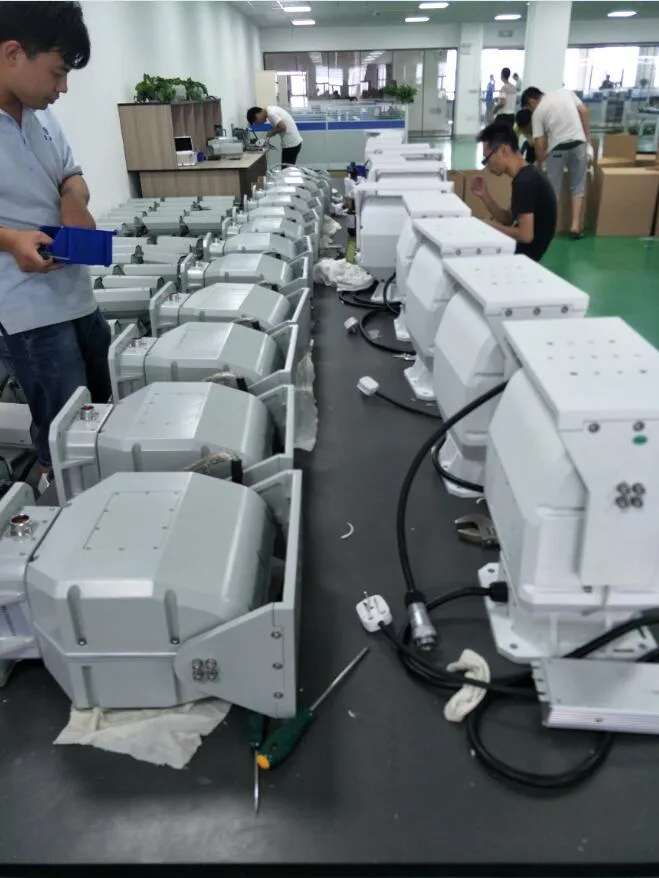

Technical Equipment

As a leading night vision equipment and rugged information equipment supplier, we adhere to independent innovation. The synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standards, possessing a significant market share in the laser night vision market.

Product Applications

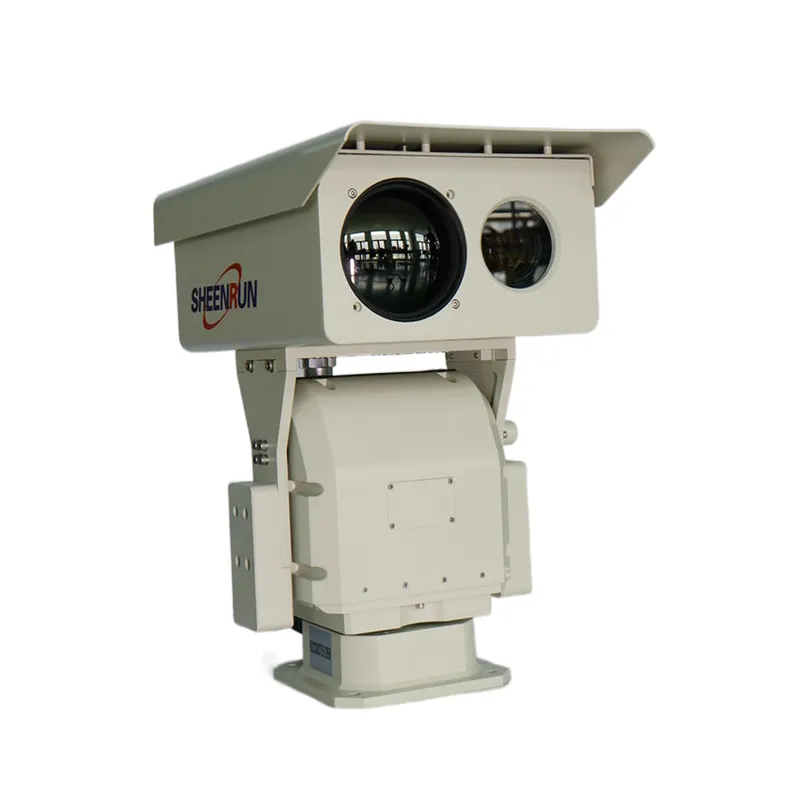

Camera Usage 1

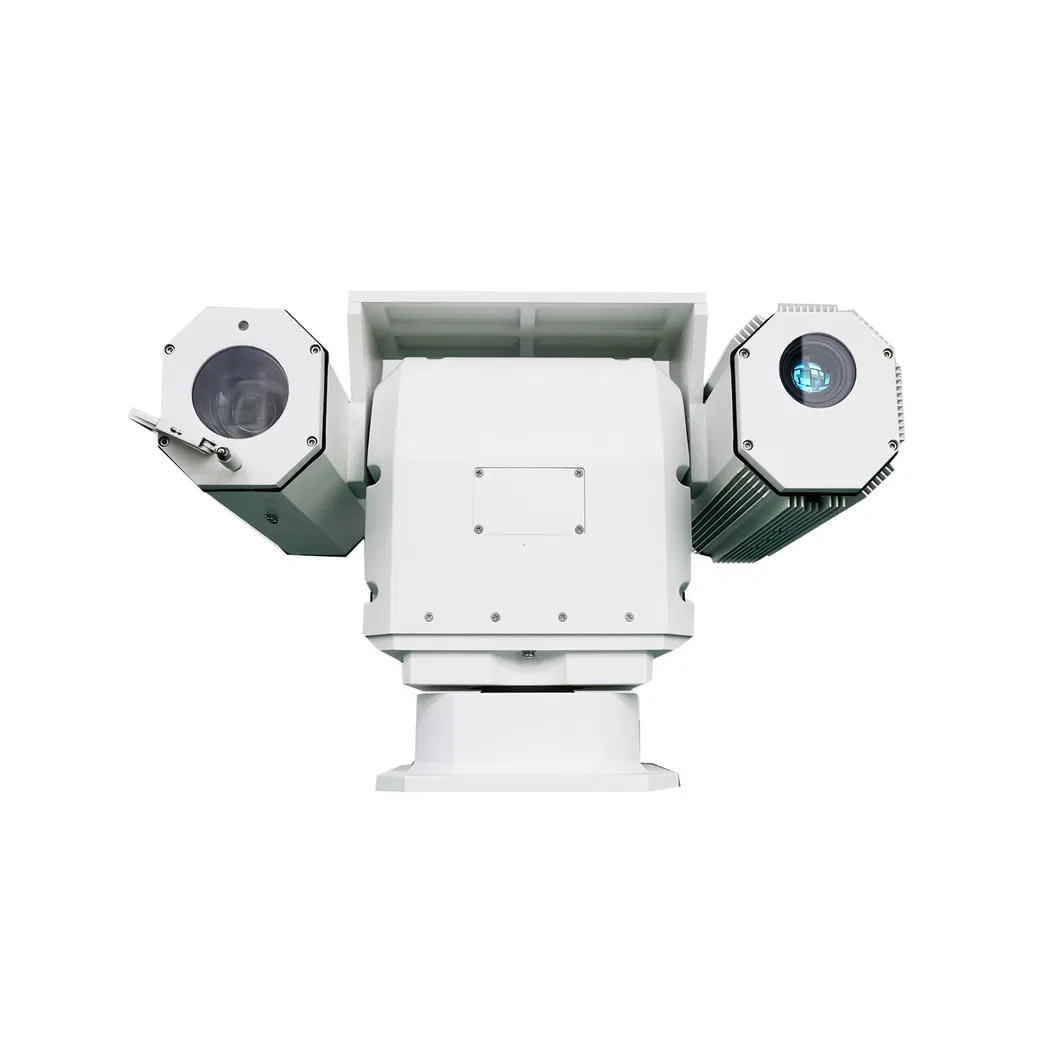

Camera Usage 2

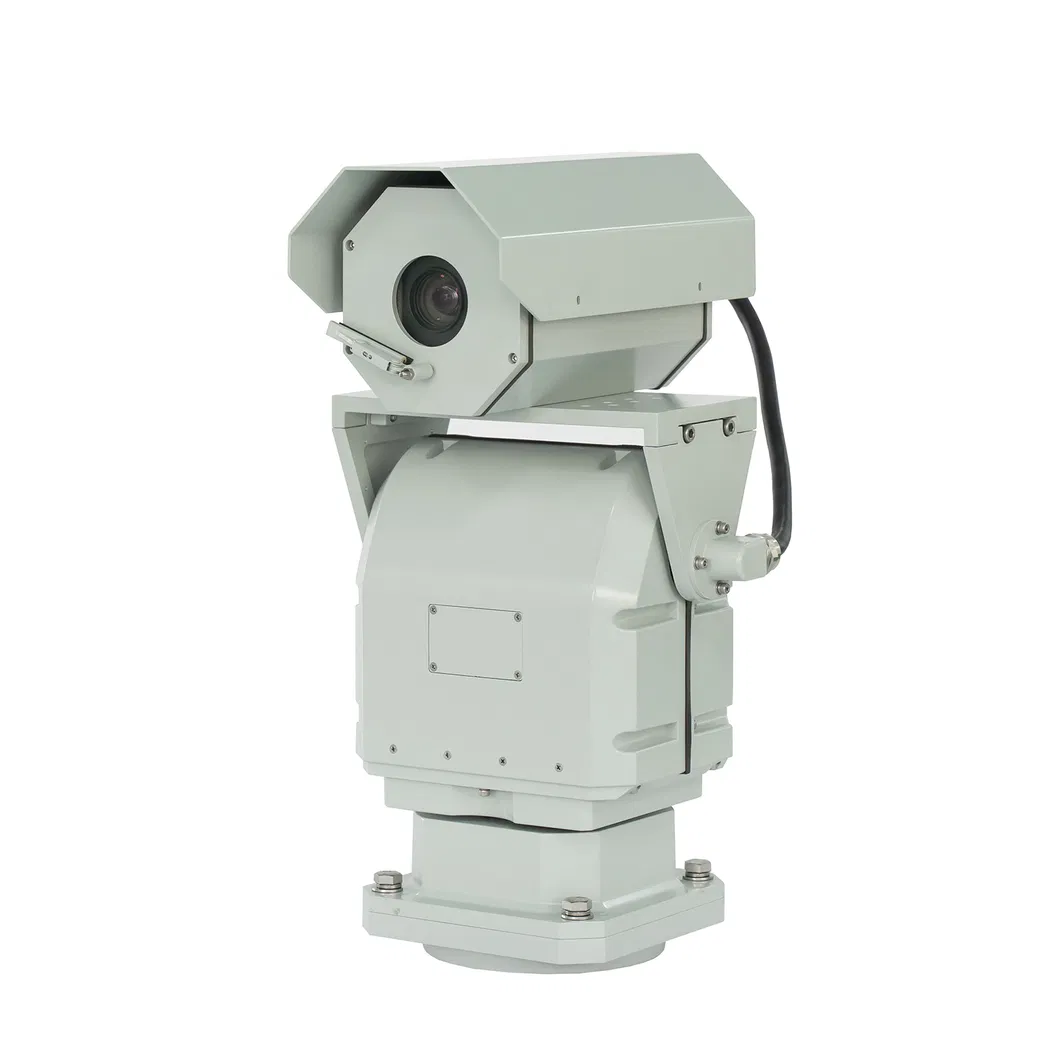

Camera Usage 3

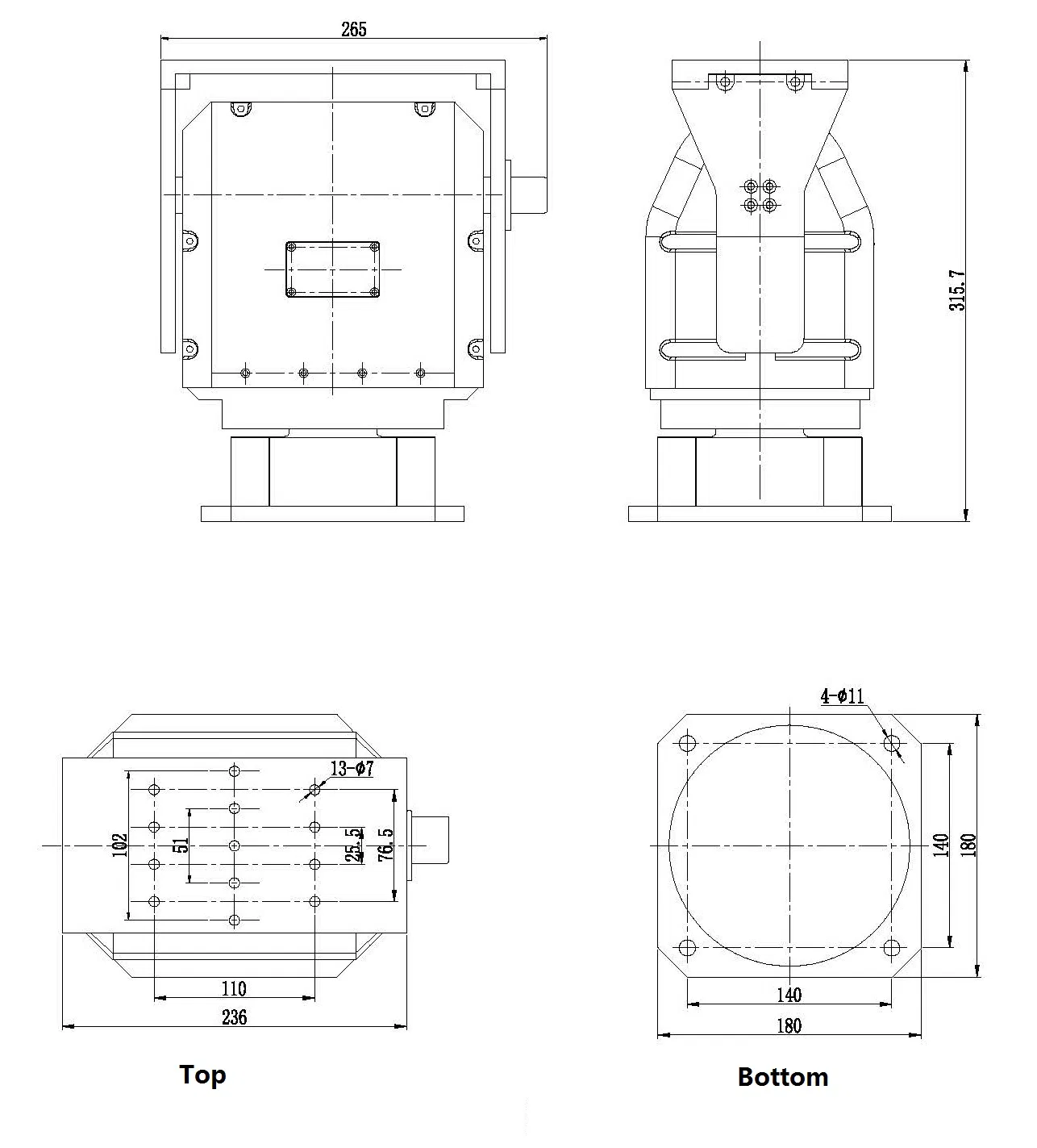

Detailed Dimensions
Specifications
?
Frequently Asked Questions
Is your company a manufacturer?
We are a professional manufacturer of thermal cameras, laser night cameras, and camera systems established in 2004.
What is the price?
Price varies according to different requirements. We can discuss exact product models based on your detailed specifications.
What is your warranty?
Generally, we provide a free warranty for one year. Extended warranty periods can be discussed.
Do you offer customized products?
Yes, our advantage lies in providing customization for products to meet specific client needs.
Do you accept OEM?
Yes, we support OEM, ODM, and other forms of professional cooperation.
What is the protection level of the Pan Tilt motor?
The product features an IP66 protection class, making it waterproof and weatherproof for outdoor heavy-duty use.
