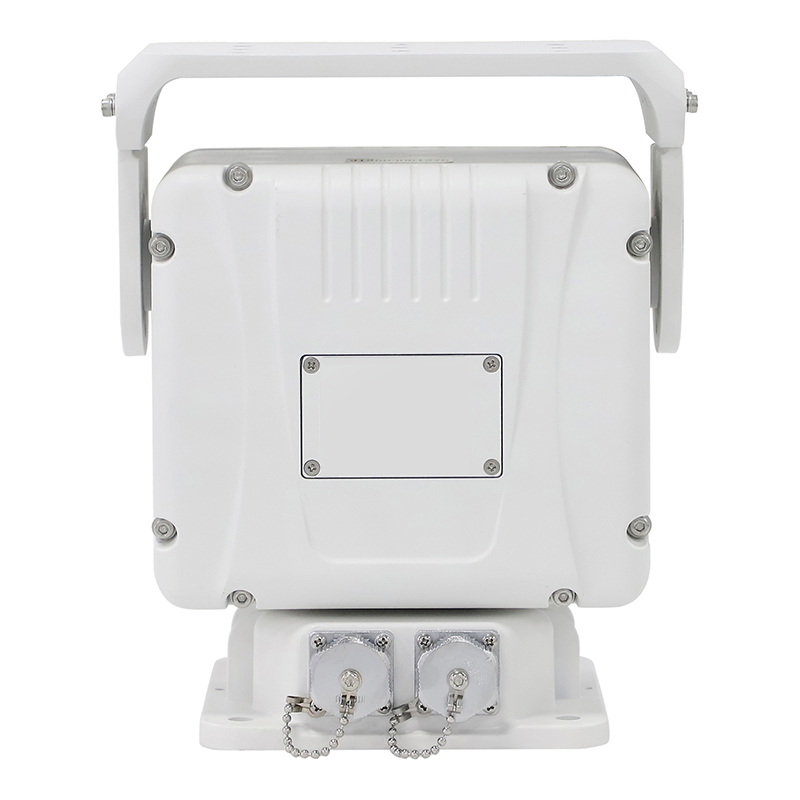

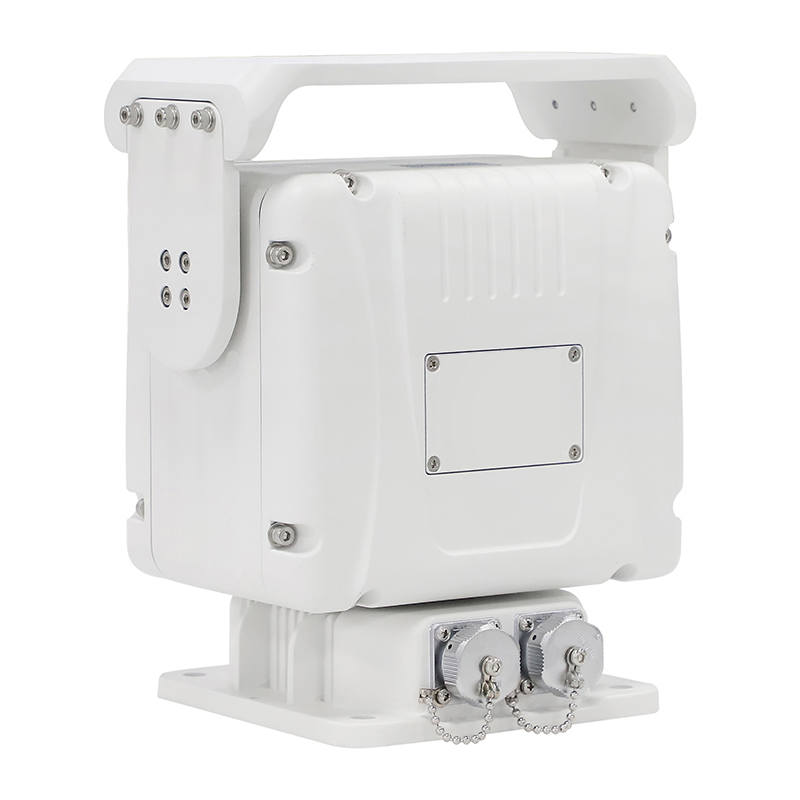

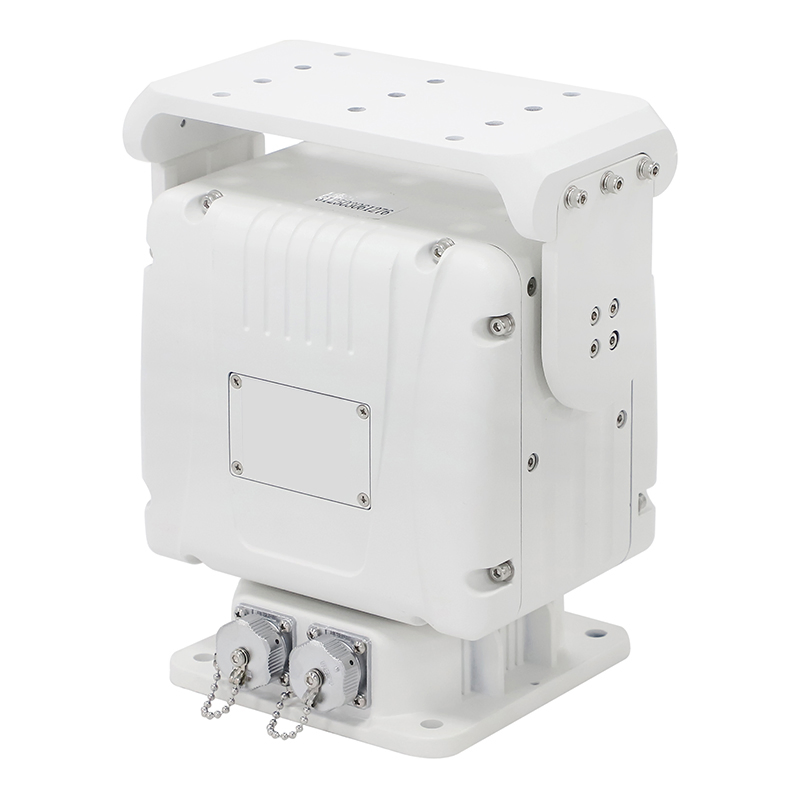

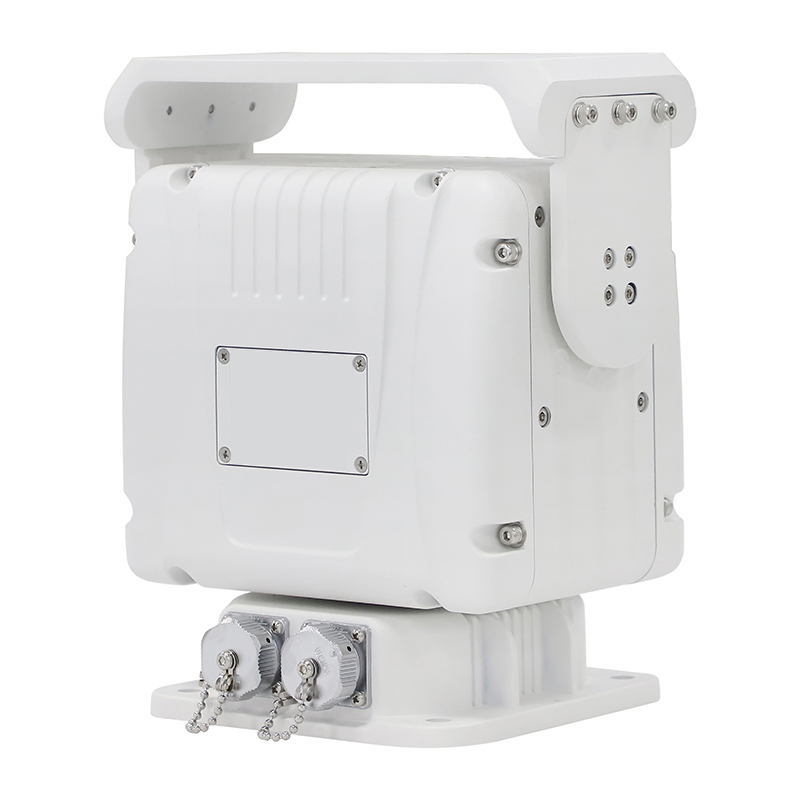

Sp2615 Pan-Tilt Turntable Gimbal 15kg Load

Customization: Available
Technology: Pan-Tilt
Style: Pan/Tilt

Product Description

1

Overview & Basic Info

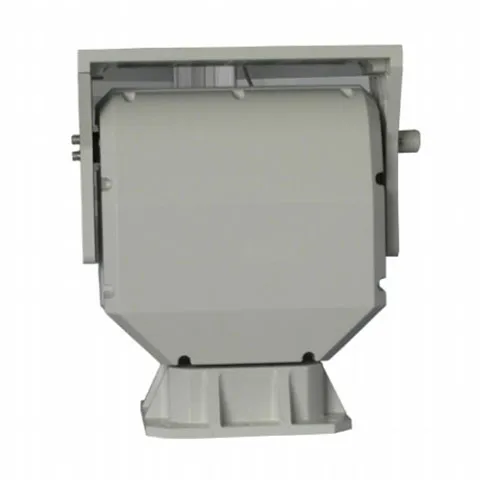

Pan-Tilt Turntable Gimbal
Type
Pan-Tilt
Sensor
Pan-Tilt
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition
Operation Temp.
-25 ~ +65°c
Protection Class
IP66
Max Load
15kg
Interface
RS485 or RS422
Dimensions
265mm × 180mm × 316mm
Production Capacity
1000piece/Month
2

Technical Specifications

Model FS-2615
Rotating Speed Pan: 0.01º~60º/s; Tilt: 0.01º~30º/s
Rotation Angle Pan: 0º~360º continuous; Tilt: +60º~ -60º
Number of Presets 200
Accuracy ±0.1º
Auxiliary Switch 2 groups
Protocol Pelco-D/P
Input Voltage AC24V±20%, 50/60HZ; DC28V±20%
Power Consumption ≤40W
Driven Type Worm gear driven
3

Core Features

Max Load: 15kg high-capacity support.
Pan-tilt speed up to 60º/s for rapid tracking.
High resetting accuracy of ±0.1º.
Die-cast aluminum alloy material for durability.
High-precision gear-driven system with self-lock feature.
IP66 Protection Class for harsh environments.
4

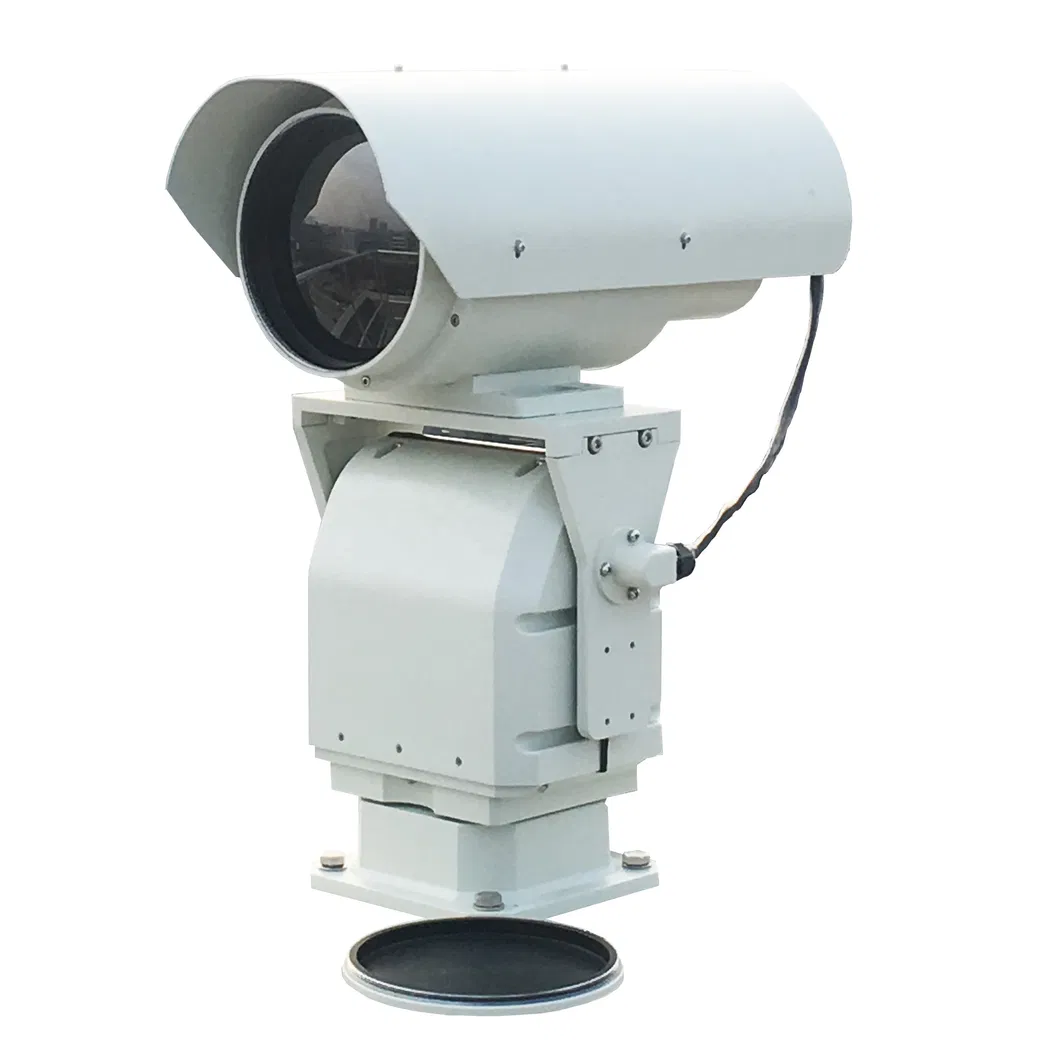

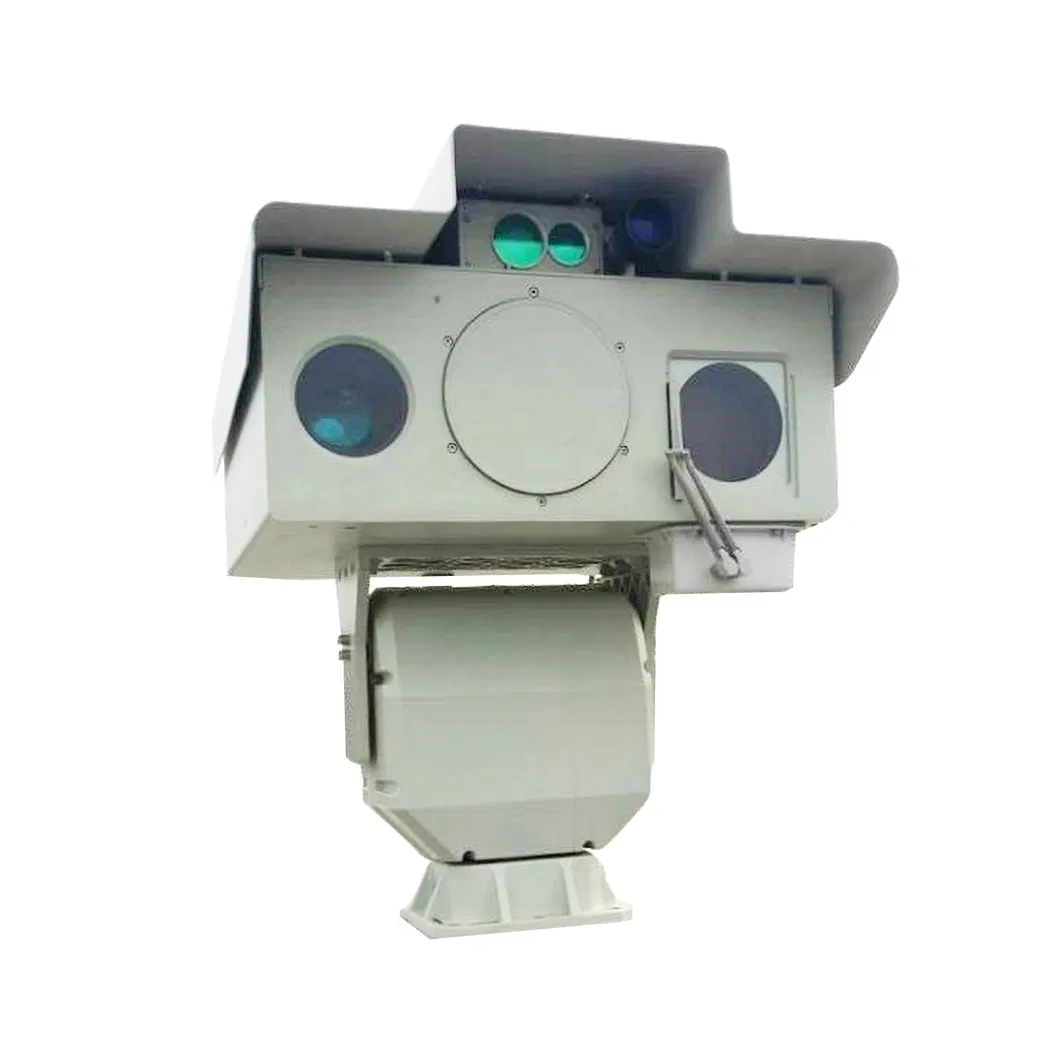

Product Display & Application

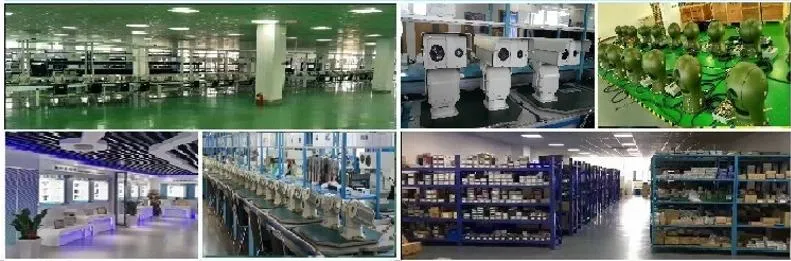

Equipment Photos
5

Professional Capability

Founded in 2004, we are a leading supplier of night vision equipment and rugged information technology. Our independent innovation has led to the development of synchronous zoom laser night vision and continuous zoom thermal imaging technology, reaching international advanced standards.

?

Frequently Asked Questions

What is the maximum weight this pan-tilt can carry?
The system supports a maximum load of up to 15kg, suitable for various heavy-duty camera and lens configurations.
Is the unit suitable for outdoor use in rain or dust?
Yes, it features an IP66 protection class rating, making it waterproof and weatherproof for reliable outdoor operation.
What is the rotation range for horizontal and vertical movement?
The unit provides 360º continuous pan rotation and a tilt range of +60º to -60º.
How accurate are the preset positions?
The unit offers high-precision positioning with a resetting accuracy of ±0.1º.
What control protocols are supported?
It supports standard Pelco-D and Pelco-P protocols via RS485 or RS422 interfaces.
Does the system lock when power is lost?
Yes, the unit adopts a high-strength gear-driven system that is self-locking when power is turned off.
