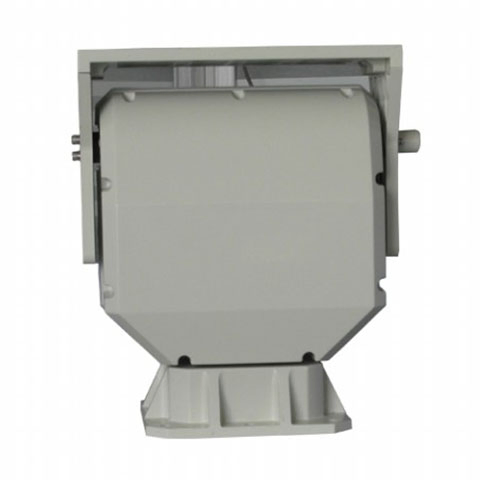

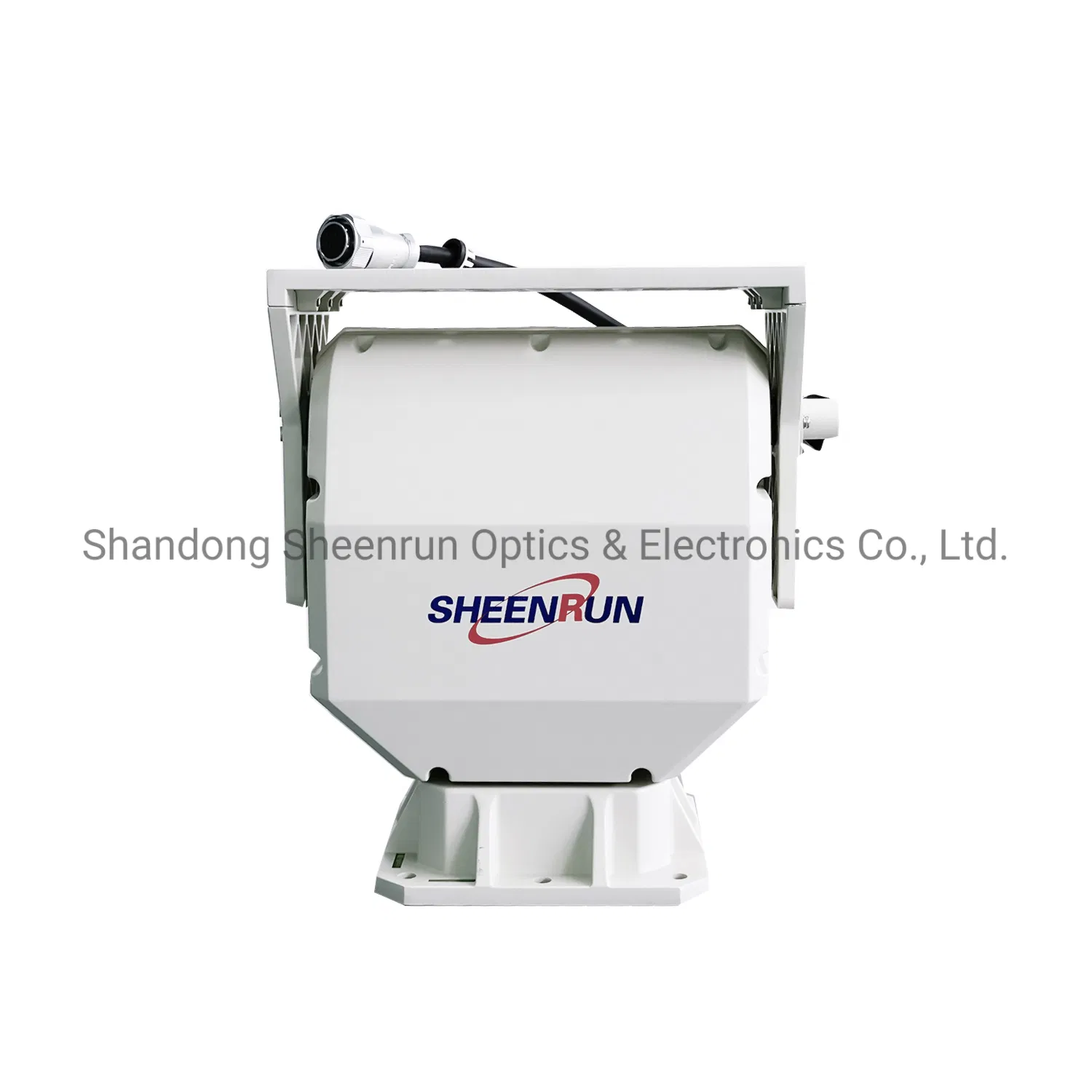

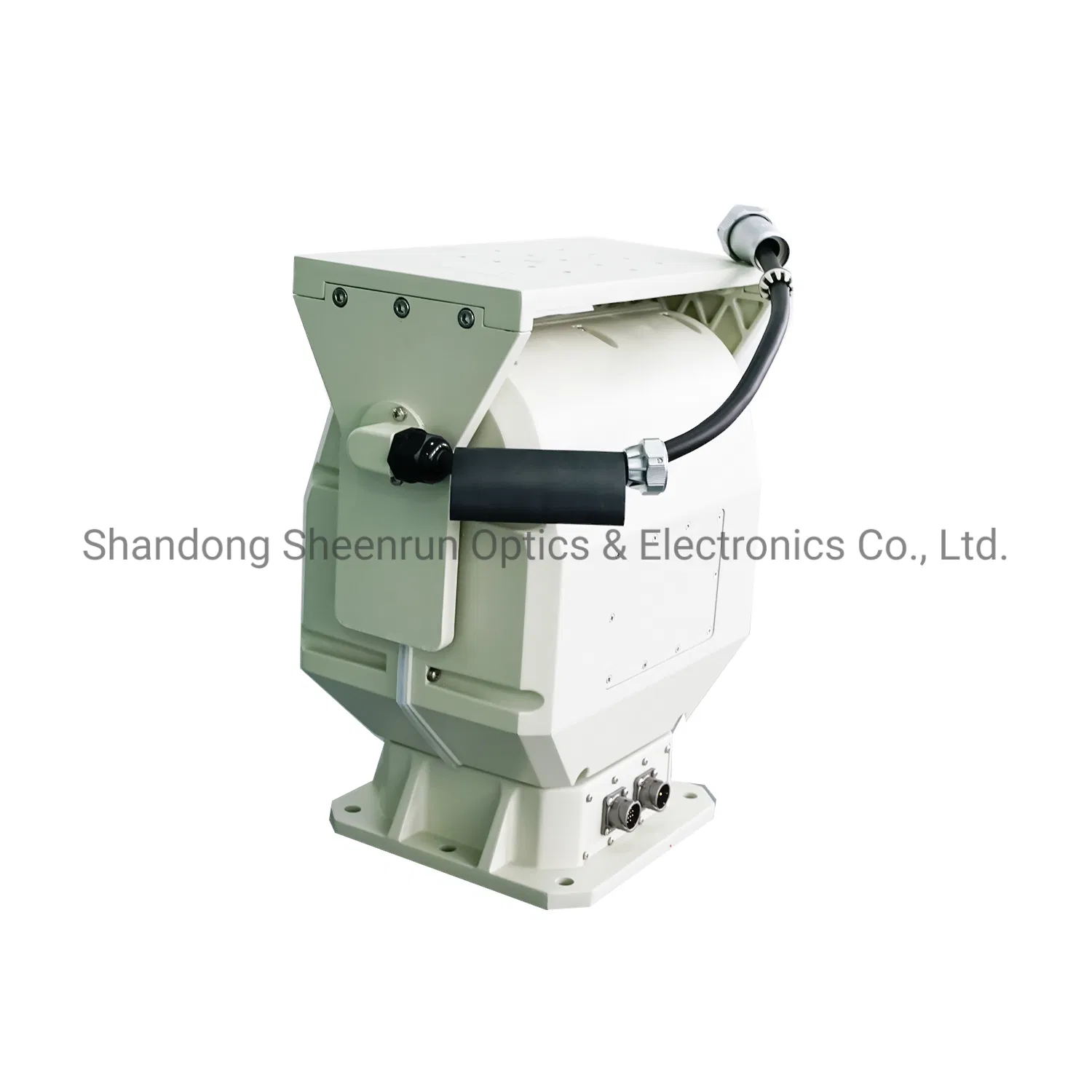

50kg Waterproof Heavy Duty Vehicle Radar Mounted Motorized RJ45 PTZ Pan Tilt Head for Thermal Camera

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt

Product Description

■ Basic Information
Model NO.SP5050
CertificationCE, FCC, CCC, ISO9001: 2000
FeatureWaterproof / Weatherproof
Remote ControlWith Remote Control
Max Load50kg
Pan Rotation Angle0 Degree~360 Degree; Continuous
Tilt Rotation Angle+45 Degree~-45 Degree
Pan Tilt Speedup to 60 Degree/S
ProtocolPelco-D/P
Power ConsumptionLess Than 80W
Protection LevelIP66
Auxiliary Switch2 Groups
Auto Scan1 Path
Optional FunctionPan Tilt Position Data, Focal Length etc
Transport PackageWooden or Carton Package
Production Capacity1000sets/Month
■ Product Description
50kg Waterproof Heavy Duty Vehicle Radar Mounted Motorized RJ45 PTZ Pan Tilt Head for Thermal Camera

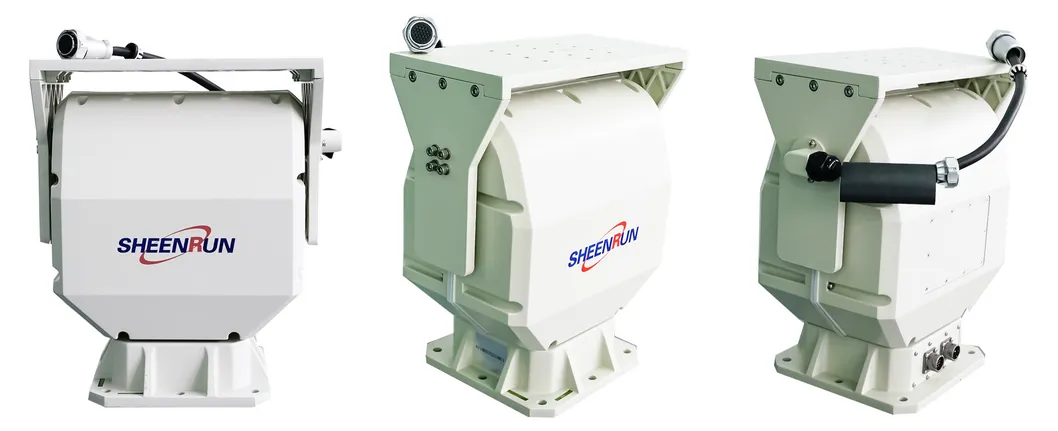

Heavy Duty PTZ Pan Tilt Head
Core Features
✔Max Load: 50kg
✔Support RS485 (RS422 or RS232 optional)
✔Self-adaptive lens preset support
✔High resetting accuracy, up to ±0.1º
✔Die-cast aluminum alloy material
✔High-precision steel worm-gear driven, self-locked when power off
✔Pan: 0~360º continuous rotation
✔Protection Class: IP66
■ Technical Specifications
ModelSP50
Pan/tilt SpeedPan: 0.01º~12º/s, Tilt: 0.01º~8º/s
Rotation AnglePan: 0°~360º continuous, Tilt: +45º~-45º
Number of Presets200
Preset Accuracy±0.1º
InterfaceRS485 or RS422
Input VoltageAC24V±20%, 50/60HZ; DC28V±20%
Operation Temp-25ºC~+65ºC (Standard); -40ºC~+65ºC (Ext)
Load ModeTop-mounted / Side-mounted
Dimensions350mm * 206mm * 380mm (L*W*H)

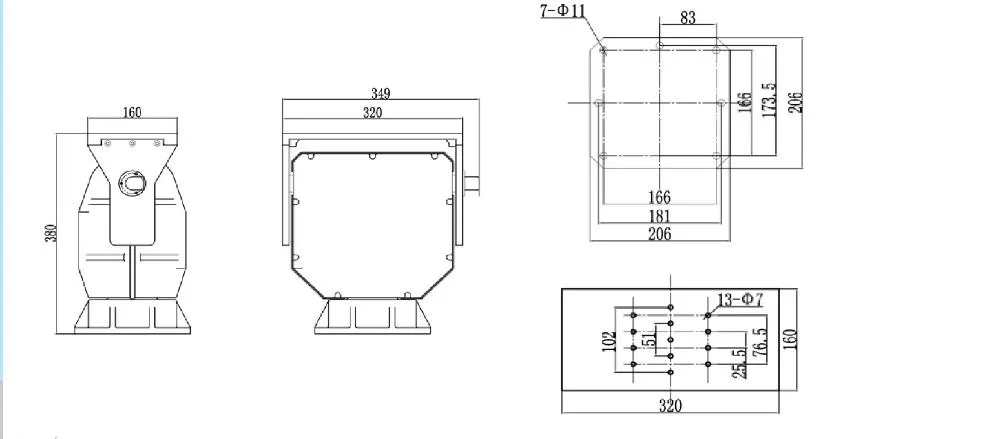

Dimension Reference:
PTZ Dimensions
■ Packaging & Shipping
Package Size35.00cm * 21.00cm * 38.00cm
Gross Weight23.000kg
Shipping Info
■ Professional Manufacturing
The manufacturer is a leading provider of long range thermal imaging and laser night vision technology. With a focus on independent innovation, the company developed advanced laser night vision systems and continuous zoom infrared thermal imaging technology. These products are widely used in national defense, safe cities, railways, highways, forest fire prevention, and oil fields, providing all-weather surveillance and technical support for security maintenance.
Manufacturing Center
Certifications:
Product Certificates
■ Related Products

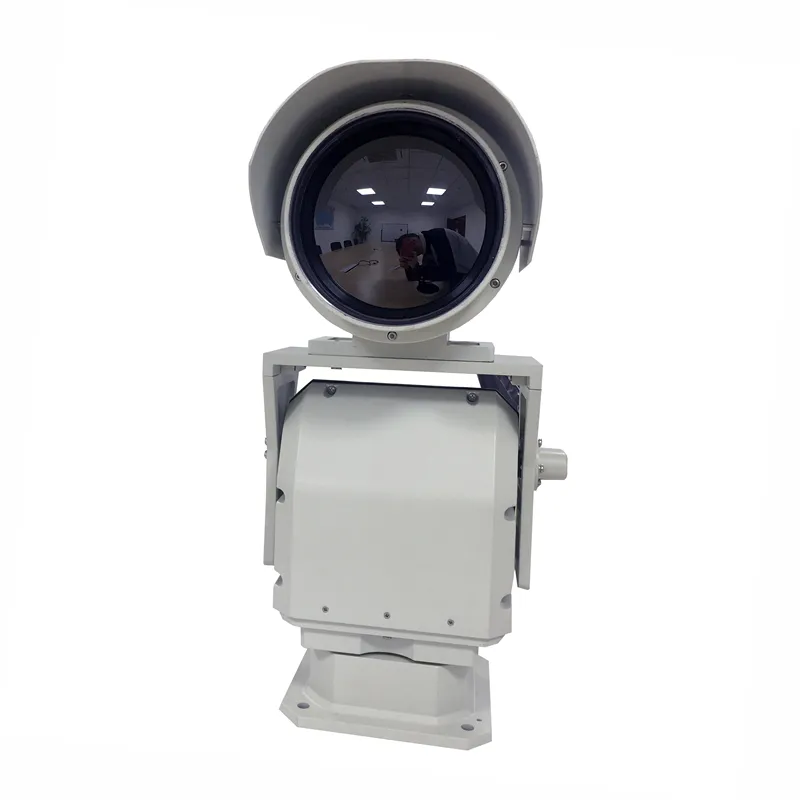

Thermal Camera System
Thermal Camera

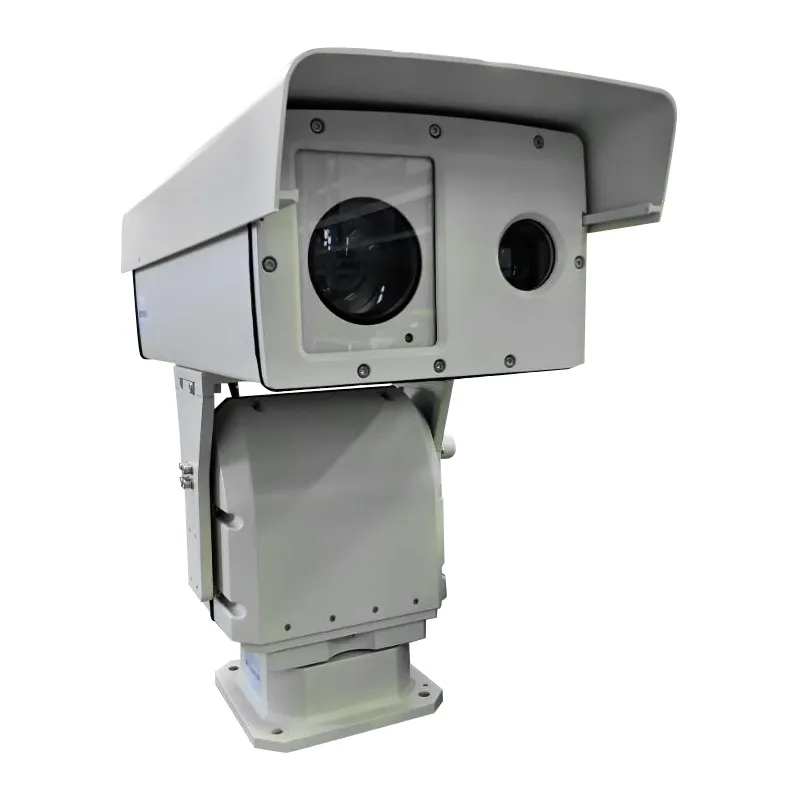

Laser Night Vision Camera
HD Laser Night Vision Camera

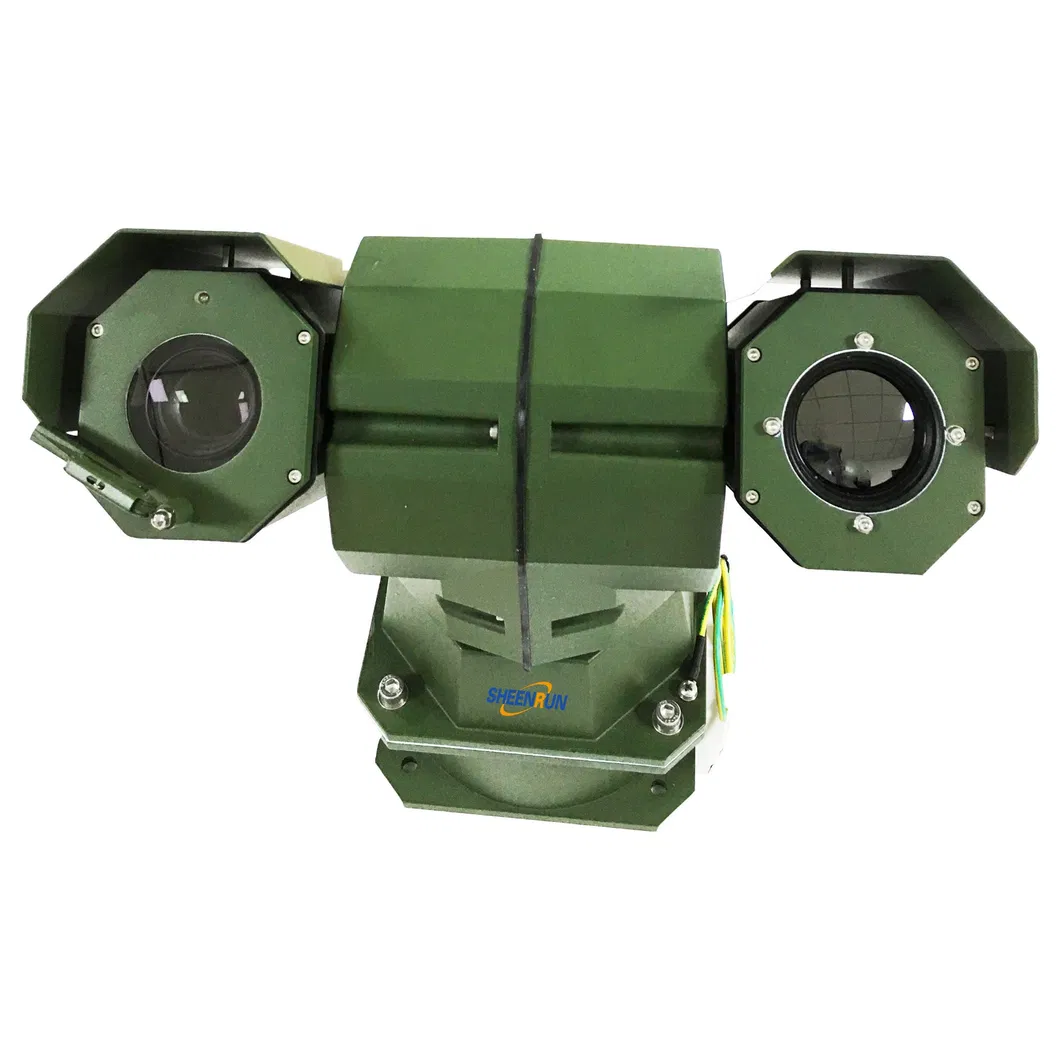

Dual Sensor Camera
Dual Sensor Thermal Camera
■ Frequently Asked Questions
1. Are you a professional manufacturer?
Yes, we are a dedicated thermal camera and laser camera manufacturer with extensive experience in the industry since 2004.
2. Do you provide OEM services for these PTZ systems?
Yes, we offer comprehensive OEM services and can customize products according to specific customer requirements.
3. What is the typical lead time for an order?
The lead time depends on the specific order quantity and model requirements. Please contact us for a detailed schedule.
4. What kind of warranty do you offer on your products?
We generally provide a 1-year warranty. Extended warranty options are also available upon request.
5. How are the products typically shipped?
Sample orders are usually shipped via international expresses like DHL, FEDEX, UPS, or TNT. For bulk orders, we arrange shipment according to customer preference.
6. Do you provide technical support after purchase?
Absolutely. Our professional team provides ongoing technical service and support for any issues you may encounter with our products.
