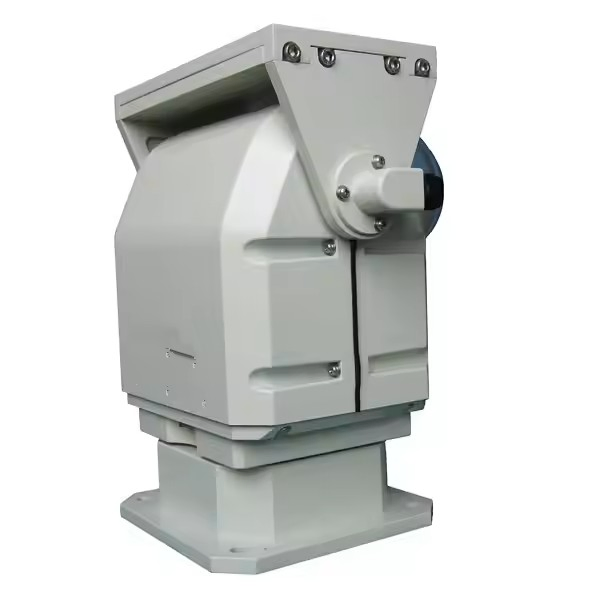

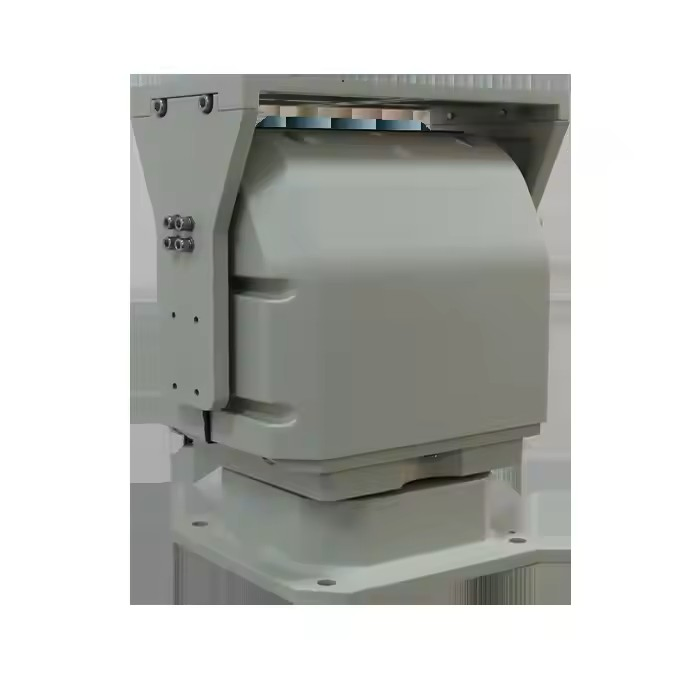

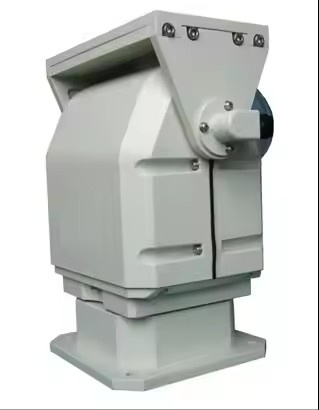

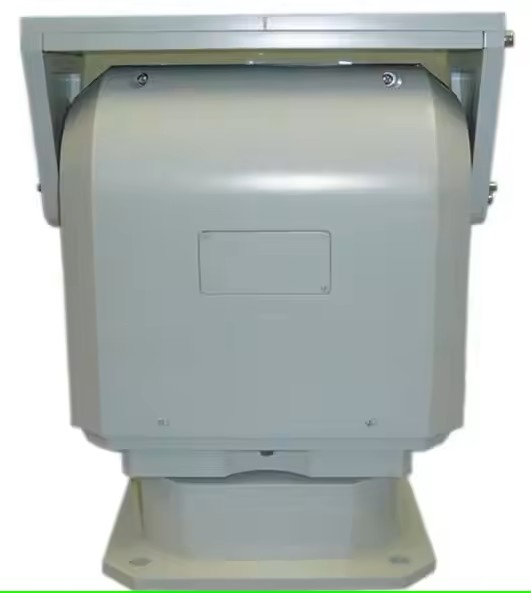

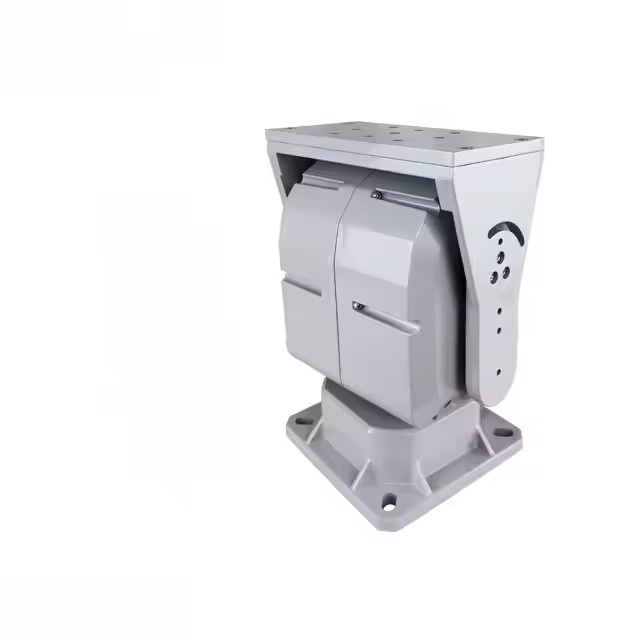

Intelligent High-Speed Pan-Tilt Unit Mg-2520, Fully Weatherproof

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

■

Basic Information

Model NO.

SHR-HNIR104Y

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Effective Distance

19km

Feature

Waterproof, High Definition, Vandal-proof

Detection Distance

Human: 13km, Vehicle: 19km

Protection Grade

IP66

■

Product Description

Vehicle Long Range Day Night IR PTZ Cooled Thermal Zoom Imaging Security Camera with LRF

This advanced surveillance system features a three-spectral imaging design, combining visible light clarity, long-range thermal detection, and wide-range laser night vision. It is engineered for extreme environments requiring high-precision monitoring over vast distances.

Continuous zooming thermal imaging technology for clear objective recognition in large areas.
Infrared detector with high temperature sensitivity (min resolution of 50mK).
Synchronous zooming laser illuminating system for monitoring in 0Lux complete darkness.
2 megapixels low illuminance color-to-black camera for 24/7 continuous monitoring.
MCIC multi-tube core fusion mixed mode light homogenization technology to eliminate speckles.
Supports fog penetration, backlight compensation, and multistage wide dynamic range.
3D locating function with frame selection magnification and click-to-center capability.
Professional rugged shell: anti-corrosion, waterproof, and anti-acid rain for harsh conditions.

■

Technical Specifications

Operating distance		Night vision / Day vision	3000m
Thermal Imaging	Detection Distance	Human (1.8m×0.5m) / Vehicle (2.3m×2.3m)	5040m
Thermal Imaging	Identification	Human / Vehicle	5040m
HD Lens	Focal length	12.5~750mm (FOV: 0.5°~17.8°)
Camera Sensor	Type	1/1.8" Progressive Scan CMOS, 2MP Resolution
Thermal Detector	Resolution	640x512 Uncooled FPA, 8~14μm Spectral Range
Pan-Tilt	Rotation	Horizontal 360° continuous, Pitching: -45°~+45°
Environment	Protection	IP66, Working Temp: -25ºC~+55ºC

■

Applications

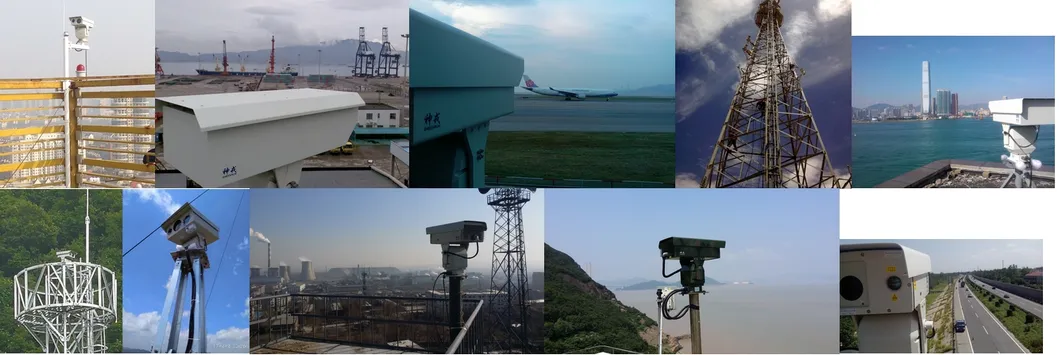

Designed for high-security environments including UAV detection and tracking, border defense, safe city monitoring, forest fire prevention, high-altitude surveillance, railway monitoring, harbor security, and oilfield protection.

■

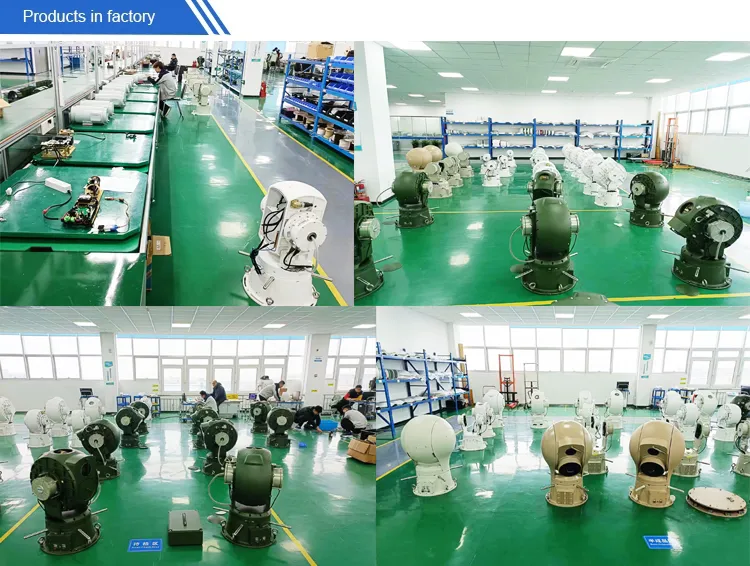

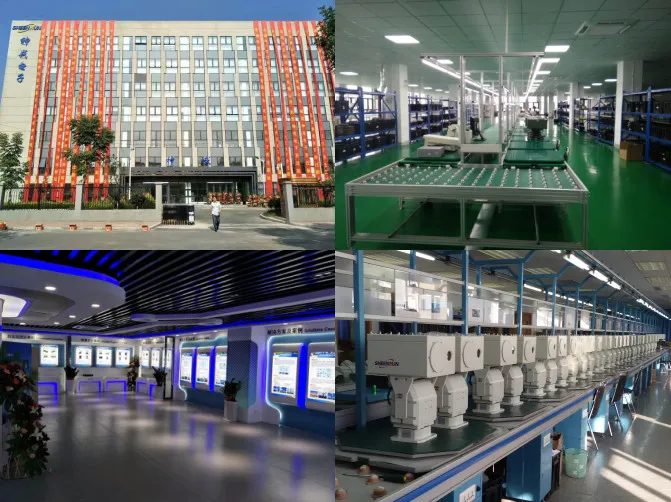

Production Capabilities

As a leading supplier of night vision and rugged information equipment, we focus on independent innovation. We developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems with full intellectual property rights. Our products are widely used in national defense, public safety, and industrial monitoring across more than 40 countries.

■

Frequently Asked Questions

What is the maximum detection range of this camera?

The camera can detect vehicles at a distance of up to 19km and humans at approximately 13km, depending on atmospheric conditions.

How does the laser night vision perform in total darkness?

The system uses a synchronous zooming laser illuminator that provides clear visibility in 0Lux complete blackness, reaching up to 3000m for night vision monitoring.

Is the device suitable for marine or coastal environments?

Yes, the camera is housed in a professionally designed shell that is anti-corrosion, waterproof (IP66), and resistant to acid rain, making it ideal for harbor and coastal monitoring.

Does the camera support intelligent tracking?

The camera features 3D locating functions, frame selection magnification, and is compatible with various UAV detection and tracking software systems.

Can the thermal imaging camera penetrate fog?

Yes, the device supports optical and digital fog penetration technologies, ensuring clear imaging even in heavy fog or haze conditions.

What is the power consumption and installation method?

The whole machine power consumption is ≤160W. It is designed for outdoor pedestal mounting for maximum stability during long-range rotation.
