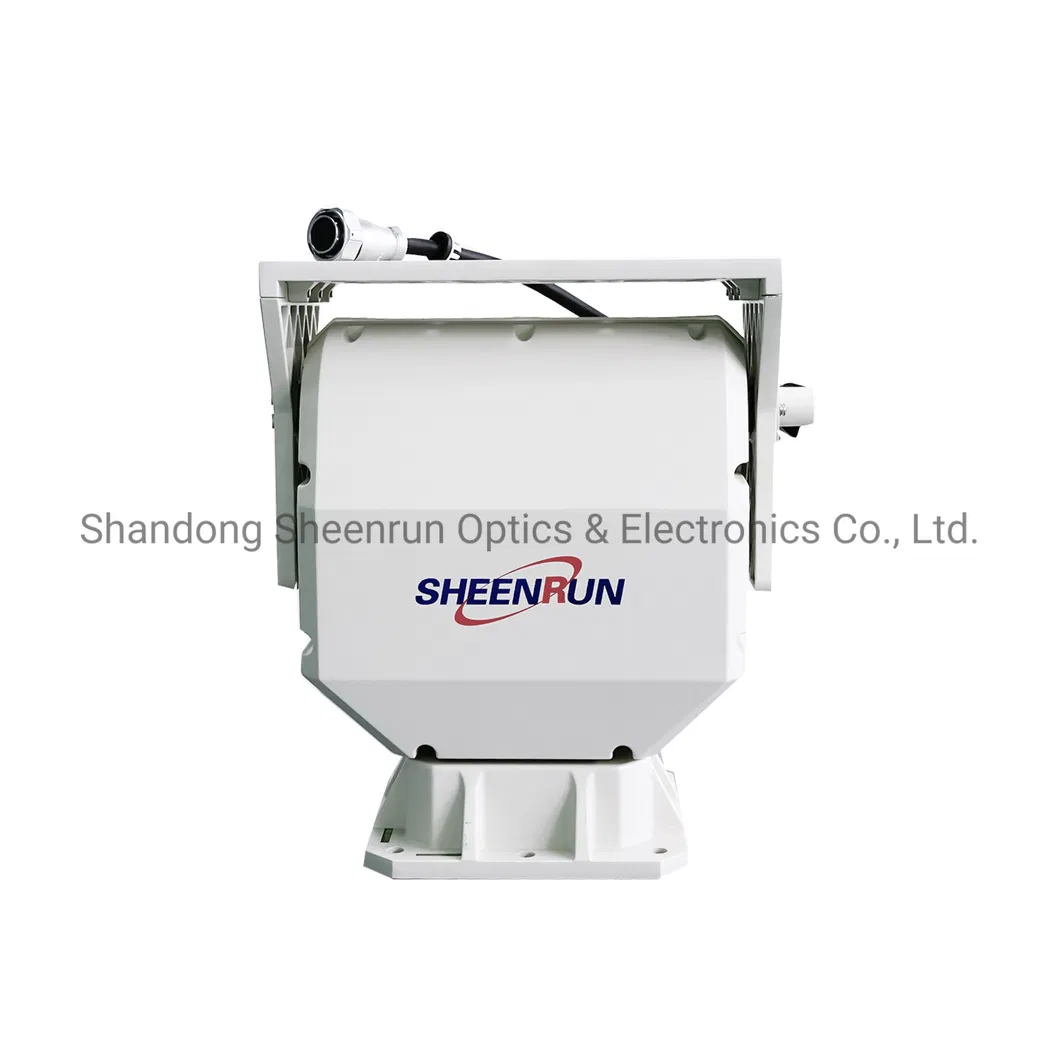

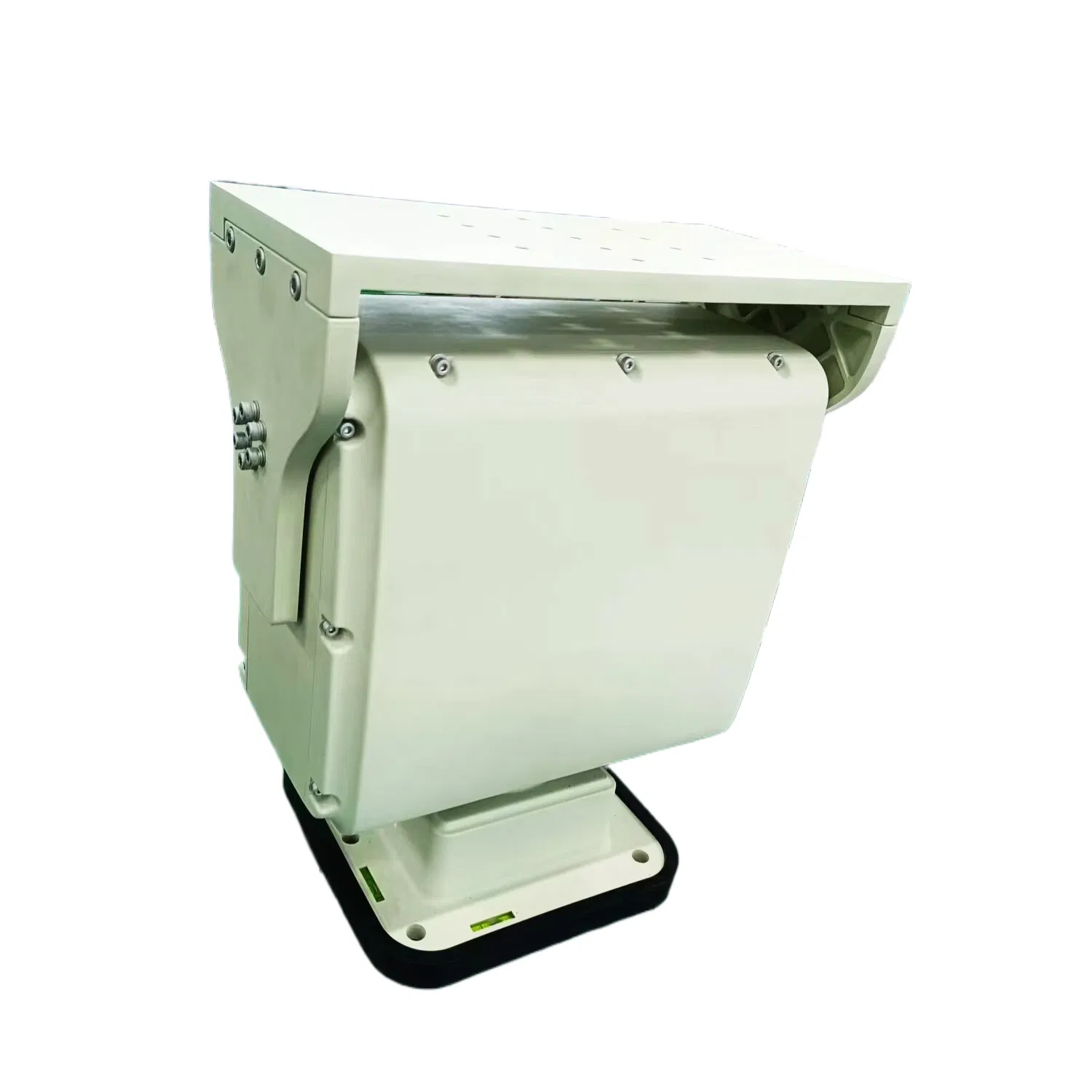

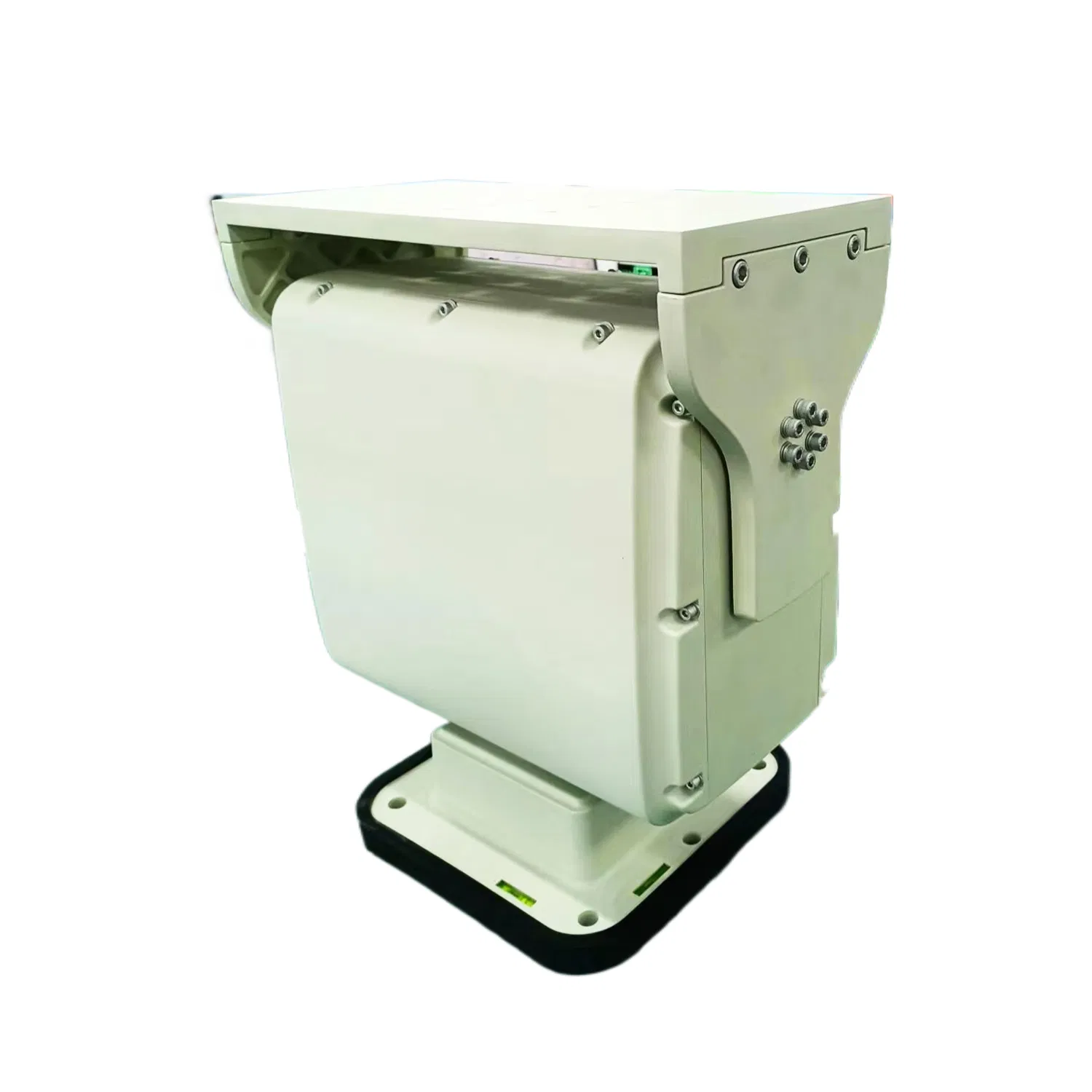

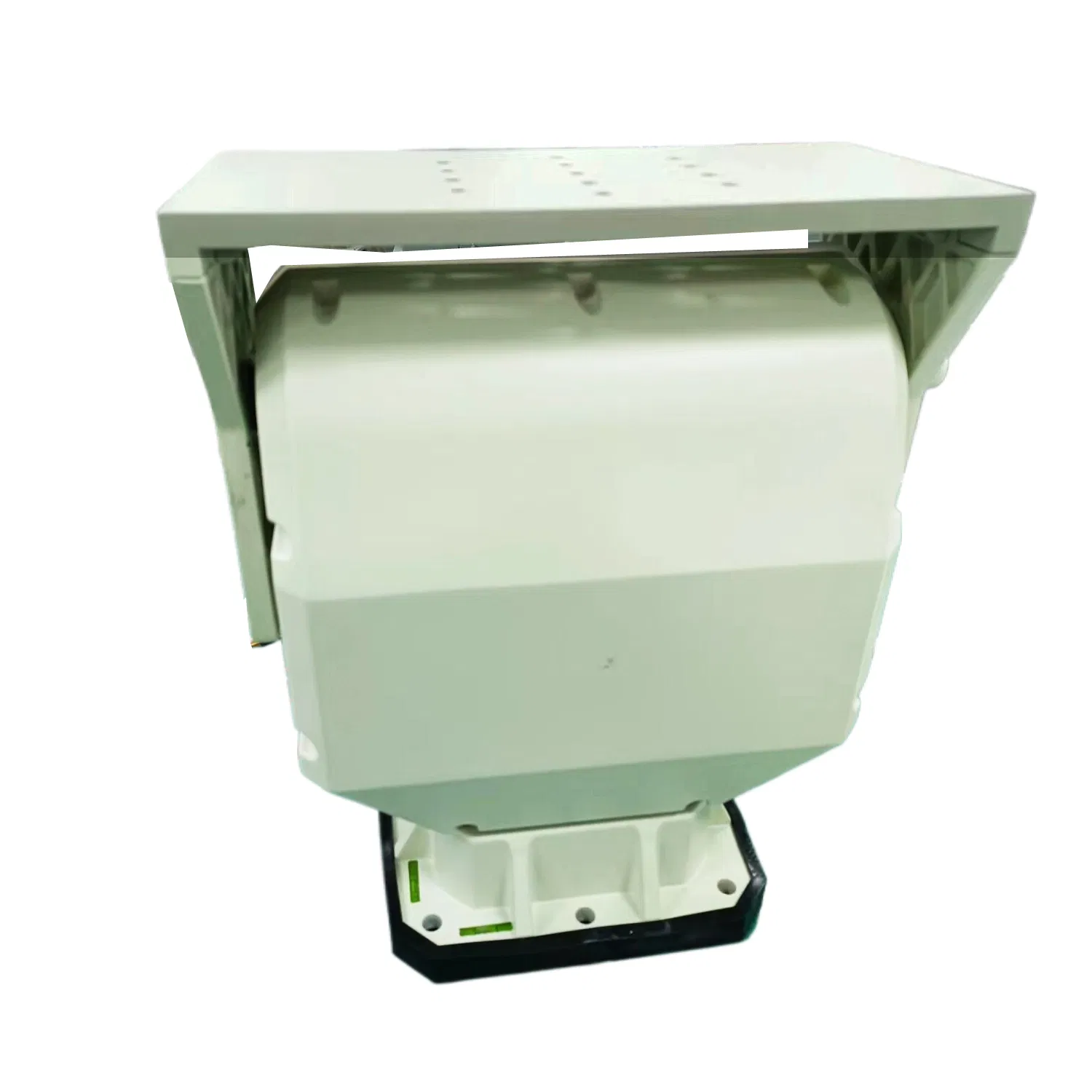

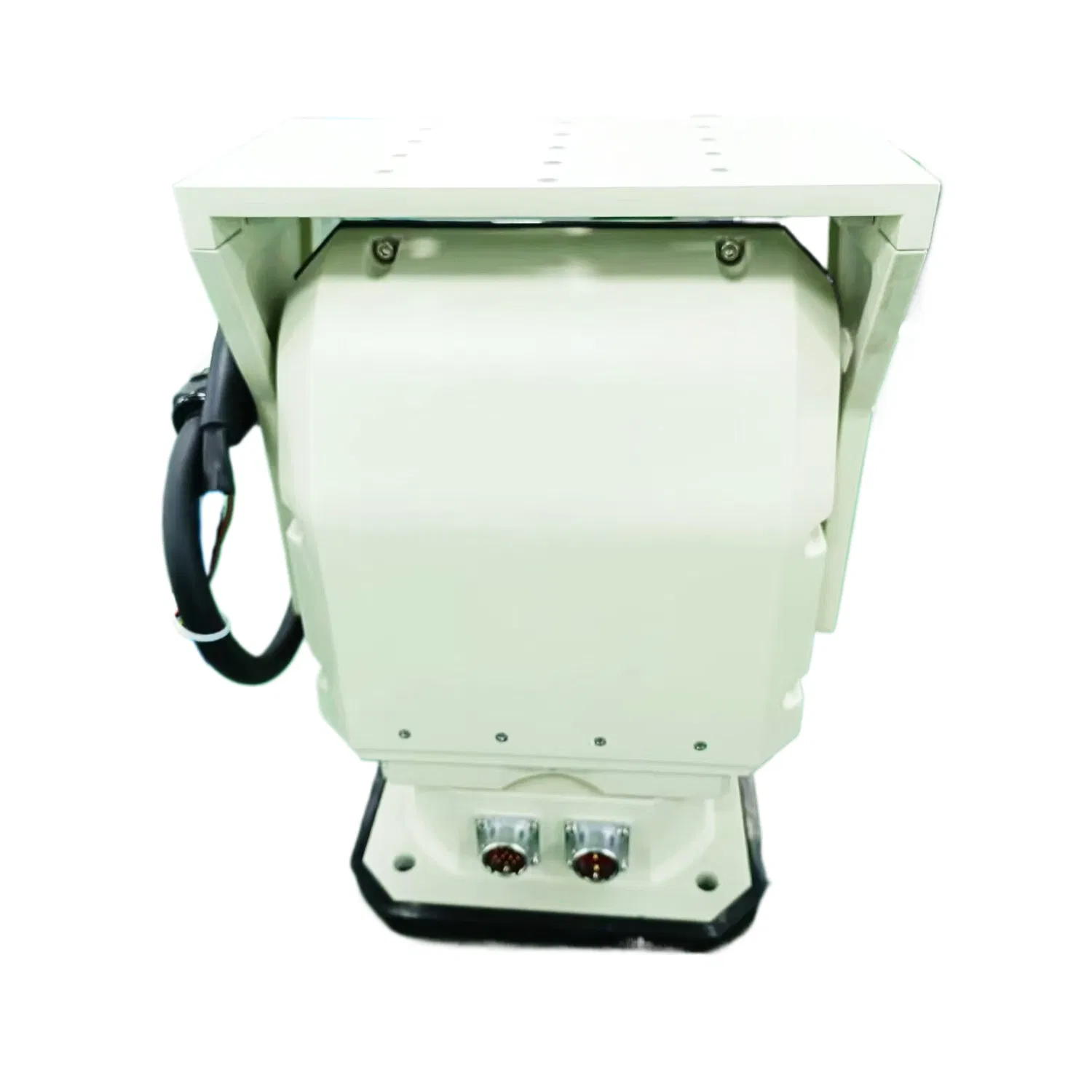

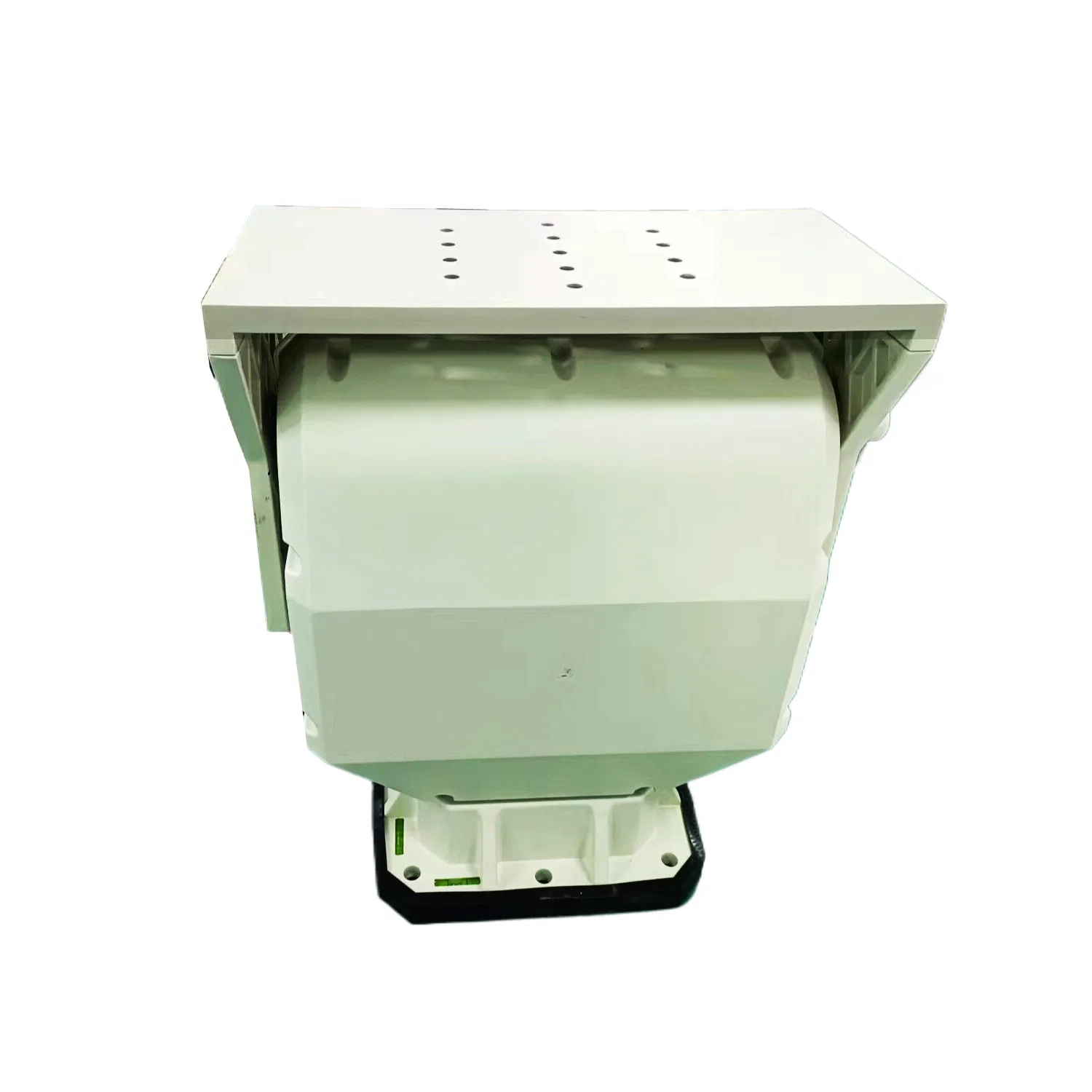

15kg Payload Intelligent Pan Tilt Motor RS485/RS422

Send Inquiry

Product Description

Model NO.

SP25

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

520tvl

Kind

Autofocus Lens

Certification

CE, FCC, RoHS, ISO9001: 2000

Effective Distance

≧30m

Sensor Size

1/3 inch

Rotate Speed

Pan 0.1°~15°/S; Tilt 0.1°~15°/S

Rotate Angle

Pan 0~360°; Tilt +20°~-60°

Protection Grade

IP66

◈

Heavy Duty: Load capacity up to 20Kg.

◈

Self-Adaption: Supports multiple types of lenses (FUJINON, COMPUTAR, KOWA).

◈

High Precision: Positioning accuracy reaches ±0.1°.

◈

Durable Shell: High-strength aluminum alloy with auto-lock when powered off.

◈

Full Rotation: Pan 360° continuously; multiple tilt options (±60°, ±45°, ±30°).

◈

Smart Functions: Supports OSD menu and position/focal length feedback.

Presetting Bits	255 positions
Interface	RS422 / RS485
Protocol	Pelco-D, Pelco-P (Baud Rate optional)
Baud Rate	2400/4800/9600/19200 bps
Input Power	AC24V±20%, 50/60Hz; DC28V±20%
Power Consumption	≤40W
Operation Temperature	-30ºC to +55ºC (-40ºC to +65ºC optional)
Protection Grade	IP66
Load Way	Top-mounted / Side-mounted
Weight	11.5Kg
Dimensions	265mm × 180mm × 315mm (L×W×H)
