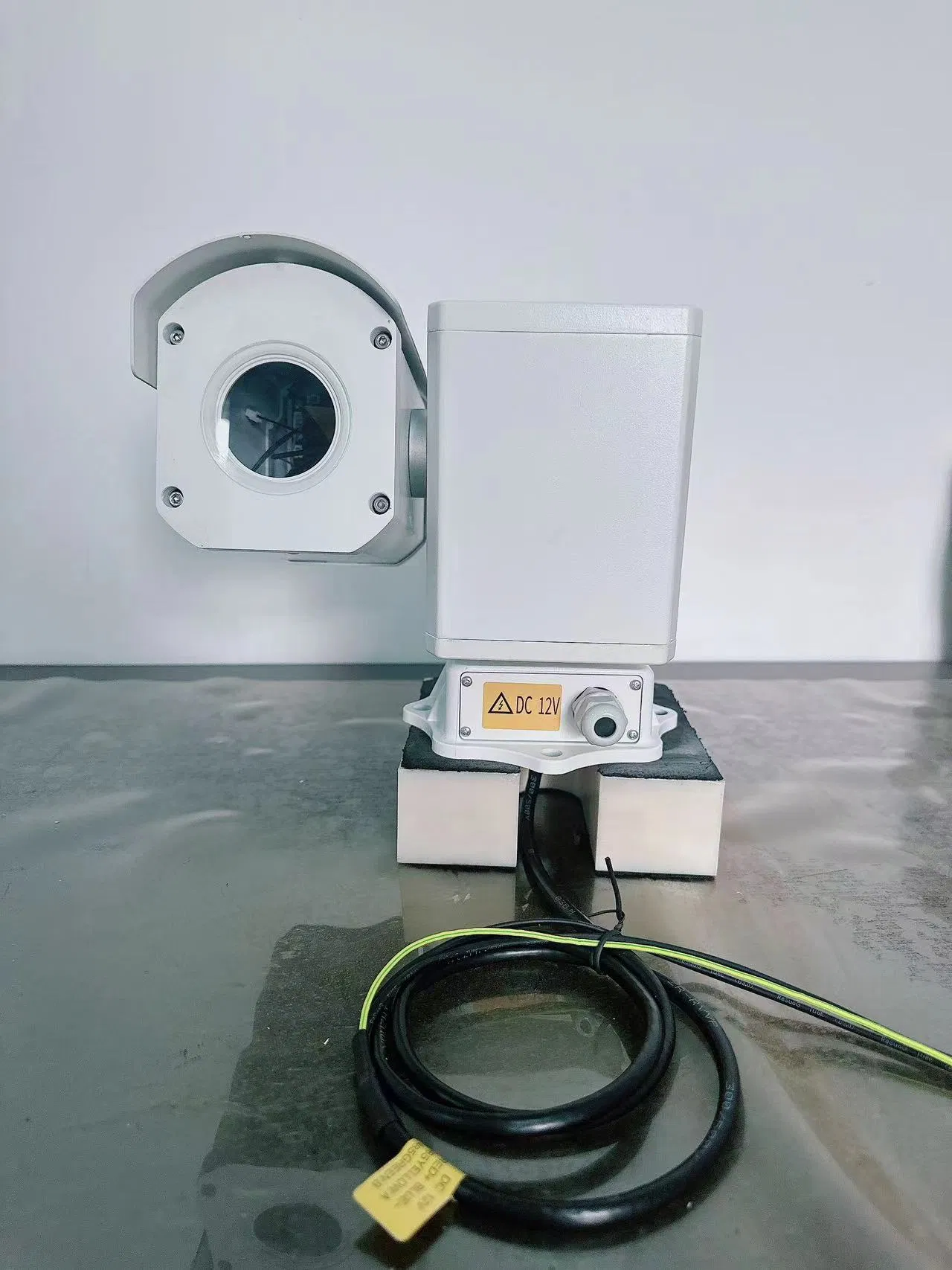

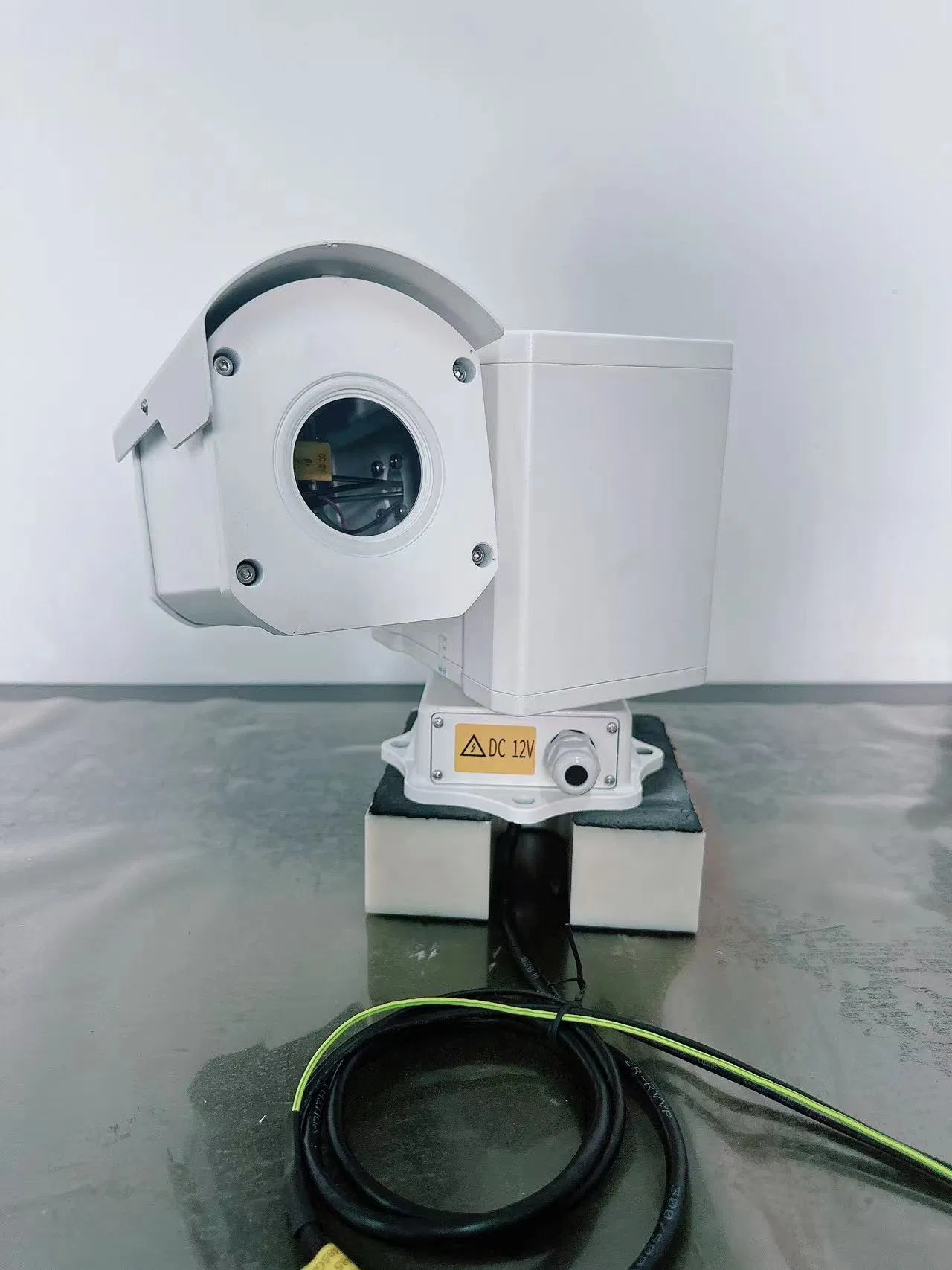

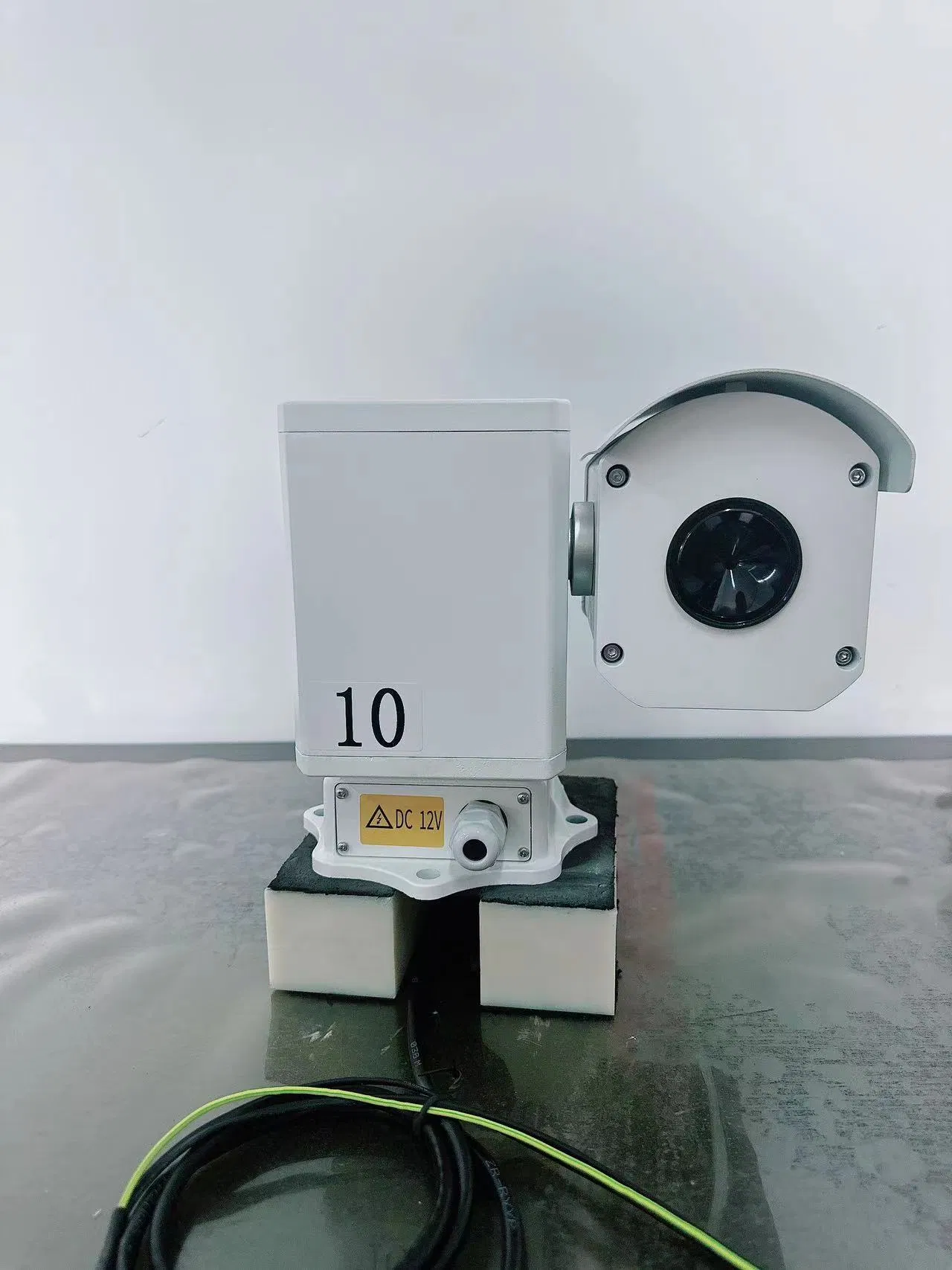

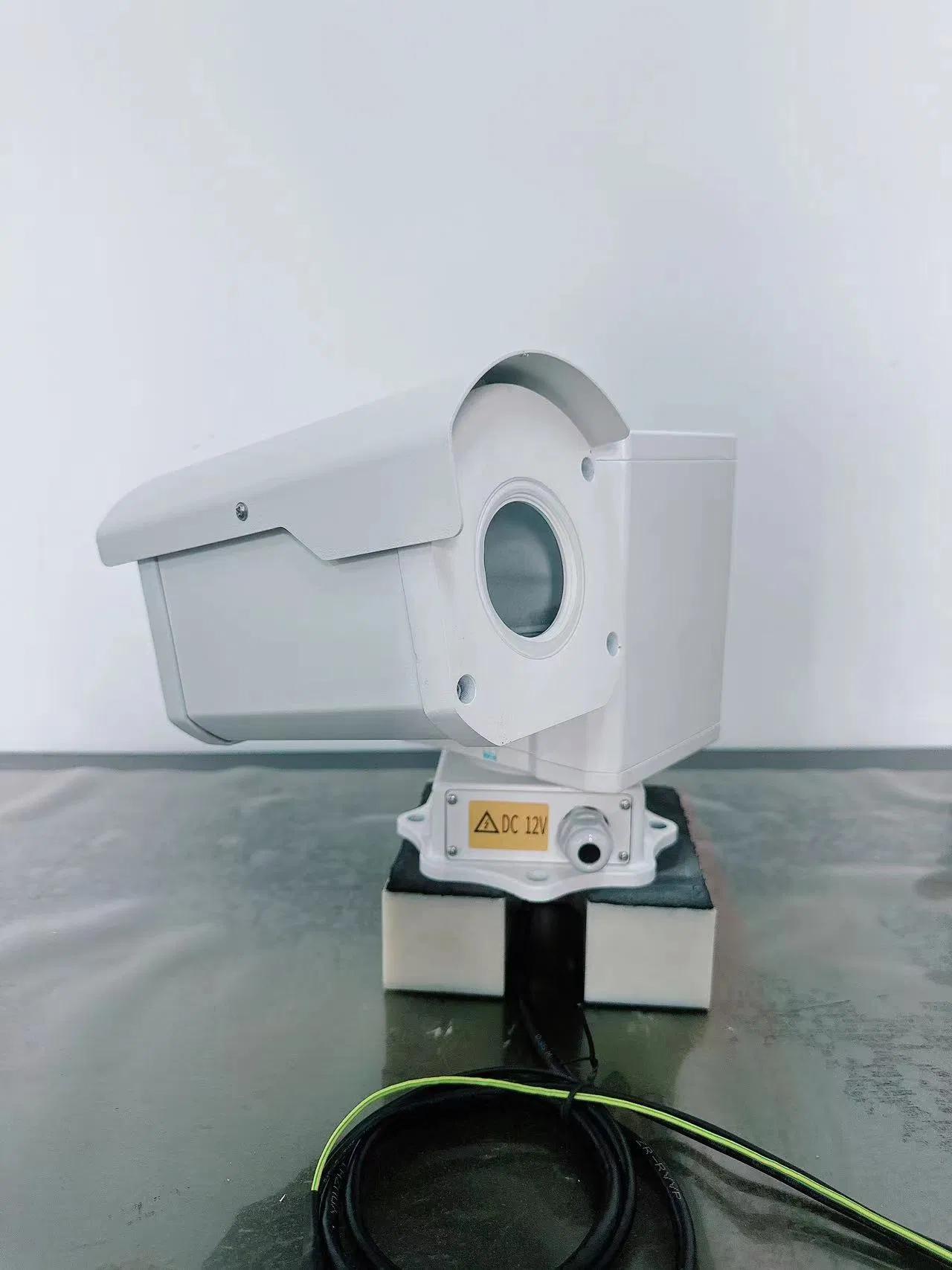

Sideloading High Speed Outdoor Pan Tilt Head

Basic Information

Model NO.:3020

Type:IP Camera

Sensor:CMOS

HDMI Format:720P

Certification:ISO9001: 2000

Effective Distance:≧30m

Feature:Waterproof, High Definition, Mini Size

Sensor Size:1/4 inch

Remote Control:With Remote Control

Package:Carton Box

Origin:Hebei

Capacity:5000PCS/Year

Product Description

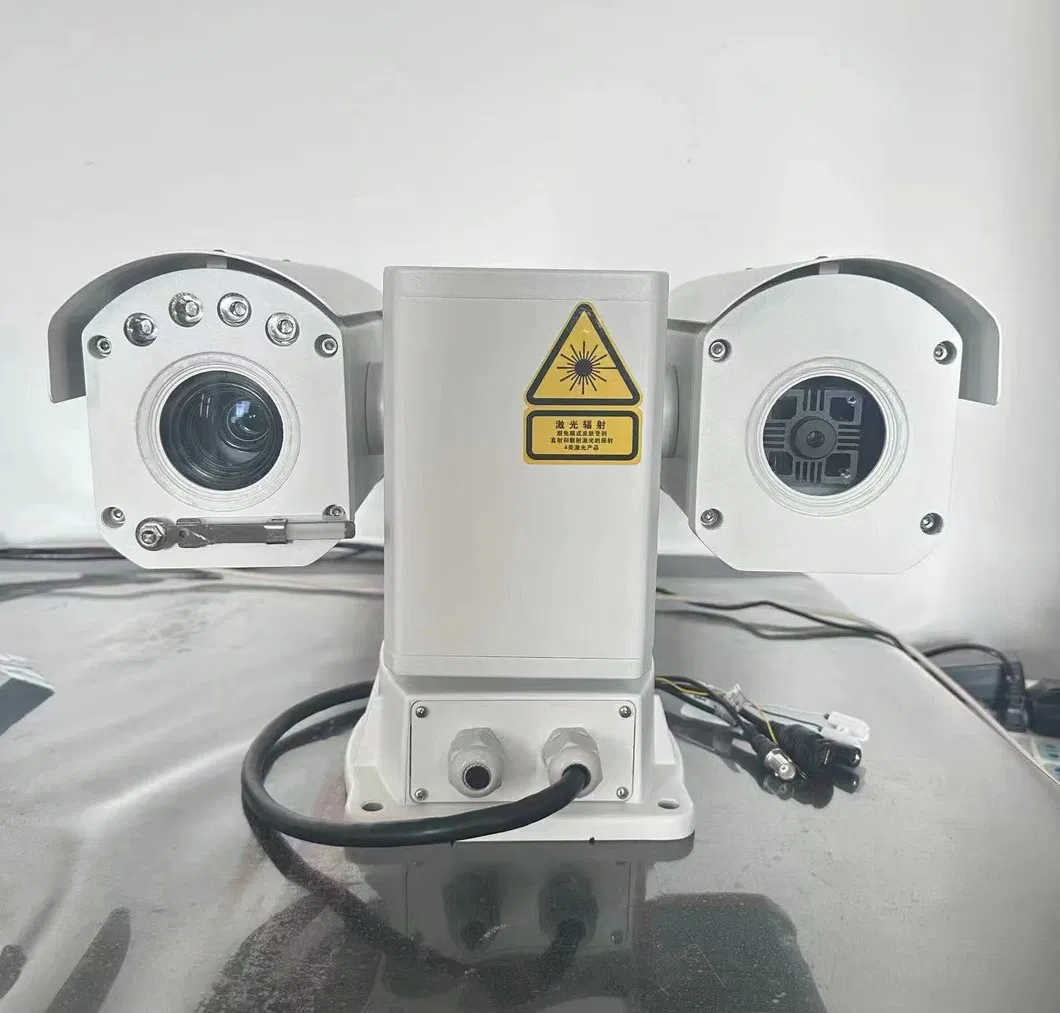

Laser bird repellent high-speed outdoor pan tilt head with intelligent AI camera

Sideloading High Speed Outdoor Pan Tilt Head

Key Features

Achieve a maximum horizontal rotation speed of 100 °/s for rapid target tracking.
Auxiliary lighting equipment for superior night monitoring results.
Linkage function between camera and light source for automated control.
Compact and novel design suitable for individual combat systems.
HR-AI2033TB camera model automatic recognition.
Safety limit column ensures secure pan tilt head operation.
Integrated wipers for clear images and clean windows.
Equipped with ultrasound for enhanced bird repelling effects.
Built-in loudspeaker for departure warnings and real-time site shouting.
Mirror laser with large scanning amplitude and wide light spot coverage.

Technical Specifications

Model	3020
Power Supply	DC9V-DC18V / DC24V-DC36V
Peak Power	<40W (Normal work <20W)
Rotation Angle	Horizontal: 0~360°; Vertical: -90°~+90°
Rotation Speed	Horizontal: 0.1°/s~100°/s; Vertical: 0.1°/s~50°/s
Communication	RS485 (Pelco-D Protocol)
Baud Rate	2400/4800/9600/19200bps
Presets	200 pcs
Protection Rating	IP67 Waterproof
Operating Temp	-40ºC~+65ºC; Humidity < 90% RH
Material	Aluminum alloy
Dimensions	363mm * 220mm * 262mm (8KG)

Visual Overview

Frequently Asked Questions

Q: What is the maximum rotation speed of the pan tilt head?

The device achieves a maximum horizontal rotation speed of 100°/s and a vertical speed of up to 50°/s, allowing for rapid target tracking.

Q: How does the laser bird repellent function work?

It utilizes a mirror laser with a large scanning amplitude and wide coverage range to effectively repel birds. It can also be paired with ultrasonic sound and a loudspeaker for enhanced results.

Q: Is this camera suitable for harsh outdoor environments?

Yes, the device is made of durable aluminum alloy, has an IP67 protection rating, and can operate in temperatures ranging from -40ºC to +65ºC.

Q: Does the system retain its settings after a power failure?

Yes, it features Power Failure Memory. Once power is restored, the gimbal automatically resumes the action (preset, patrol, or scan) it was performing before the interruption.

Q: What are the lighting capabilities for night monitoring?

The system supports infrared lamps (100m range), white light lamps (80m range), and laser lighting (300m range) to ensure clear monitoring in total darkness.

Q: What is the lead time for standard orders?

For orders between 1 to 10 pieces, the standard lead time is approximately 7 days. Larger quantities are subject to negotiation.
