IP66 Heavy-Load Rotation Outdoor Pan Tilt

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Specifications

Model NO.

SHR-SP2510

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001

Feature

Waterproof, High Definition, Mini Size

Protection

IP66

Distance

≧30m

Production Capacity

100

Product Features

★ Supports various Lens preset functions for efficient monitoring.

★ High-speed Pan/Tilt capability reaching up to 60º/s.

★ Extreme precision with resetting accuracy up to ±0.1º.

★ Durable construction using die-cast aluminum alloy material.

★ High-precision gear-driven system with self-locking when power is off.

★ Continuous 360-degree pan rotation for full coverage.

★ IP66 Protection Class for reliable outdoor performance.

★ Optional real-time data return for position and focal length.

Technical Parameters

Model	SP2510	SP2515	SP2520
Load Capacity	10kg	15kg	20kg
Rotate Speed	Pan: 0.01º~60º/s Tilt: 0.01º~30º/s	Pan: 0.01º~45º/s Tilt: 0.01º~15º/s	Pan: 0.01º~20º/s Tilt: 0.01º~10º/s
Rotate Angle	Pan: 0~360°; Tilt: +20° ~ -60°
Presetting Bits	Total 255 (200 Settable presets)
Precision	Can reach ±0.1°
Protocol	Pelco-D, Pelco-P (Baud Rate optional)
Interface	RS485 (angle query return) / RS422 (real-time return)
Input Power	DC28V ± 20% / AC24V ± 20%, 50/60Hz
Operation Temp.	-25ºC to +65ºC
Protection Grade	IP66
Size	265mm × 180mm × 315mm

Our Services

• Warranty: Standard one-year warranty with extended options available.

• Technical Support: Life-long support from our professional technical and sales teams.

• OEM Services: We accept OEM requirements to meet your branding needs.

• Customization: Fully customized products tailored to specific project specifications.

Product Gallery

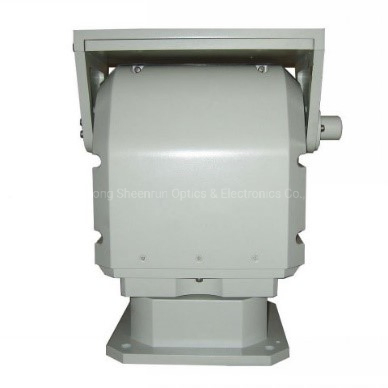

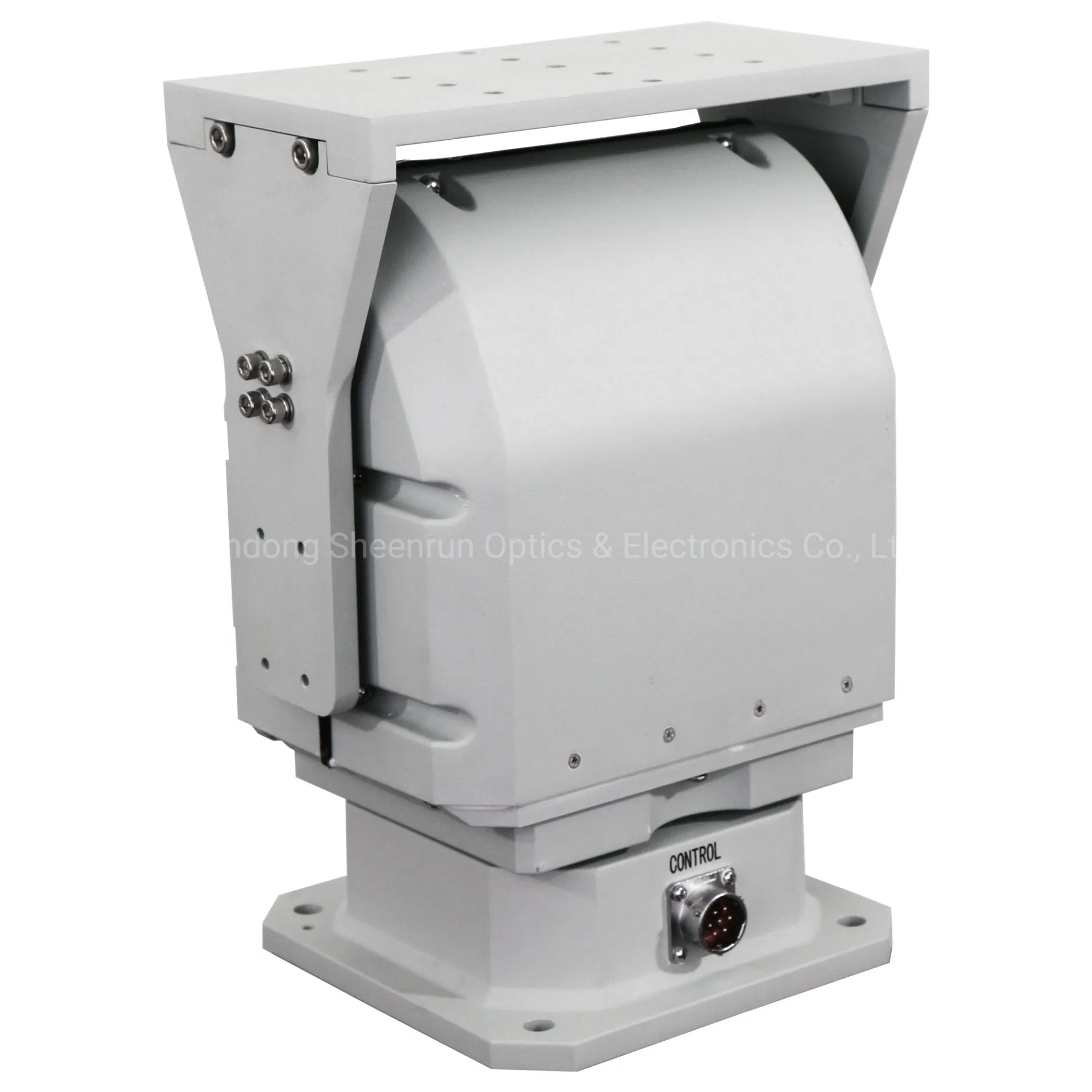

IP66 Heavy-Load Rotation Outdoor Pan Tilt

Frequently Asked Questions

What is the maximum load capacity for this series?

The series offers three load capacities: 10kg (SP2510), 15kg (SP2515), and 20kg (SP2520) to suit different camera and lens configurations.

Is this pan-tilt unit suitable for extreme outdoor weather?

Yes, it features an IP66 protection rating and is designed to operate in temperatures ranging from -25ºC to +65ºC, making it ideal for harsh environments.

How many preset positions can be configured?

The system supports up to 255 presetting bits in total, with 200 of them being user-settable for automated surveillance paths.

Does the unit maintain its position during a power failure?

Yes, the unit adopts high-precision gear-driven technology that is self-locked when the power is off, ensuring the camera stays in position.

What control protocols are supported?

The device supports standard Pelco-D and Pelco-P protocols with optional baud rates (2400/4800/9600/19200 bps) via RS485 or RS422 interfaces.

Can it return real-time position data?

Yes, there is an optional function to return data regarding pan-tilt position, focal length, and focus for advanced integration requirements.
