Pan ≥ 50°/S, Tilt 50°/S Lightweight Design 3-Axis Stabilized Payload

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

📋

Basic Specifications

Model NO.

FLYIR-TZ130-TAFN

Type

IP Camera

Sensor

CMOS

Resolution

650tvl / 1920x1080

Lens Type

Autofocus Lens

Certification

ISO9001: 2000

Feature

Waterproof / Weatherproof

Detector Type

Uncooled Focal Plane

Operating Voltage

24 VDC

Stabilization

≤ 0.1mrad (1σ)

🔍

Product Overview

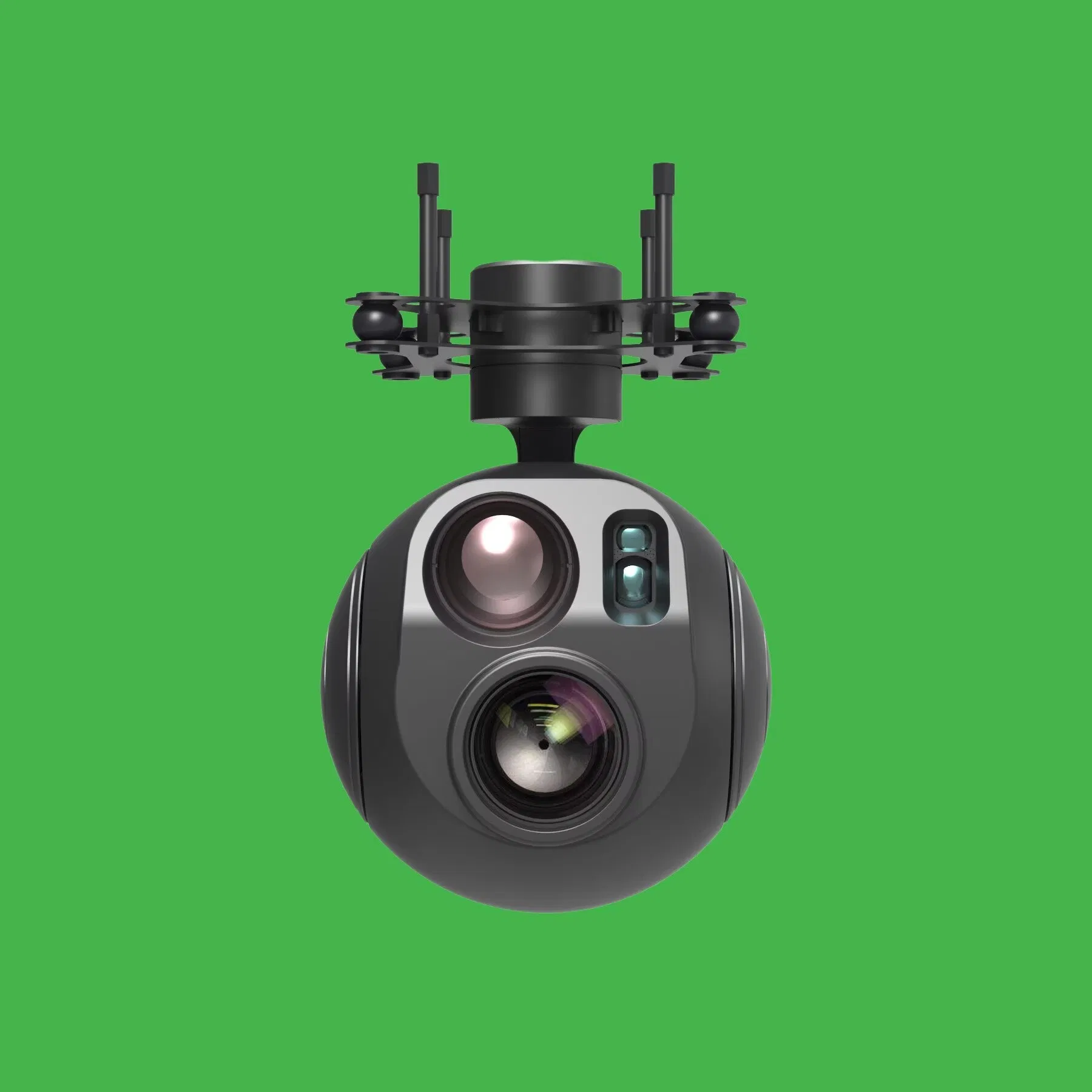

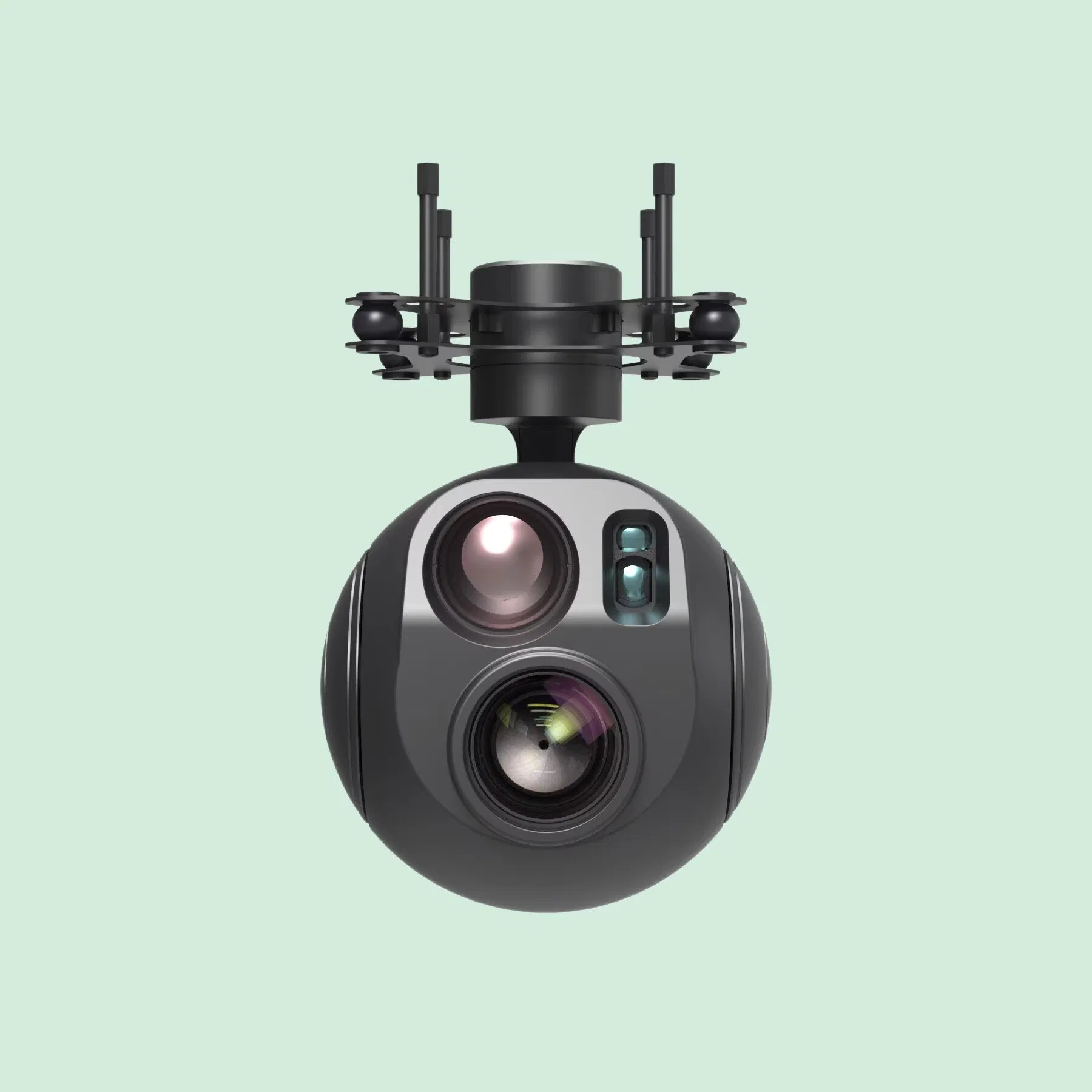

The FLYIR-TZ130-TAFNV233T635L121 Electro-Optical Pod integrates an uncooled infrared thermal imager, a 33x continuous zoom visible light camera, a laser rangefinder, a three-axis servo-stabilized platform, and image processing components with autonomous recognition and tracking capabilities.

Characterized by its light weight, high stabilization accuracy, and high integration, it is designed for deployment on medium and small unmanned aerial vehicles (UAVs) to perform day-and-night reconnaissance and surveillance missions.

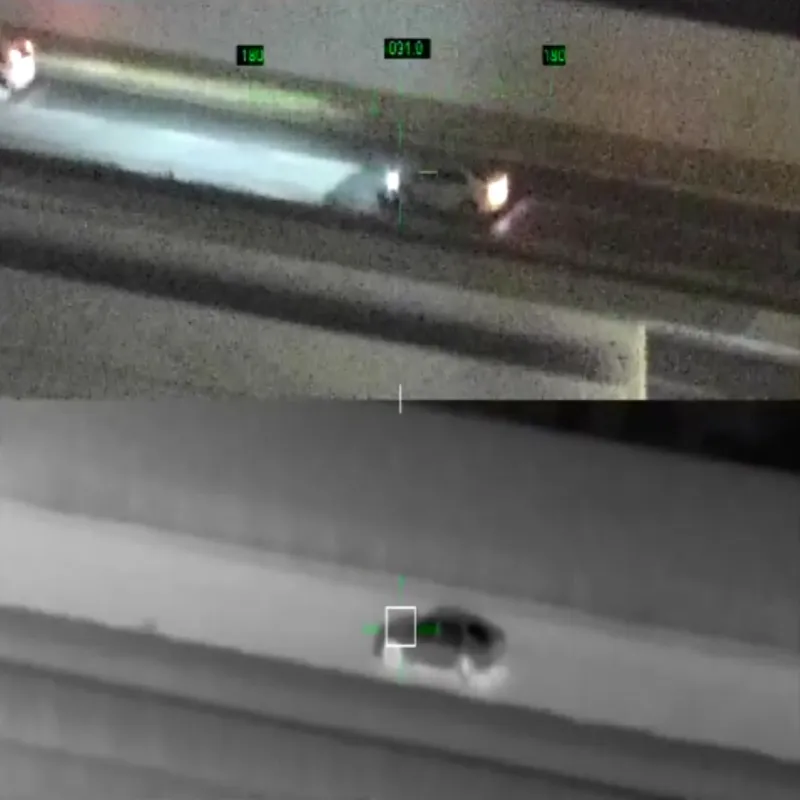

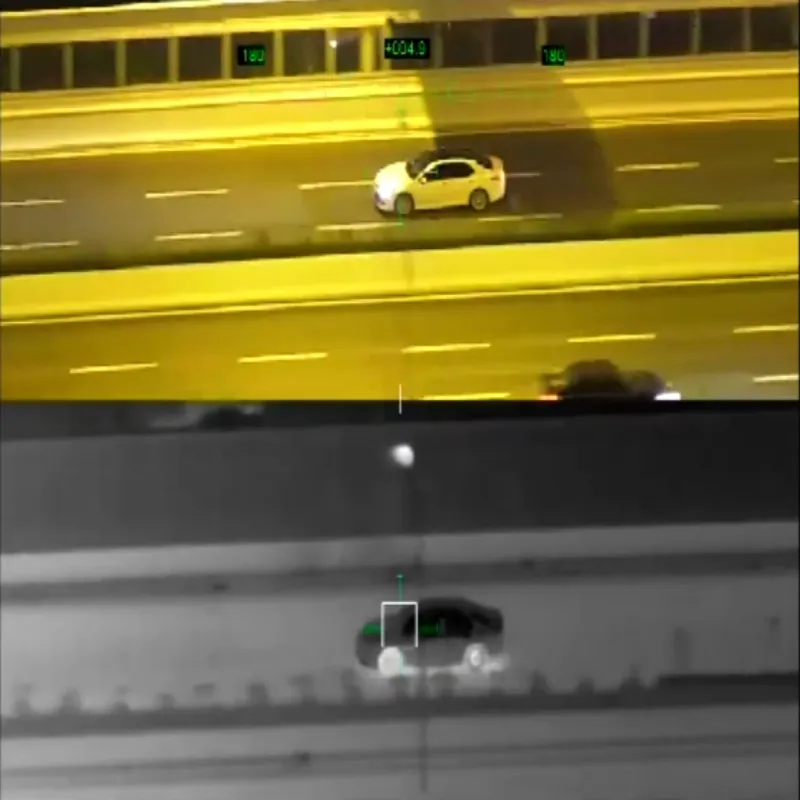

Utilizing both infrared and visible light sensors, the pod provides all-weather detection and real-time video streams. It is ideally suited for reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.

⚙️

Key Functions

Automatic target identification and tracking
Built-in self-test and fault reporting
33x optical zoom with auto focus
Dual-band long-wave infrared & visible light output
Integrated laser rangefinding function
Fog penetration and low illumination capabilities
Digital zoom (1.0x to 4.0x) for infrared camera
Three degrees of freedom: azimuth, elevation, and roll
Multiple modes: course lock, manual search, tracking
Memory tracking for temporary target loss
Target coordinate calculation via UAV data
HD-SDI and 100M Ethernet video interfaces

🖼️

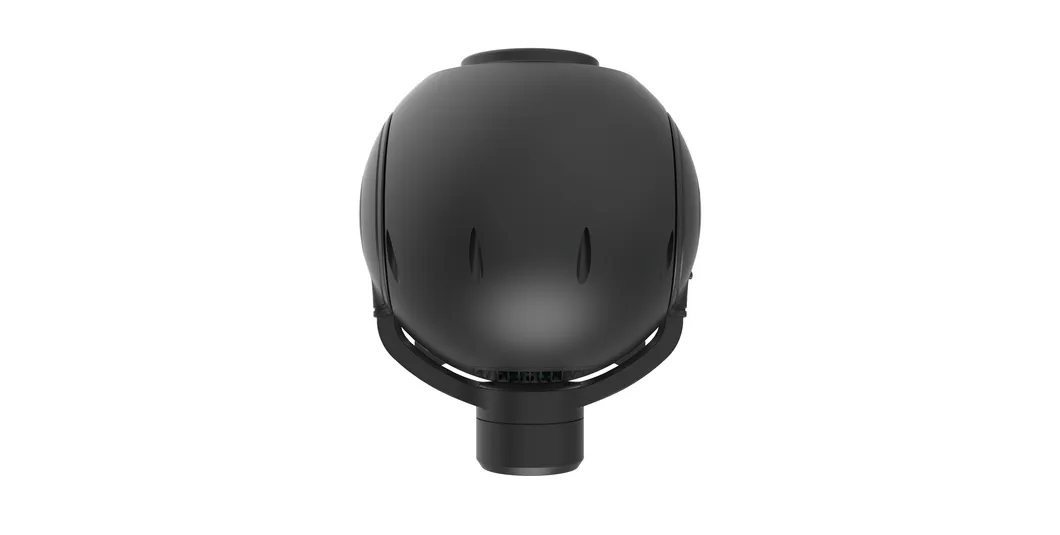

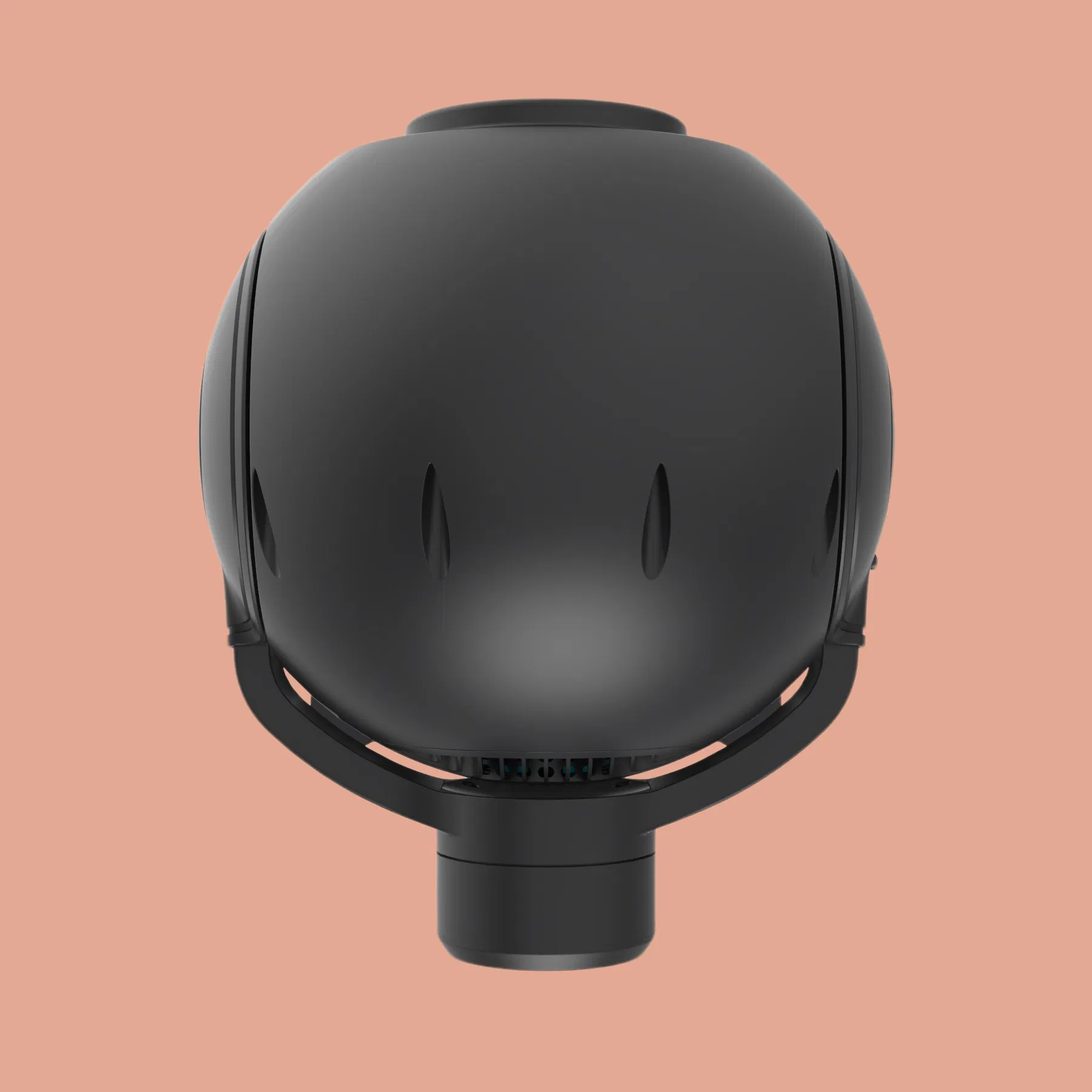

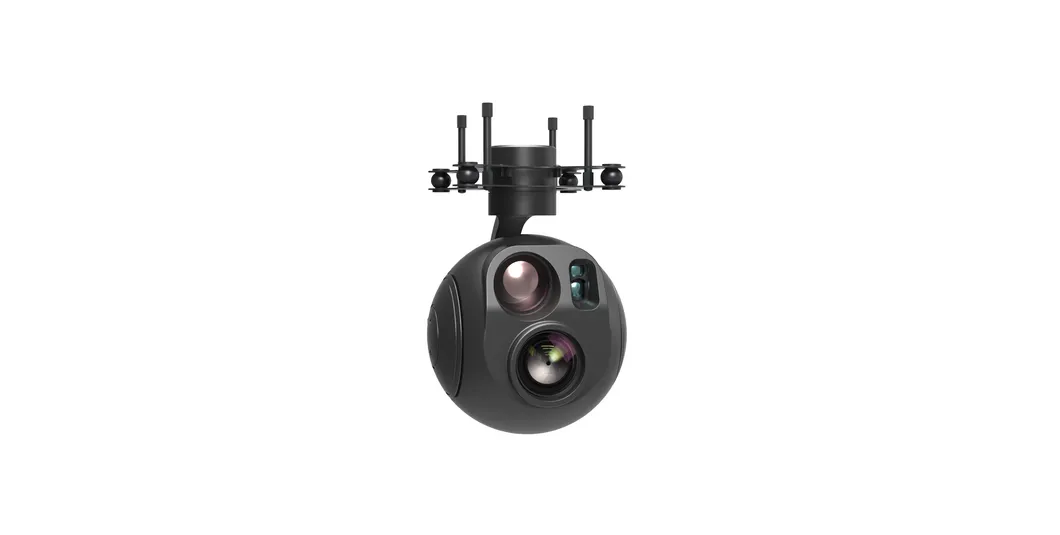

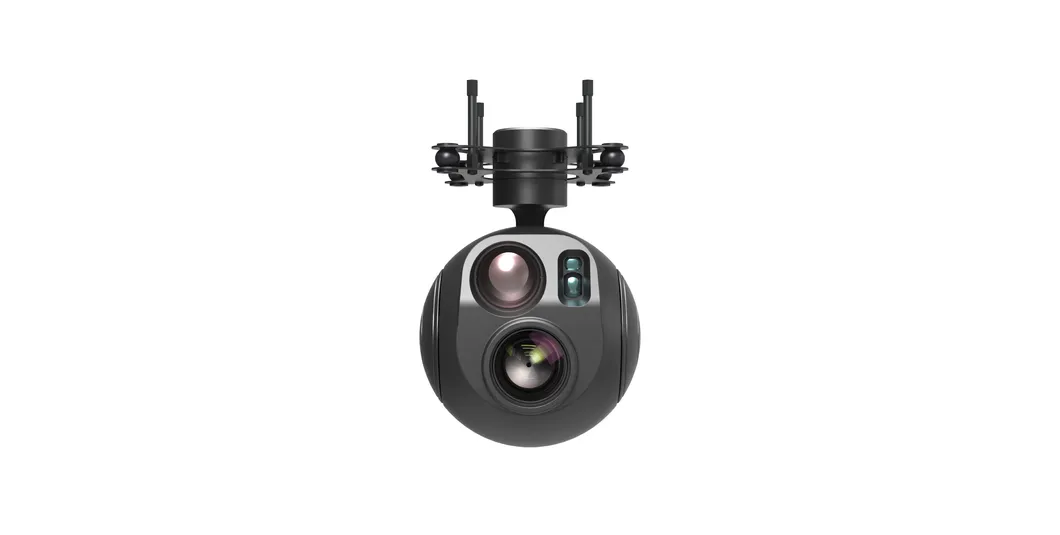

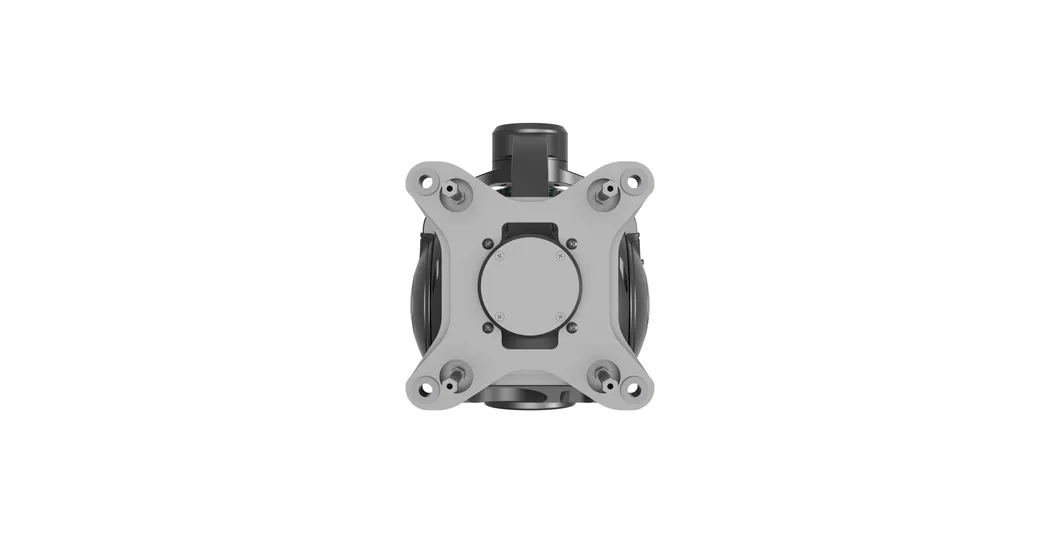

Physical Product Gallery

📊

Typical Performance Data

Category	Parameter	Specification
Infrared Imager	Detector Resolution	640 × 512
	Spectral Band	8μm ~ 14μm
	Focal Length	35mm
	NETD	≤ 50mK
Visible Camera	Resolution	1920 × 1080
	Optical Zoom	33x
	Focal Length	4.8mm ~ 158mm
	Min Illumination	0.01 Lux
Laser Rangefinder	Wavelength	905nm
	Max Range	≥ 1.2km
	Accuracy	≤ 1m
Servo Platform	Pan Range	360° Continuous
	Tilt Range	-110° ~ +90°
	Stabilization	≤ 0.1mrad (1σ)
System Specs	Weight	≤ 1.1 kg
	Dimensions	≤ 130mm × 153mm × 188mm
	Power Consumption	Stable: ≤ 30W

❓

Frequently Asked Questions

What is the main advantage of the 3-axis stabilization?

The 3-axis servo-stabilized platform isolates disturbances from the UAV platform, achieving a stabilization accuracy of ≤ 0.1mrad for clear, steady imaging during flight.

Can this pod track targets automatically?

Yes, it features autonomous recognition and automatic tracking capabilities for typical ground targets with memory tracking to re-acquire targets after brief losses.

What is the zoom capability of the visible light camera?

The visible light camera provides a 33x continuous optical zoom, allowing for detailed surveillance from significant distances.

Is the pod suitable for night operations?

Absolutely. The integration of a 640x512 uncooled infrared thermal imager ensures high-performance detection and recognition during night-time and low-visibility conditions.

What are the environmental protection levels?

The pod is designed to be weatherproof and is capable of operating in light rain environments with an operating temperature range from -20ºC to +55ºC.

How does the laser rangefinder assist in missions?

The laser rangefinder can measure distances up to 1.2km and works with UAV attitude data to calculate precise target coordinates in real-time.
