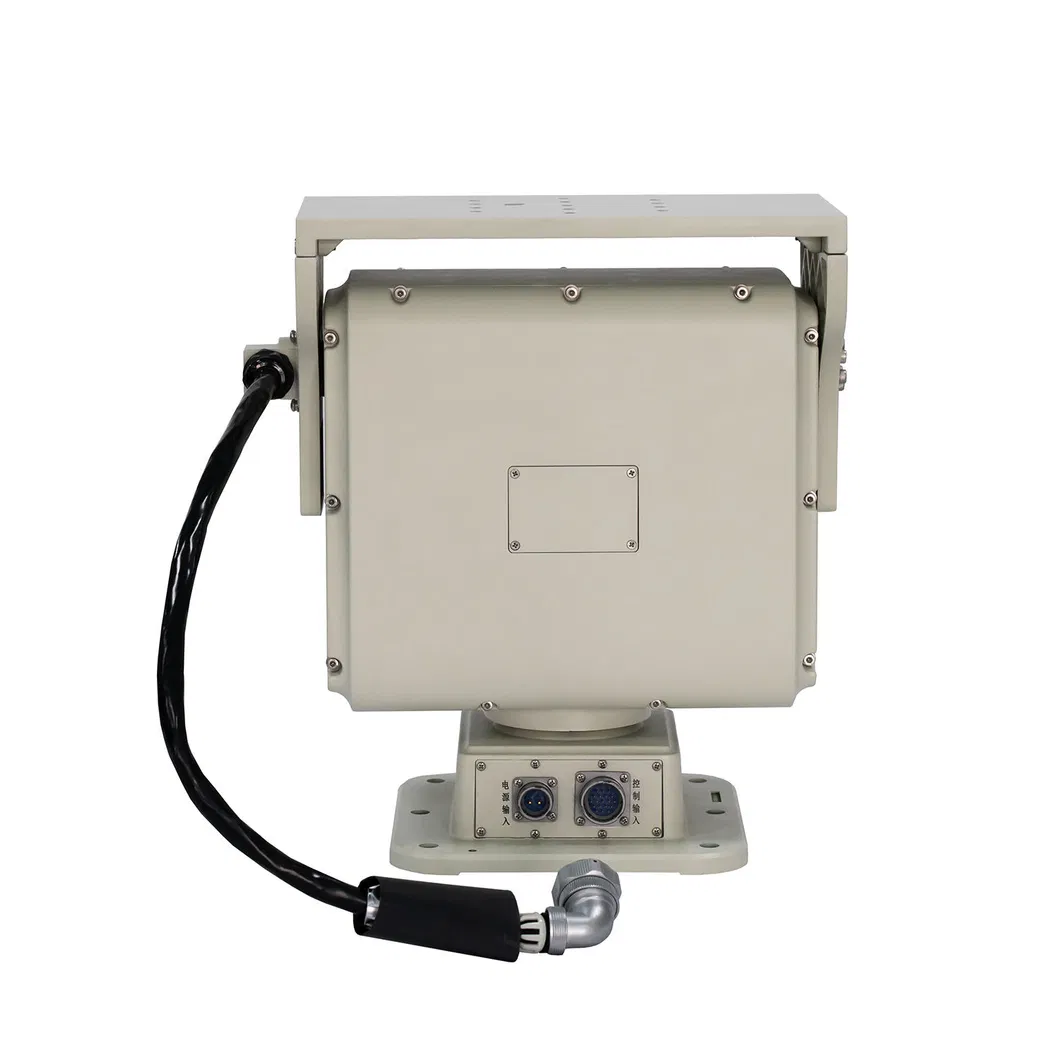

Hot Selling Outdoor CCTV Motor Pan Tilt DC12V Pan Tilt Motorized

1 / 5

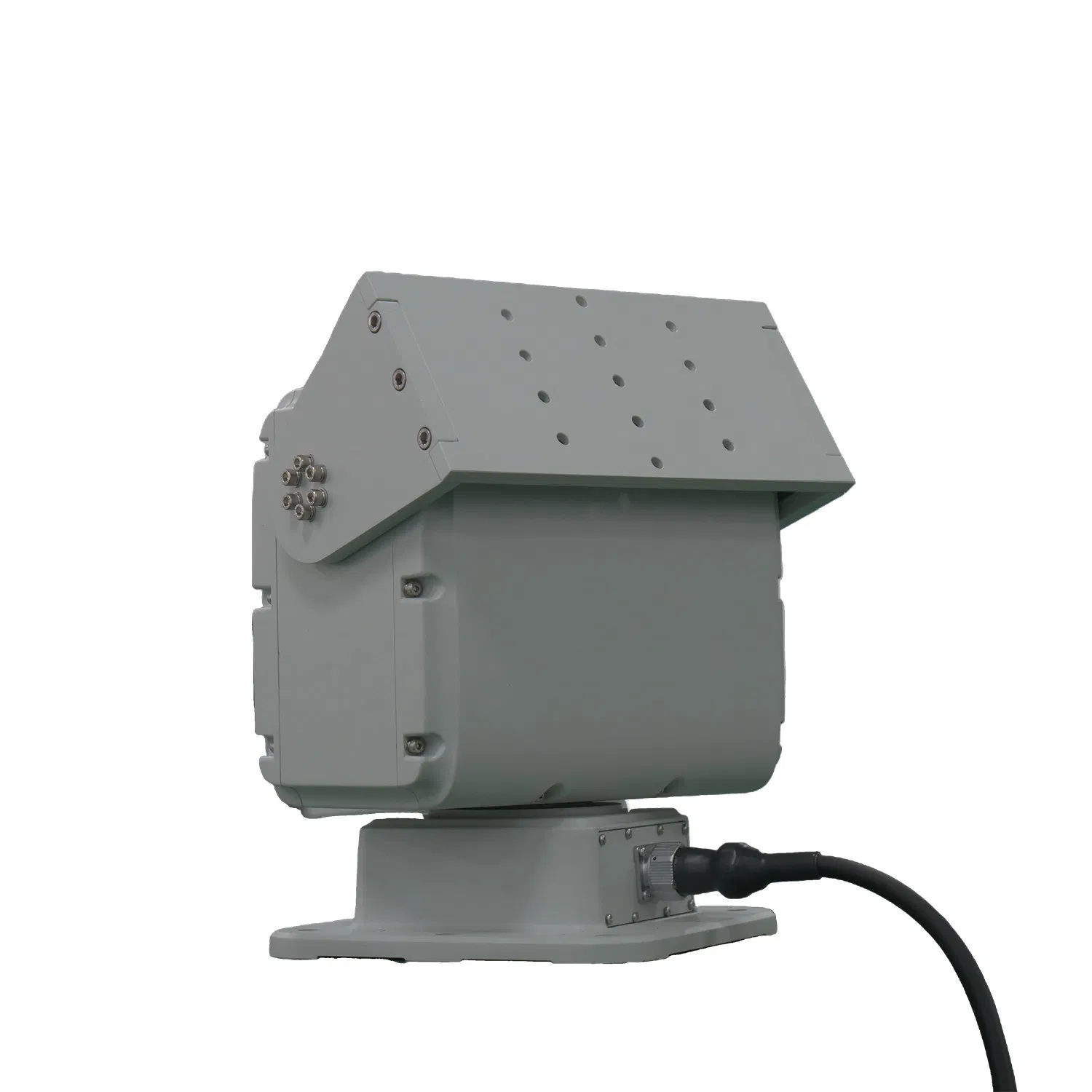

Hot Selling Outdoor CCTV Motor Pan Tilt DC12V Pan Tilt Motorized

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

General Overview

Model NO.

SP2510

Type

IP Camera / Pan Tilt Motor

HDMI Format

1080P

Protection Class

IP66

Effective Distance

≧30m

Max Load

10kg (Up to 20kg optional)

Rotation Speed

Pan 0.01-60º/s

Dimensions

265mm * 180mm * 315mm

Key Features

✦Support kinds of Lens preset function

✦Pan tilt speed can reach up to 60º/s

✦High resetting accuracy, up to ±0.1º

✦Die-cast aluminum alloy material for durability

✦High-precision gear-driven, self-locked when power off

✦Pan angle: 0º~360º continuous rotation

Technical Specifications

Model	SP2510
Rotating Speed	Pan: 0.01º~60º/s, Tilt: 0.01º~30º/s
Rotation Angle	Pan: 0º~360º continuous, Tilt: +20º~-60º
Presets	200 Presets with ±0.1º accuracy
Auto Cruising	8 tracks (each with 10 presets)
Interface	RS485 (RS422 optional)
Protocol	Pelco-D/P
Input Voltage	AC24V±20% or DC28V±20%
Power Consumption	≤70W
Operating Temp	-25°C to +65°C (-40°C optional)

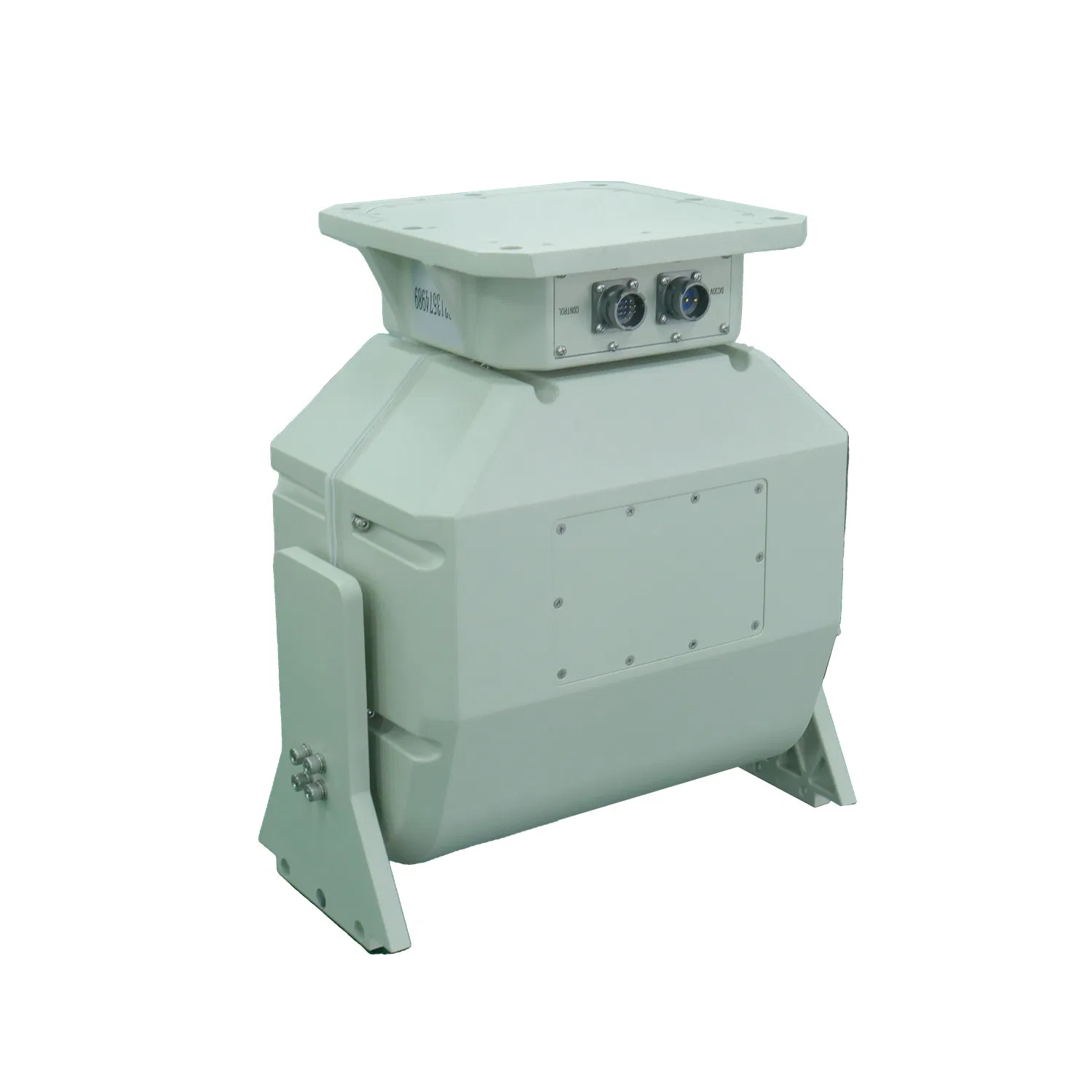

Load Mode	Top-mounted / Side-mounted

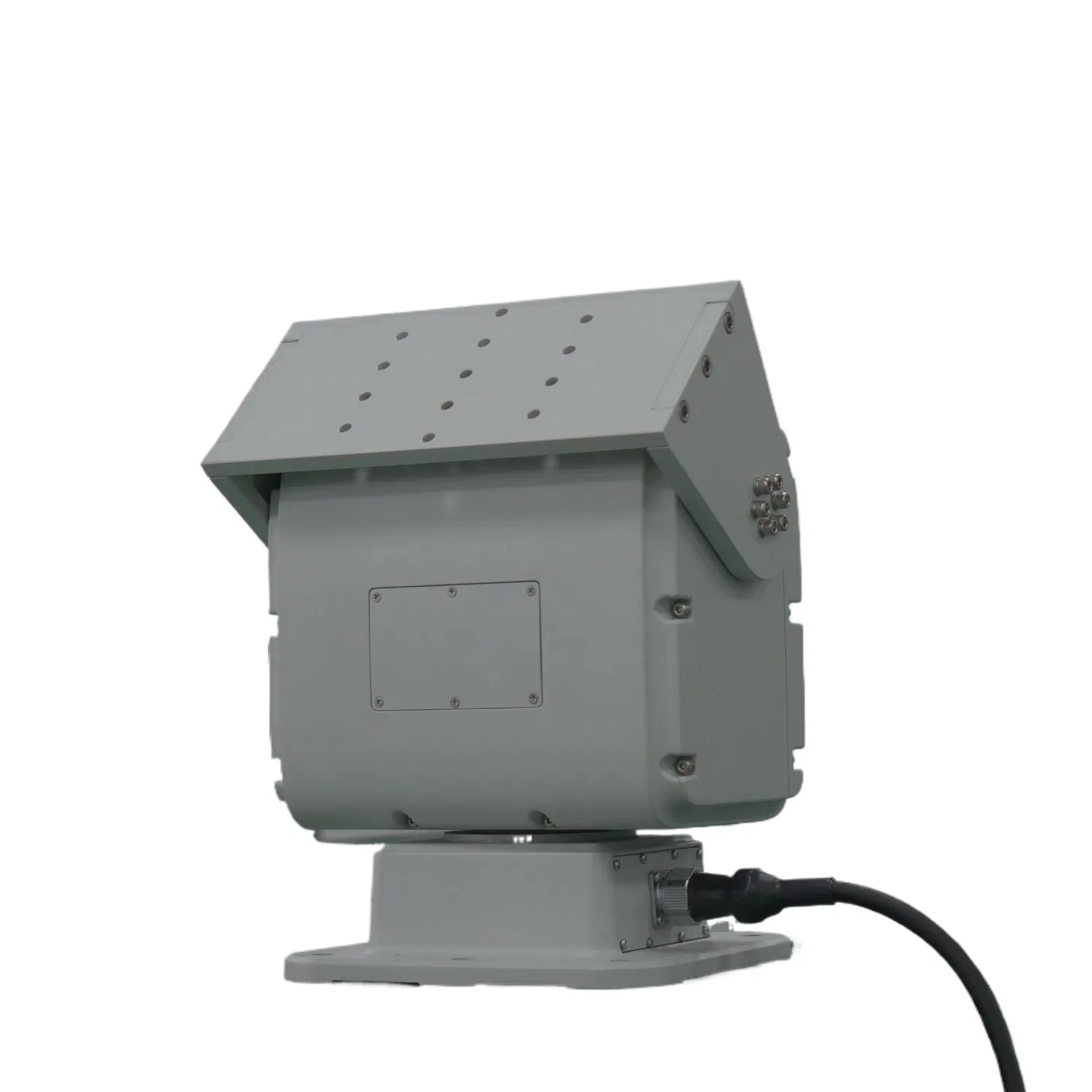

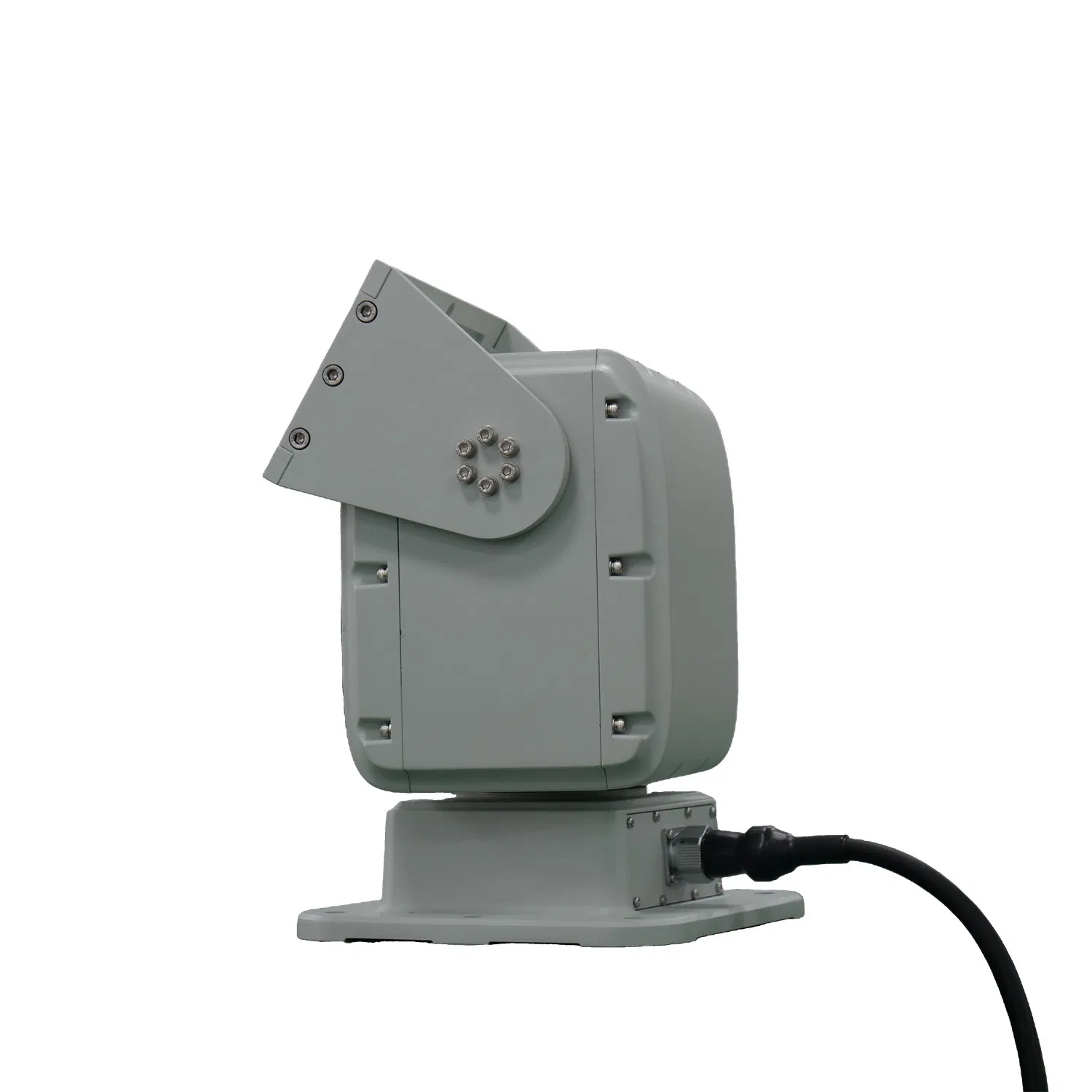

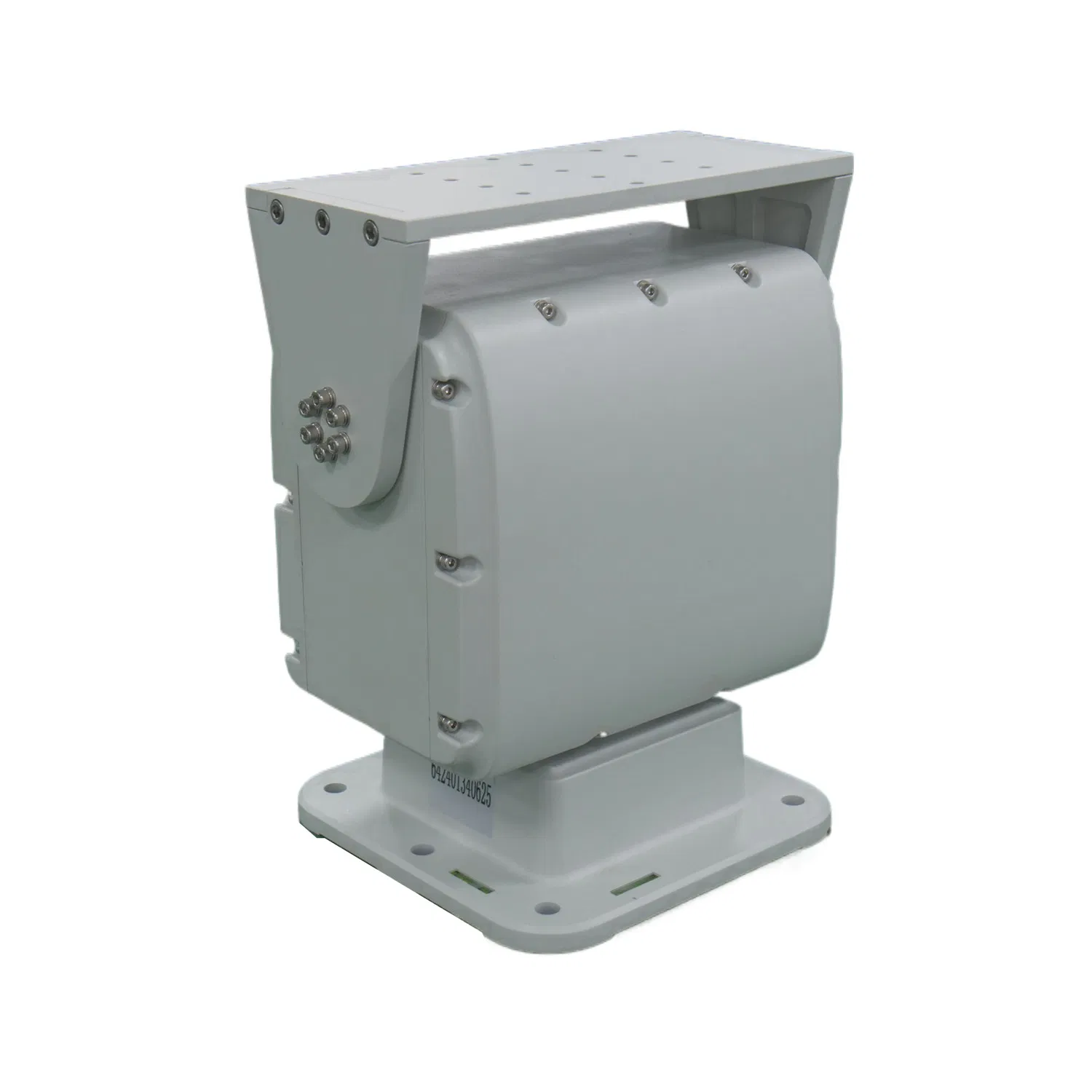

Product Showcase

Frequently Asked Questions

What is the maximum load capacity of this unit?

The standard maximum load is 10kg, but we offer optional versions that can support up to 15kg or 20kg depending on your specific hardware requirements.

How accurate is the preset positioning?

The unit features a high-precision worm gear drive that ensures a resetting accuracy of ±0.1º, allowing for consistent monitoring of specific targets.

Is the pan-tilt motor suitable for extreme outdoor weather?

Yes, it is rated IP66 for protection against water and dust. It also operates within a temperature range of -25°C to +65°C, with an optional low-temperature package available for -40°C environments.

Does it support remote control protocols?

Yes, the unit supports standard Pelco-D and Pelco-P protocols via an RS485 interface, making it compatible with most professional surveillance systems.

Can the rotation speed be adjusted?

The rotation speed is fully adjustable. The pan speed ranges from 0.01º to 60º per second, and the tilt speed ranges from 0.01º to 30º per second.

What happens if the power is cut?

The device utilizes a high-strength gear-driven system that is self-locking, meaning the unit will remain in its current position when the power is turned off.
