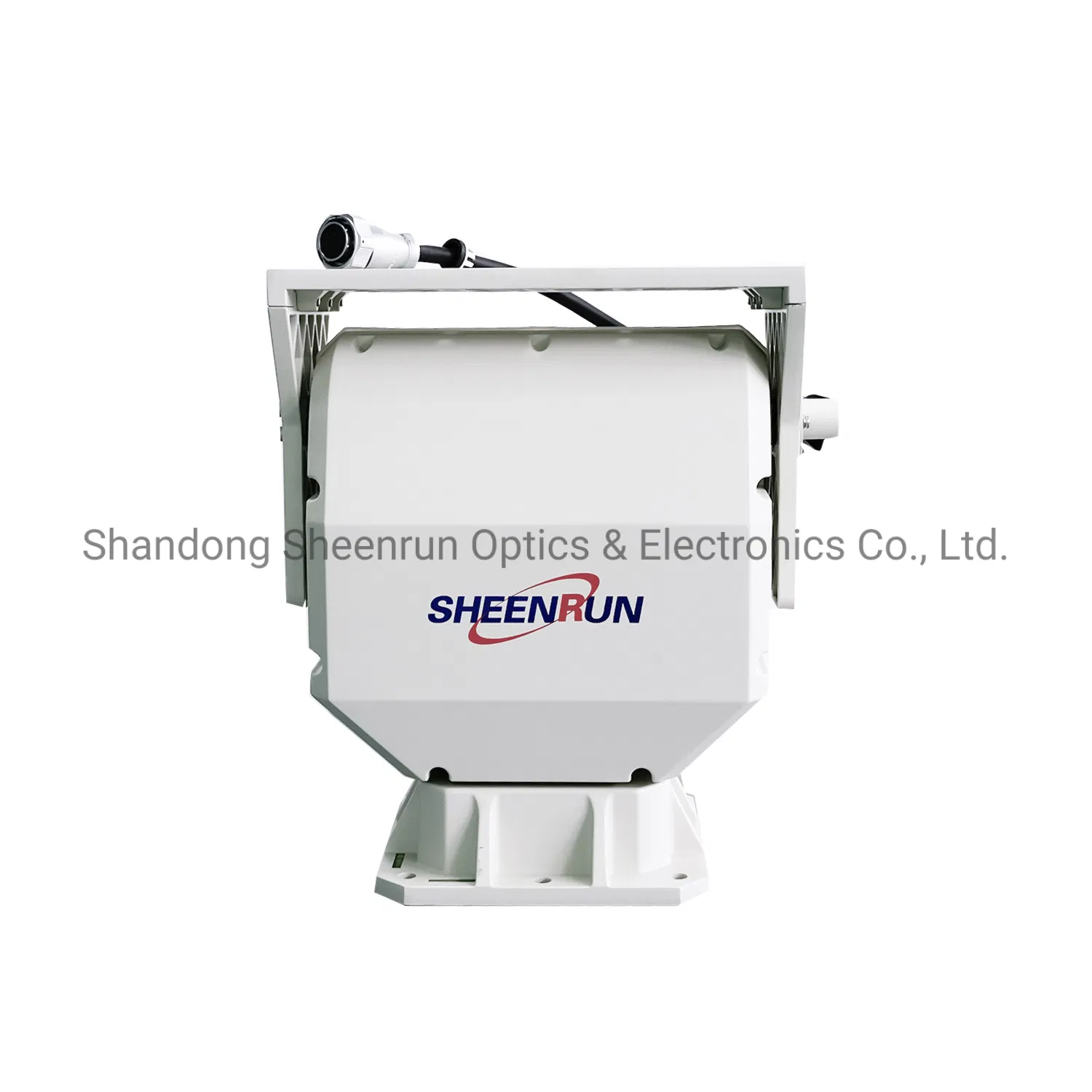

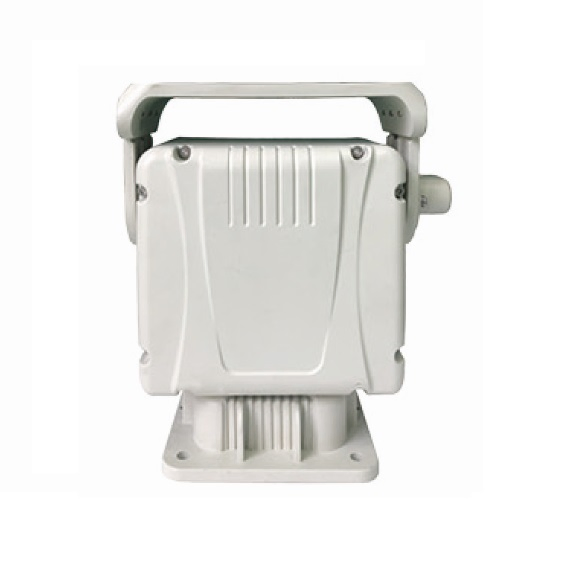

DC12V CCTV Wireless Remote Pan Tilt Motor Variable Speed Pan Tilt

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Information

Model NO.

FY-SP2520

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Resolution

324*256(640*512 Optional)

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001

Feature

Waterproof / Weatherproof, High Definition

Effective Distance

≧30m

Protection Class

IP66

Max Load

35kg

Interface

RS485

Product Description

FY-SP15 Series Pan Tilt Features

Max Load: 5kg/10kg
Support kinds of lens preset with self-adaptive function
High resetting accuracy, up to ±0.1º
Adopt die-cast aluminum alloy material
Adopt high-strength worm-gear driven, self-locked when power is off
Pan: 0º~360º continuous rotation
Protection Class: IP66
OSD menu, Network (optional)
Optional function: returning data of pan tilt position, focal length, focus etc.

Auto Cruising

Model	SP1505 / SP1510
Rotating Speed	Pan:0.01º~30º/s, Tilt:0.01º~15º/s
Rotation Angle	Pan:0º~360º continuous, Tilt: +60º~ -60º
Number of Presets	200
Positioning Accuracy	±0.1º
Auxiliary Switch	2 groups
8 tracks (each with 10 presets)
Homing time	1~60 min adjustable
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps
Input Voltage	AC24V±20%, 50/60HZ; DC28V±20%
Operation Temperature	-25ºC~+65ºC (Optional -40ºC~+65ºC)
Protection Class	IP66
Dimensions	265mm * 180mm * 315mm

Manufacturer Profile

Founded in 2004, this enterprise is a leading supplier of night vision equipment and rugged information solutions. The manufacturer adheres to independent innovation, having developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems.

With independent intellectual property rights, the synchronous zoom laser technology and continuous zoom thermal imaging technology have reached international standards, maintaining a significant position in the global specialized imaging market.

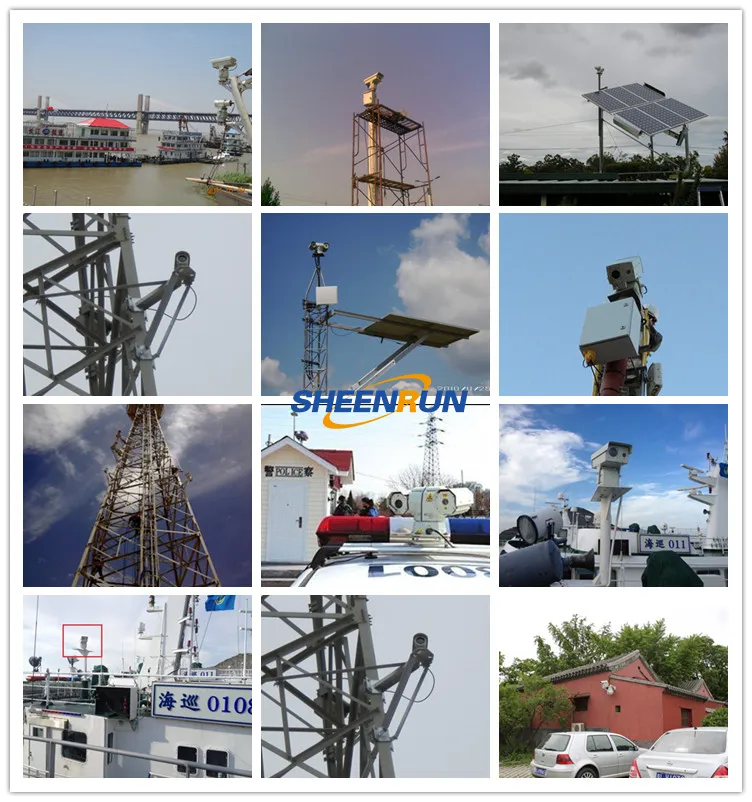

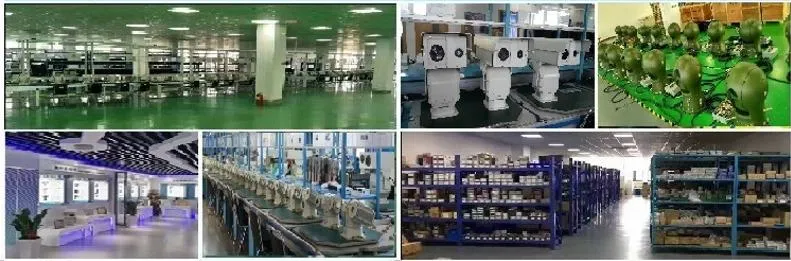

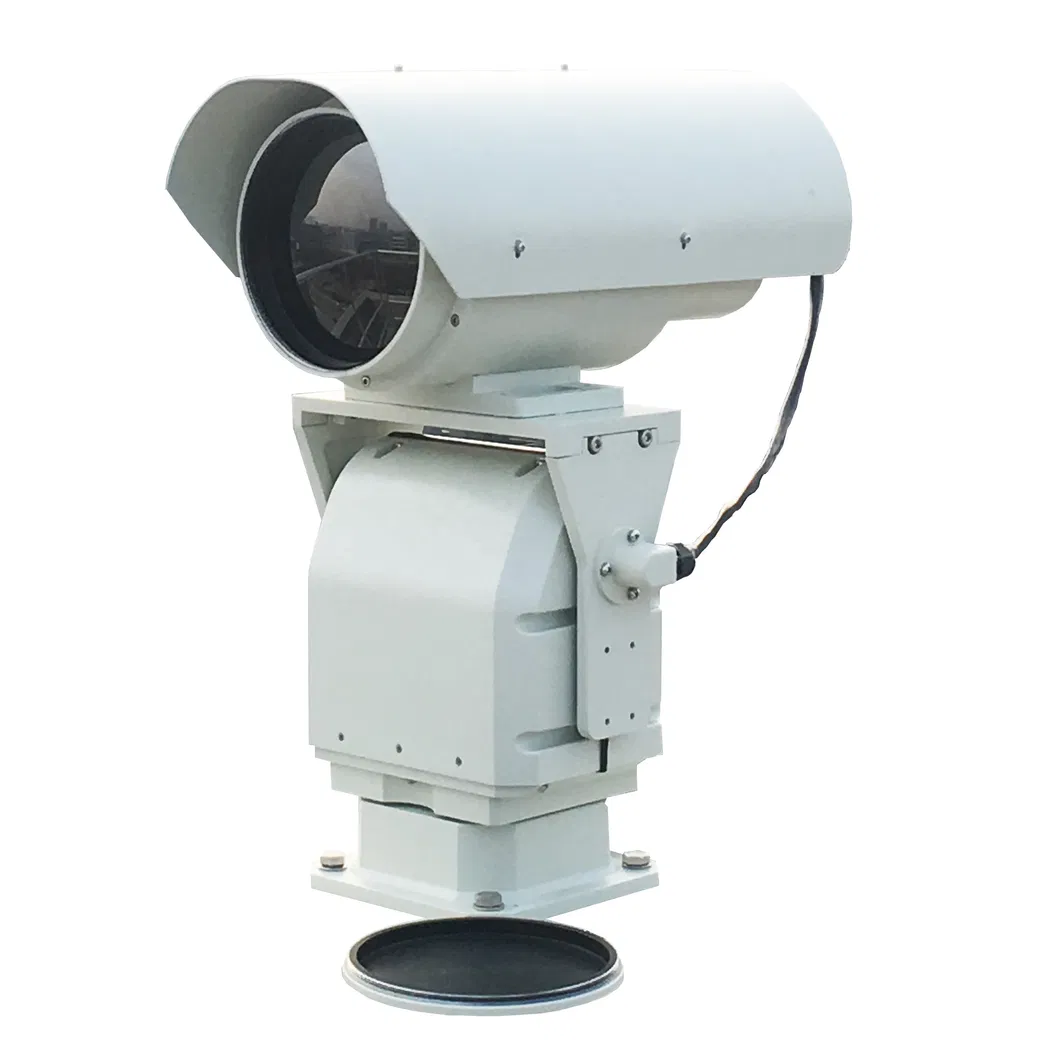

Equipment & Applications

Frequently Asked Questions

Is the product suitable for extreme weather conditions?

Yes, the device features an IP66 protection class rating and is designed to operate in temperatures ranging from -25ºC to +65ºC (with options for -40ºC), making it highly weatherproof.

What is the maximum load capacity for this Pan Tilt motor?

Depending on the specific model (SP1505 or SP1510), the maximum load capacity is 5kg or 10kg. For heavier requirements, other models in the series support up to 35kg.

Does the system support preset positions?

Yes, the system supports up to 200 preset positions with a high resetting accuracy of ±0.1º, and it includes 8 auto-cruising tracks.

What control protocols are compatible with this equipment?

The system primarily supports Pelco-D and Pelco-P protocols via an RS485 interface (RS422 is optional).

Can the device retain its position during a power failure?

Yes, the device utilizes a high-strength worm-gear driven system that is self-locking, ensuring it maintains its position when power is off.

Are customized product configurations available?

Yes, specialized configurations including OEM and ODM cooperation are supported to meet specific project requirements and technical standards.
