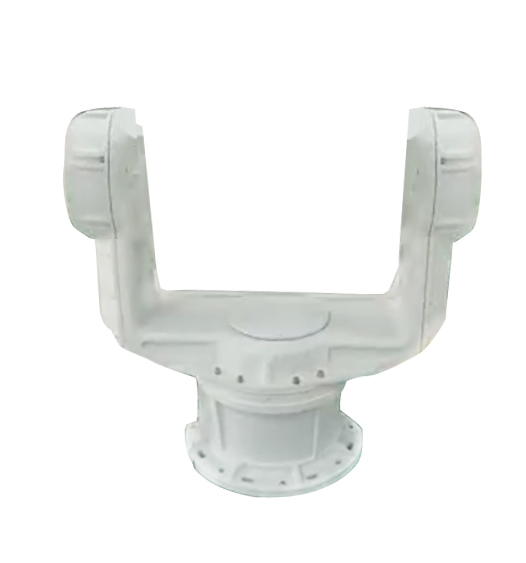

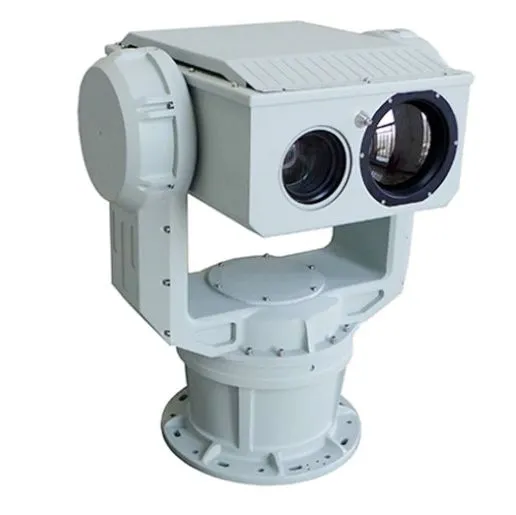

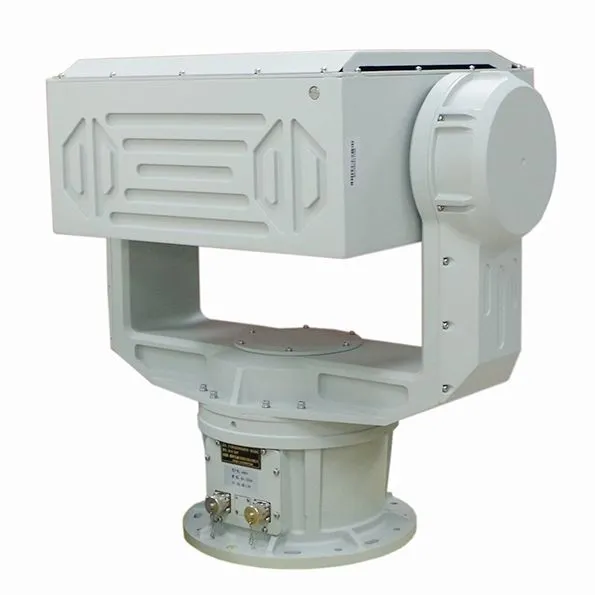

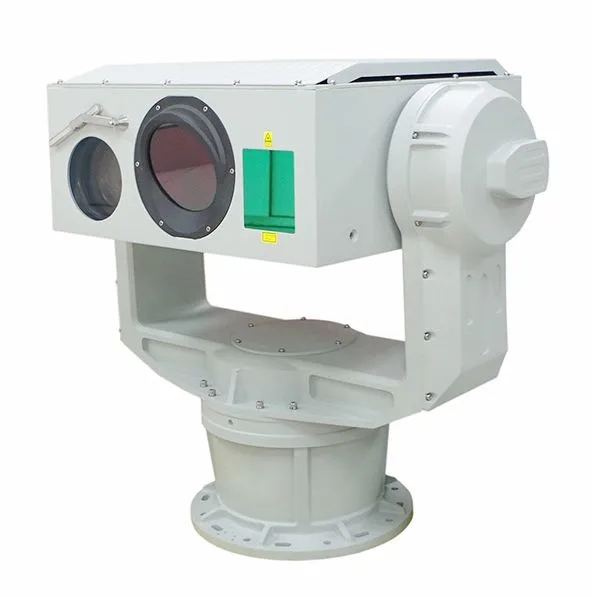

U Shaped Servo Motor Drone Tracking Thermal Camera Platform PTZ Gimbal Pan Tilt

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Technical Specifications

Model NO.

CQ-UT500

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Effective Distance

≧30m

Protection

IP66

Load

40kg

Weight

85kg

Package Size

100.00cm * 100.00cm * 100.00cm

Gross Weight

100.000kg

Product Key Features

✓

High-strength aluminum alloy shell with anti-seawater corrosion coating, suitable for harsh environments.

✓

Ultra-precise 0.005° pulse motor and digital angle measurement sensor servo.

✓

High load capacity for visible light, thermal imagers, and laser illuminators.

✓

Integrated multi-band imaging: long-wave/mid-wave infrared, laser, and visible light.

✓

Real-time data feedback for azimuth, pitch angle, focal length, and target positioning.

✓

Electric servo tracking turntable with manual, automatic, and radar linkage modes.

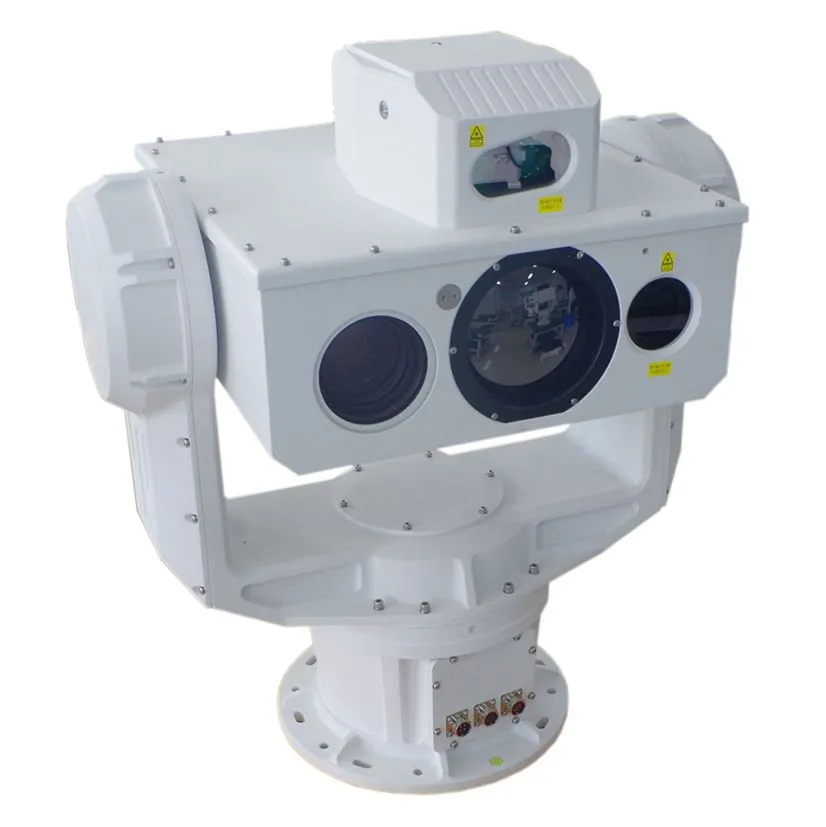

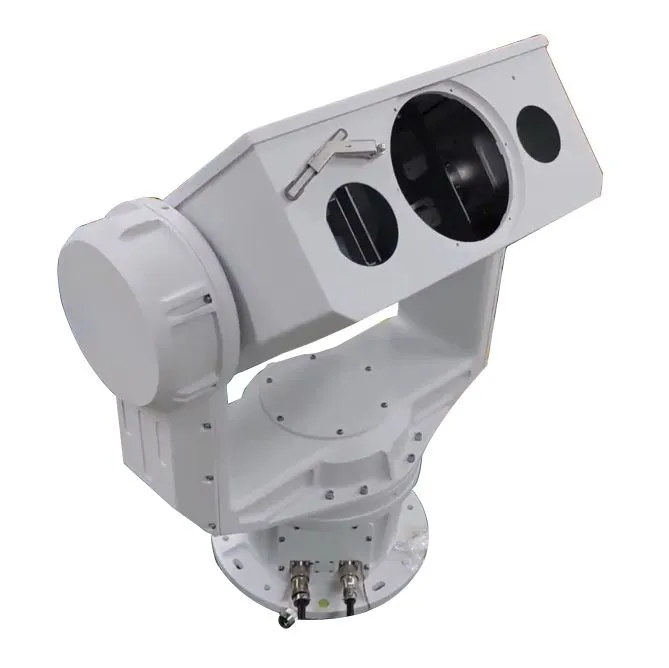

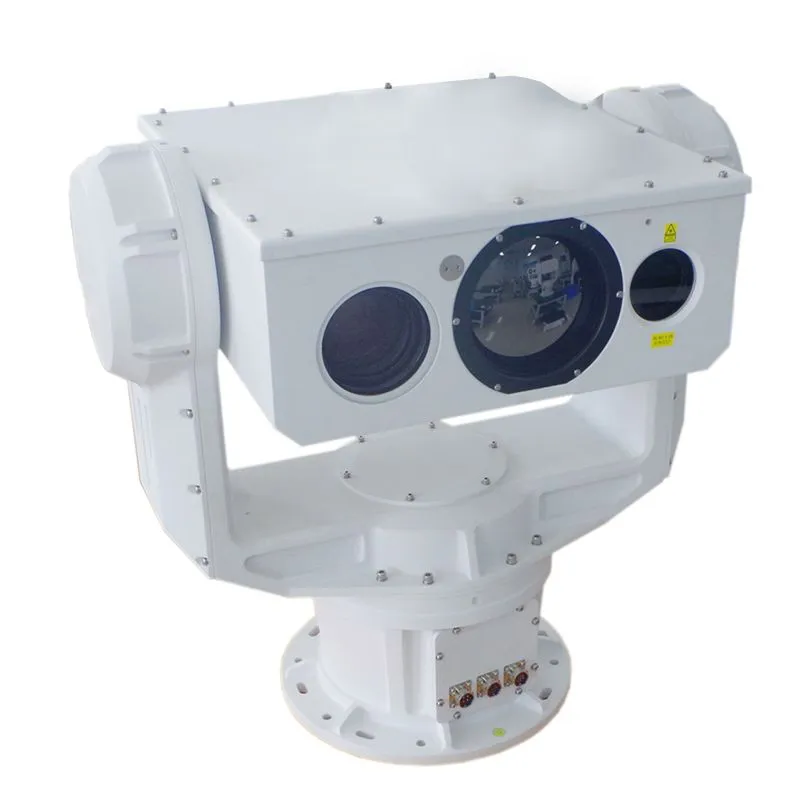

Product Display

Detailed Parameters

Rotation Speed	Horizontal 0.01° to 120°/S; Pitch 0.01°~90°/S
Angle of Rotation	Horizontal 0~360° continuous; Pitch +90° to -90°
Repeat Positioning Accuracy	0.005°
Preset Positions	200 (expandable)
Cruise Control	8 lines with 10 cruise points each
Anti-salt spray	PH 6.5-7.2, 48 hours continuous spraying resistant
Communication Interface	RJ45 (RS485 / RS422 / RS232 optional)
Operating Temperature	-25°C to +55°C
Transmission Method	Servo motor

Frequently Asked Questions

What environments is the CQ-UT500 suitable for?

The system is designed for harsh environments, featuring high-strength aluminum alloy and IP66 protection, making it resistant to seawater corrosion, rain, and dust.

How precise is the rotation of this PTZ platform?

It utilizes a pulse precision motor and digital angle sensors to achieve an industry-leading repeat positioning accuracy of 0.005°.

What is the maximum load the platform can carry?

The CQ-UT500 supports a top-load capacity of 40kg or more, allowing it to carry heavy visible light cameras and thermal imagers.

Does it support automatic target tracking?

Yes, it features an electric servo tracking turntable with three tracking modes: manual, automatic, and radar linkage.

Can the communication protocol be customized?

While it supports Pelco_D by default, the system is designed to support customized protocols to meet specific project requirements.

What is the rotation range of the gimbal?

The platform offers 0-360° continuous horizontal rotation and a pitch range from +90° to -90°.
