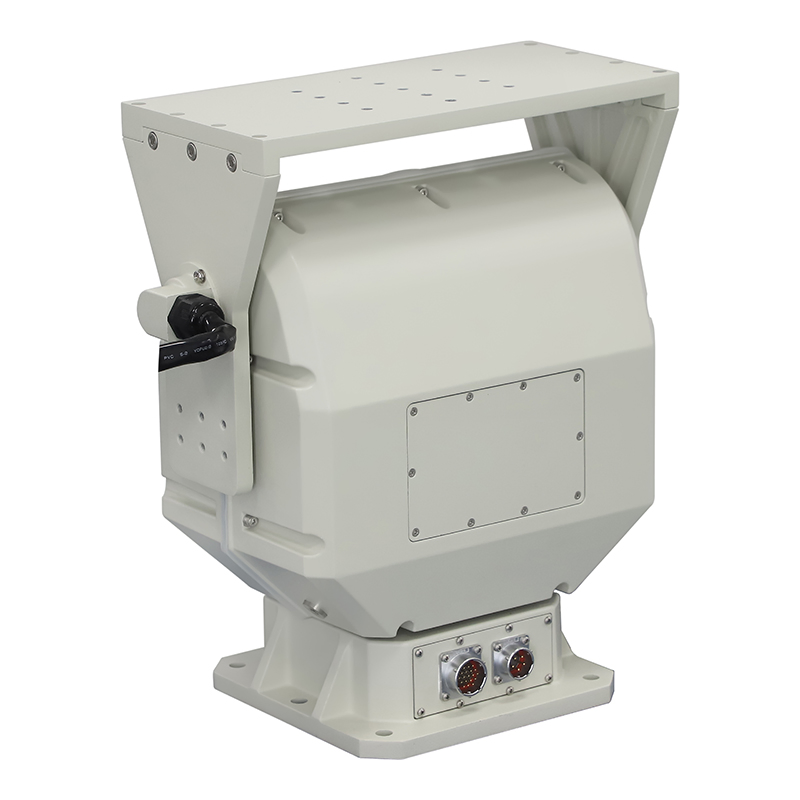

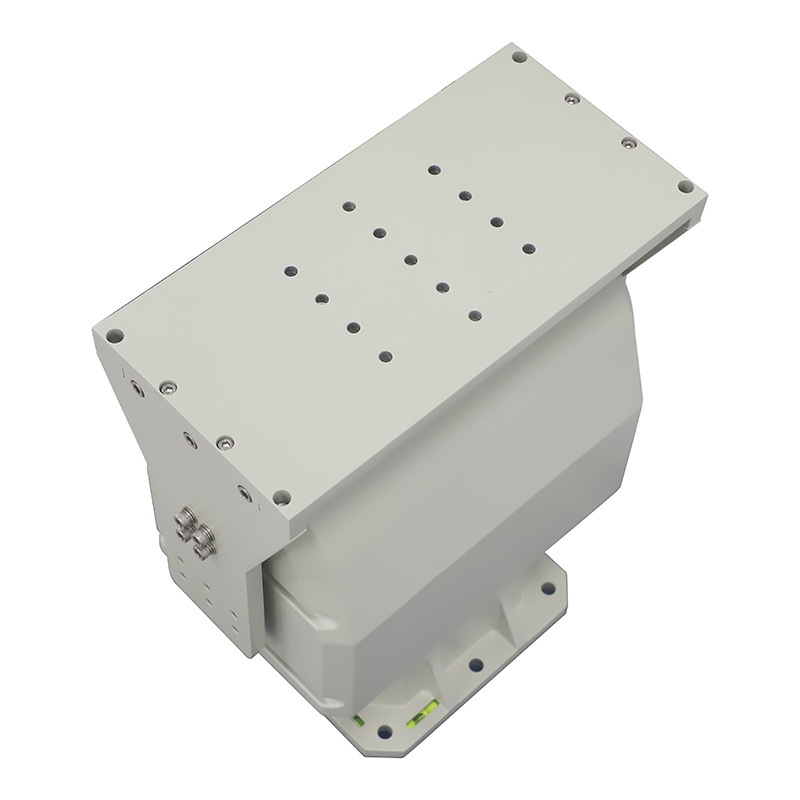

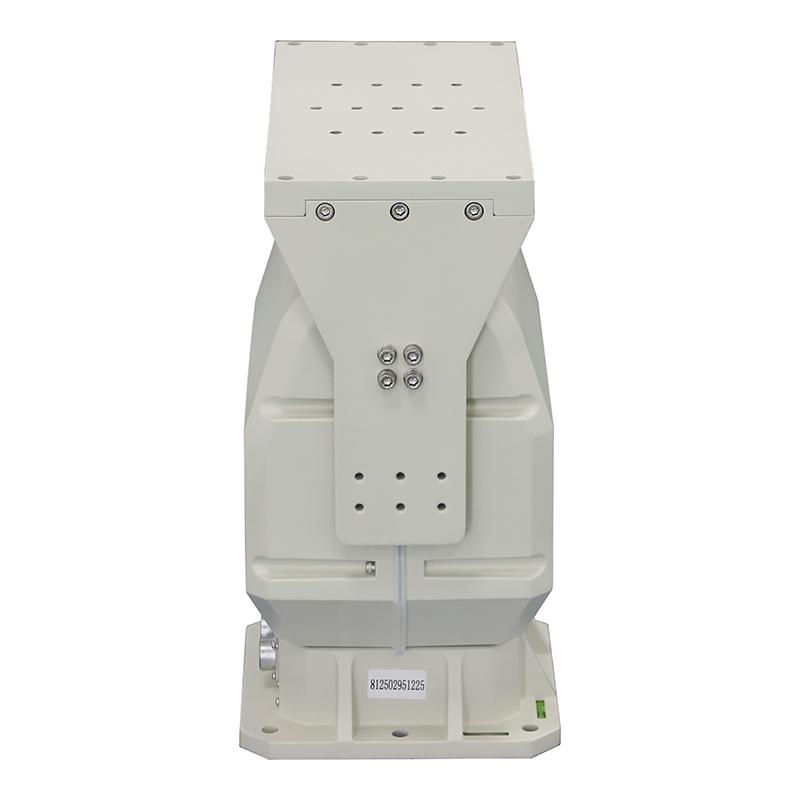

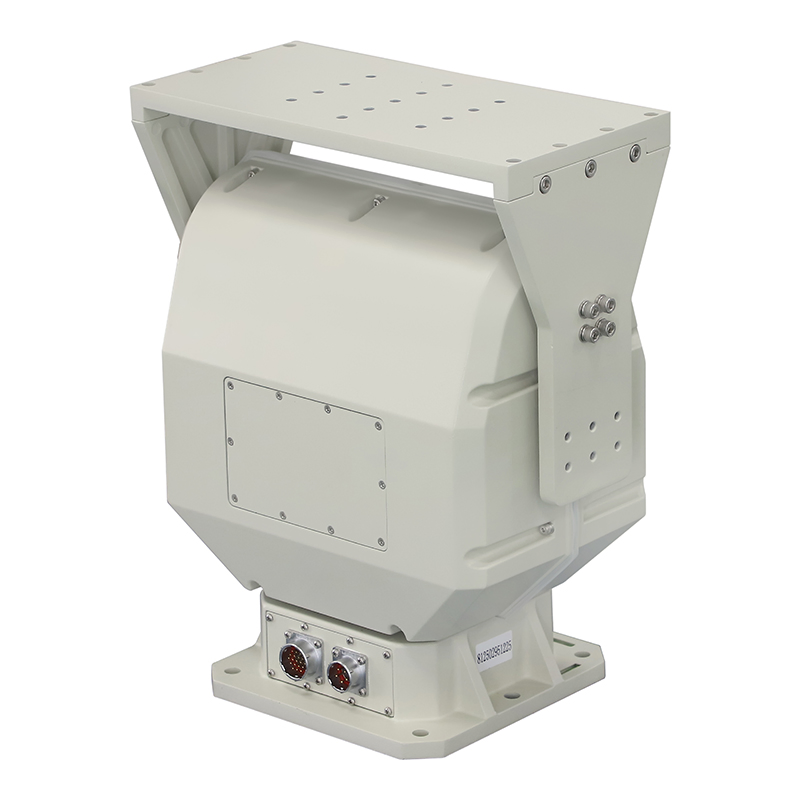

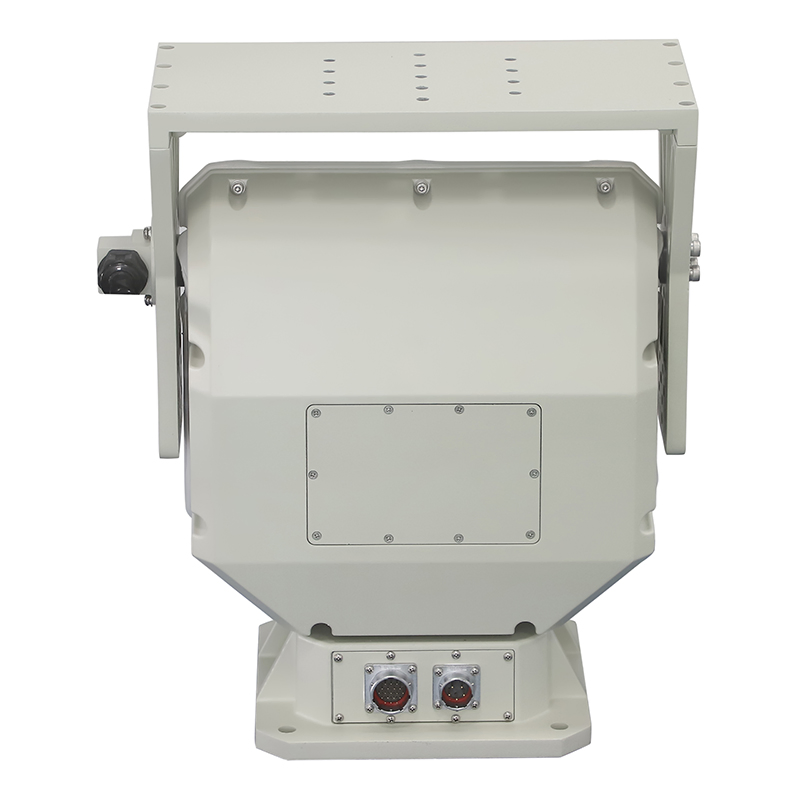

Sp2510 Pan-Tilt Turntable Gimbal 10kg Load

Customization: Available
Technology: Pan-Tilt
Style: Pan/Tilt

Product Description

Basic Information
Type
Pan-Tilt
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof, High Definition
Remote Control
With Remote Control
Interface
RS485 or RS422
Protection Class
IP66
Max Load
10kg
Package Size
30.00cm * 22.00cm * 35.00cm
Gross Weight
13.000kg
Product Description

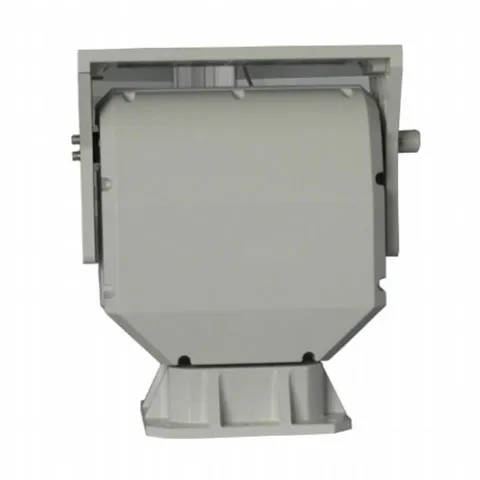

Pan-Tilt Turntable Gimbal
ModelFS-2510
Rotating SpeedPan: 0.01º~60º/s, Tilt: 0.01º~30º/s
Rotation AnglePan: 0º~360º continuous, Tilt: +20º~ -60º
Presets200
Positioning Accuracy±0.1º
Input VoltageAC24V±20% or DC28V±20%
Power Consumption≤40W
Operation Temperature-25ºC to +65ºC (Optional -40ºC to +65ºC)
Driven SystemWorm gear driven, self-locked when power off
Dimensions265mm * 180mm * 316mm
Key Features
Maximum Load Capacity: 10kg
Supports various Lens preset functions
High-speed pan-tilt performance up to 60º/s
High precision resetting accuracy up to ±0.1º
Die-cast aluminum alloy material construction
Self-locking gear system for power-off security
Continuous 360º pan rotation
IP66 Waterproof and Weatherproof Protection
Industry Expertise

As a leading supplier founded in 2004, the provider specializes in night vision and rugged information equipment. Known for independent innovation, they developed the first laser night vision camera and uncooled continuous zoom infrared thermal imaging camera with independent intellectual property. The synchronous zoom laser and thermal imaging technologies have reached international advanced standards, securing a significant global market share.

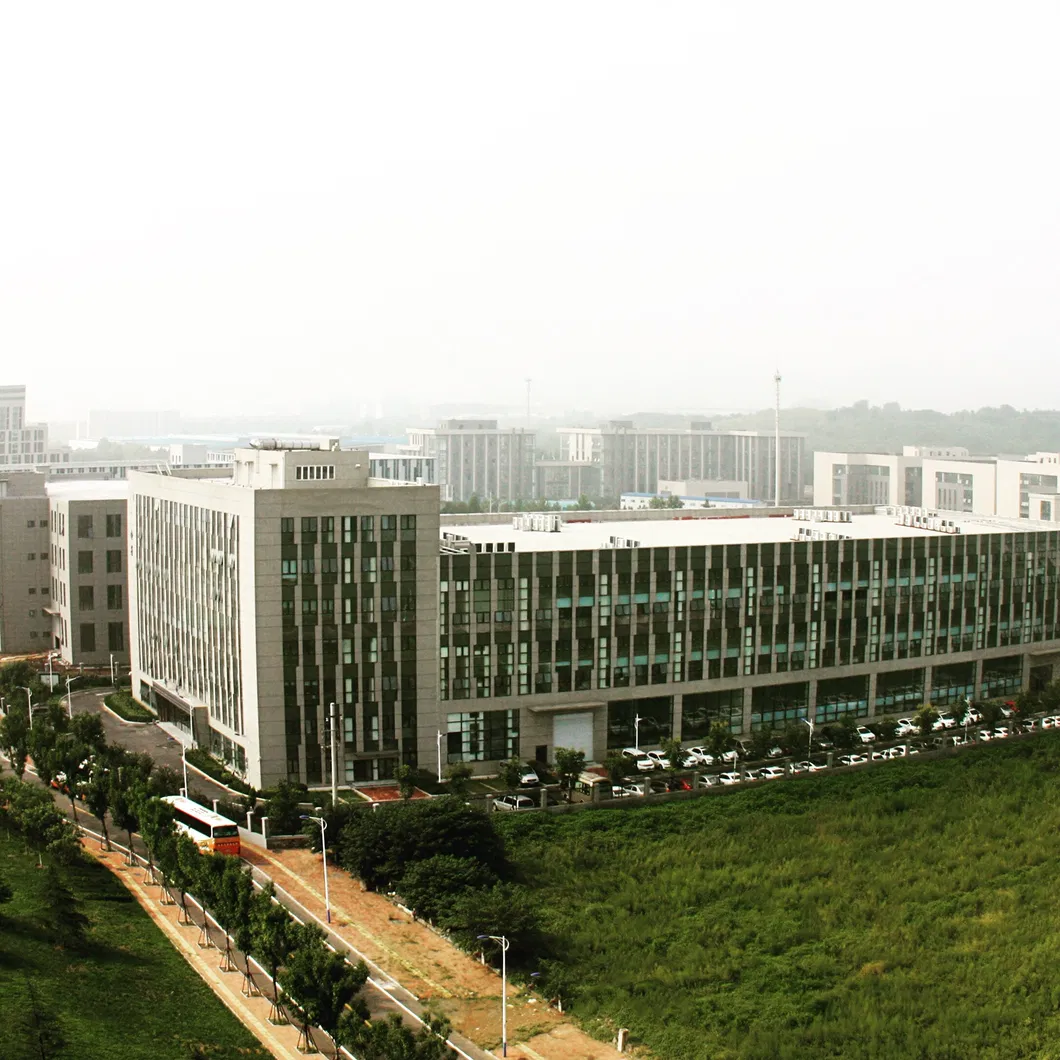

Production Facility

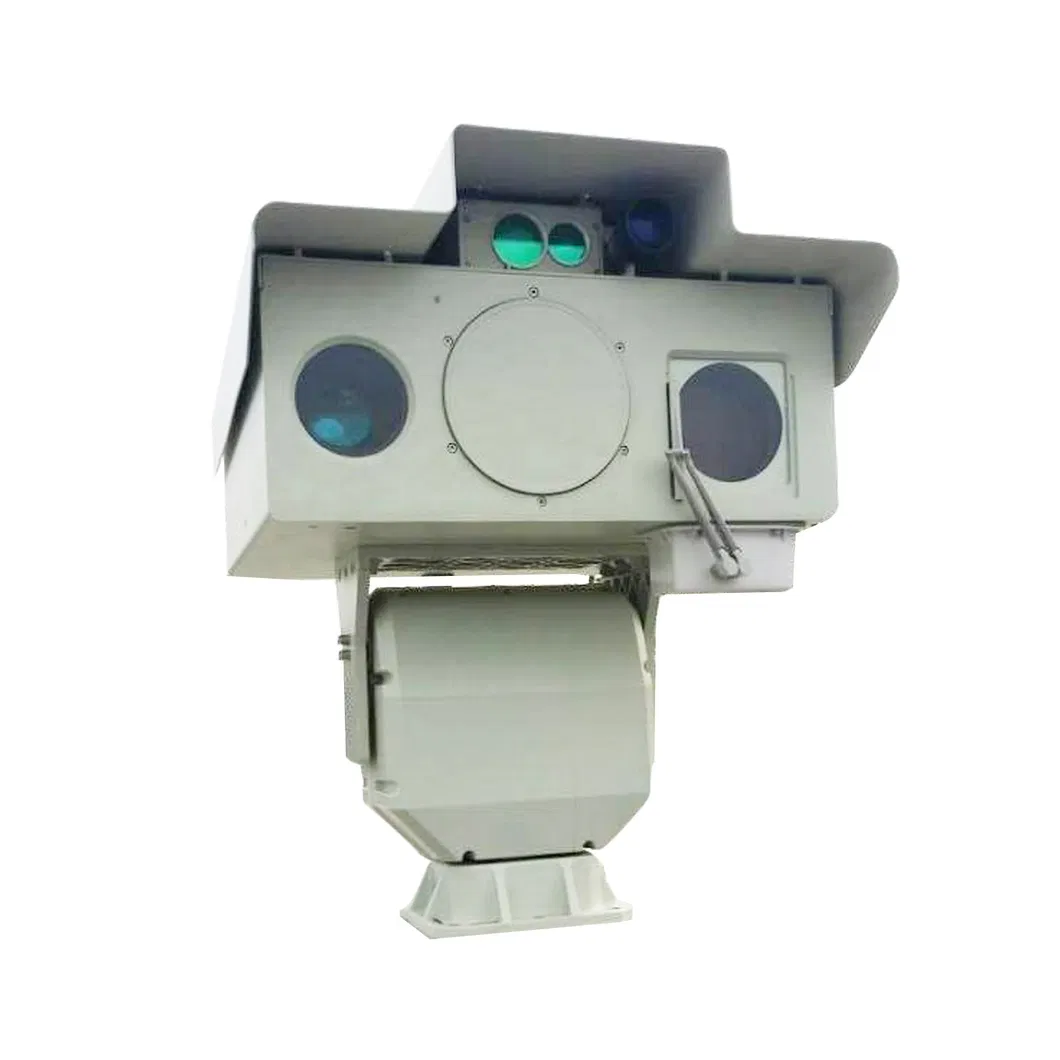

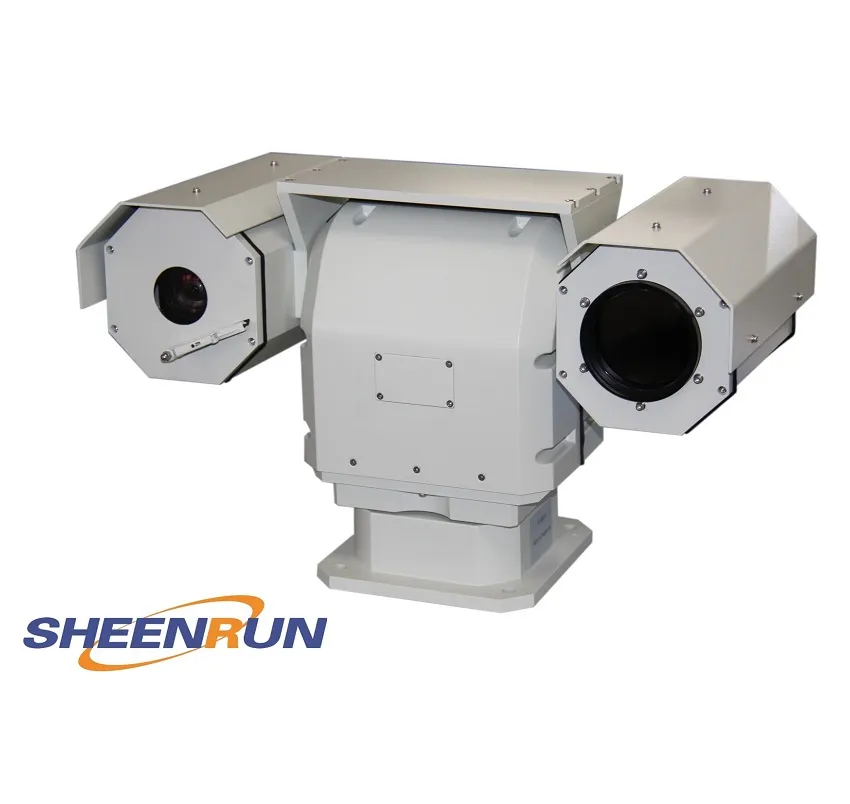

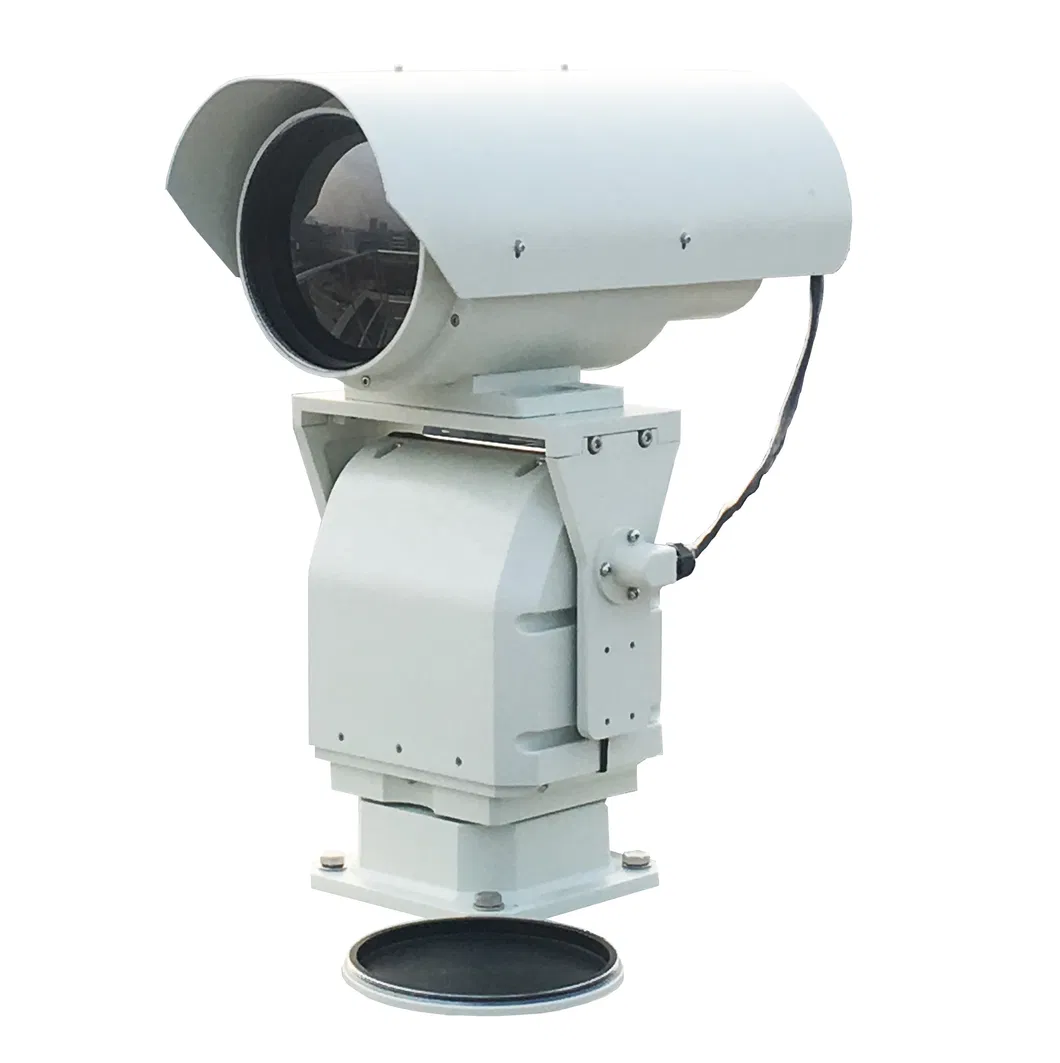

Equipment Photos & Applications

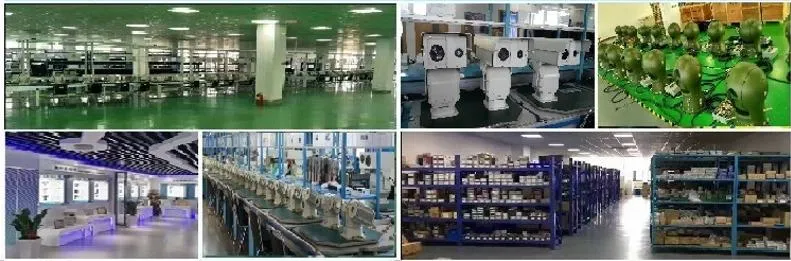

Equipment Overview
Frequently Asked Questions
Is the pan-tilt unit suitable for outdoor use?
Yes, it features an IP66 protection class, making it both waterproof and weatherproof, suitable for harsh environments.
What is the maximum weight the unit can carry?
The FS-2510 model supports a maximum load capacity of 10kg, utilizing a top-mounted or side-mounted load mode.
How accurate is the positioning for presets?
The unit offers high-precision positioning with a resetting accuracy of ±0.1º.
Does the system support remote customization?
Yes, the provider specializes in customized products, including OEM and ODM cooperation to meet specific technical requirements.
What happens if the power is cut off?
The unit is built with a high-precision worm gear drive that is self-locking, ensuring it remains in position when power is off.
What control protocols are supported?
The system supports standard Pelco-D and Pelco-P protocols via RS485 or RS422 interfaces.
