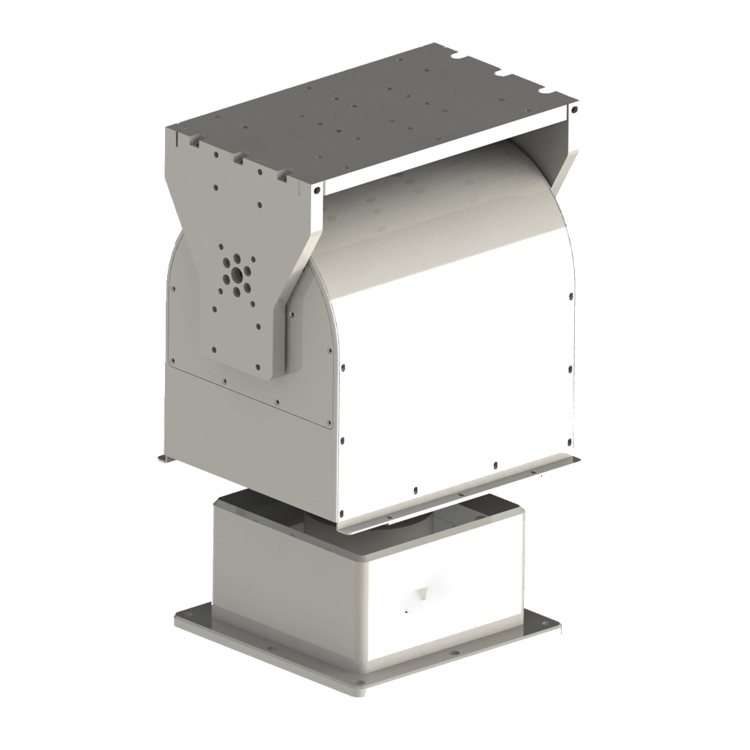

Soar-PT8120 Waterproof IP66 Top Load 360 Degree DC48V Heavy Duty Variable Speed Pan Tilt with Max 120kg Payload

1 / 1

Soar-PT8120 Waterproof IP66 Top Load 360 Degree DC48V Heavy Duty Variable Speed Pan Tilt with Max 120kg Payload

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Information

Model NO.

SOAR-PT8120

Type

CCTV Camera

Certification

CE, FCC, CCC, RoHS, ISO9001

Feature

Waterproof / Weatherproof

Max. Load

120kg

Pan Rotation

360° Continuous

Tilt Rotation

-45°~+40°

Waterproof

IP66

Material

Aluminum Alloy

Consumption

≤200W

Specifications

Mechanical & Movement Parameters
Driving Mode	Worm and gear driving (Self-locking)
Pan Speed	0.005°/s~15°/s
Tilt Speed	0.005°/s~7°/s
Preset Position	200
Presetting Precision	±0.1°
Lens Control	Support zoom/focus speed adaptive adjustment
Auto Functions	Auto Scan, Auto Cruise, Keep Watch
Communication	RS485/ RS422 optional
Protocol	Pelco D
System & Environmental
Input Voltage	DC48V±10%
Working Temp	-35°C~+65°C
Salt Fog Resistance	PH 6.5 ~7.2, continuous 48 hours
Anti-lighting	Power 4000V; Video signal 2000V
Weight	≤45kg

Key Features

High-precision worm gear drive mode, self-locking when power off, strong wind resistance and high stability.
Support a variety of lens preset function and zoom adaptive function.
360° continuous rotation in the horizontal direction, vertical +45°~-45°.
High repeat positioning accuracy, up to ±0.1°.
Heavy-duty design with a maximum load capacity of 120KG.
All-weather protection design with IP66 protection level for harsh environments.

Packing & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Products are typically secured in high-strength cartons suitable for international transport.

Our Services

Payment Way

We accept T/T (Telegraphic Transfer).

Delivery Time

Stock: 2-5 working days. Bulk orders: 7-20 working days.

OEM/ODM

Professional OEM and ODM services available for global clients.

Warranty

1-year hardware warranty and lifelong technical support.

Frequently Asked Questions

What is the maximum weight capacity of the SOAR-PT8120?

The SOAR-PT8120 is a heavy-duty PTZ unit that supports a maximum load of up to 120kg, making it suitable for large thermal and long-range optical cameras.

How does the self-locking feature work during power failure?

The system utilizes a high-precision worm gear drive. This mechanical design naturally provides a self-locking mechanism that prevents the camera from moving or drifting even when power is lost or under high wind pressure.

Is this unit suitable for coastal or marine environments?

Yes, the unit is made of high-quality aluminum alloy and has passed salt fog resistance tests (PH 6.5~7.2) for 48 hours, combined with an IP66 waterproof rating.

What communication protocols are supported?

The device primarily supports Pelco D protocol via RS485 or RS422 interfaces, ensuring compatibility with most professional surveillance systems.

Does it support precision positioning for long-range tracking?

Absolutely. It features a presetting precision of ±0.1° and supports angle query returns, which is critical for long-range monitoring and target tracking.

What are the power requirements for this PTZ system?

The system operates on DC48V±10% and has a maximum power consumption of ≤200W, including the movement and potential auxiliary equipment.
