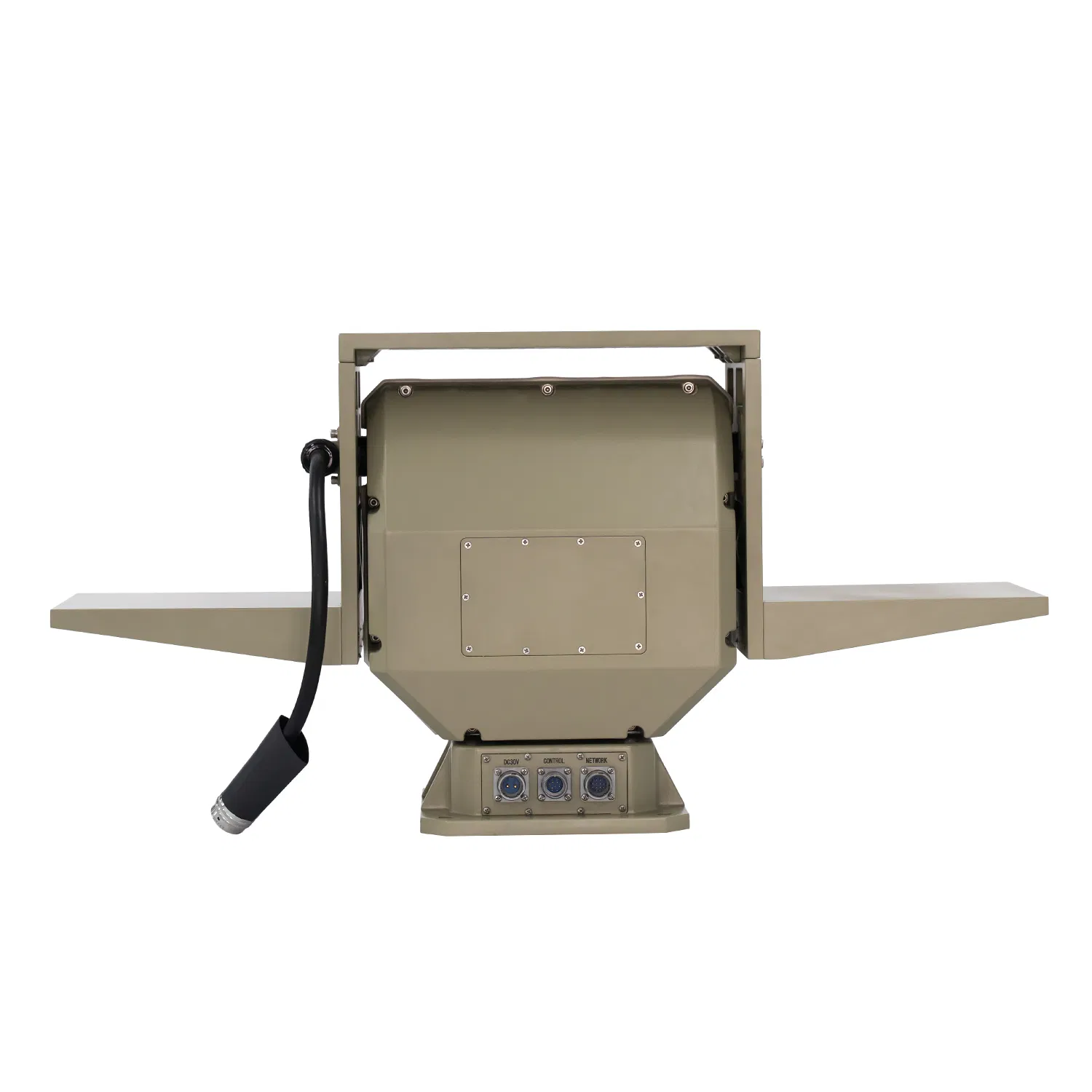

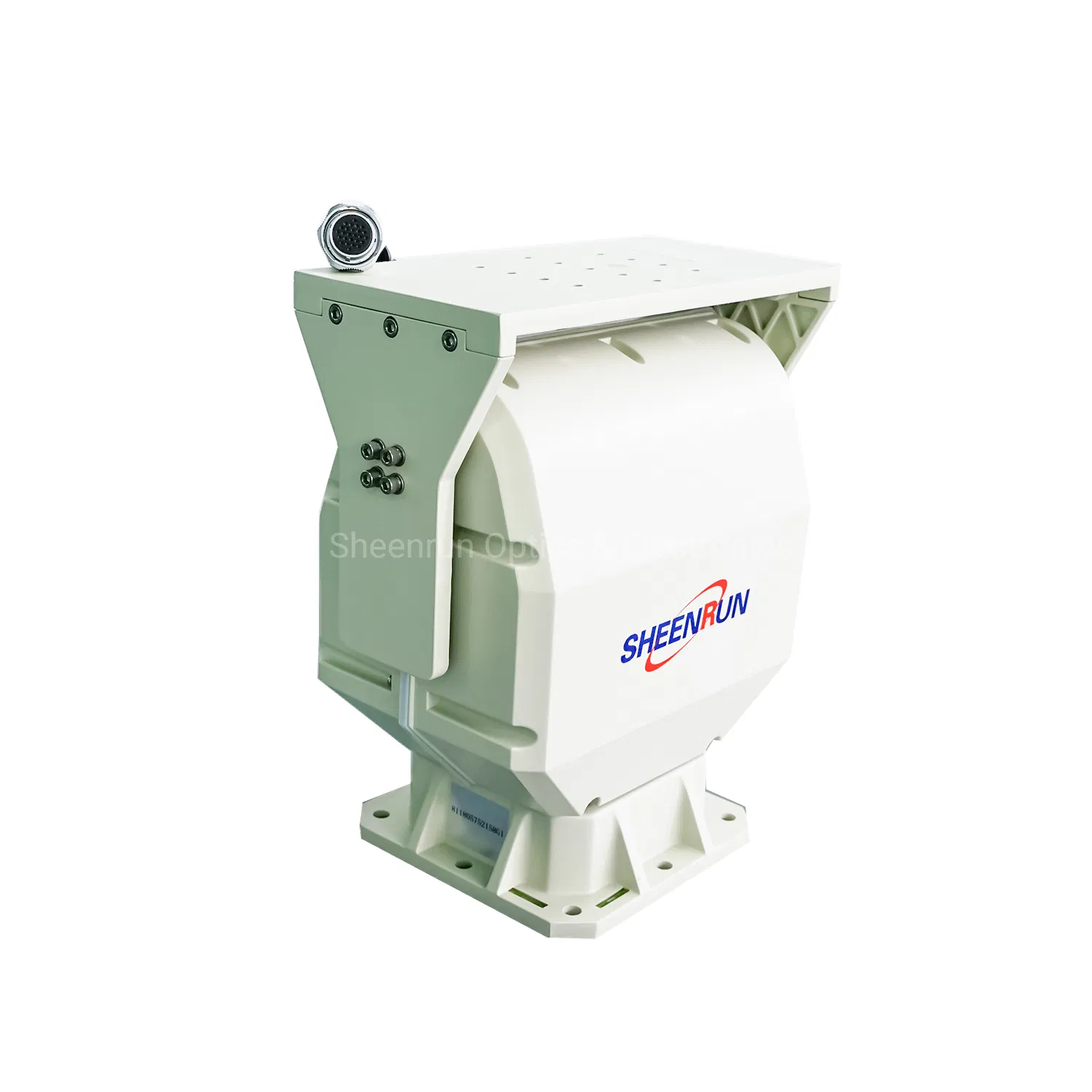

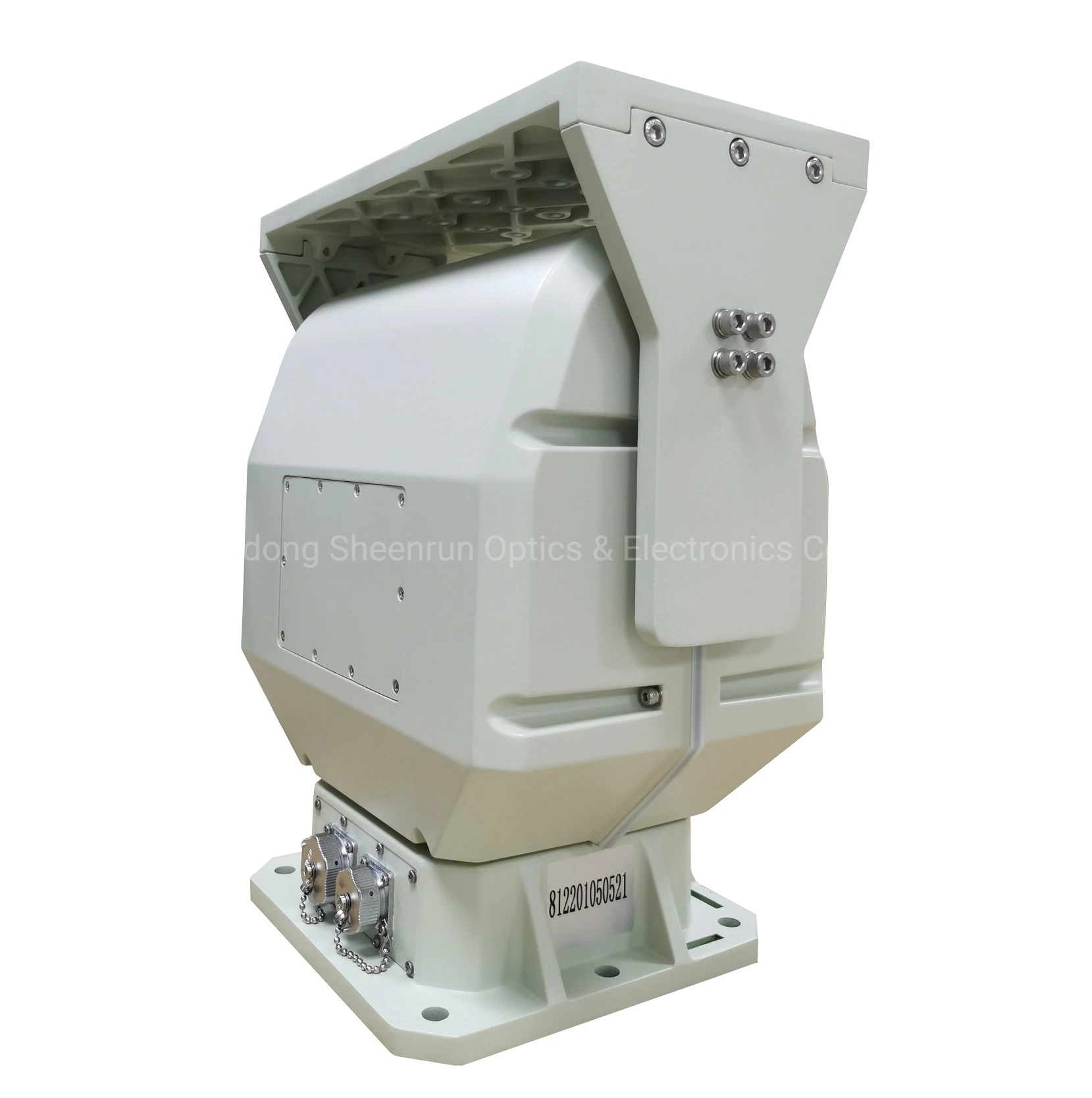

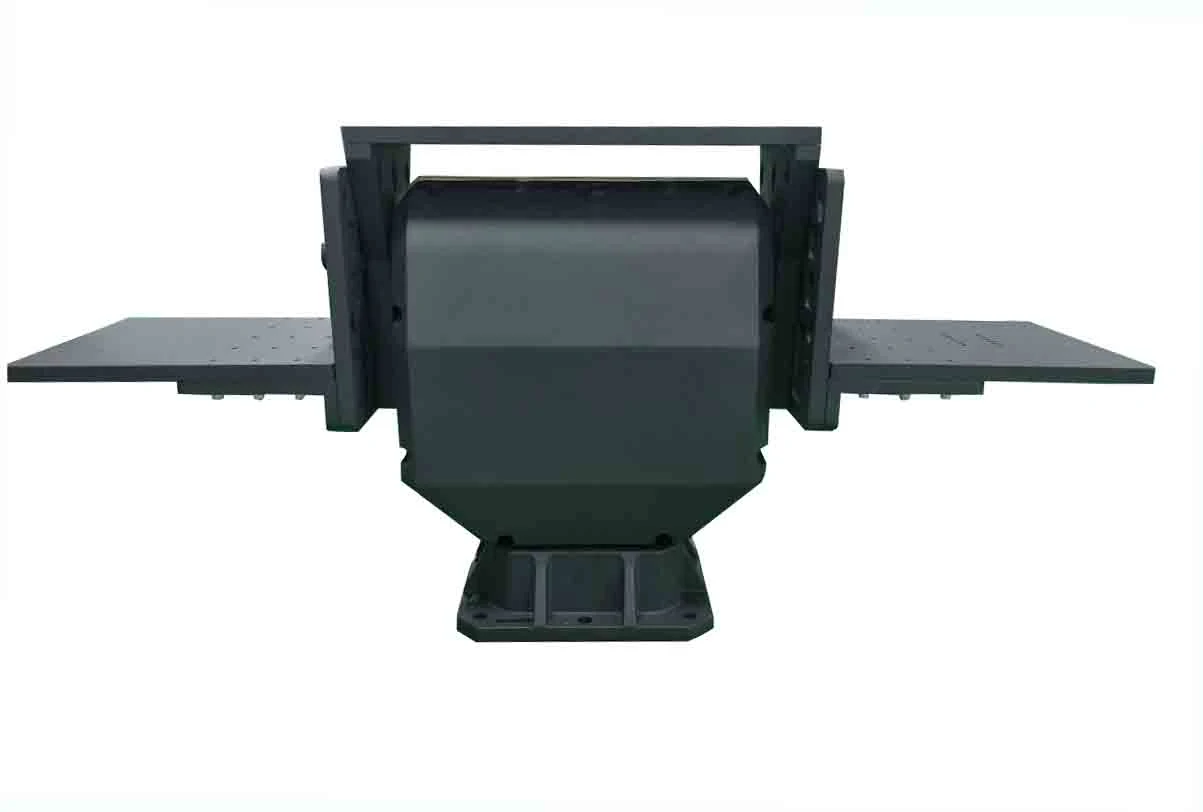

35kg Rotary IP Camera Pelco Heavy Duty Electric Pan Tilt Positioner/PTZ Gimbal Motor Head RS485

1 / 5

35kg Rotary IP Camera Pelco Heavy Duty Electric Pan Tilt Positioner/PTZ Gimbal Motor Head RS485

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

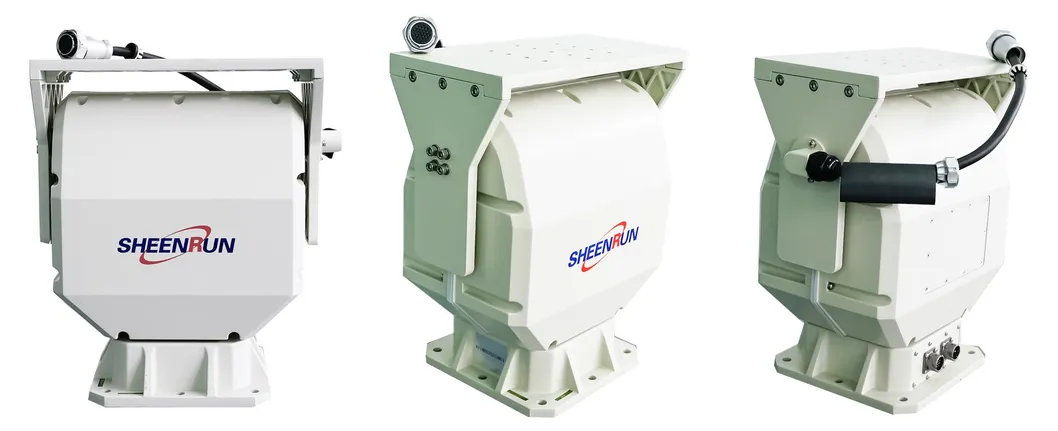

35kg Rotary IP Camera Pelco Heavy Duty Electric Pan Tilt Positioner

PTZ Gimbal Motor Head RS485 for heavy-duty professional surveillance systems. Engineered for precision and extreme environmental durability.

Basic Information

Model NO.	SP5035	Certification	CE, FCC, CCC, ISO9001
Feature	Waterproof / Weatherproof	Remote Control	Supported
Max Load	35kg	Pan Rotation	0° ~ 360° Continuous
Tilt Rotation	+45° ~ -45°	Pan Tilt Speed	Up to 60°/S
Protocol	Pelco-D/P	Protection	IP66
Power	Less than 80W	Origin	China

✓

Core Features

◈ Max Load capacity: 35kg/50kg options available.

◈ Support RS485 (RS422 or RS232 optional).

◈ High resetting accuracy up to ±0.1º.

◈ Die-cast aluminum alloy material for extreme durability.

◈ High-precision steel worm-gear driven, self-locked when power off.

◈ IP66 Protection class for all-weather operation.

◈ Support OSD Menu and real-time data return for pan/tilt/focal length.

⚙

Technical Specifications

Pan Speed	0.01º ~ 12º/s
Tilt Speed	0.01º ~ 8º/s
Number of Presets	200
Auxiliary Switch	2 Groups
Lens Control	Adaptive zoom/focus speed adjustment
Auto Cruising	8 tracks (each with 10 presets)
Input Voltage	AC24V±20%, 50/60HZ; DC28V±20%
Working Temp	-25ºC ~ +65ºC (Standard); -40ºC options available
Dimensions	350mm * 206mm * 380mm

📐

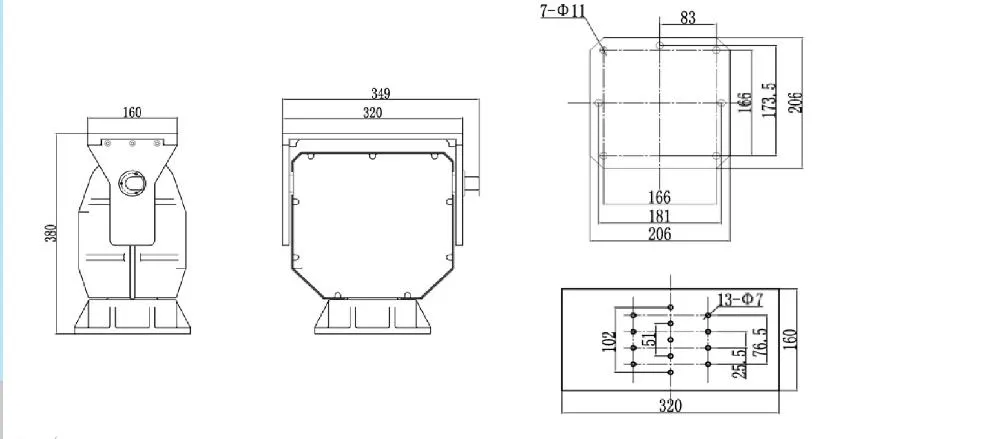

Product Dimensions

📦

Packaging & Shipping

🏢

Professional Manufacturing

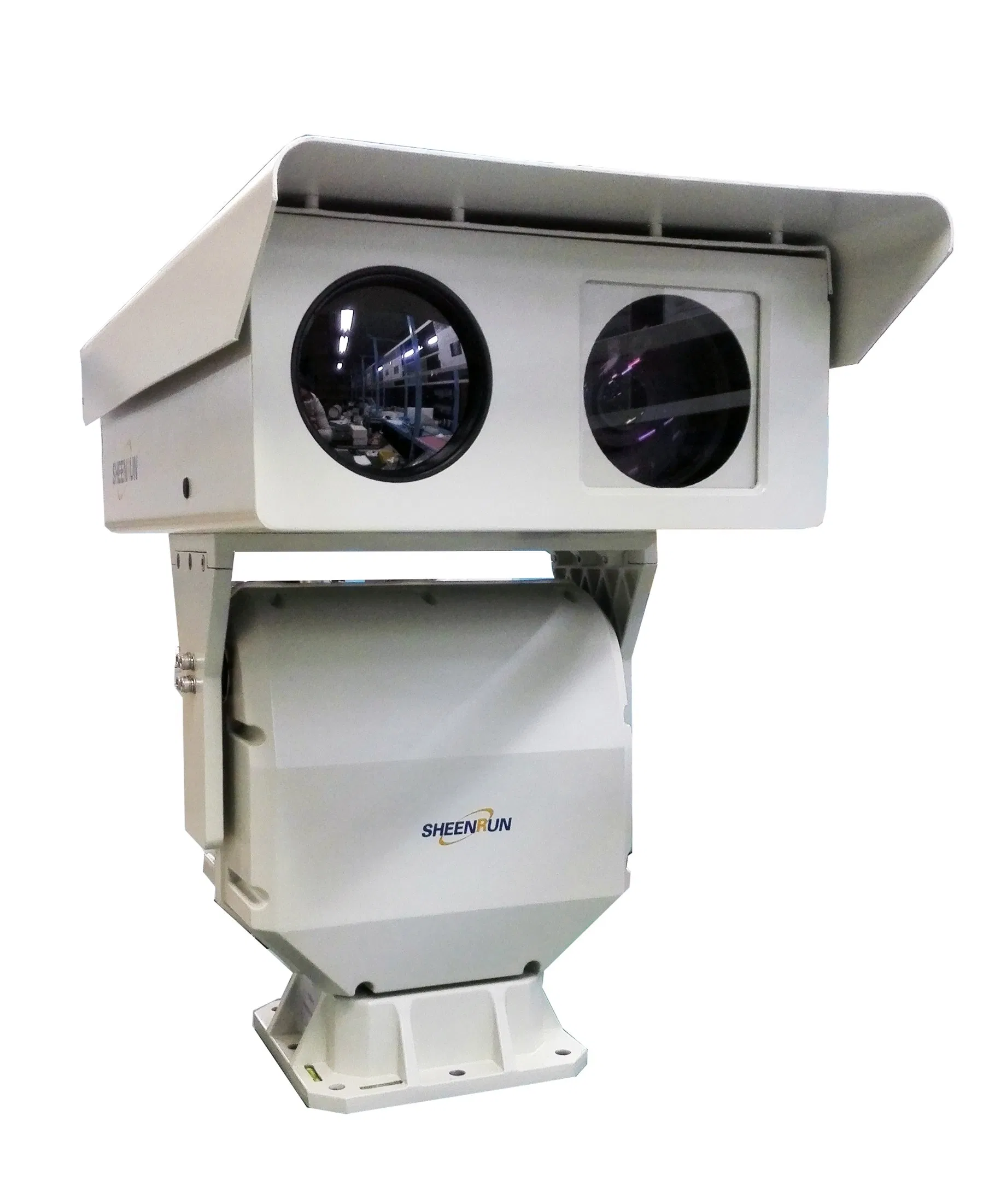

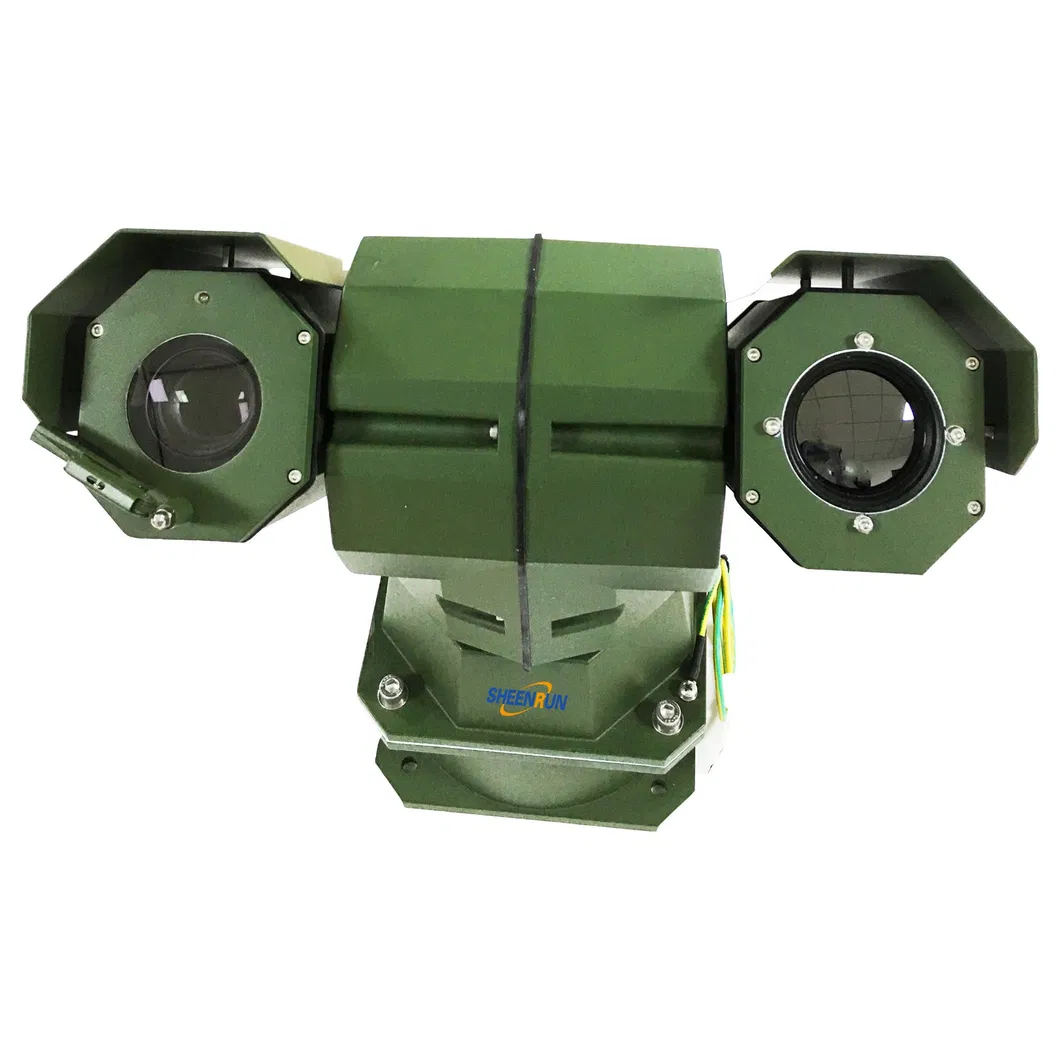

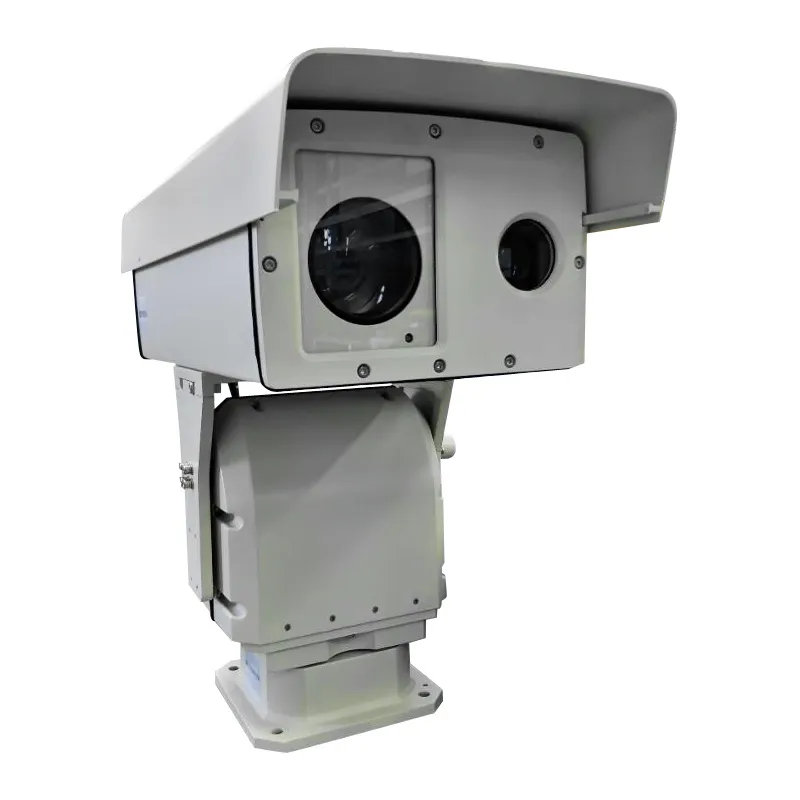

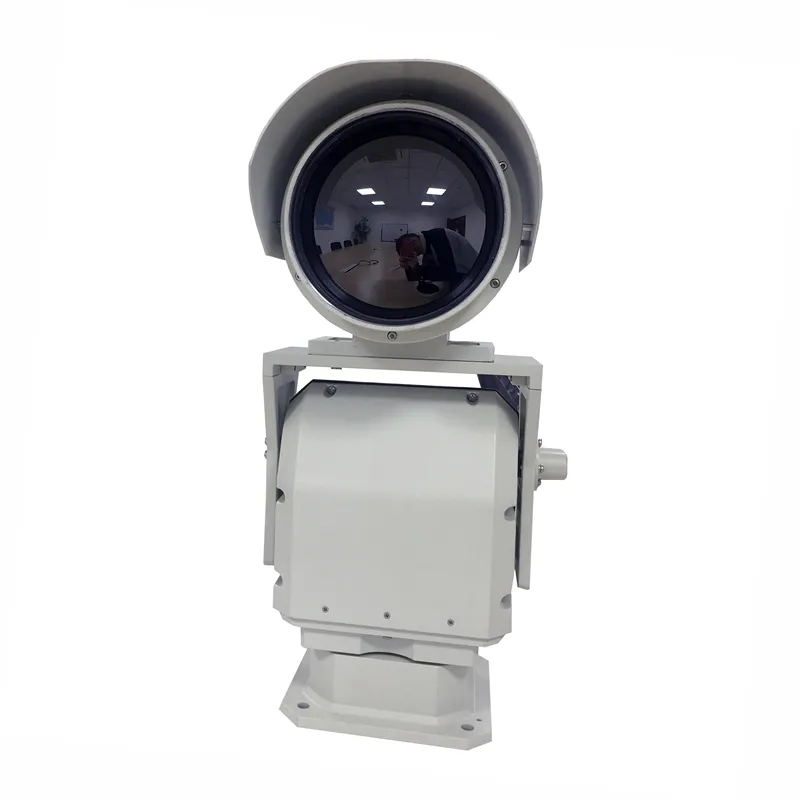

As a leading manufacturer of long-range thermal imaging and laser night vision systems since 2004, the company focuses on independent innovation. Our technology is widely applied in national defense, safe cities, railways, and forest fire prevention, providing all-weather surveillance solutions.
