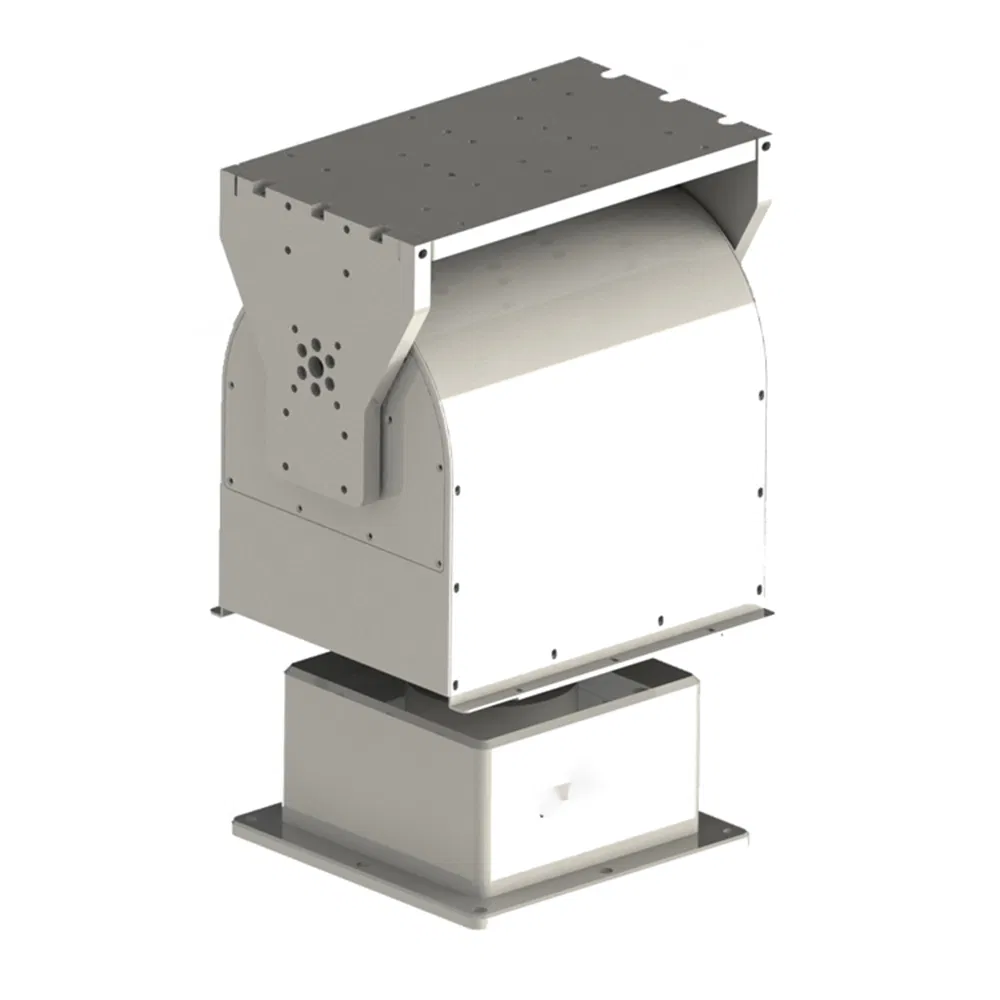

Outdoor 120kg Payload Heavy-Duty Rotation Pan Tilt

1 / 1

Outdoor 120kg Payload Heavy-Duty Rotation Pan Tilt

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Information

Model NO.

SOAR-PT8120

Type

CCTV Camera

Certification

CE, FCC, CCC, RoHS, ISO9001: 2000

Feature

Waterproof / Weatherproof

Max. Load

120kg

Pan Rotation

360° Continuous

Tilt Rotation

-45°~+40°

Material

Aluminum Alloy

Protection

IP66

Consumption

≤200W

✓

Product Specifications

Model: SOAR-PT8120 Technical Data
Max. load	120kg
Load Mode	Top load
Driving	Worm and gear driving
Pan Rotation Angle	360° continuous
Tilt Rotation Angle	-45°~+45°
Pan Speed	0.005°/s~15°/s
Tilt Speed	0.005°/s~7°/s
Preset Position	200
Presetting Precision	±0.1°
Lens Preset	Support, adaptive to variety of lenses
Lens control speed	Zoom, focus speed is continuously adjustable
Protocol	Pelco D
Input Voltage	DC48V±10%
Working Temperature	-35°C~+65°C
Waterproof	IP66

★

Key Features

• High-precision worm gear drive mode, self-locking when power off, strong wind resistance and high stability.

• Support a variety of lens preset function, zoom adaptive function.

• 360° continuous rotation in the horizontal direction, vertical +45°~-45°.

• High repeat positioning accuracy, up to ±0.1°.

• Maximum load capacity is 120KG.

• All-weather protection design, IP66 protection level.

📦

Packing & Services

Packing & Shipping: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Professional Profile: A professional video surveillance products provider, devoted in front-end surveillance product design, manufacture and sales for more than 15 years. Honored as a national technical innovation enterprise with an R&D team consisting of 60+ members including Masters and senior engineers specialized in industrial design, FPGA, ISP, video analysis, and AI algorithms.

🛠
