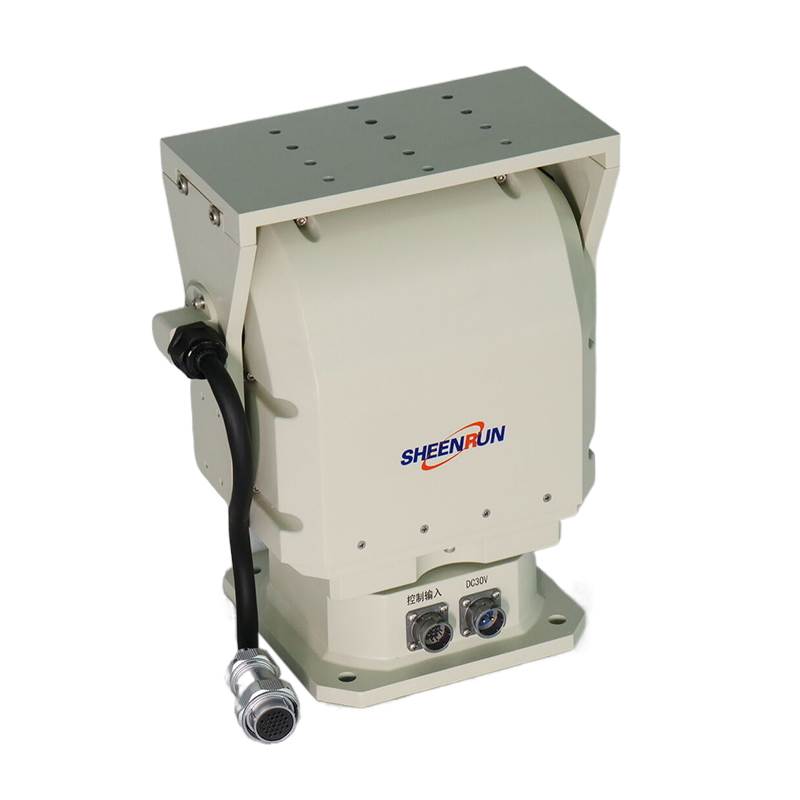

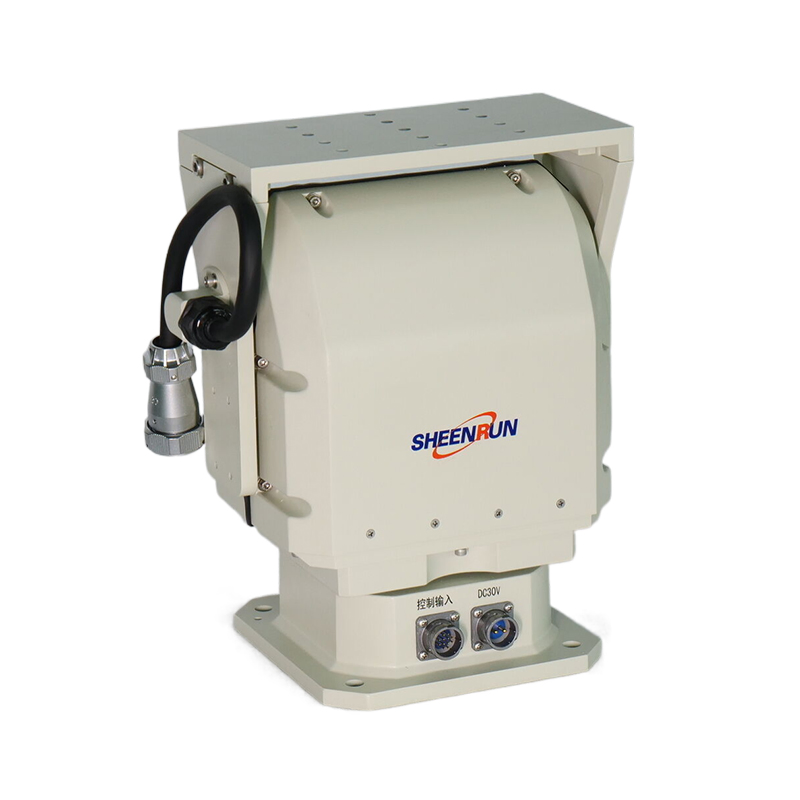

High-Speed 360-Degree Intelligence Pan Tilt System with 20kg Capacity

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Specifications

Model NO.

SP25 Intelligence Pantilt

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Protection Class

IP66

Effective Distance

≧30m

Max Load

35kg

Product Key Features

Max Load Options: 10kg / 15kg / 20kg to suit various equipment needs.
Support for multiple lens preset functions for automated monitoring.
High-speed rotation: Pan tilt speed can reach up to 60º/s.
Superior precision: High resetting accuracy up to ±0.1º.
Rugged Construction: Made from high-quality die-cast aluminum alloy material.
Safety Design: High-precision gear-driven system with self-locking when power is off.
Full Coverage: 360º continuous pan angle rotation.
Weatherproof: Certified IP66 protection class for harsh environments.

Technical Specifications

Model	FS-2510	FS-2515	FS-2520
Rotating Speed	Pan: 0.01º~60º/s, Tilt: 0.01º~30º/s	Pan: 0.01º~45º/s, Tilt: 0.01º~15º/s	Pan: 0.01º~20º/s, Tilt: 0.01º~10º/s
Rotation Angle	Pan: 0º~360º continuous, Tilt: +20º~ -60º
Presets	200 Positions
Accuracy	±0.1º
Interface	RS485 (Angle query returns) or RS422 (Real-time returns)
Power Consumption	≤70W
Operating Temp	-25ºC ~ +65ºC (Standard) / -40ºC ~ +65ºC (Optional)
Max Load	10kg	15kg	20kg

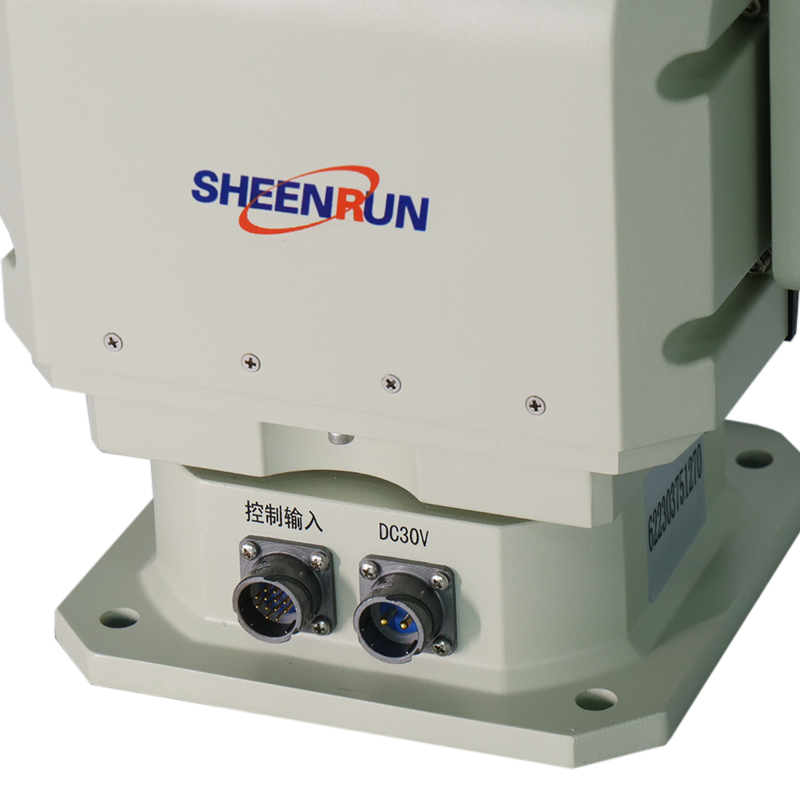

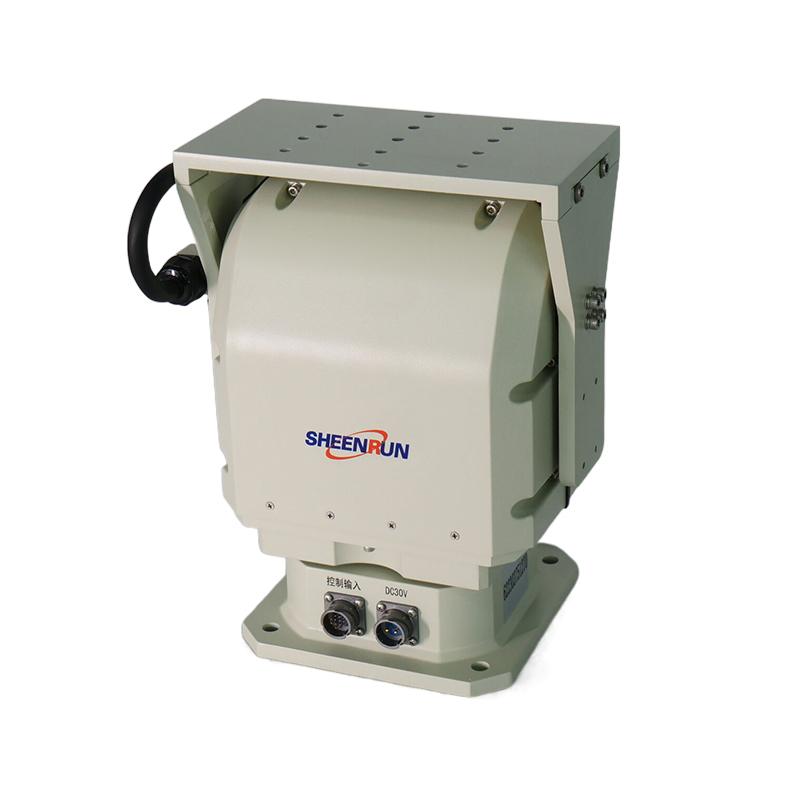

Product Visuals

About Our Technology

Our team is a leading provider of professional night vision equipment and rugged information solutions. We focus on independent innovation, having developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems. Our synchronous zoom laser technology and thermal imaging solutions meet international standards, serving a significant share of the global security and monitoring market.

Frequently Asked Questions

What is the maximum load capacity of the SP25 system?

The system supports multiple load options including 10kg, 15kg, and 20kg, with some heavy-duty models capable of handling up to 35kg.

Does the pan-tilt system work in extreme weather?

Yes, it is rated IP66 for protection against dust and powerful water jets, and it can operate in temperatures ranging from -25ºC to +65ºC (with options for -40ºC).

How accurate is the preset positioning?

The system features high-precision gear driving that ensures a resetting accuracy of up to ±0.1º.

What control protocols are supported?

The device supports standard Pelco-D and Pelco-P protocols via RS485 or RS422 interfaces.

Can the rotation speed be adjusted?

Yes, the pan speed is adjustable from 0.01º/s to 60º/s and the tilt speed from 0.01º/s to 30º/s depending on the model selected.

Is the system self-locking?

Yes, the unit adopts high-strength worm gear driving which automatically self-locks when the power is turned off to maintain its position.
