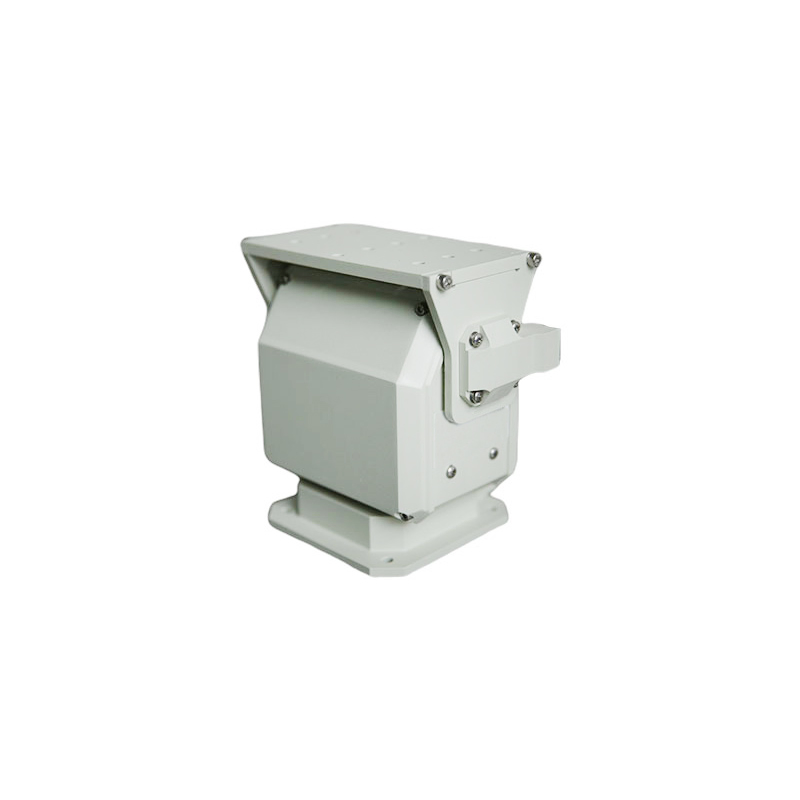

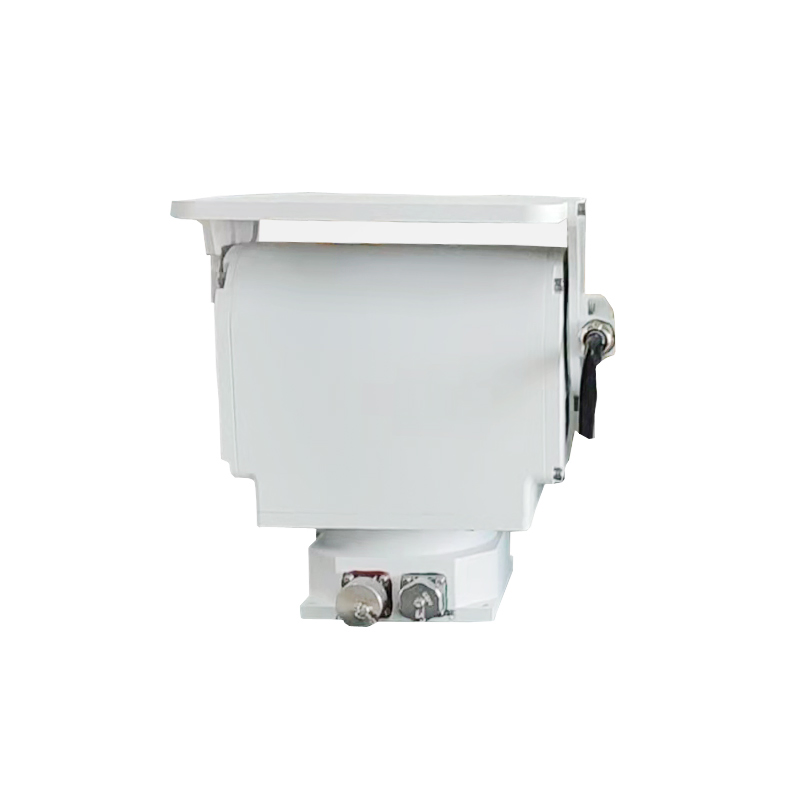

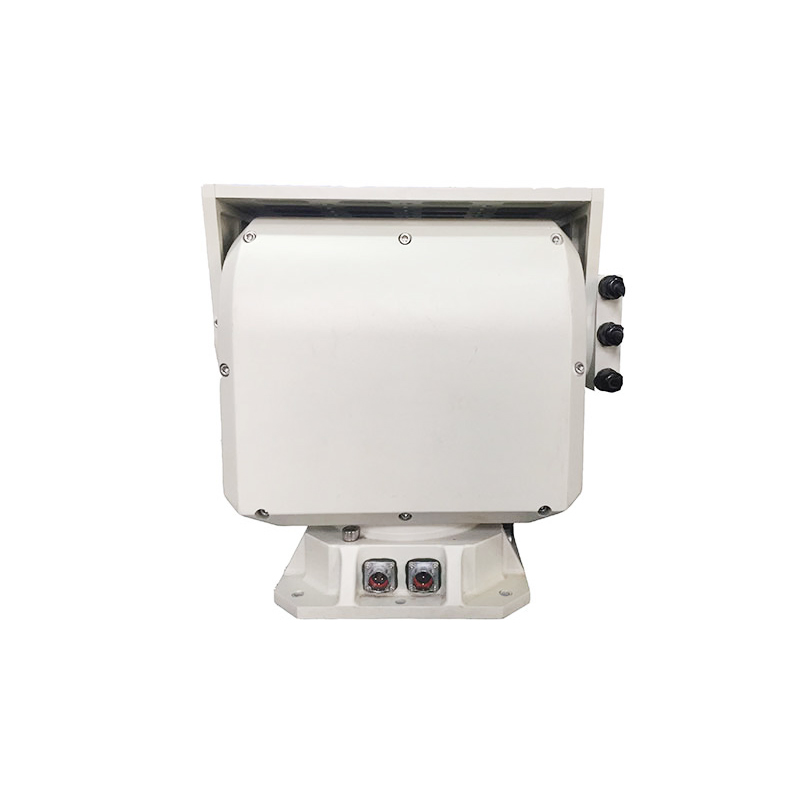

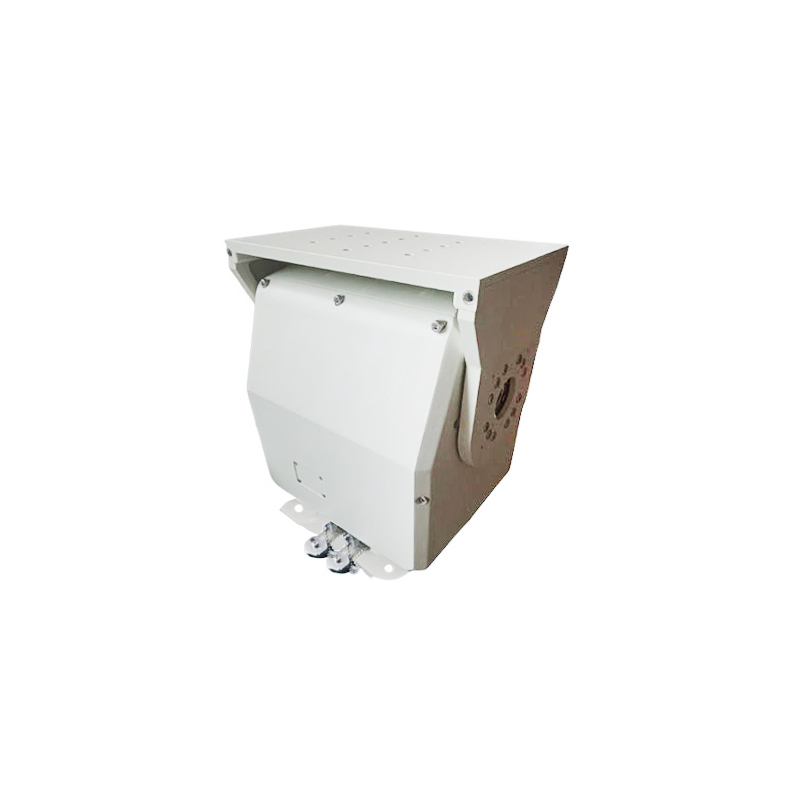

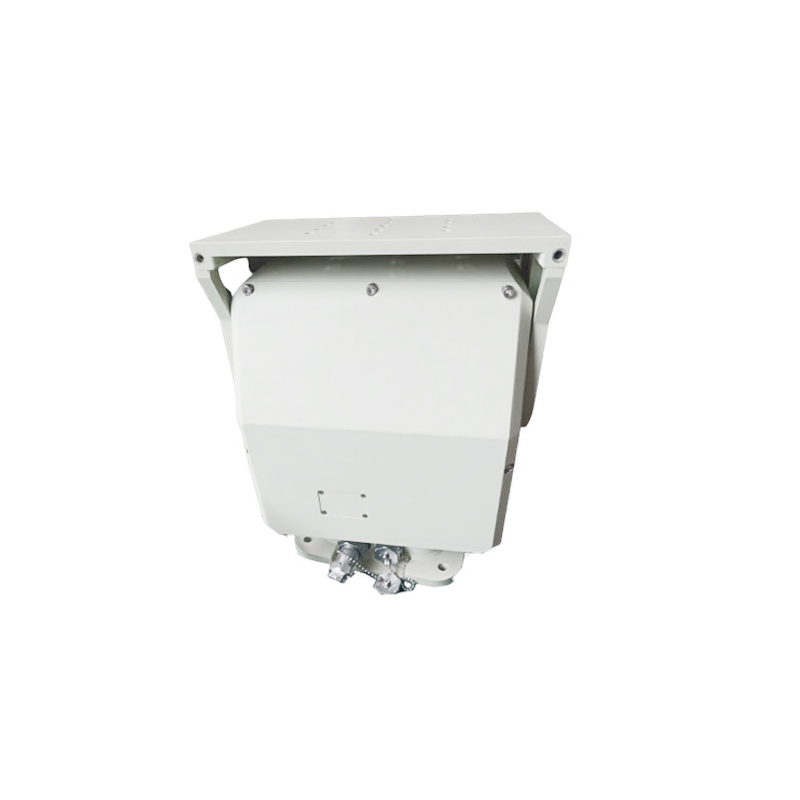

10kg High Precision Intelligent Pan Tilt Motor for CCTV Camera

1 / 5

10kg High Precision Intelligent Pan Tilt Motor for CCTV Camera

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Info

Model NO.:CQ-P10

Type:CCTV Camera

Sensor:CMOS

HDMI Format:576P

Horizontal Res:480tvl

Certification:CE, FCC

Feature:Waterproof, HD

Effective Dist:≧30m

Sensor Size:1/3 inch

Rotation Angle:0-360 Degree

Protocols:Pelco_D

Load Capacity:10kg

Weight:12kg

Protection:IP66

Product Highlights

High repetitive positioning accuracy up to ±0.1°
Built-in incremental encoder for closed-loop control
High-strength aluminum alloy die-casting shell
Precision reducer transmission with self-locking function when power is off
Optional slip rings for 100 or 1 Gigabit network transmission
Built-in serial server for seamless network control
Real-time feedback for PT orientation, focal length, and focus values
Adaptive preset position functions for multiple lens brands

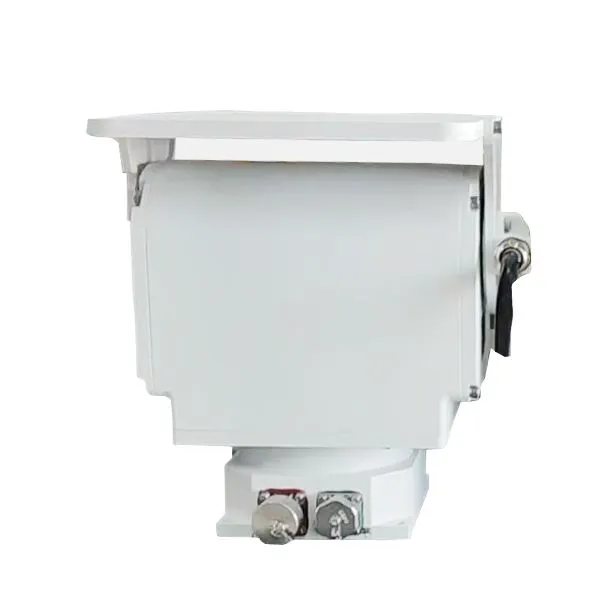

High Precision Intelligent Pan Tilt Motor

Technical Specifications

Model Number	CQ-P10
Rotation Speed	Horizontal 0.01° to 20°/S; Pitch 0.01°~10°/S
Angle of Rotation	Horizontal 360° continuous; Pitch -60° to +60°
Preset Position	200 (expandable)
Positioning Accuracy	±0.01°
Communication Interface	RS485 (RS422 / RS232 / RJ45 optional)
Input Power Range	AC/DC24V
Power Wastage	≤ 80W / ≤ 10W
Operating Temp	-25°C to +55°C
Load Capacity	≥10Kg
Size (L×W×H)	267mm × 143mm × 243mm
Protection Class	IP66
MTBF	≥5000h

Frequently Asked Questions

Q1: What is the repeat positioning accuracy of the CQ-P10? The unit offers a high repeat positioning accuracy of ±0.01° to ±0.1°, ensuring precise monitoring for long-range applications.

Q2: Is this pan tilt motor suitable for outdoor use? Yes, it features an IP66 protection rating and an optional anti-salt spray treatment, making it ideal for harsh outdoor environments.

Q3: What communication protocols does the device support? It primarily supports the PELCO_D protocol with adjustable baud rates up to 19200 bps. Custom protocols can also be supported.

Q4: What is the maximum weight the motor can carry? The CQ-P10 is designed to handle a load capacity of ≥10kg, supporting both top and side load carrying methods.

Q5: Does the motor maintain its position when power is lost? Yes, it adopts a precision reducer transmission and a brake stepper motor, which provides a self-locking function during power-off.

Q6: What are the rotation limits for this model? It provides 360° continuous horizontal rotation and a pitch range of -60° to +60°, with optional limit rotation settings available.
