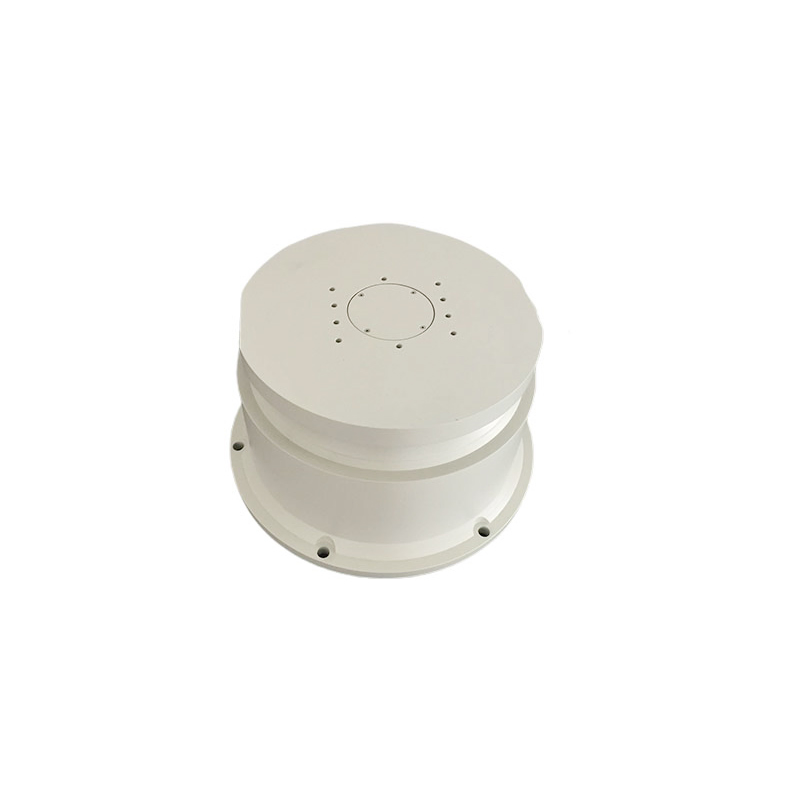

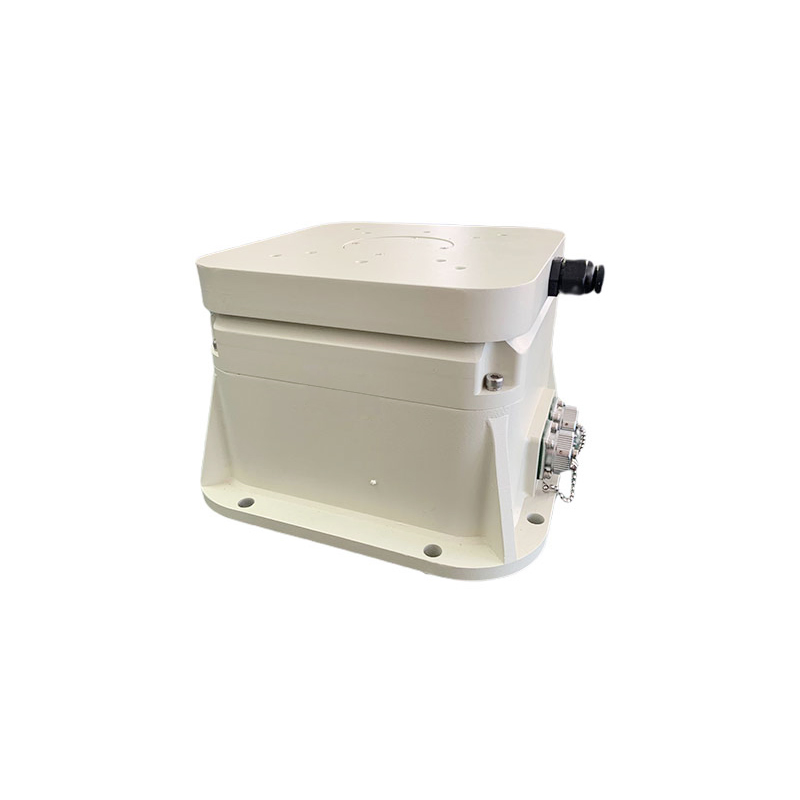

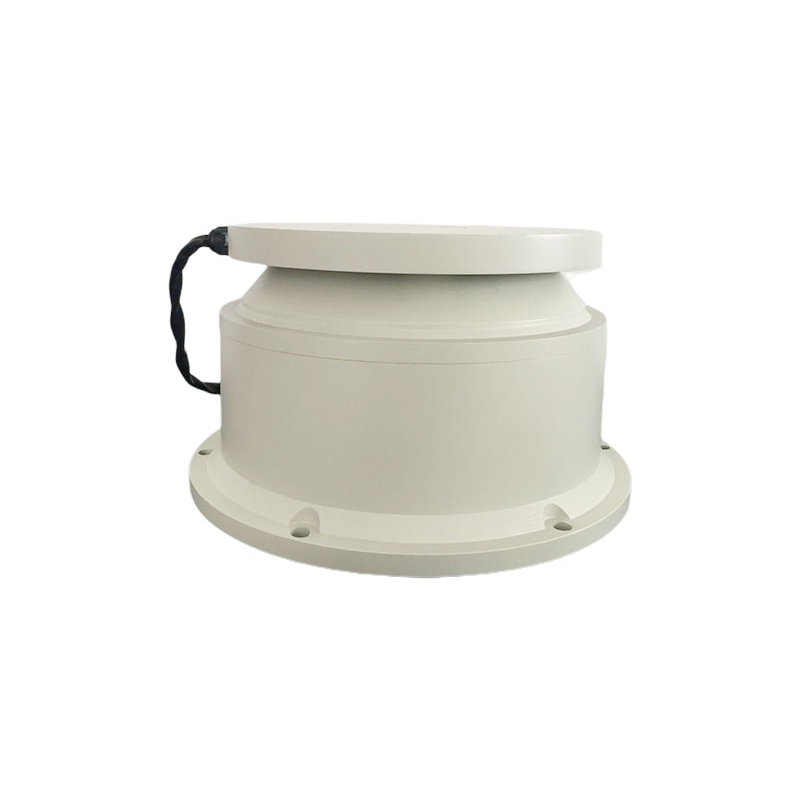

60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
1 / 5
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt
60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt

60kg Top Load Aluminum Alloy 360 Degree Camera Heavy-Duty Pan Tilt

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Specifications

Model NO.:CQ-TH50
Type:CCTV Camera
Sensor:CMOS
HDMI Format:1080P
Horizontal Res:650tvl
Certification:CE, FCC
Feature:Waterproof, HD
Rotation:360 Degree
Load Capacity:60kg
Protection:IP66

Product Highlights

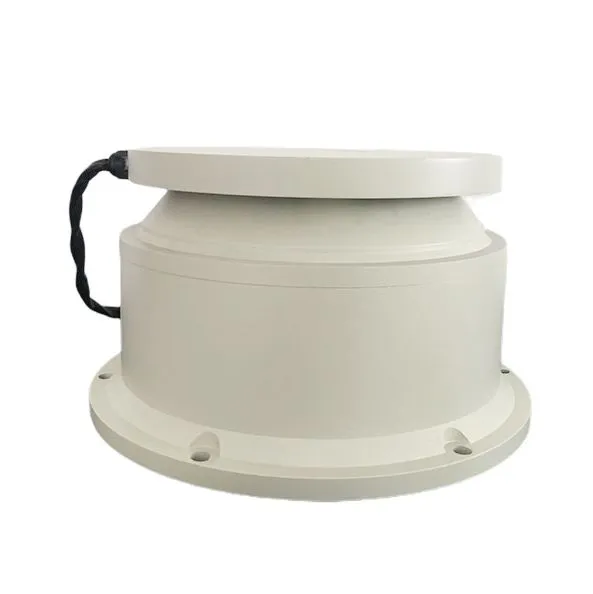

60kg Top Load Camera Pan Tilt

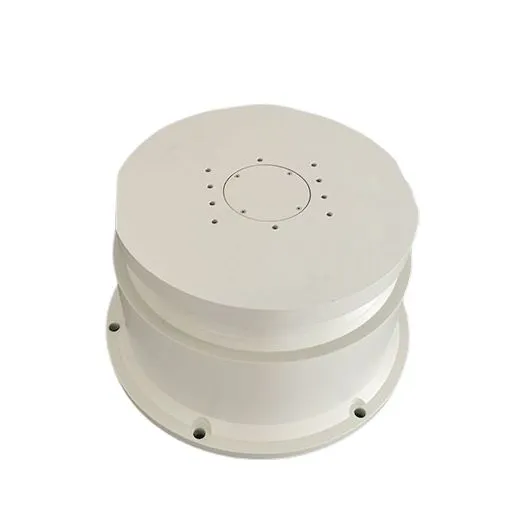

Heavy-Duty Pan Tilt Detail
  • High repetitive positioning accuracy up to ±0.1°
  • Built-in incremental encoder for closed-loop control
  • High-strength aluminum alloy die-casting shell
  • Worm gear transmission with power failure self-locking
  • Supports network control with optional slip rings
  • Real-time information return (PT orientation, focal length)
  • IP66 waterproof and dustproof protection

Technical Parameters

Rotation speedHorizontal 0.01° to 30°/S
Angle of rotationHorizontal 0~360° continuous rotation
Preset position200 (expandable)
Repeat positioning accuracy±0.1°
Communication protocolsPELCO_D
Communication interfaceRS485 (RS422 / RS232 / RJ45 optional)
Input Power RangeAC / (DC24V optional)
Operating temperature-25°C to +55°C, 90% ± 3%
Load Capacity≥60Kg
Size (L×W×H)240mm×252mm×184mm
Weight15Kg
Protection classIP66
MTBF≥5000h

Frequently Asked Questions

What is the maximum load capacity of the CQ-TH50?
The system supports a top load of up to 60kg, making it suitable for heavy-duty camera equipment and sensors.
How accurate is the positioning of this pan-tilt head?
It offers high repetitive positioning accuracy of ±0.1° and an angular resolution of 0.01° for precise monitoring.
Is the device suitable for outdoor use in harsh environments?
Yes, it features an IP66 protection rating and is made of high-strength aluminum alloy, allowing it to operate in temperatures from -25°C to +55°C.
What happens if there is a power failure?
The CQ-TH50 adopts a worm gear transmission system, which provides a self-locking function during power outages to maintain its position.
Which communication protocols are supported?
The standard protocol is Pelco_D, and it supports RS485 communication. Customized protocols are also available upon request.
Does it support preset positions for lenses?
Yes, it supports up to 200 preset positions and is adaptable to various lenses from manufacturers like FUJINON, COMPUTAR, and KOWA.
