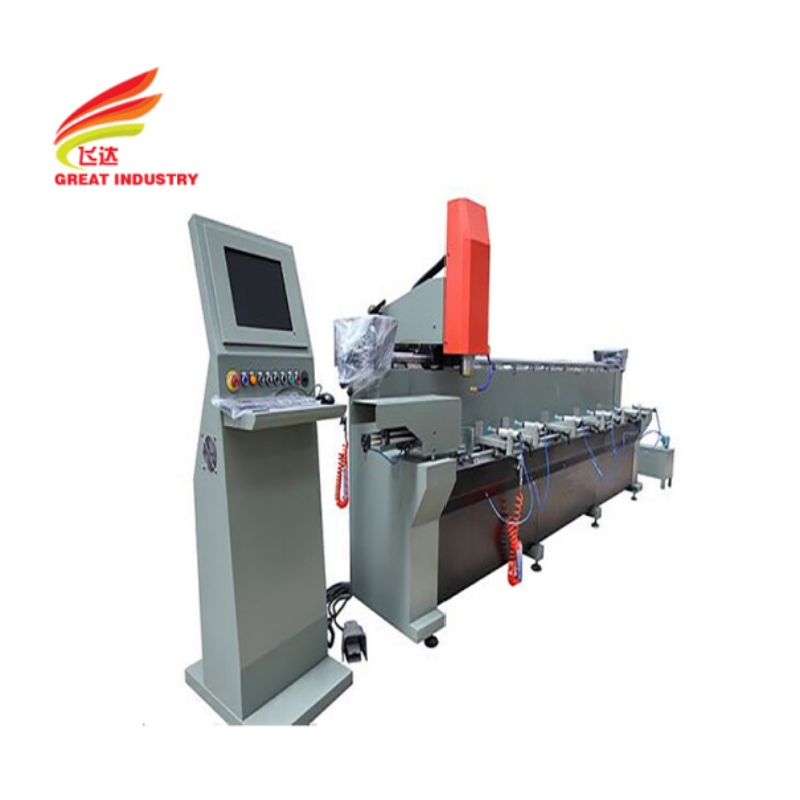

Window Lock Hole Making Aluminium Profile CNC Milling Aluminum Extrusion Drilling Machine

Customization: Available
After-sales Service: 7*24 Hours (All Weather Service)
Warranty: 1 Year

Product Description

⚙️ Technical Specifications
ModelZX3-DW2500
ConditionNew
CertificationISO, CE, TUV
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Power Supply380V 50Hz
Power6.05 Kw
Spindle Motor18000rmp / 5.6kw (ER25)
X Axis Travel2500mm
Y Axis Travel400mm
Z Axis Travel400mm
Tool Specs8 mm*100mm; 5 mm*100mm
Weight1200kg
Dimensions2200*1400*1800mm
Production Capacity5000 PCS/Year
Aluminium Profile CNC Milling Machine
🛠️ Performances and Features

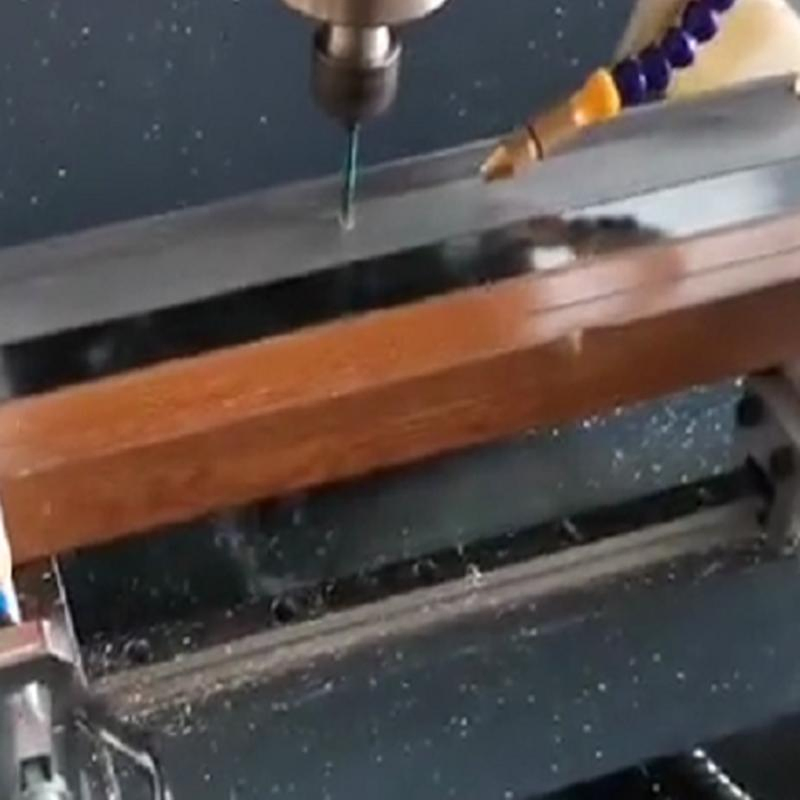

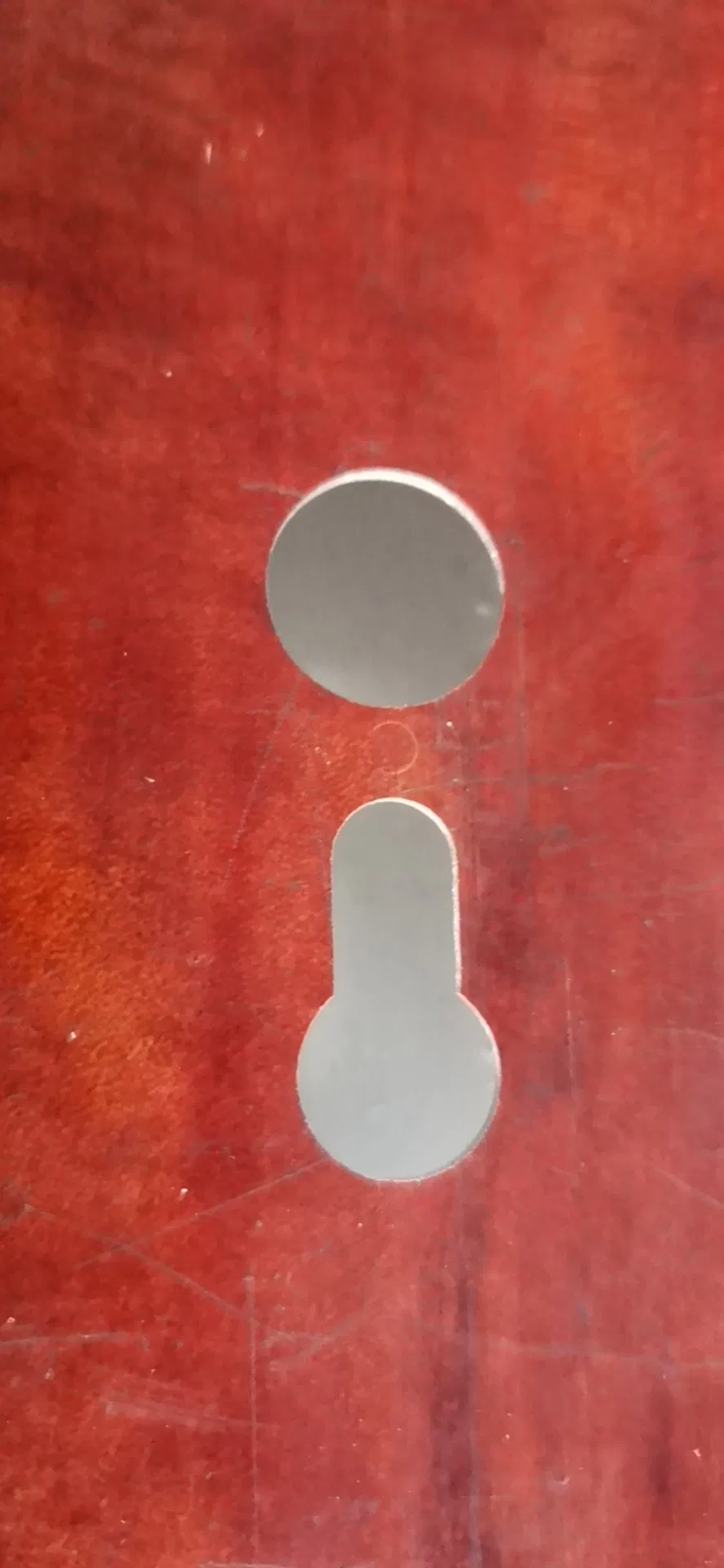

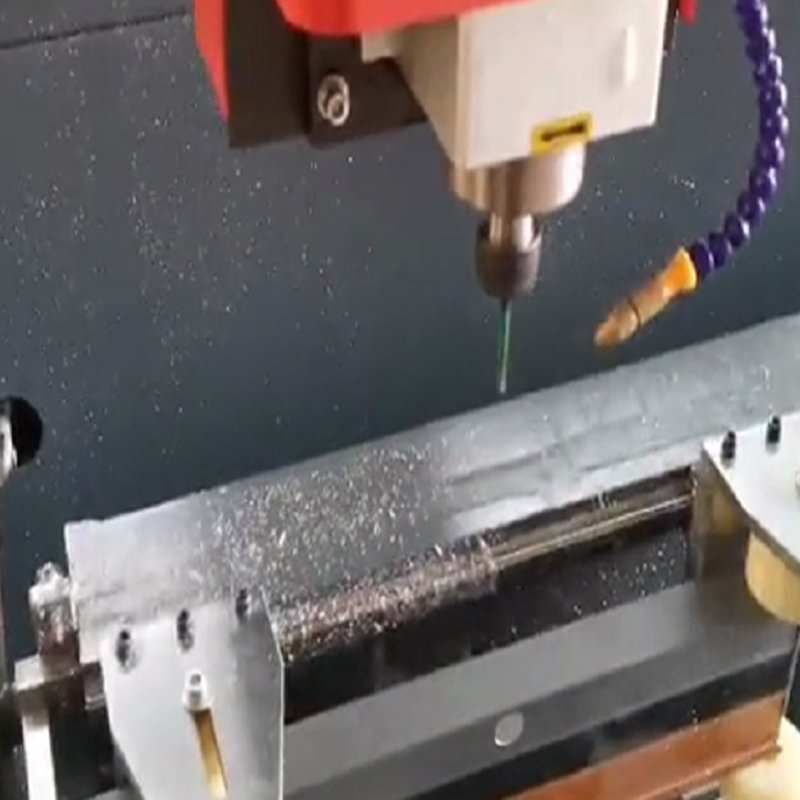

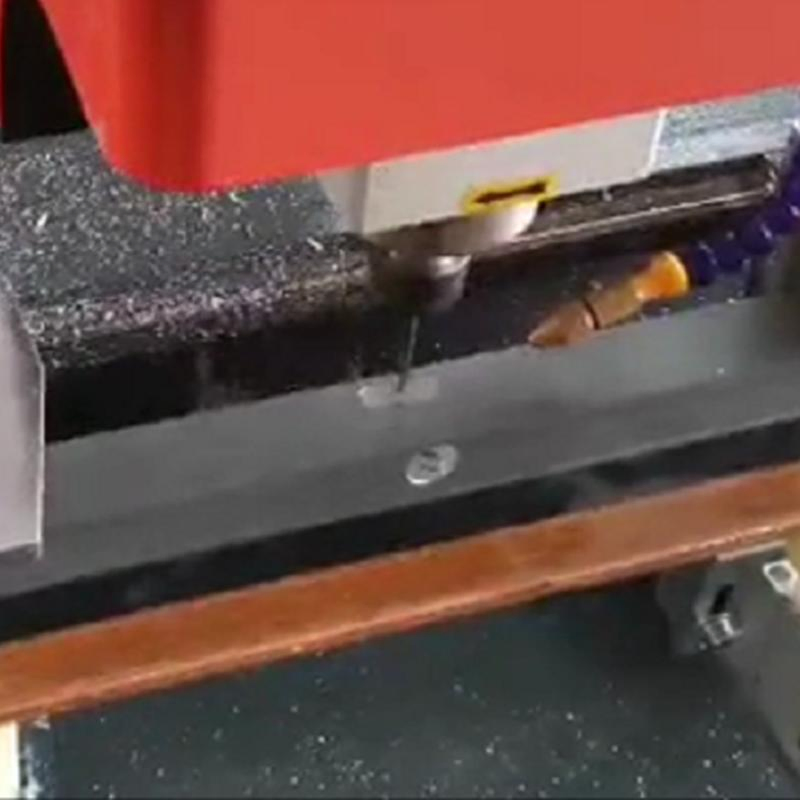

  • Applicable to processing installation holes, lock holes, shaped holes, and water outlet slots for aluminum profiles.
  • Working head can apply drilling and milling on any position of the profile.
  • Multi-shaft controller ensures high precision and system reliability.
  • Equipped with high-quality AC servo motors and high-precision linear guide ways.
  • 3 axes high-speed principal spindle for efficient machining.
  • Integrated safety cabin/hood to ensure maximum operator protection.
  • Pneumatic clamping system with a moving working table.
  • Advanced cooling spray system for tool longevity.
🎯 Machining Precision
Positioning Repetition Allowance±0.02 mm
Positioning Allowance±0.05 mm
Verticality of Machining Surface0.05 mm / 100mm
Roundness0.03 mm
Roughness of Machining SurfaceRa12.5 um
📸 Detailed Gallery
Detailed View 1
Detailed View 2
Milling Detail

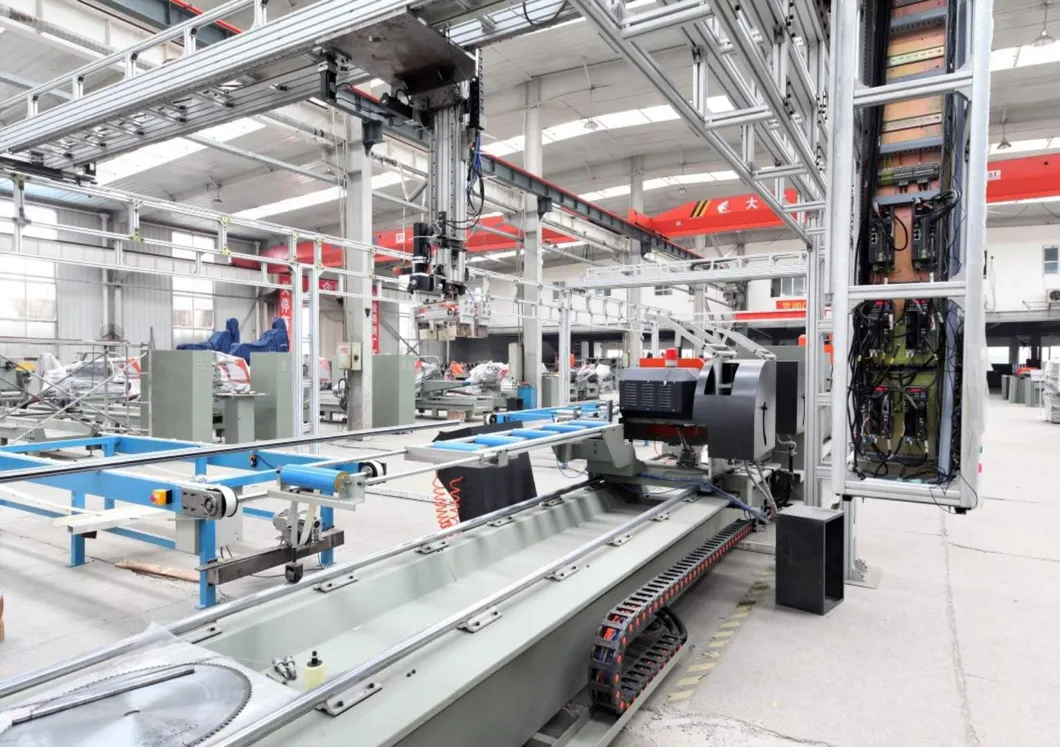

CNC Component
Internal Parts
📦 Packaging & After-Sales
Package MaterialNon-Fumigation Plywood Wooden Box
Package Gross Weight1200.00kg
Service Duration7*24 Hours (All Weather Service)
Warranty PeriodUp to 2 Years support available
❓ Frequently Asked Questions
Q1: Which basic machines are required for Aluminum window production?
A basic production line typically includes a Double Head Cutting Saw, Copy Router Machine, End Milling Machine, Corner Connector Cutting Saw, and a Corner Crimping Machine.
Q2: How do I choose the most suitable machine for my business?
Selection depends on your specific cutting material, size, thickness, and required production capacity. We provide professional consultations to match the ideal solution to your needs.
Q3: Is the CNC milling machine easy to operate for beginners?
Yes, it is designed for ease of use. We provide comprehensive English user manuals and installation videos that clearly demonstrate assembly and operation.
Q4: What technical support is provided if a problem occurs?
We provide 24/7 remote support. During the warranty period, components can be sent free of charge. If necessary, engineers can be dispatched for on-site repairs.
Q5: What is the typical lead time for shipment?
Standard machines are usually shipped within 15 days of deposit. Customized machinery solutions generally require a production period of 25 days or more.
Q6: Do you offer training and investment analysis?
Yes, we provide free training for operation and maintenance, along with free investment analysis and layout design for window, door, and curtain wall production lines.
