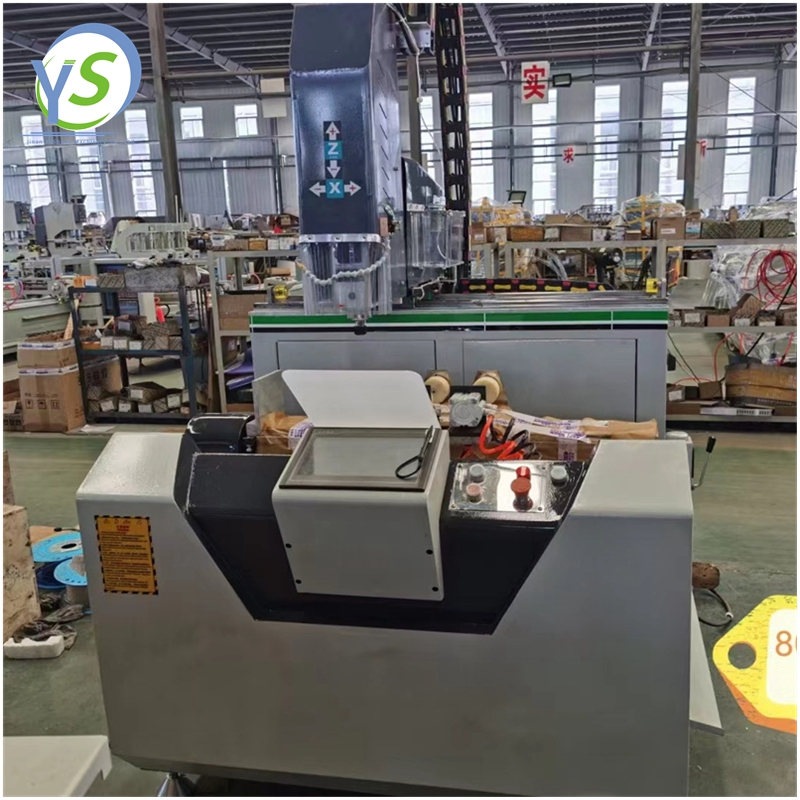

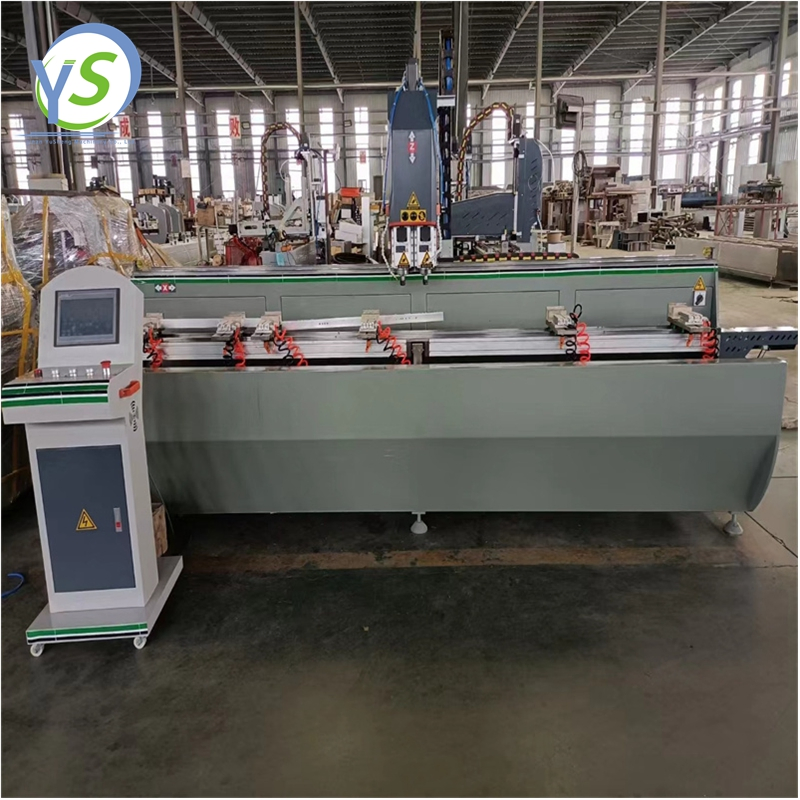

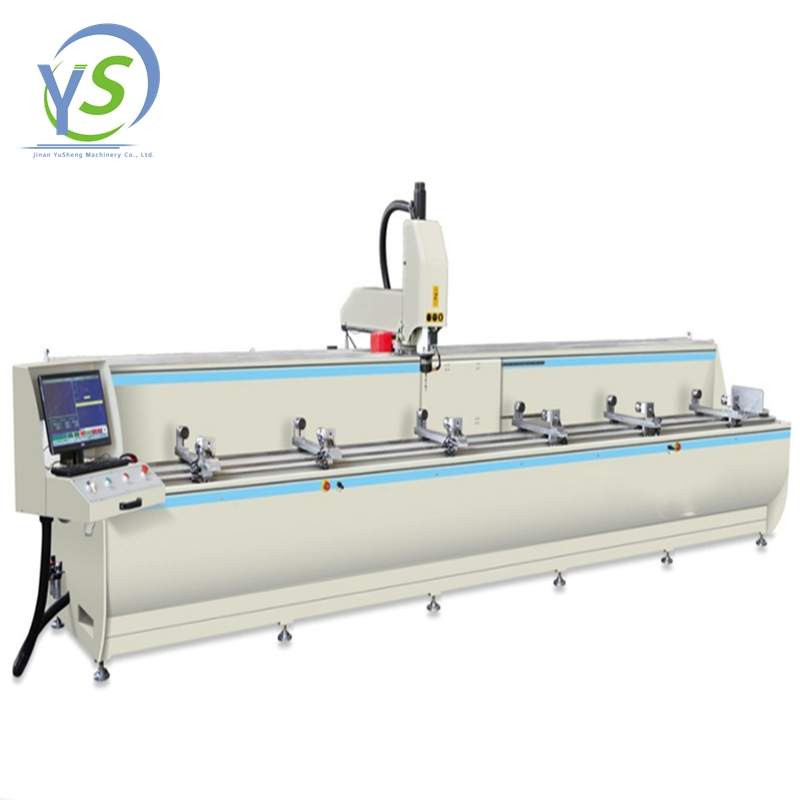

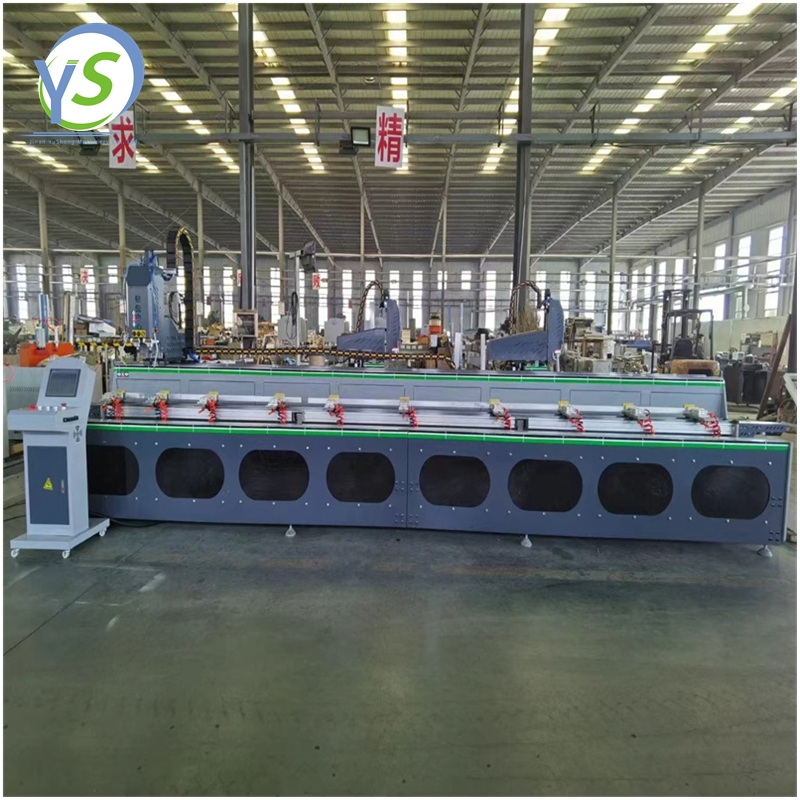

Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
1 / 5
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center

Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center

Customization: Available
After-sales Service: Free Online Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
CNC-600/800/1200/1500/3000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Working Speed
0-10m/Min
Production Capacity
200 Piece/Month
Product Description

CNC High-Precision Aluminum UPVC/PVC Drilling Milling Machine

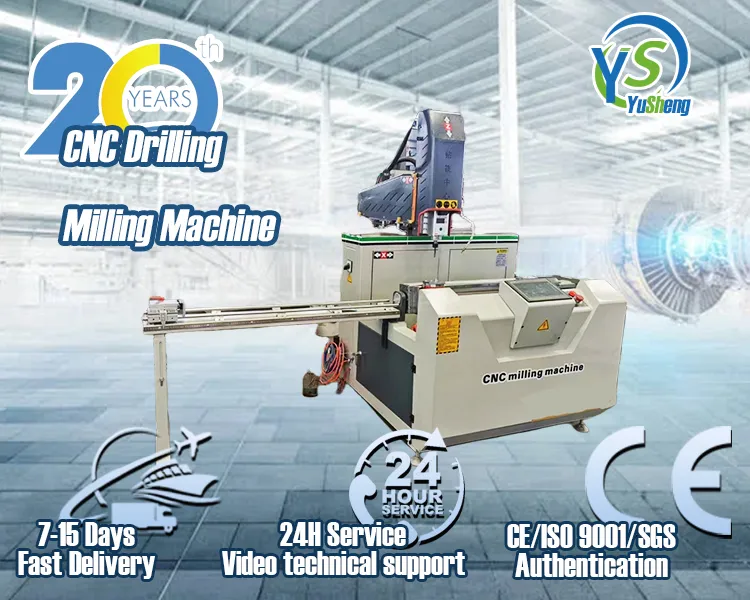

CNC Drilling Milling Machine
  • ✔ Designed for processing round holes, slots, keyholes etc. on aluminum profile, window-door and curtain wall industry.
  • ✔ Main spindle adopts air-cooling electric axis, 3kW power, 0~18000r/min, high precision and reliability.
  • ✔ Automatic G code transformation for easy operation and high efficiency.
  • ✔ Imported guide rails and sliding blocks; X-axis uses high-precision oblique gear and rack driving.
  • ✔ Worktable can overturn 180° (-90°~0°~+90°), allowing three-face processing with a single clamping.
  • ✔ Equipped with electric pump oil supply system and spray cooling device for cutting tools.
Detailed Photos

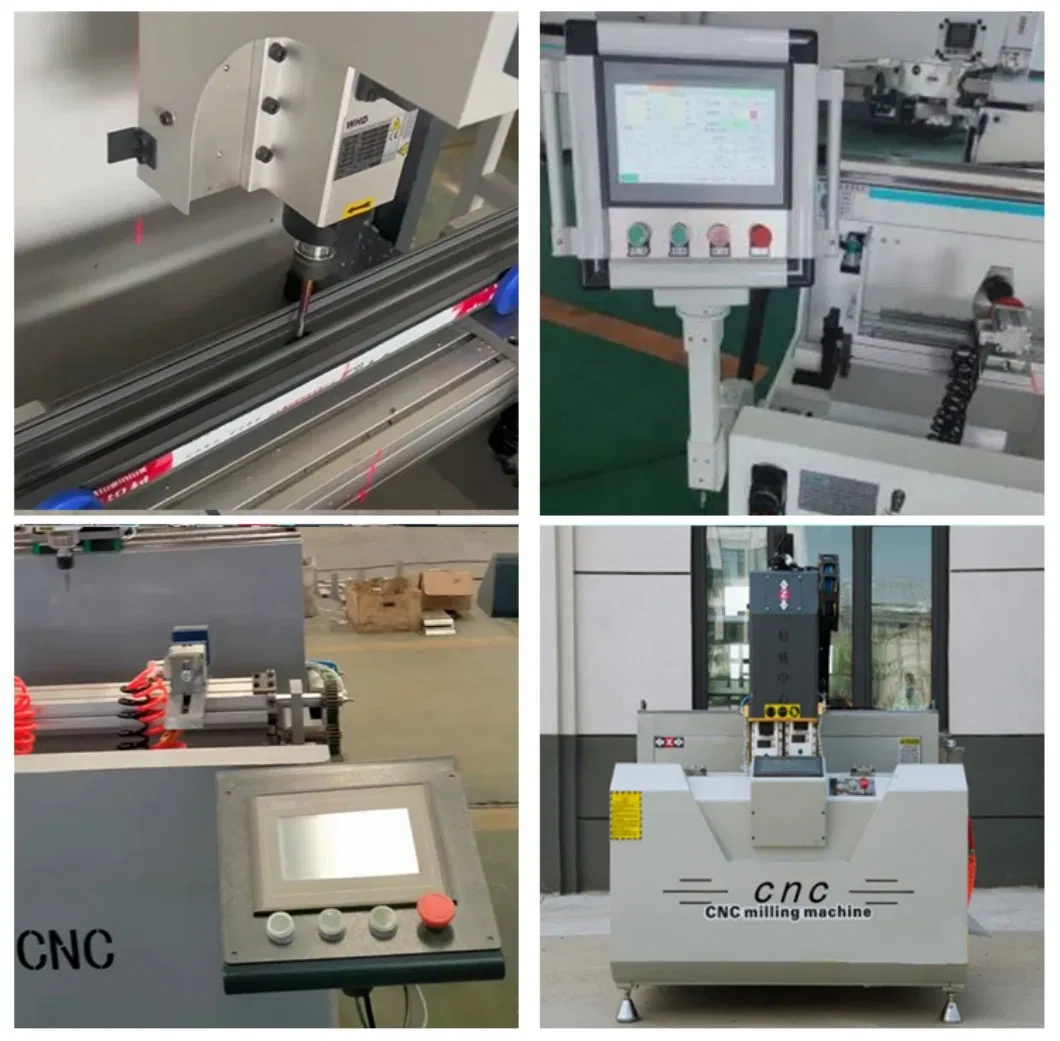

Machine Detail 1
Machine Detail 2
Technical Parameters
Parameter Specification (CNC-1200)
Voltage380V 50HZ (Customizable)
Power3 KW
Working Pressure0.6 ~ 0.8mpa
X Axis Travel3000mm
Y Axis Travel500mm
Z Axis Travel380mm
Rotation Angle180°-90°~0°~+90°
Dimensions2300x1500x1950mm
Weight1000 kg
About Us

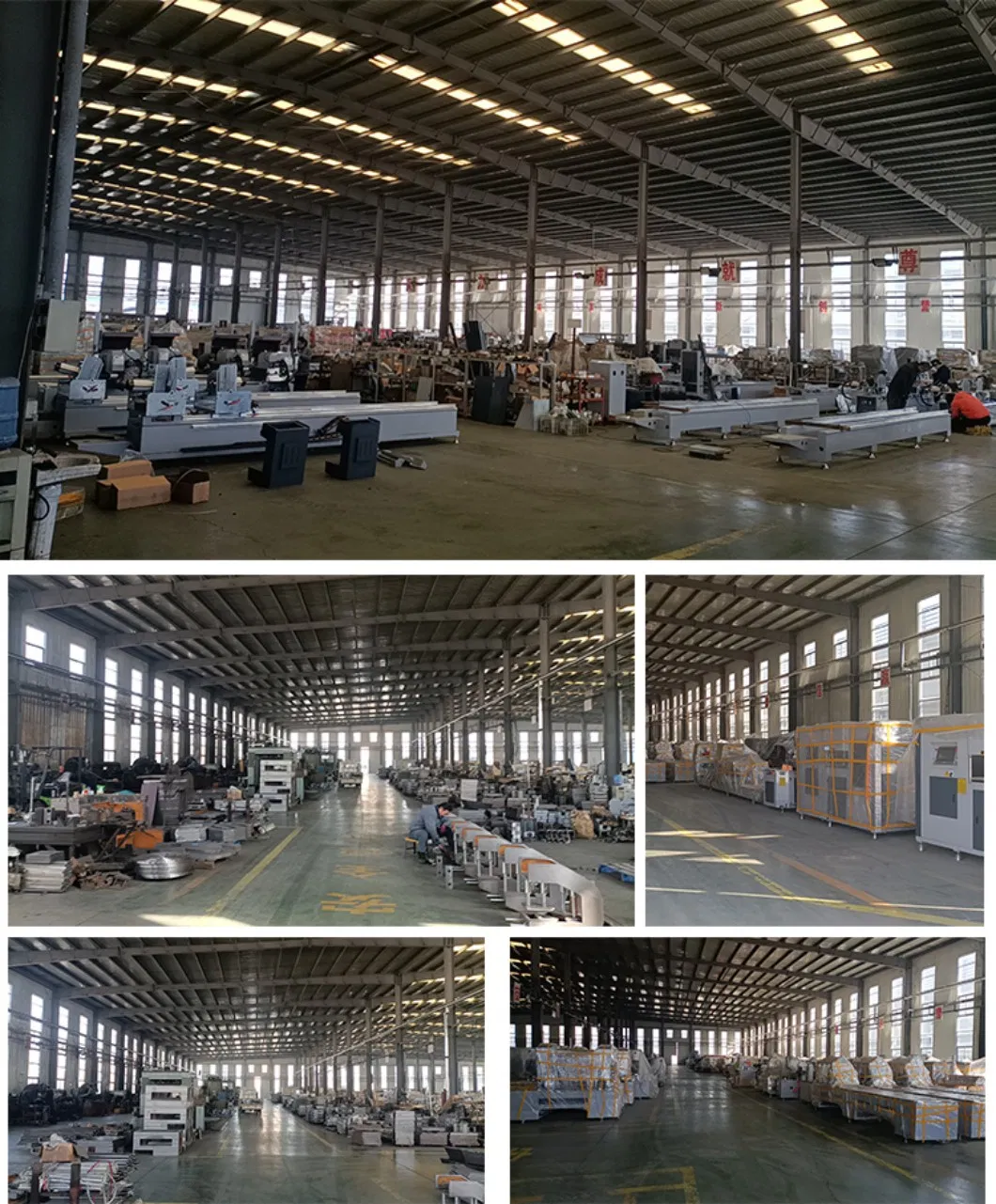

Workshop
Certification

The company is dedicated to the cutting-edge technology of aluminum profiles, doors, windows, and curtain wall processing equipment. With an experienced team of industry experts and a large-scale mechanical workshop, we integrate research, development, production, and service. We provide complete assembly equipment for aluminum profiles and high-end insulated glass production lines. Our solutions cover industries such as industrial aluminum profiles, rail transit, aerospace, and industrial manufacturing.

Global Reach
Client Visit
Projects
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer with over 10 years of factory experience. By manufacturing our own machines, we ensure trusted quality and superior after-sales service.
Q2: Can the voltage be customized?
A: Yes, the voltage can be customized according to your specific local requirements (e.g., 220V, 415V, etc.).
Q3: What is the estimated delivery time?
A: For standard machines, it is typically 7-10 days. For customized solutions, delivery ranges from 15 to 30 days.
Q4: How do I handle payment and the purchase process?
A: A 30% prepayment starts production. Once the machine is ready, we provide photos/videos for your approval, after which the balance is paid before shipment.
Q5: What after-sales services do you provide?
A: We offer comprehensive support including installation guidance, free project planning, equipment debugging, and 1-year warranty with life-time maintenance.
Q6: How do we learn to operate the machine?
A: We provide training via email, video calls, or WhatsApp. Our engineers have extensive experience and can solve problems quickly in English.
