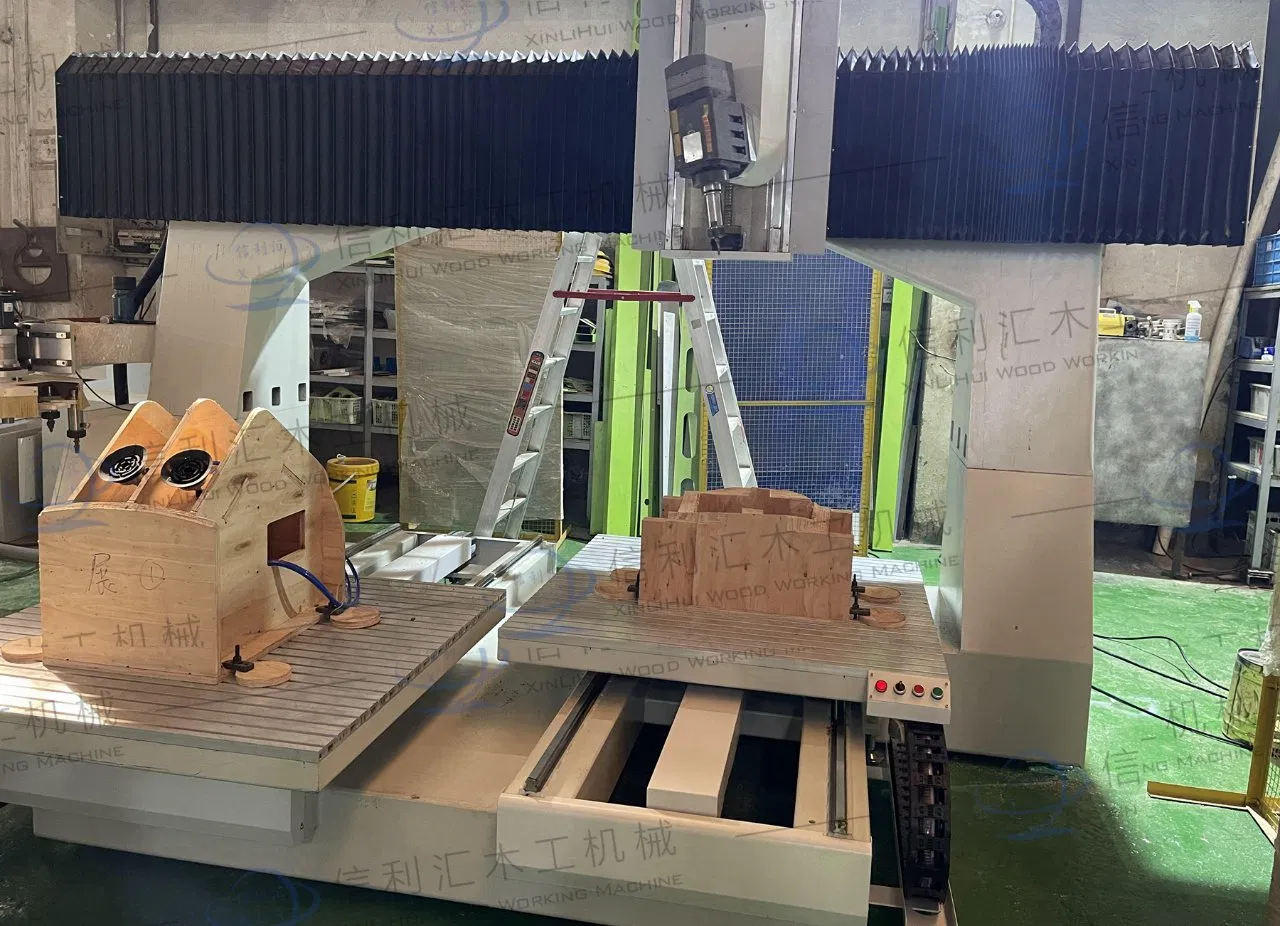

Product Description
■ Application Scope:
The equipment is suitable for heterosexuality, three-dimensional cutting and engraving, drilling, milling, slotting, focusing on five-axis machining centers. It is widely used in thick film blisters, refrigerator liners, chassis shells, wood molds, plaster molds, lost foam, electrical equipment shells, medical equipment shells, plastic bags, bent wood and so on.
Technical Specifications
| Machine Body | Steel plate + square pass integrated welding (the latest model) |
| Rack | Precision ground rack |
| Guide | Jiangmen Kate Rails |
| Screw | Taiwan TBI screw |
| Spindle | 12KW |
| Y Axis | 2 piece independent Y axis |
| Lubrication System | Automatic oil pump system |
| Control System | Five-axis linkage special (with RTCP) Lenark LYNUC |
| System Control Method | Bus absolute value |
| Processing File Format | NC |
| Programming Software | MASTERCAM / UG / POWERMIL |
| Y Axis Transmission | Inovance 0.85KW absolute servo drive + grinding rack drive |
| Z/X Axis Transmission | Inovance 1.8KW absolute servo drive + grinding rack drive |
| A/C Axis Transmission | Inovance 0.75KW absolute servo drive + Japanese reducer |
| Tool Changer | 8 sets knives (ATC Function Included) |
| Inverter | Fuling 15KW inverter |
| Working Table Size | (L*W) 1200mm * 1200mm x 2 |
| Effective Work Height | 750mm |
| Max Speed (X,Y,Z) | 50m/min |
| Precision | ±0.02mm |

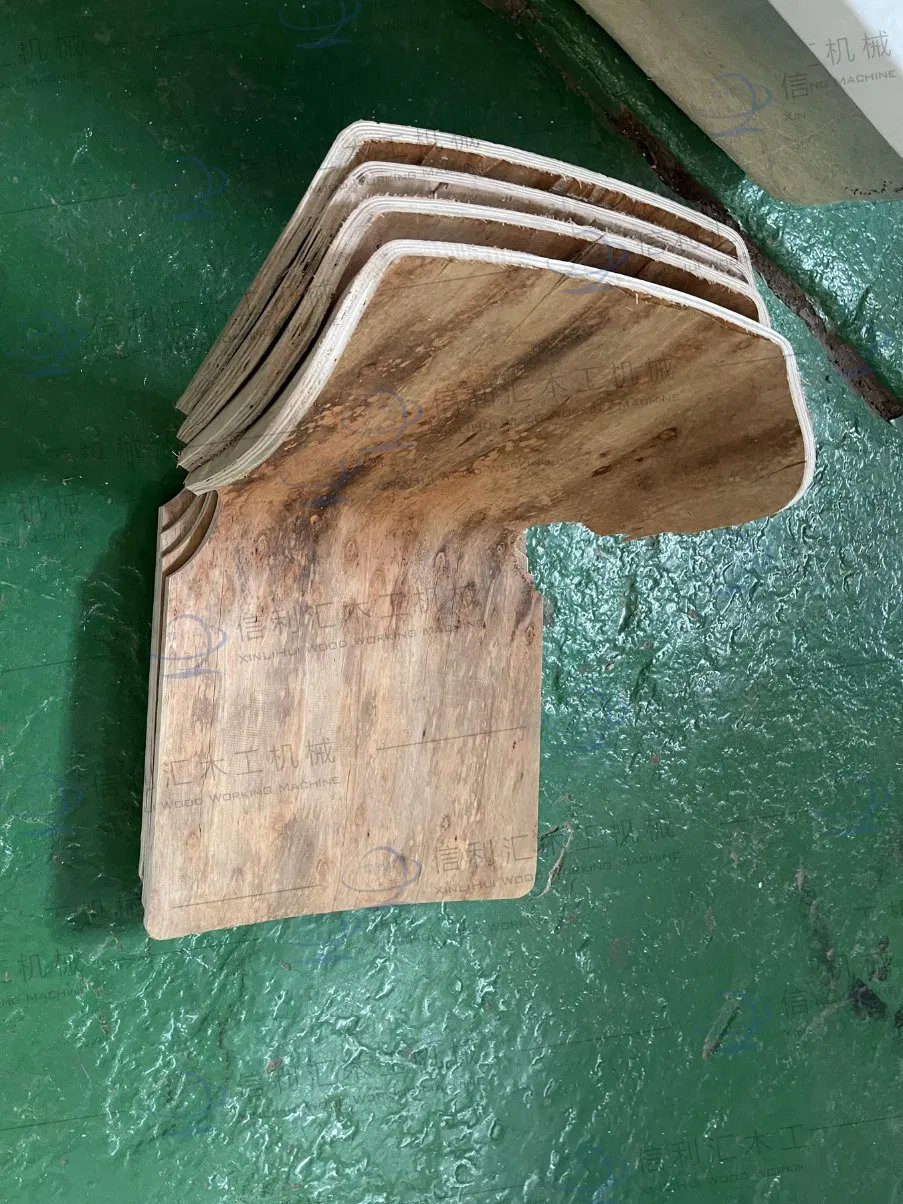

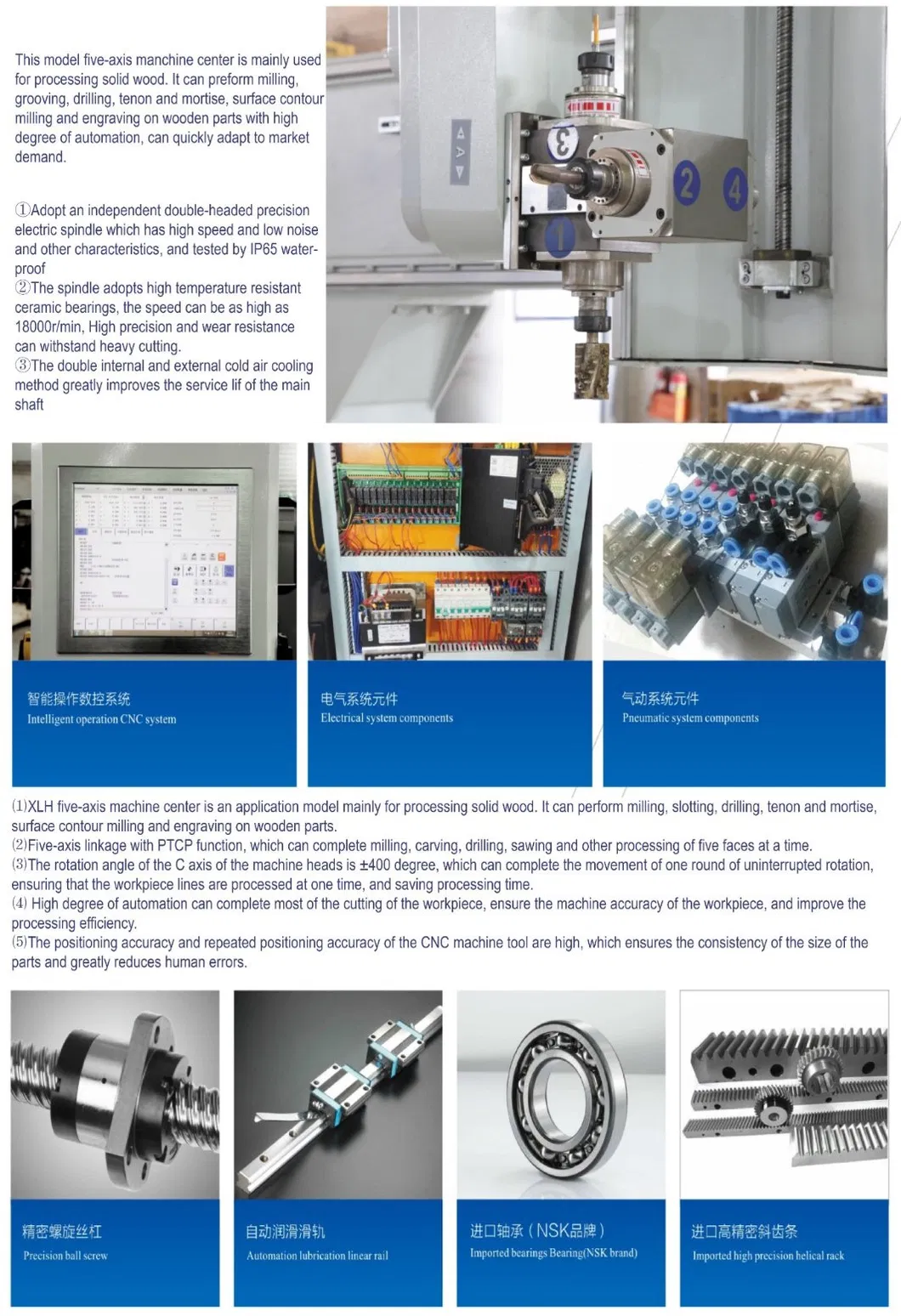

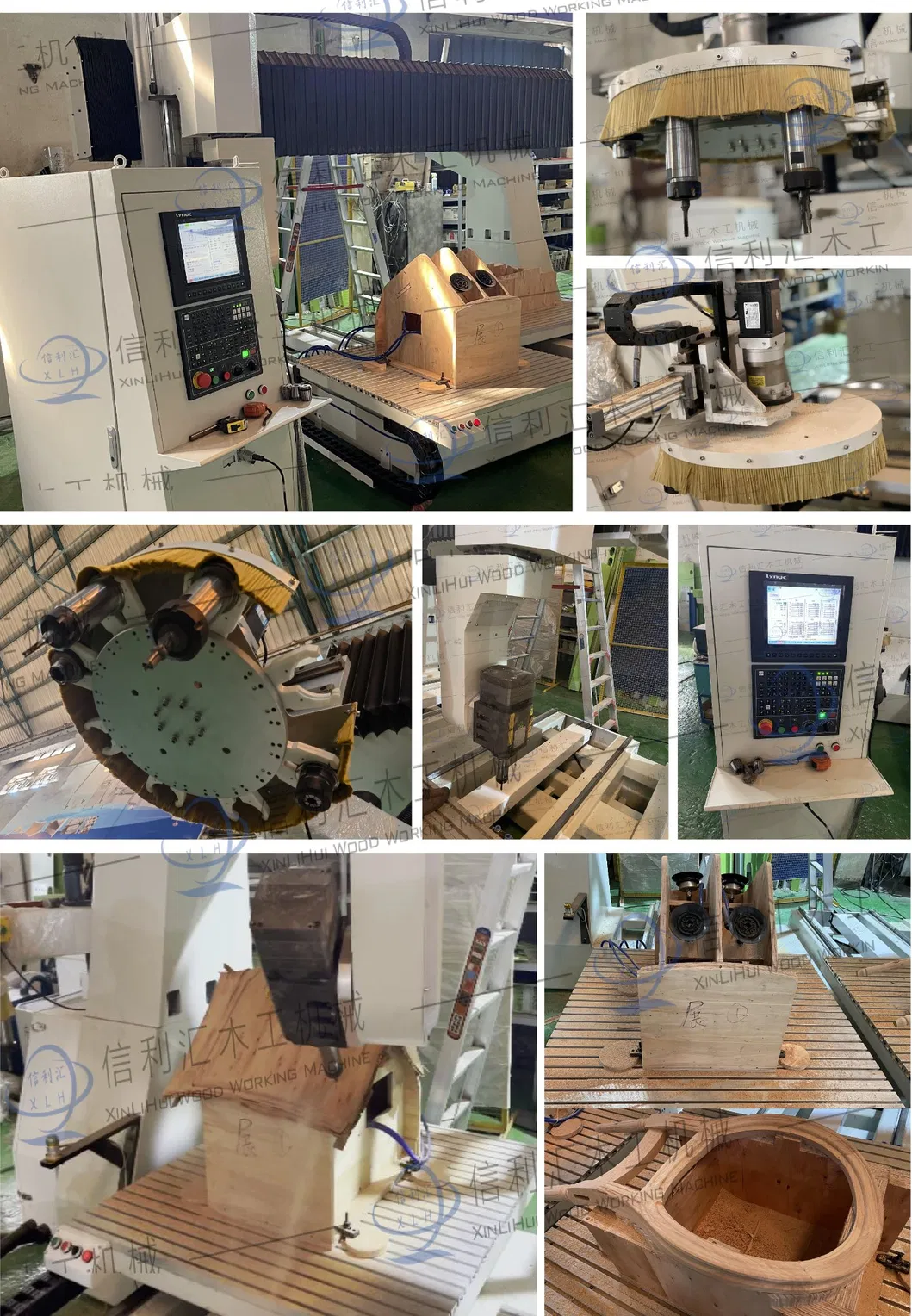

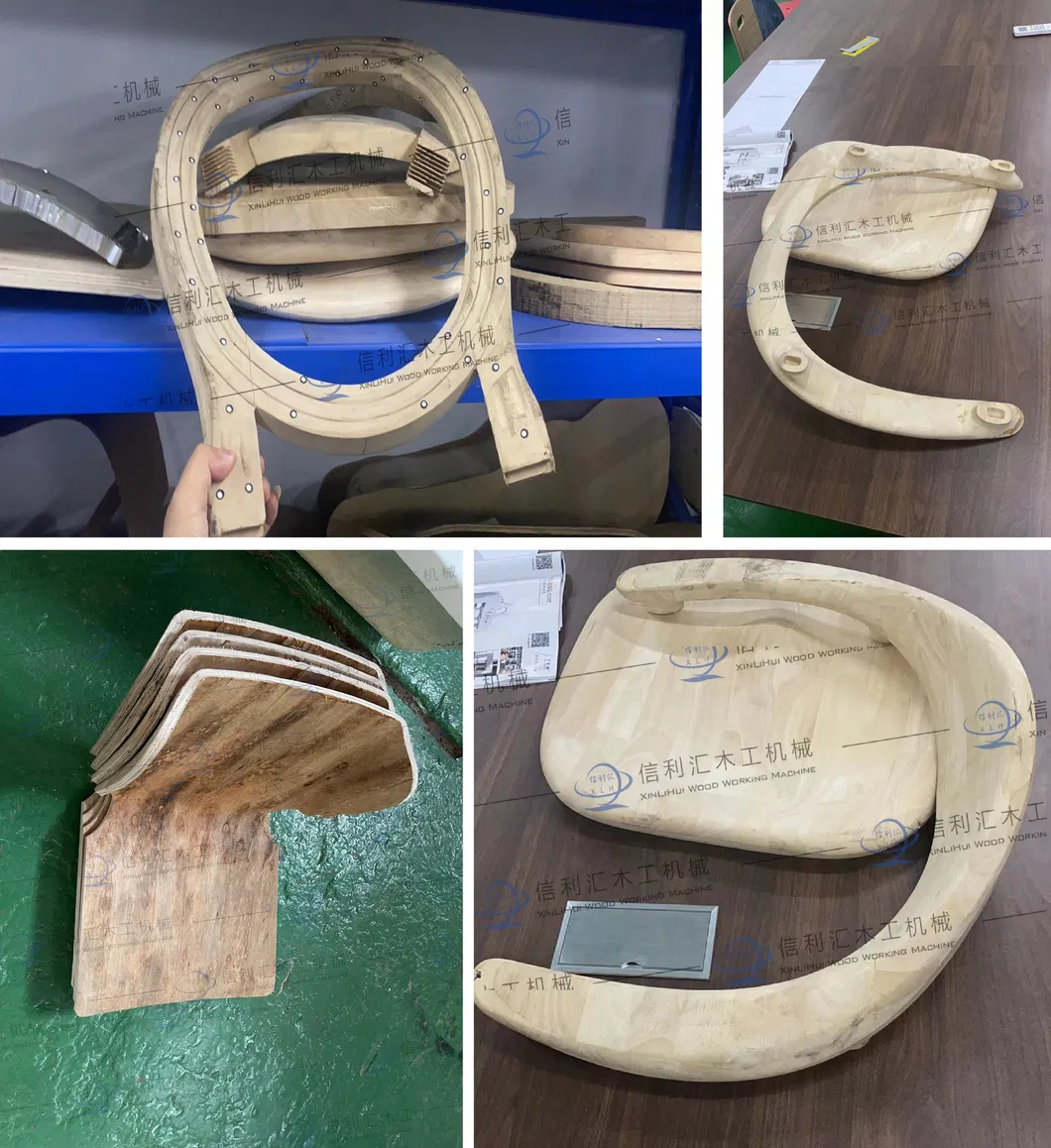

Detail & Samples Display

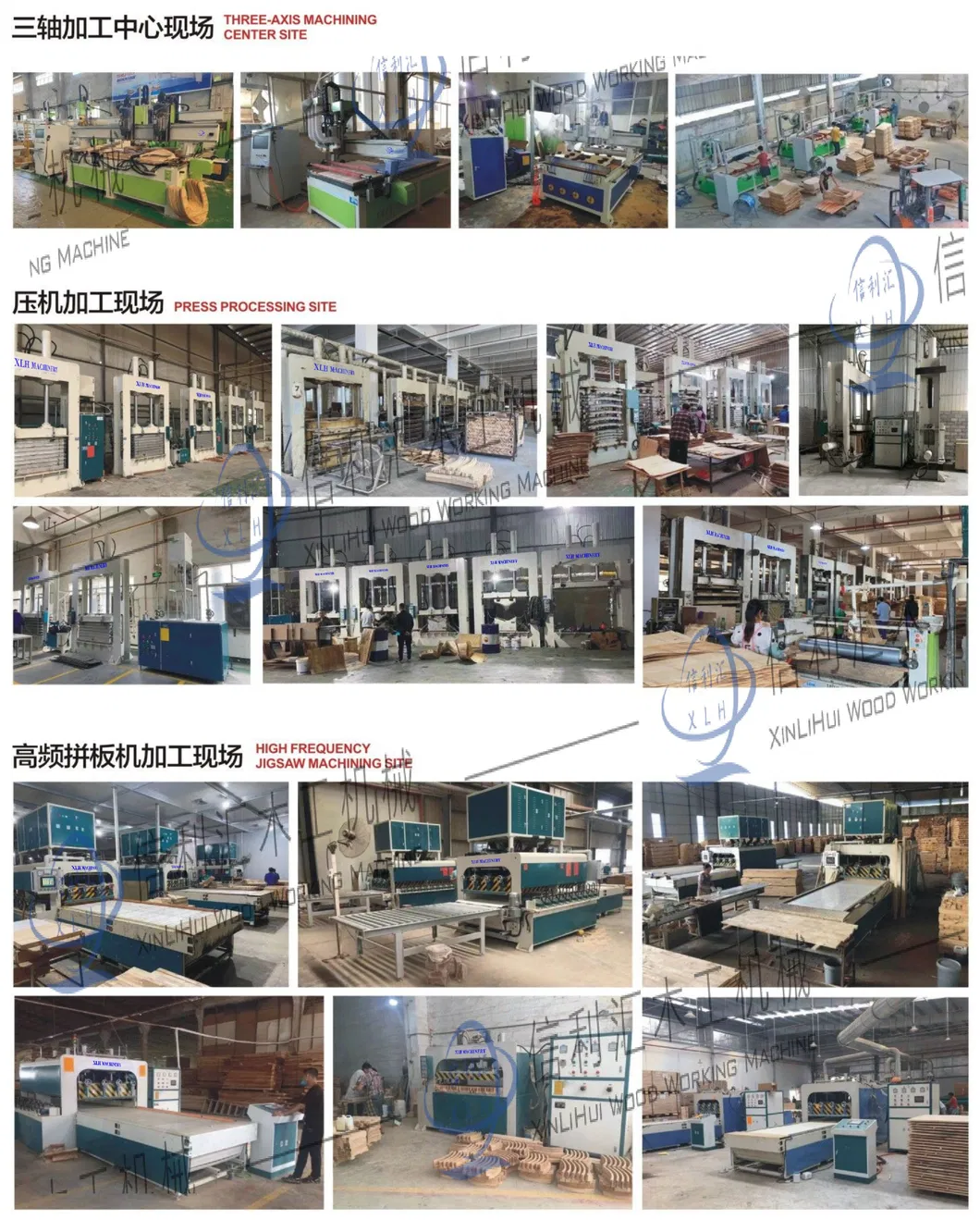

Usage Scenarios

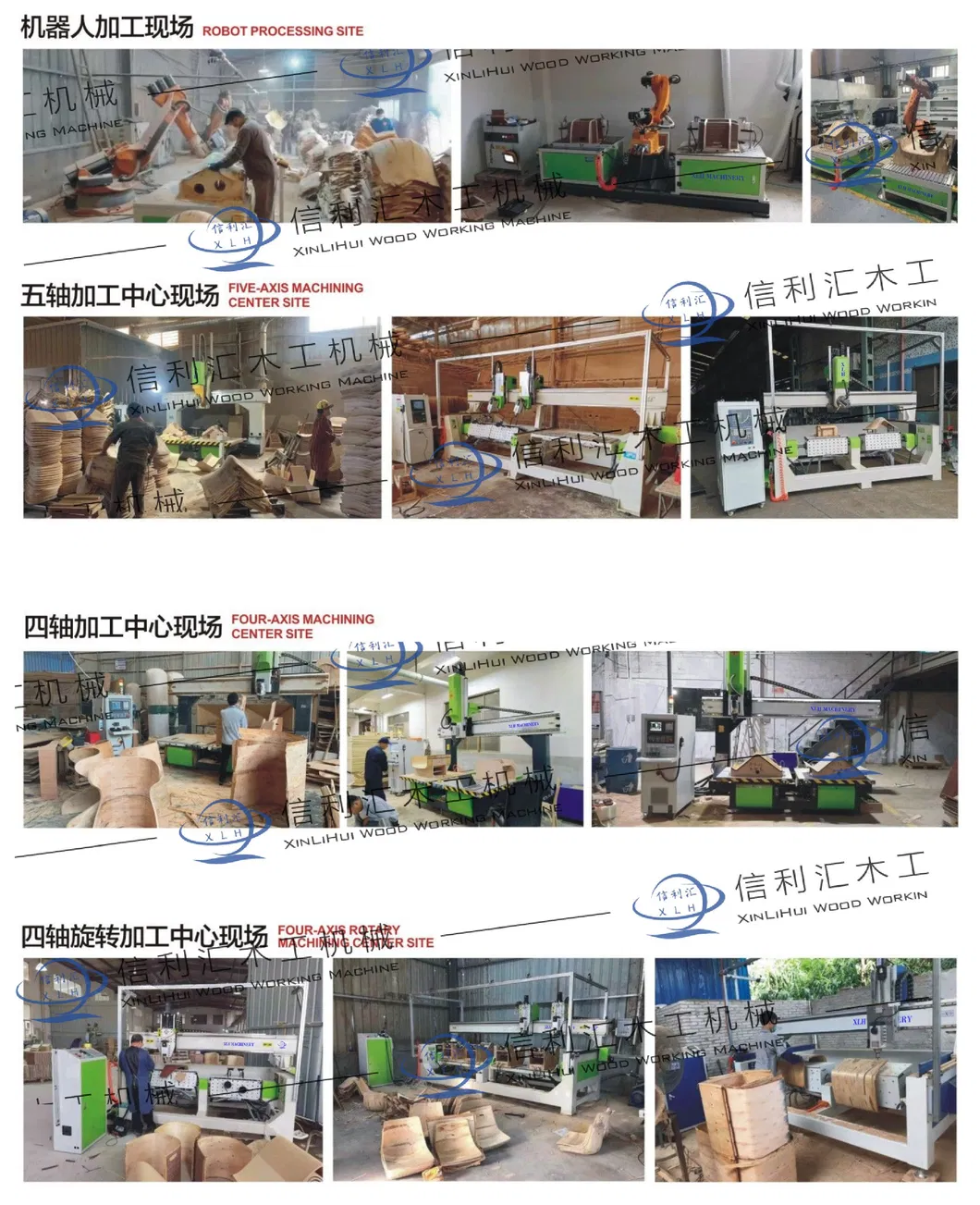

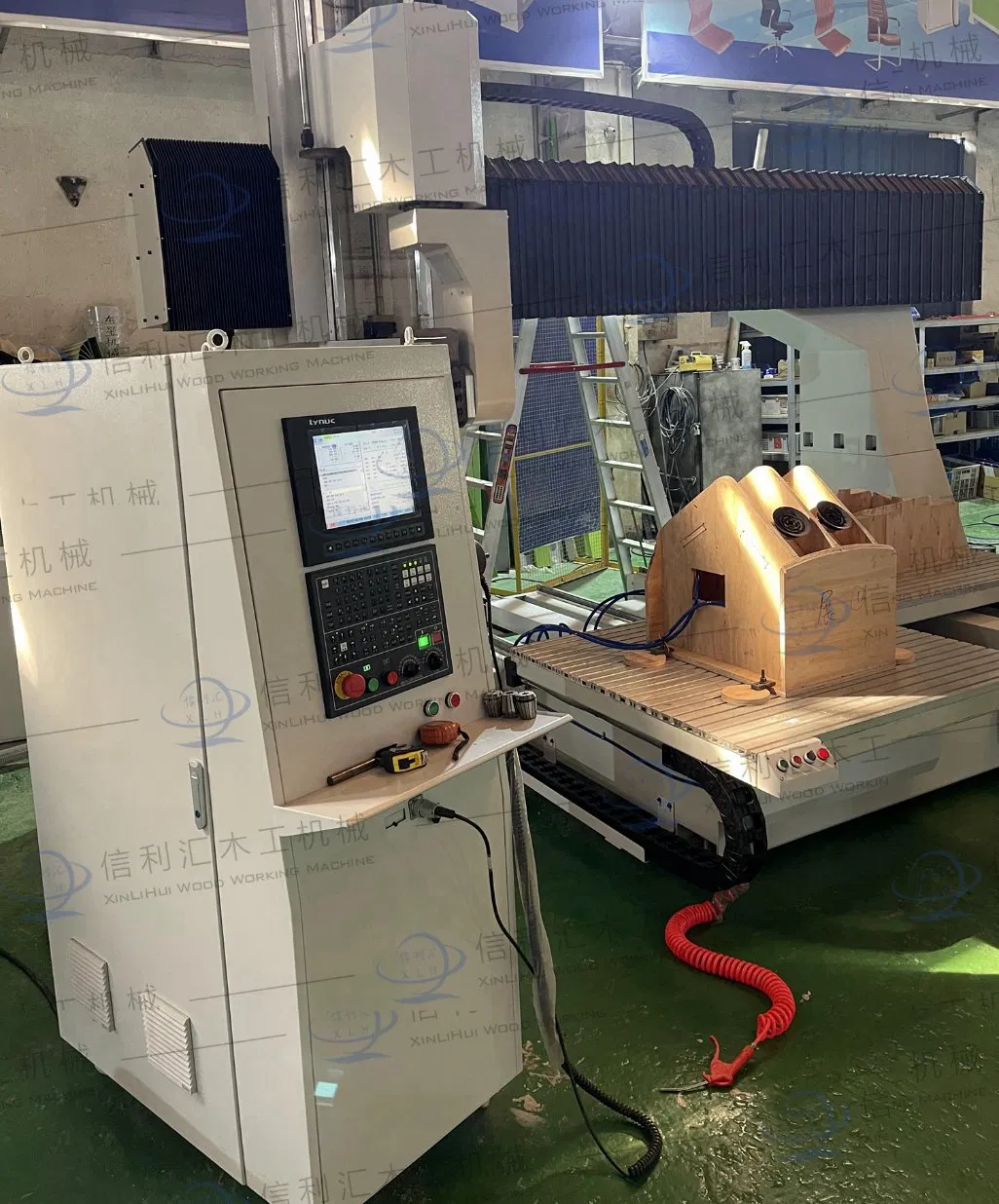

Production Excellence
Frequently Asked Questions
Q1: What materials can be processed with this 5-axis CNC router?
A: This machine is ideal for processing thick film blisters, refrigerator liners, wood molds, plaster molds, lost foam, plastic bags, bent wood, and various medical or electrical equipment shells.
Q2: What is the warranty period and after-sales support?
A: We offer a 1-year warranty. Technical support is available 24 hours a day via email, call, and video to ensure your operations run smoothly.
Q3: Can the machine's voltage be customized for my country?
A: Yes, while the standard is 380V or 220V 50Hz, the voltage can be customized to meet your specific industrial requirements.
Q4: What control system does the machine use?
A: The machine is equipped with a high-precision Lenark LYNUC Five-axis linkage special control system featuring RTCP (Rotation Tool Center Point).
Q5: How many tools can the automatic tool changer hold?
A: The machine features an automatic tool changer (ATC) that supports a magazine of 8 different tool sets for high-efficiency processing.
Q6: What is the typical lead time for delivery?
A: The standard production and delivery time is approximately 30 days from the date of order confirmation.
