5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
1 / 5
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take
5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take

5 Axis Wood Carving Machine Wood Router CNC Router Woodworking Machine with 5 Axis Spindle Mold Prcessing Foam Cutter CNC Foam Cutting Router One Take

Customization: Available
Warranty: 1 Year
Type: Wooden Mold Router
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
XLH
Spindle Layout
Vertical
Spindle Number
5
Controlling Mode
CNC (Five-Axis Linkage)
Certification
CE, ISO, FDA
After-sales
1 Year (24h Support)
Spindle Power
12kw
Voltage
380V/220V (Customizable)
🚀

Application Areas

The equipment is suitable for heterosexuality, three-dimensional cutting and engraving, drilling, milling, and slotting. It focuses on five-axis machining centers and is widely used in:

  • Thick film blisters
  • Refrigerator liners
  • Chassis shells
  • Wood molds & Plaster molds
  • Lost foam
  • Electrical equipment shells
  • Medical equipment shells
  • Plastic bags & Bent wood
🖼️

Product Showcase

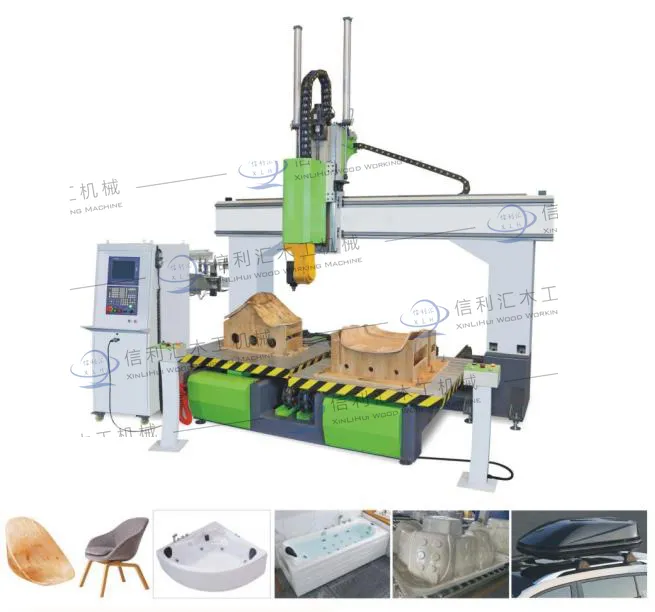

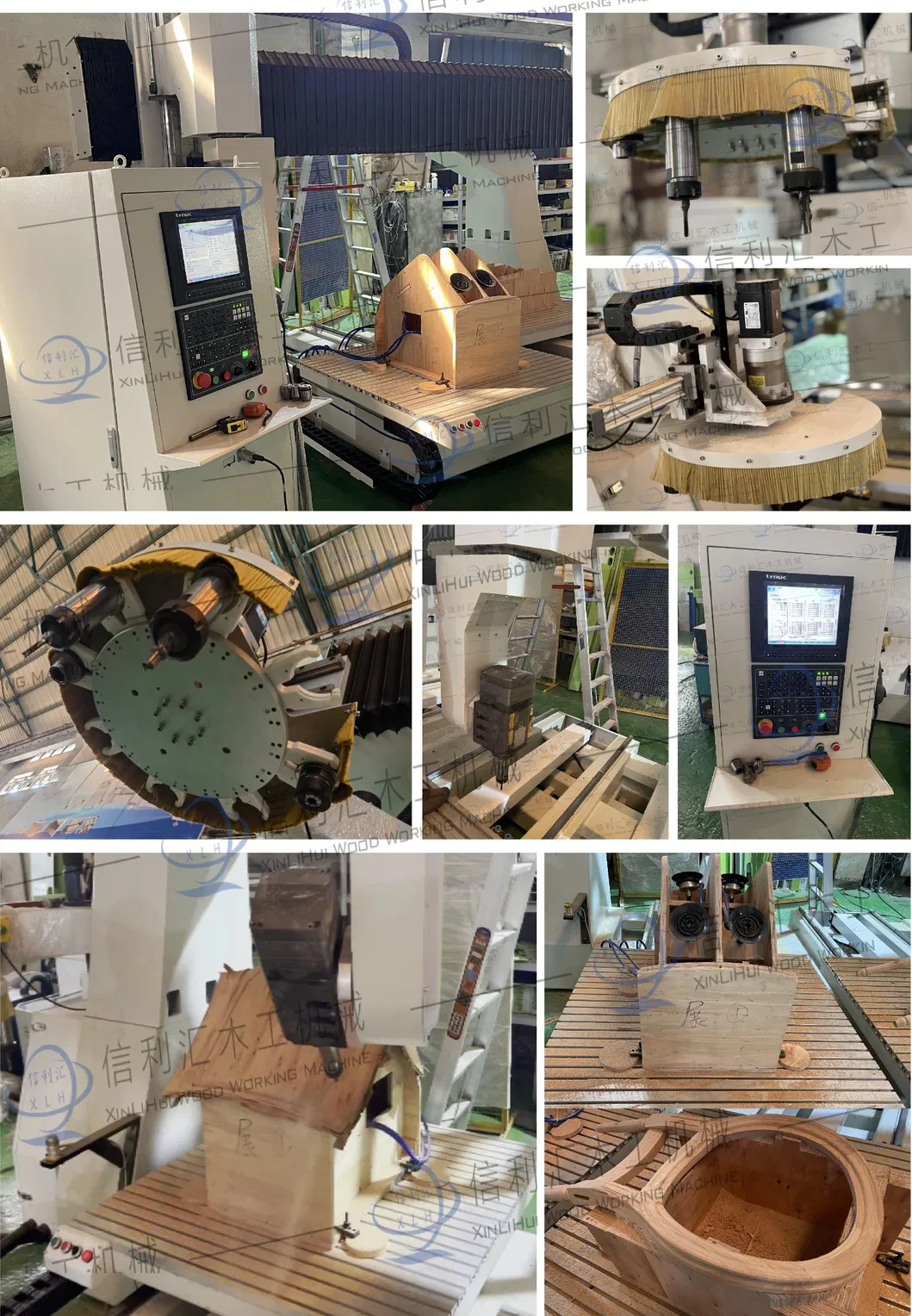

5 Axis CNC Router Show Machine Structure
⚙️

Technical Details

Machine BodySteel plate + square pass integrated welding (Latest model)
RackPrecision ground rack
Guide RailsJiangmen Kate Rails
ScrewTaiwan TBI screw

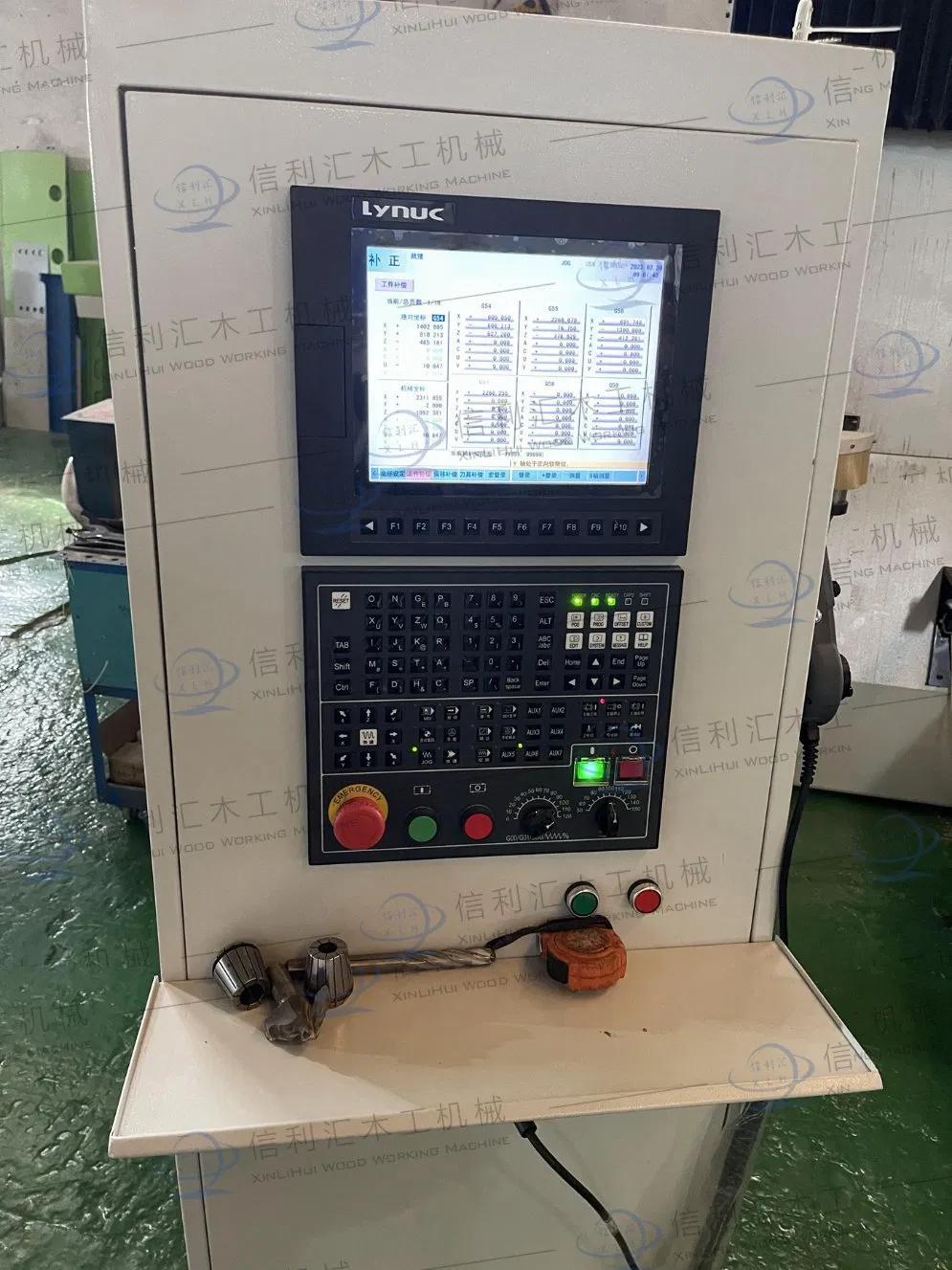

Control SystemFive-axis linkage special (with RTCP) Lenark / LYNUC
Drive SystemInovance Absolute Servo Drive
Tool Changer8 sets automatic tool changer
InverterFuling 15KW inverter
Working Table Size(L*W) 1200mm * 1200mm X2
Effective Work Height750mm
Max Speed (X,Y,Z)50m/min
Precision±0.02mm
Repeatability±0.05mm
🔍

Components & Sample Gallery

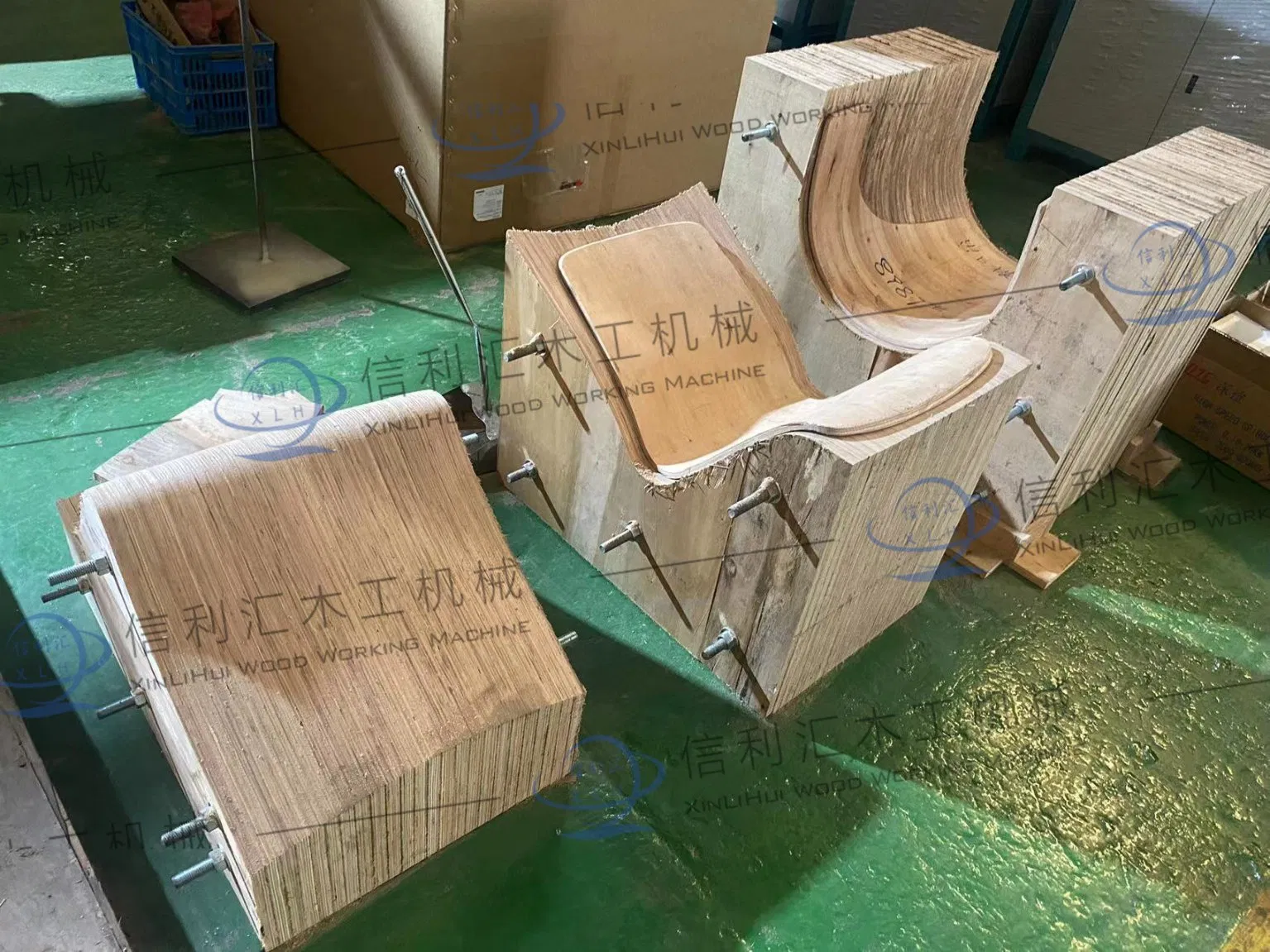

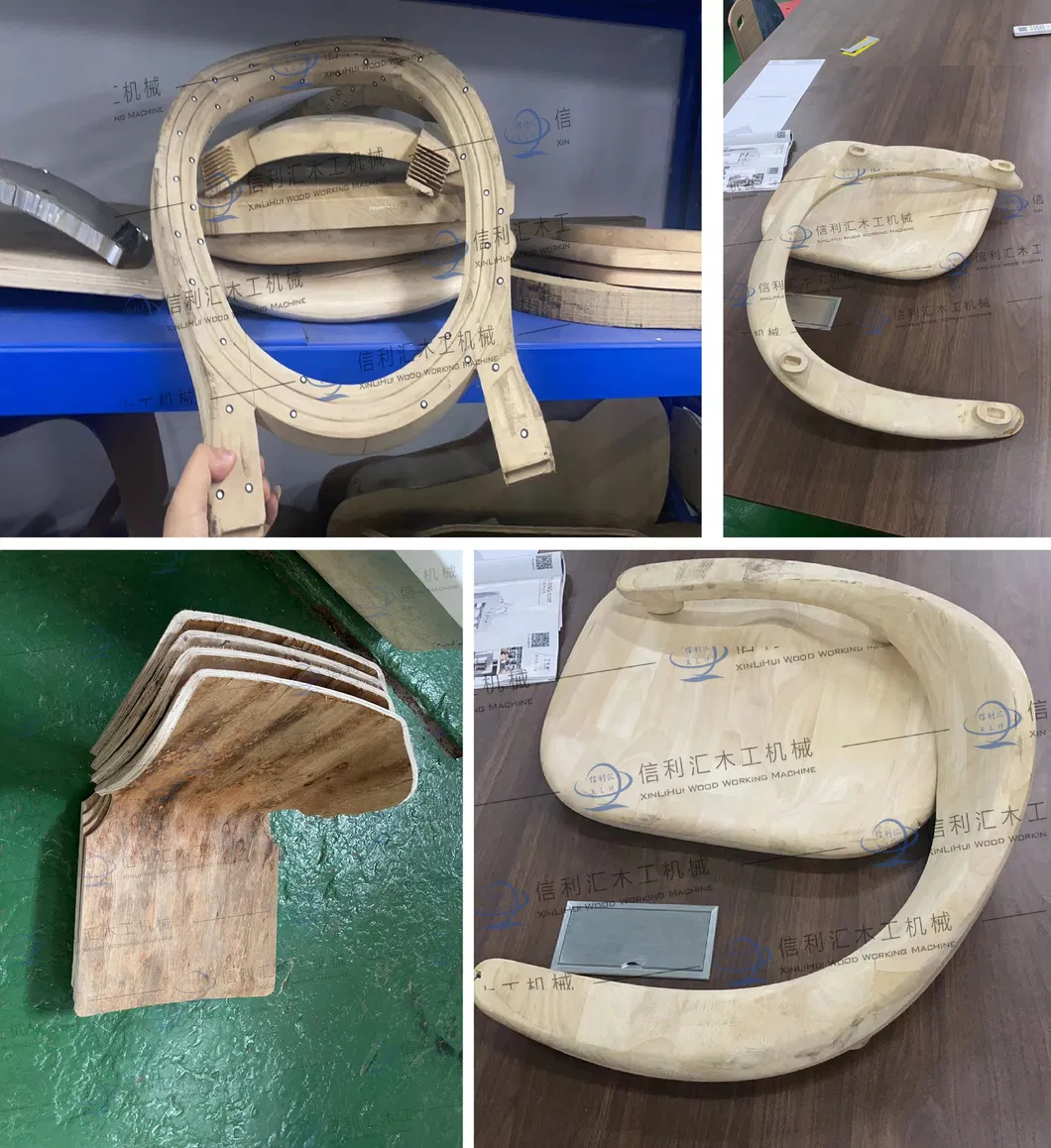

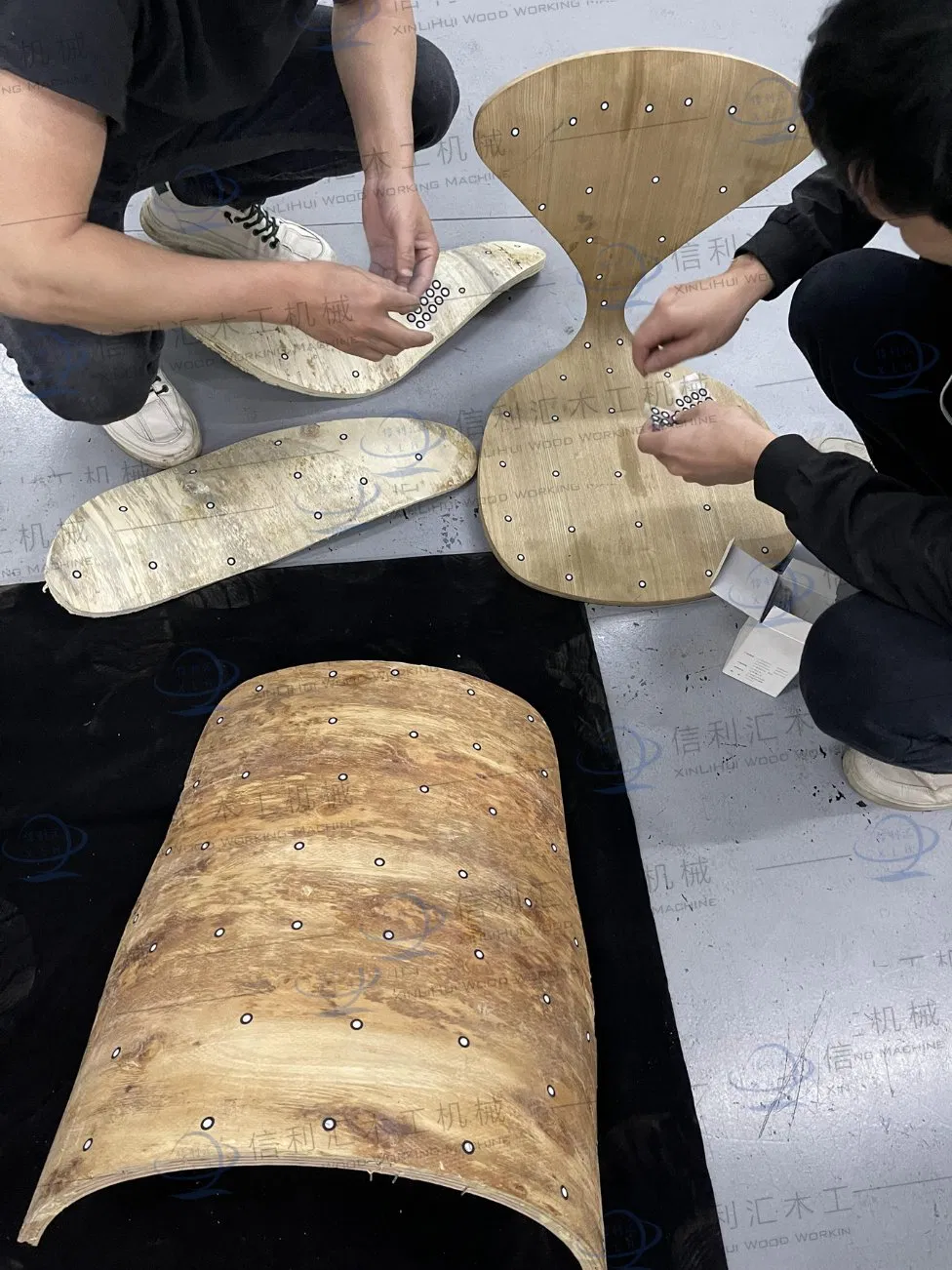

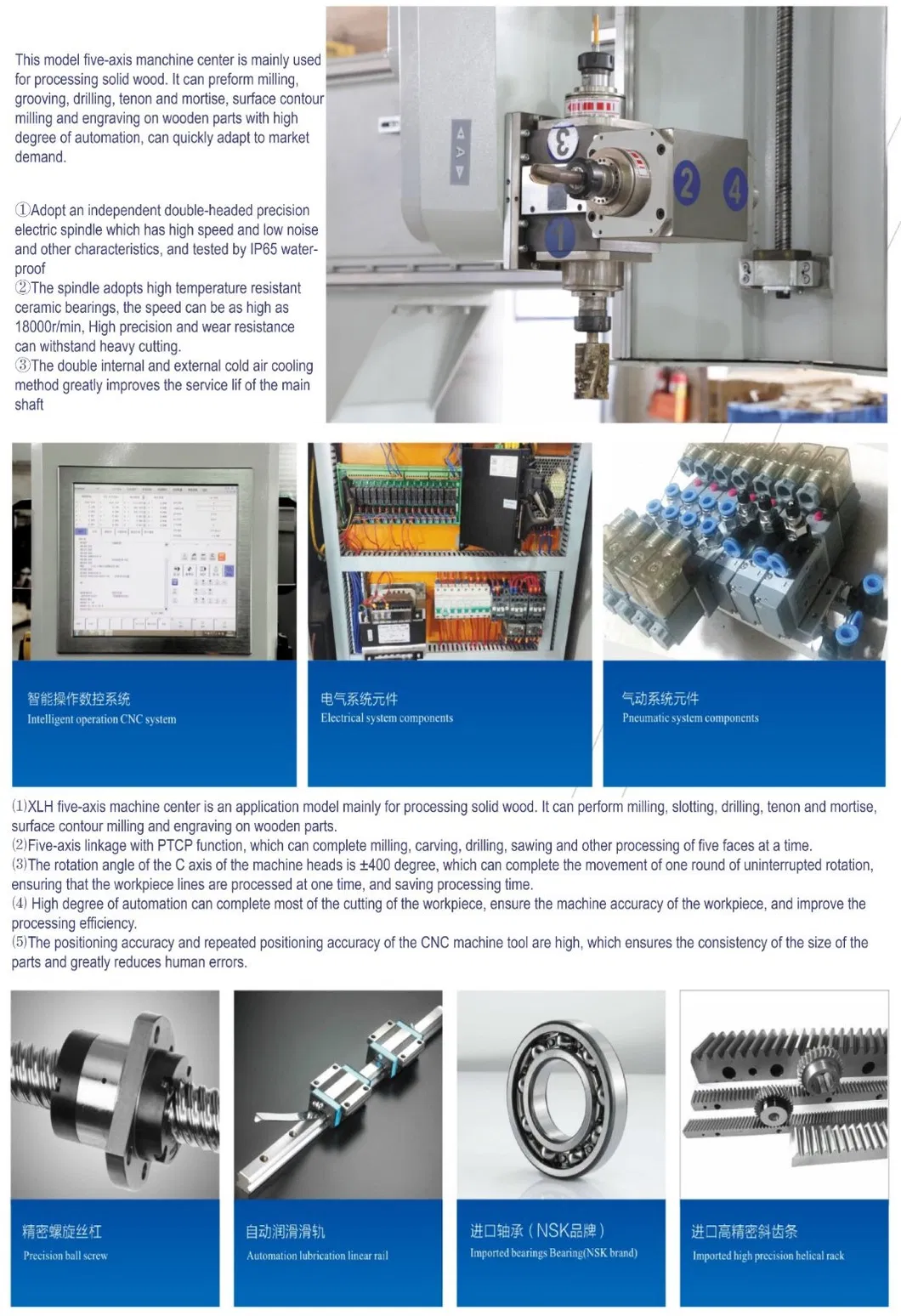

Precision Details Detail Show Finished Samples Samples Show Usage & Processing

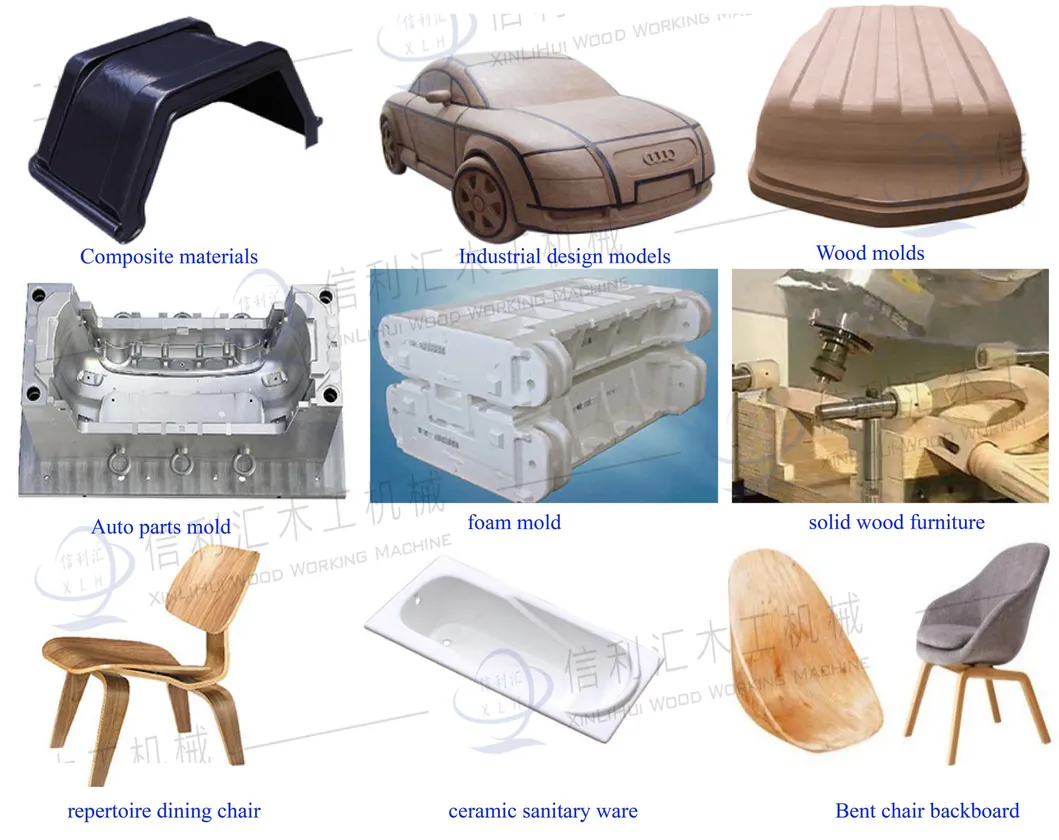

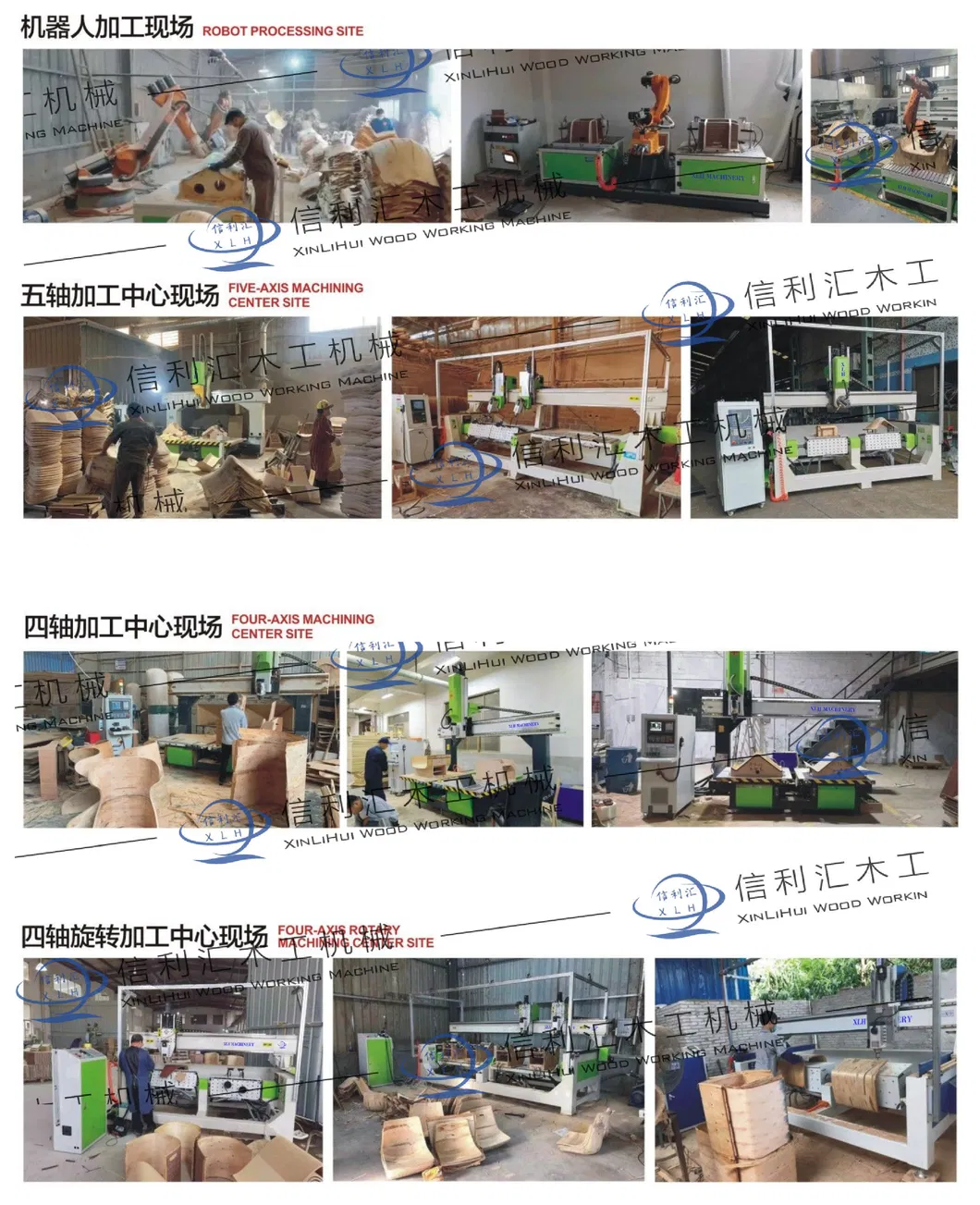

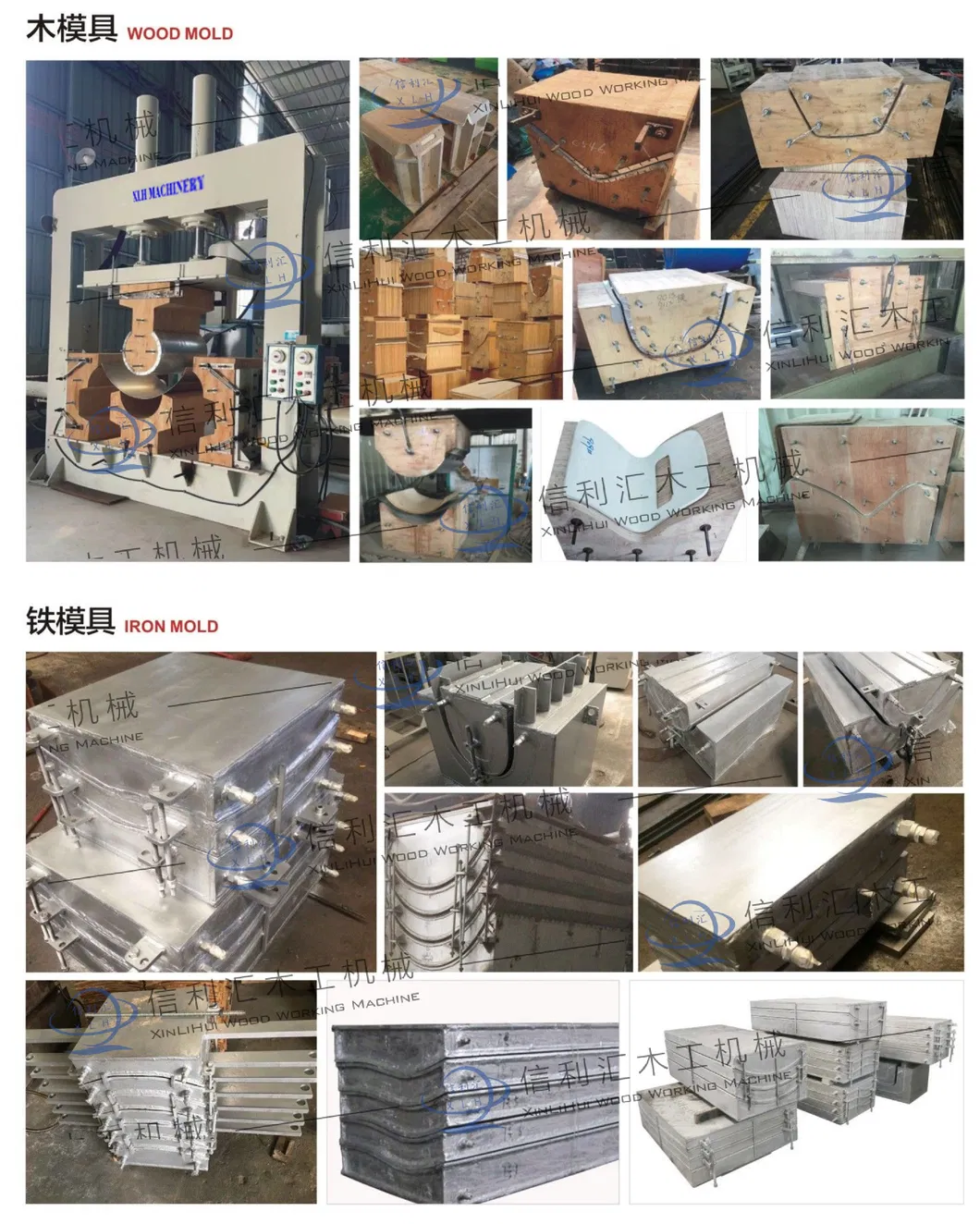

Usage 1 Usage 2 Usage 3

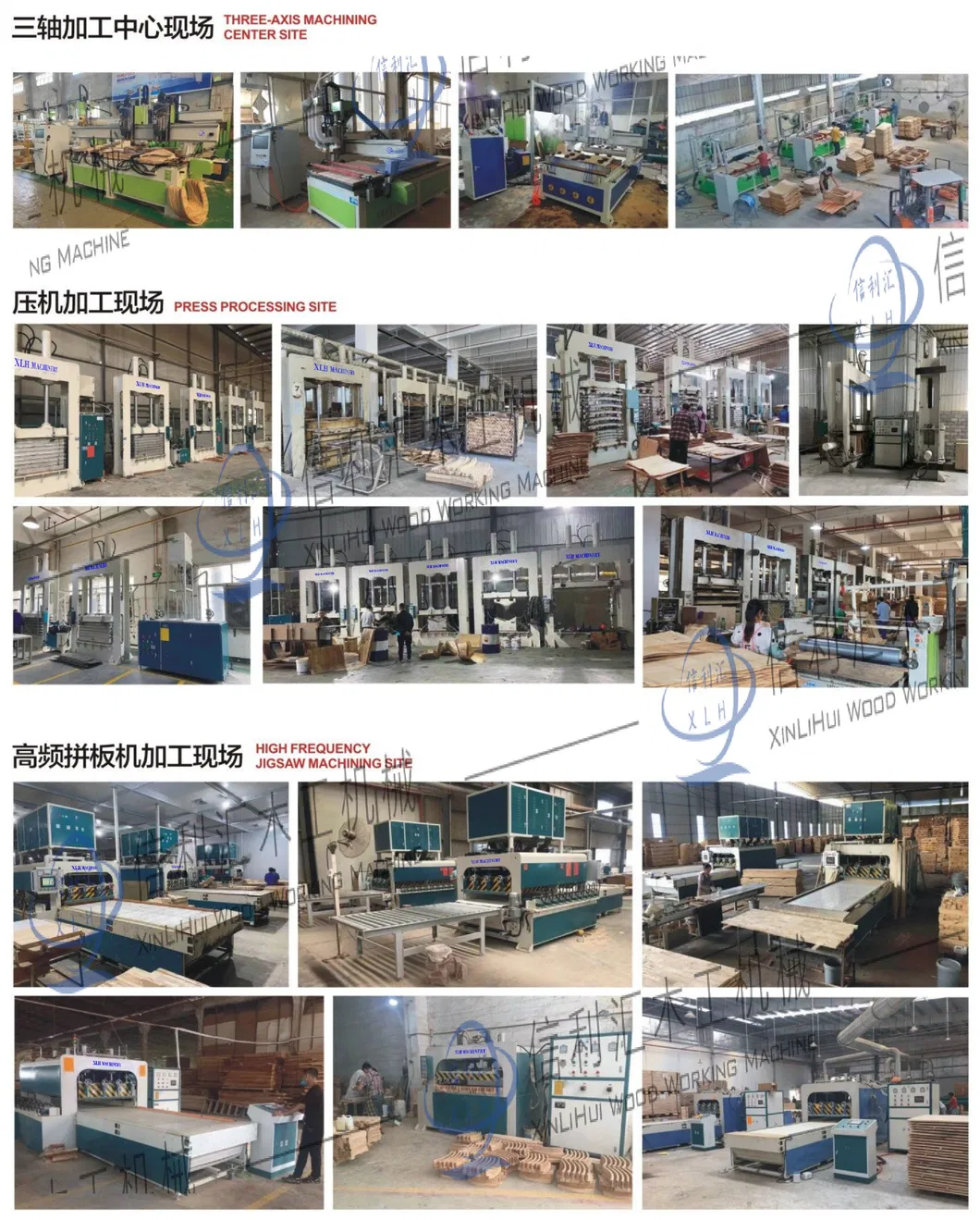

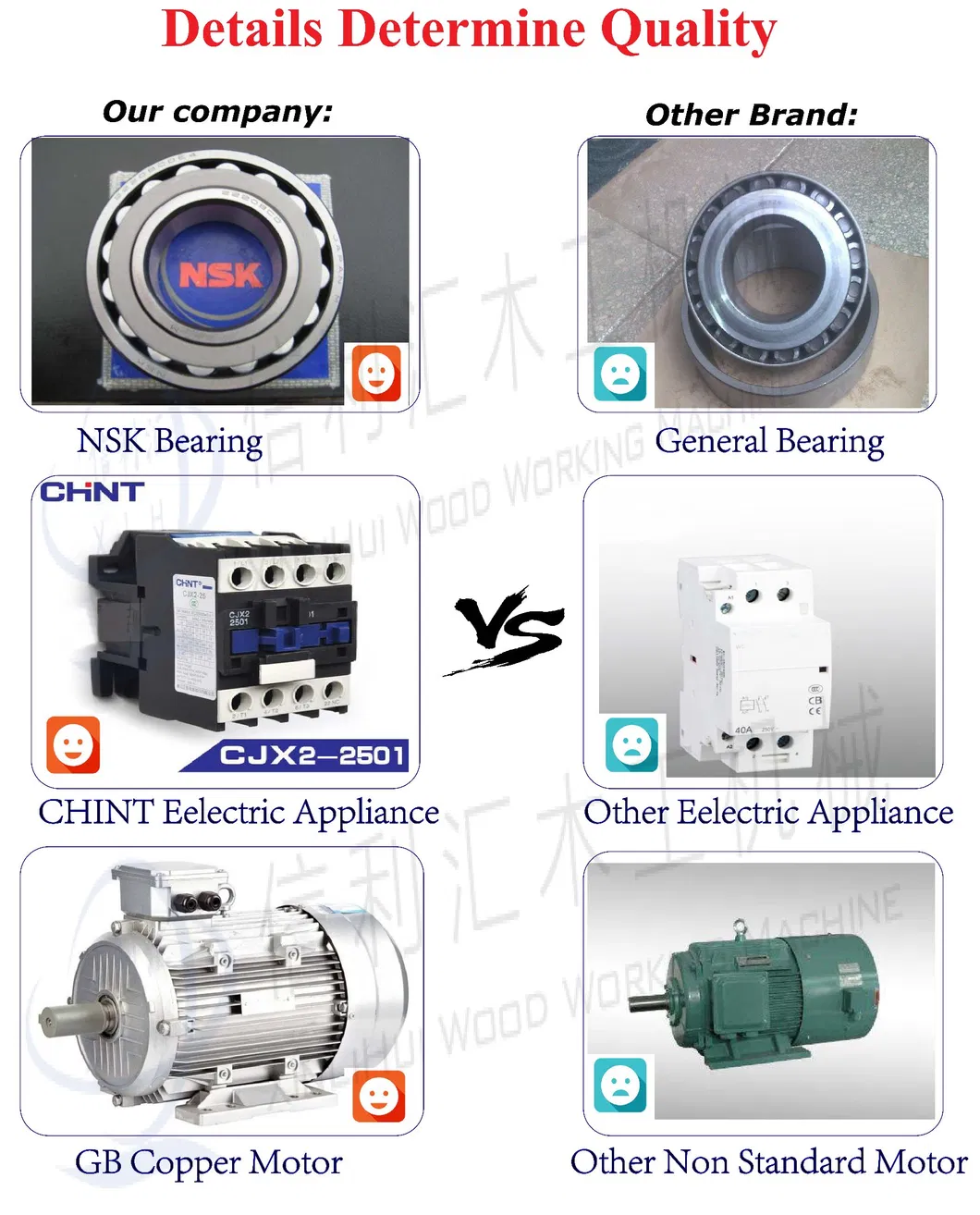

Usage 4 Usage 5
❓

Frequently Asked Questions

What materials can this 5-axis CNC machine process?
This machine is versatile and handles wood molds, plaster molds, foam, thick film blisters, medical equipment shells, and various plastic or bent wood materials.
What is the accuracy of the machining?
The machine offers high precision with a tolerance of ±0.02mm and a repeatability of ±0.05mm, ensuring consistent quality for complex 3D carvings.
Does the control system support RTCP?
Yes, it uses a specialized Five-axis linkage control system (Lenark/Lynuc) that includes RTCP (Rotation Tool Center Point) functionality for complex curved surfaces.
Can the voltage be customized for my country?
Absolutely. While the standard is 380V/415V 50Hz, we can customize the voltage (e.g., 220V or other 3-phase requirements) to match your local power supply.
What kind of after-sales service do you provide?
We offer a 12-month warranty including free spare parts. Technical support is available 24 hours a day via email, call, or video consultation.
What is the delivery time for this equipment?
The standard delivery time is approximately 30 days, depending on specific customization requirements.
