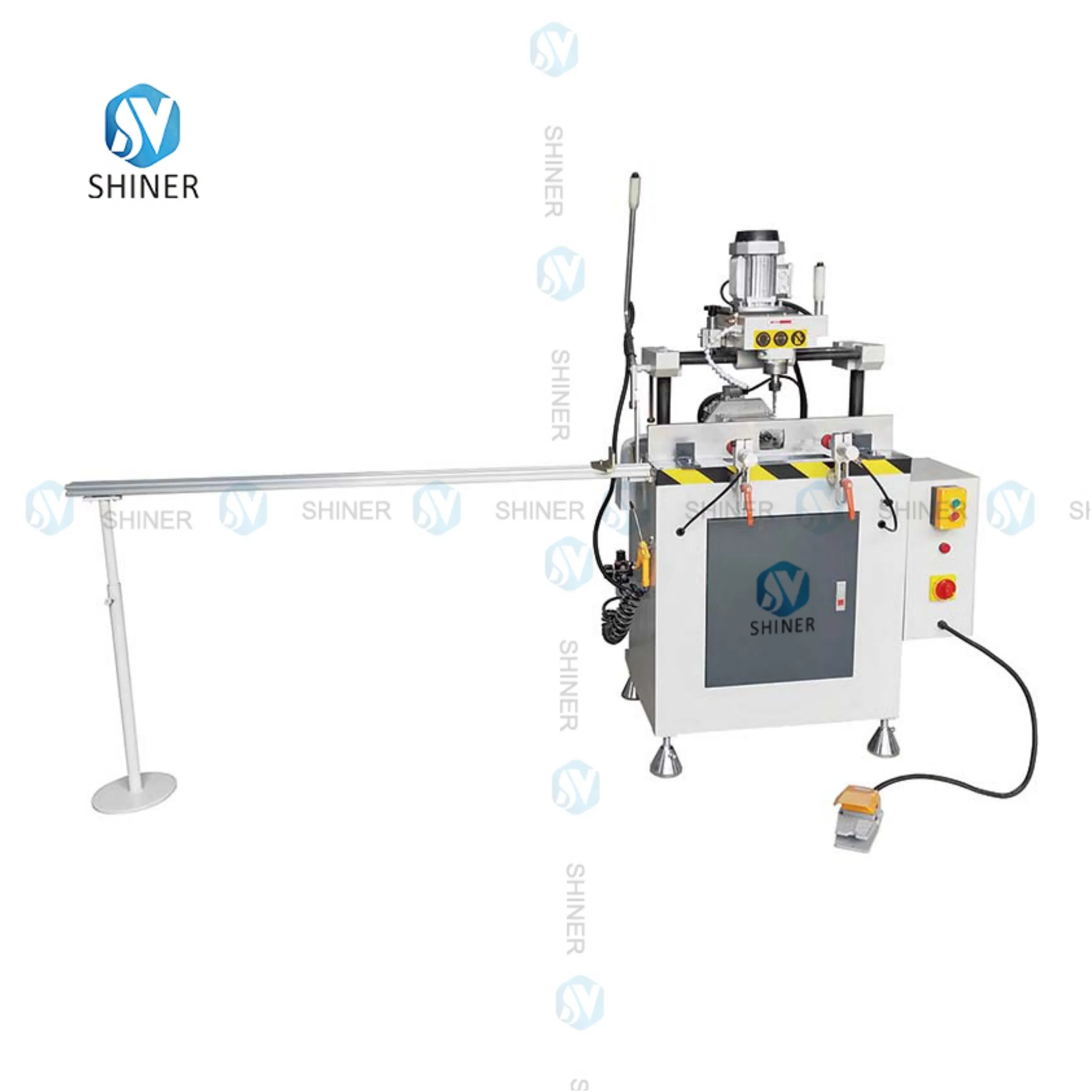

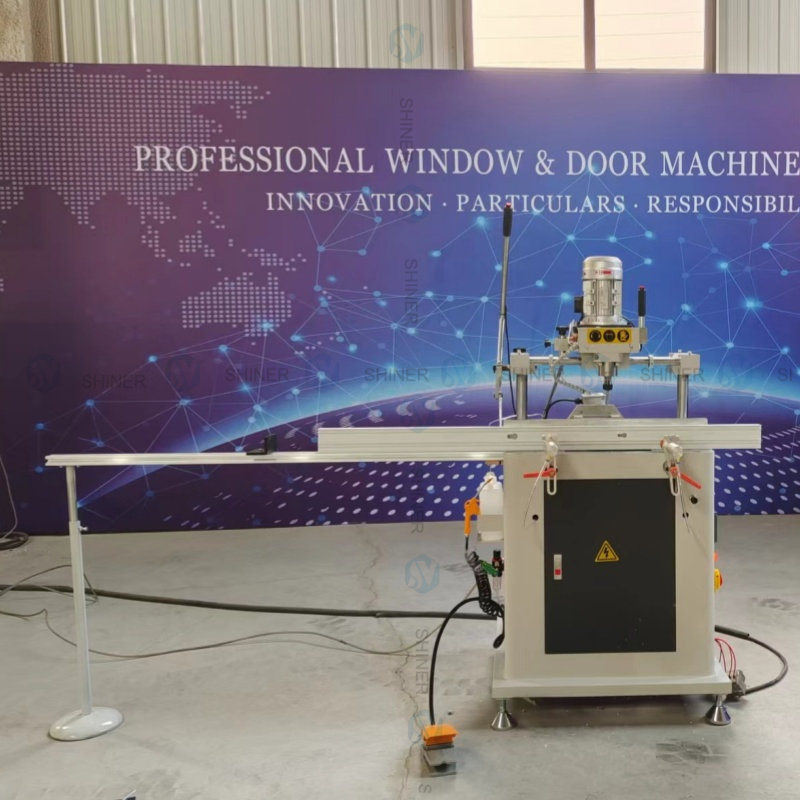

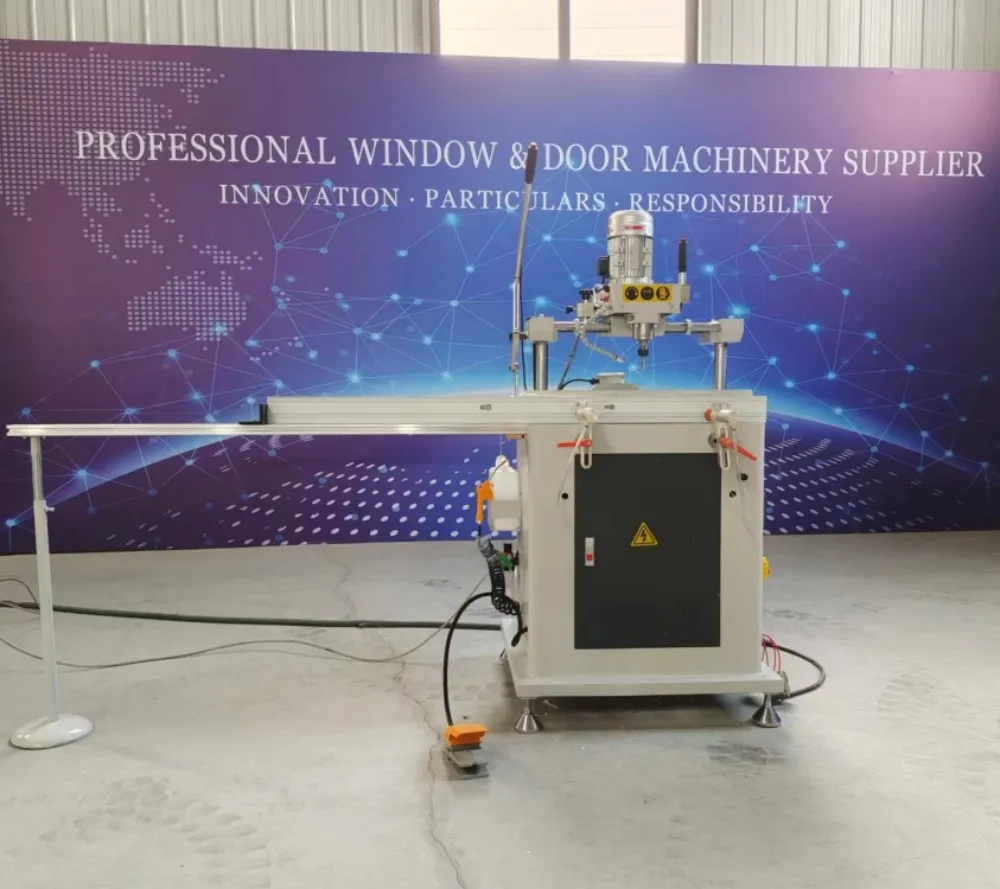

1. With template, it can mill all kinds of holes, grooves and slots.
2. Special position system can mill rectangle or square holes without template.
3. Horizontal three-hole milling head equipped at back side and automatically feeding by pneumatic cylinder.
4. It features a compact structure and easy operation for high efficiency.
| Parameter Item | Specifications |
|---|---|
| Input voltage | 380V/50Hz |
| Input power | 2.6Kw |
| Spindle rotary speed | 2800rpm |

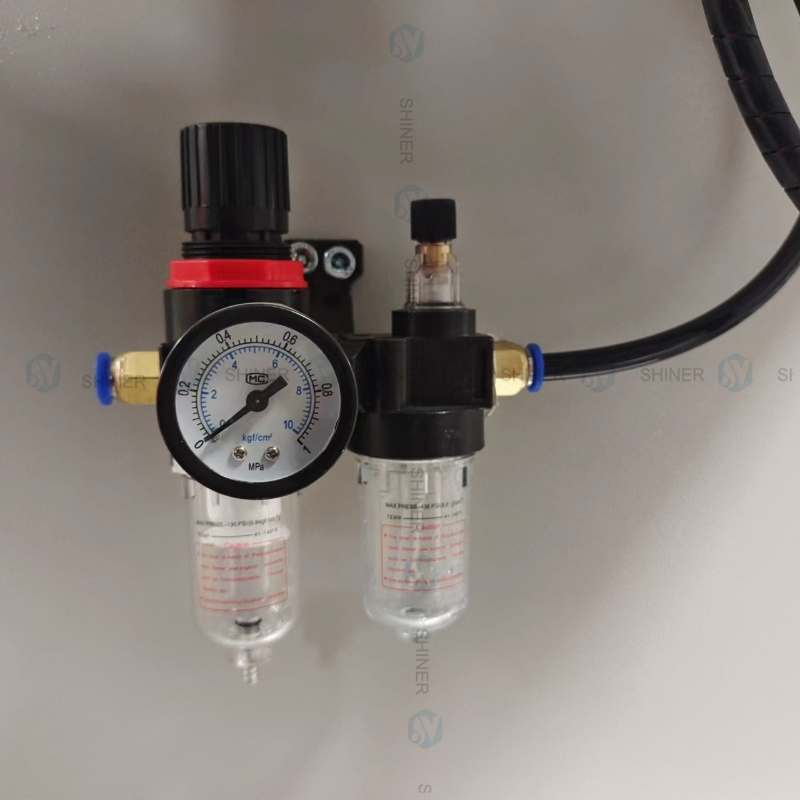

| Air pressure | 0.5~0.8Mpa |
| Cutter diameter | Ø5/Ø8mm |
| Copy-routing range | 235*100mm |
| Diameter of three-hole drilling head | Ø10mm/Ø12mm |
| Centers distance of drilling head | 21.5mm |
| Overall dimension | 1000*1130*1500mm |

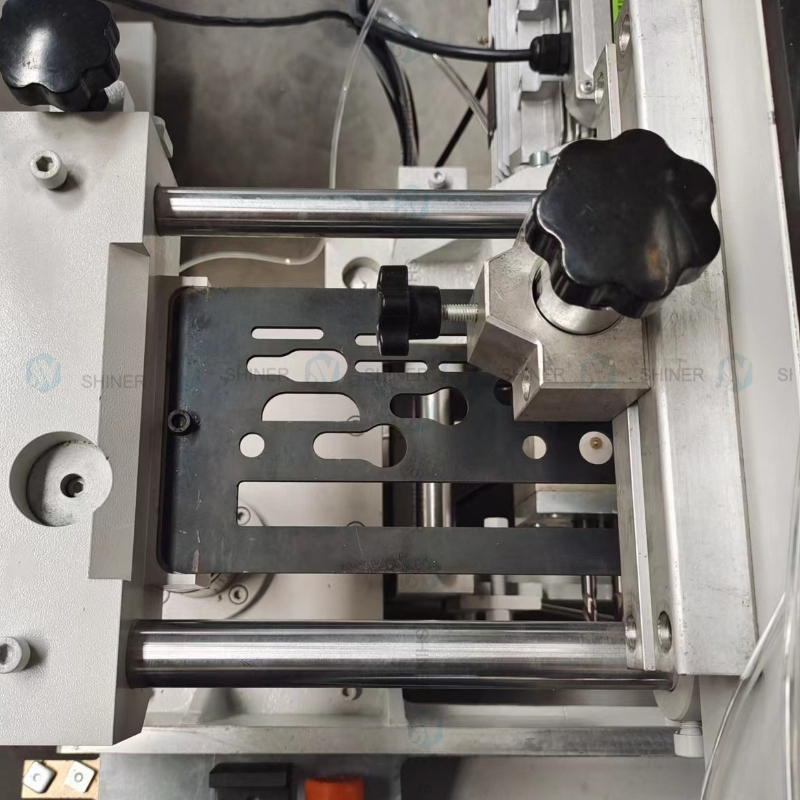

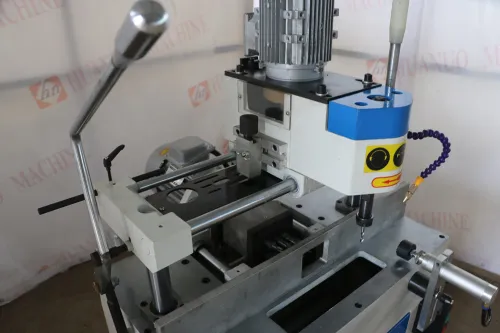

The finger(STDU) is designed for convenient machining range adjustment.

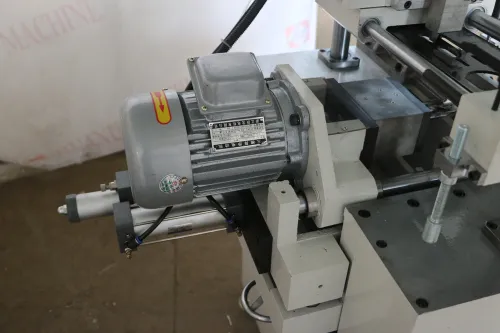

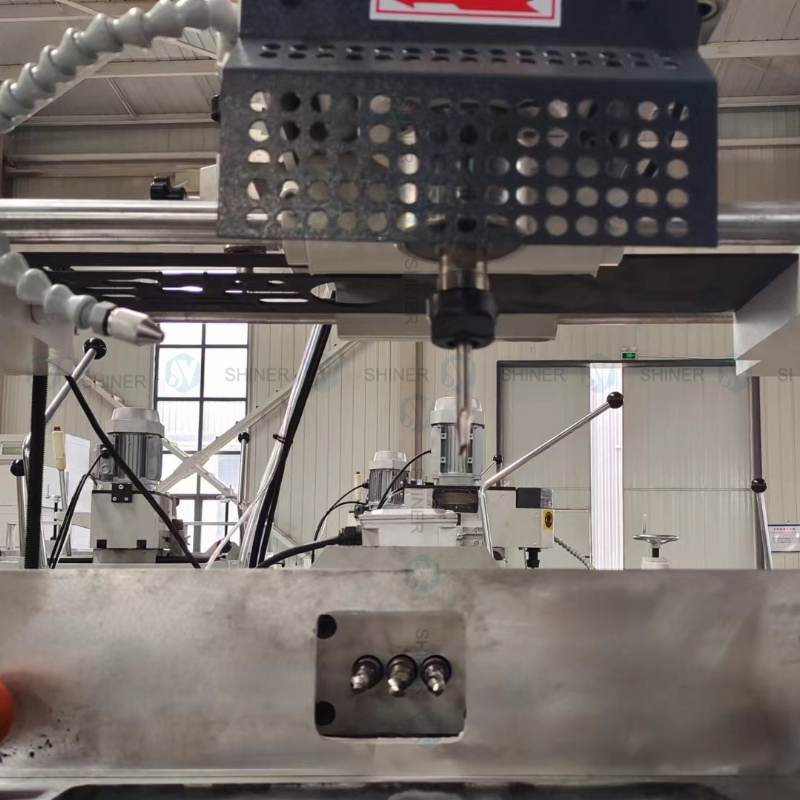

Horizontal three-hole milling head with pneumatic cylinder automatic feeding.

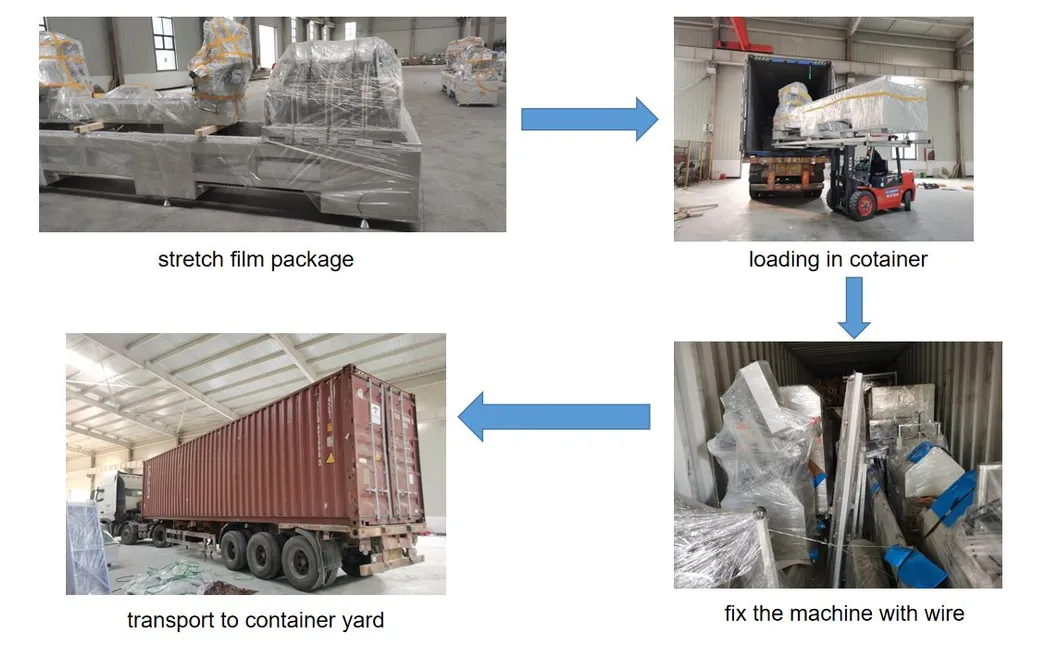

LCL Shipping: Inner package with stretch film, outside package with standard export plywood cases.
FCL Shipping: Machines wrapped with film and fixed into containers with steel iron for maximum security.
Delivery: Standard dispatch within 3-5 working days; customized orders take 10-15 working days.

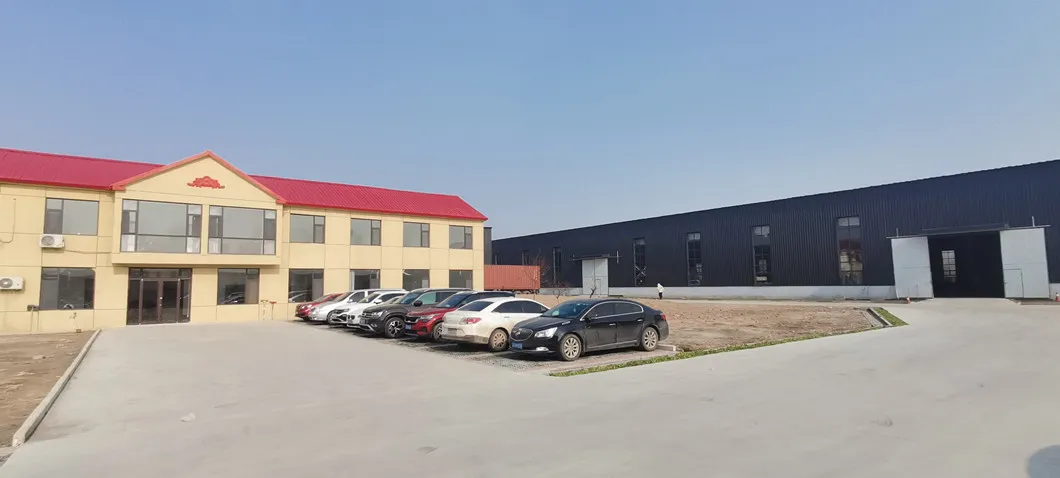

We are a leading manufacturer of window and door machinery with 17 years of experience. Our engineers bring over 15 years of expertise to ensure machine precision and stability. We export to more than 20 countries globally and utilize professional testing to guarantee performance.
We apply the craftsman spirit to every product, offering efficient and cost-effective solutions for modern industrial requirements. Our team provides professional factory layouts tailored to your specific production needs.
