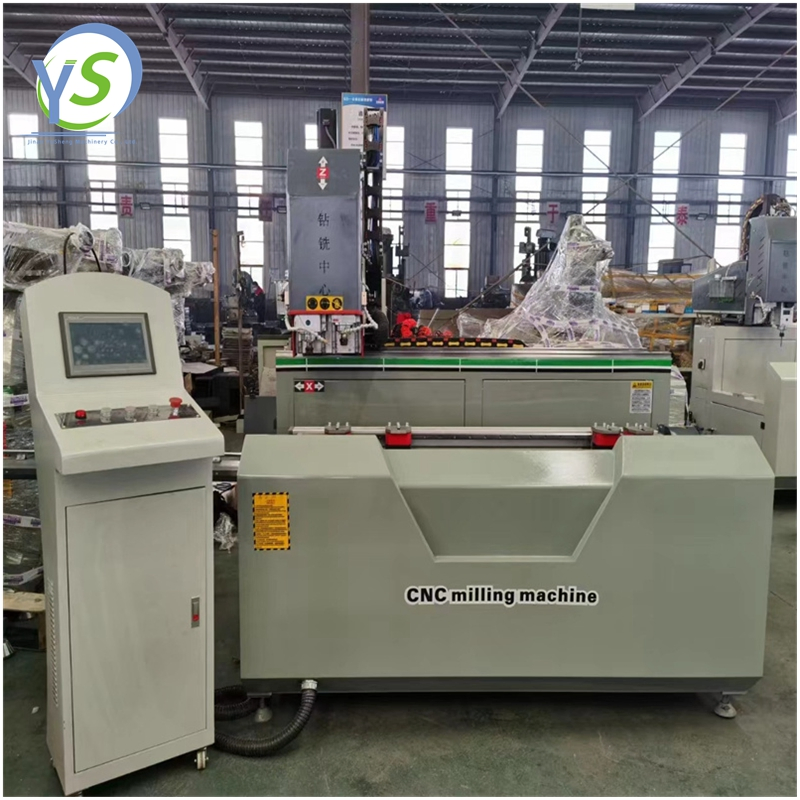

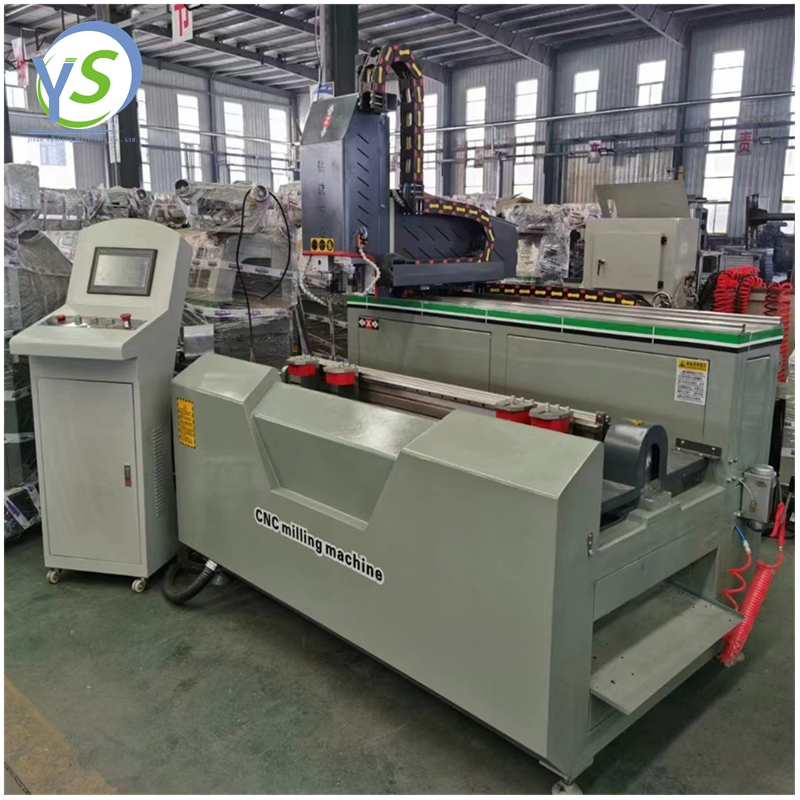

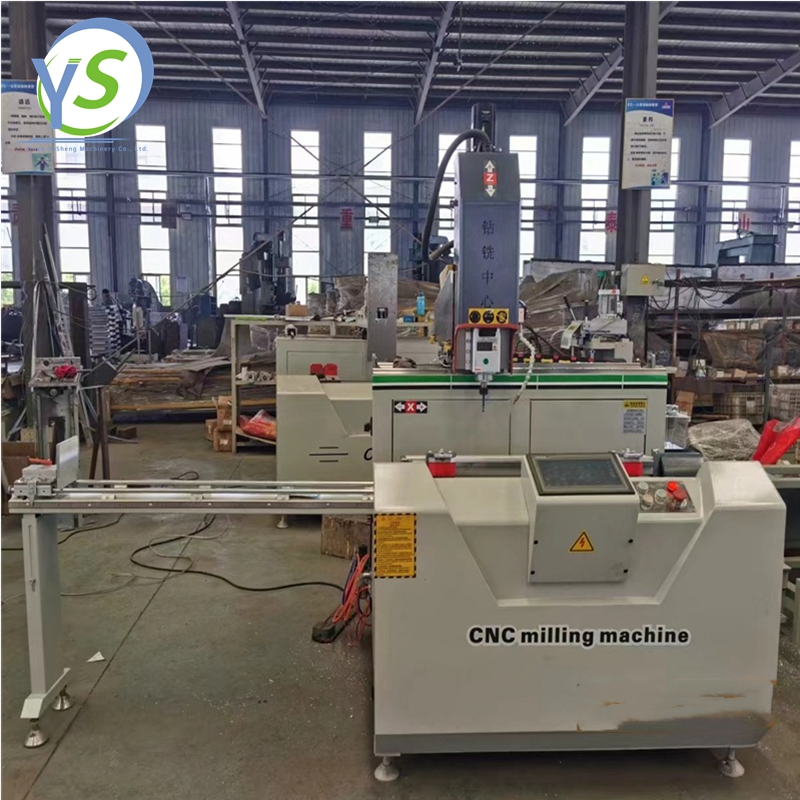

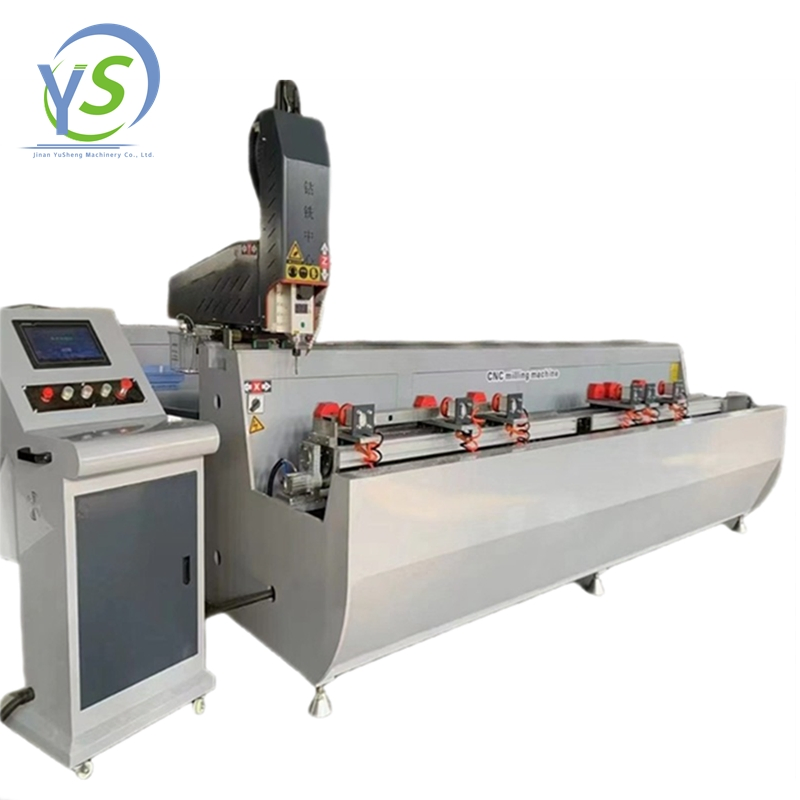

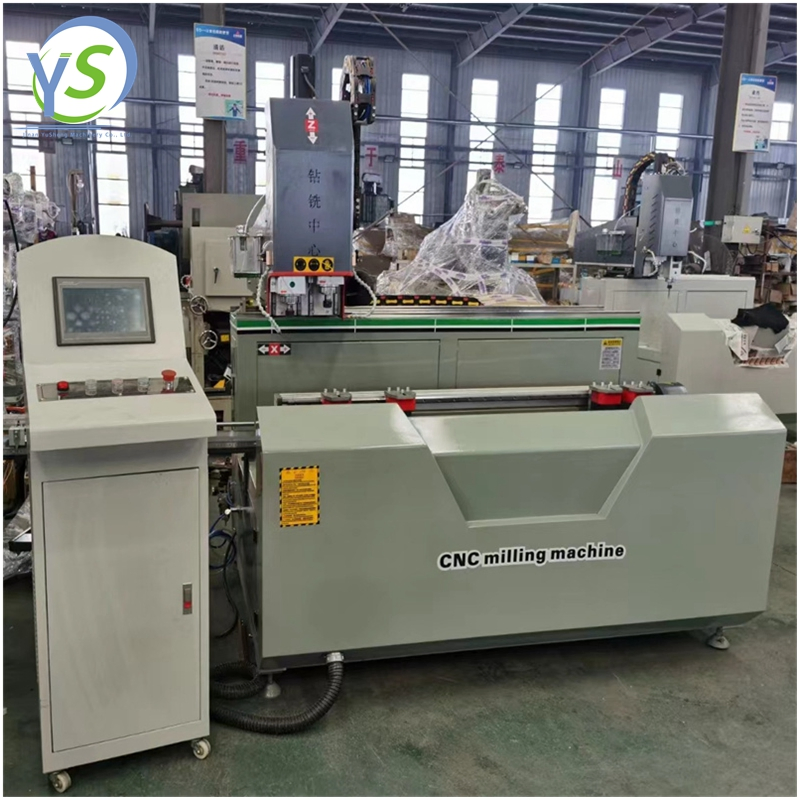

CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
1 / 5
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price
CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price

CNC-3000 Aluminum Profile Window Door Lock Hole CNC Drilling Milling Machine with Good Price

Customization: Available
After-sales Service: Free Online Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

i

Basic Information

Model NO.CNC-600/800/1200/1500/3000
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Weight1000kg
Working Speed0-10m/Min
X Axis Travel3000mm
Y Axis Travel500mm
Z Axis Travel380mm
Power3 Kw
Specification2300x1500x1950mm
P

Product Description

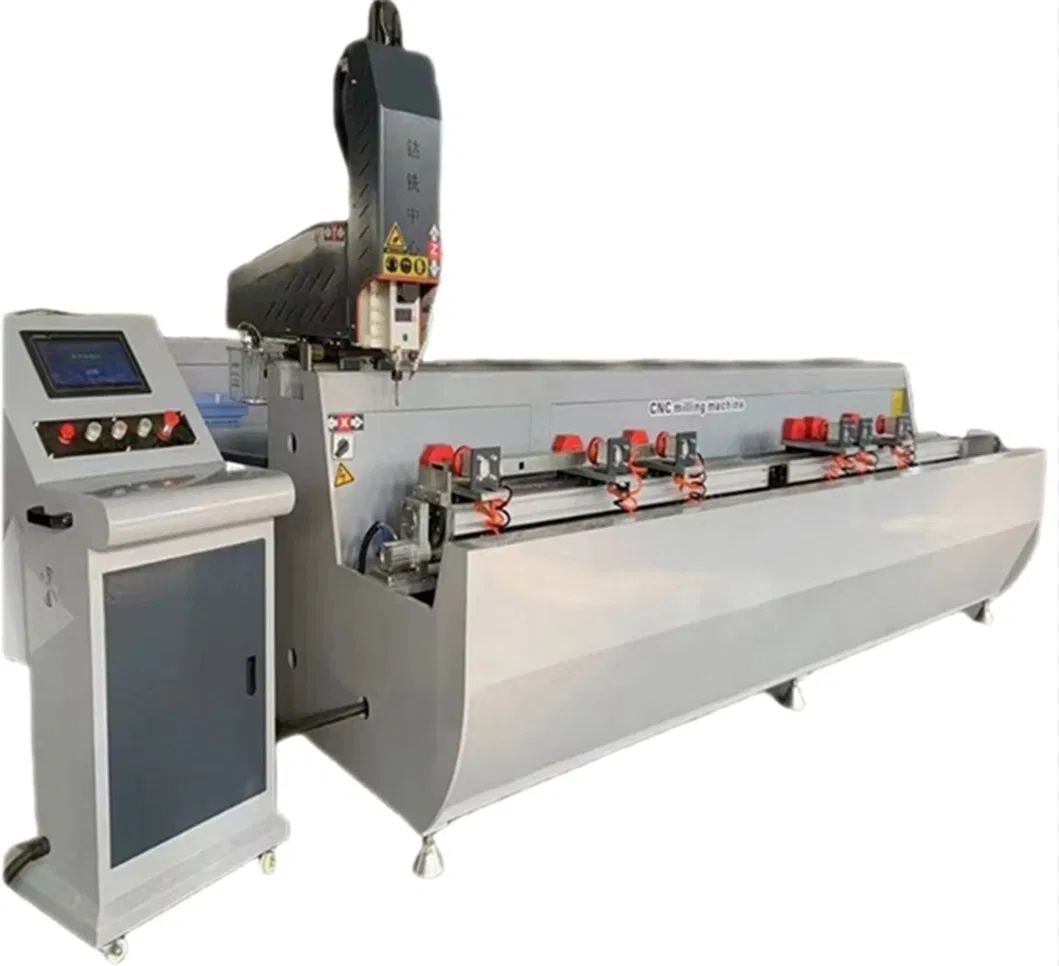

CNC Drilling Milling Machine

CNC High-Precision Aluminum UPVC/PVC Drilling Milling Machine

  • Designed for processing round holes, slots, keyholes, chamfering, and engraving plane surfaces.
  • Suitable for minimalist glass doors, aluminum alloy sliding doors, system doors, and broken bridge aluminum profiles.
  • Worktable overturns -90° to +90°, enabling three-face processing with a single clamping.
  • Deep hole processing capability through the overturn worktable for high efficiency.
  • Automatic G-code transformation for easy operation and lower labor intensity.
  • Air-cooling electric spindle (3kw, 18000r/min) for high precision and reliability.
  • High-precision oblique gear and rack driving for X-axis; ball screw drive for Y and Z axes.
  • Electric pump oil supply and spray cooling device for cutting tools.
D

Detailed Photos

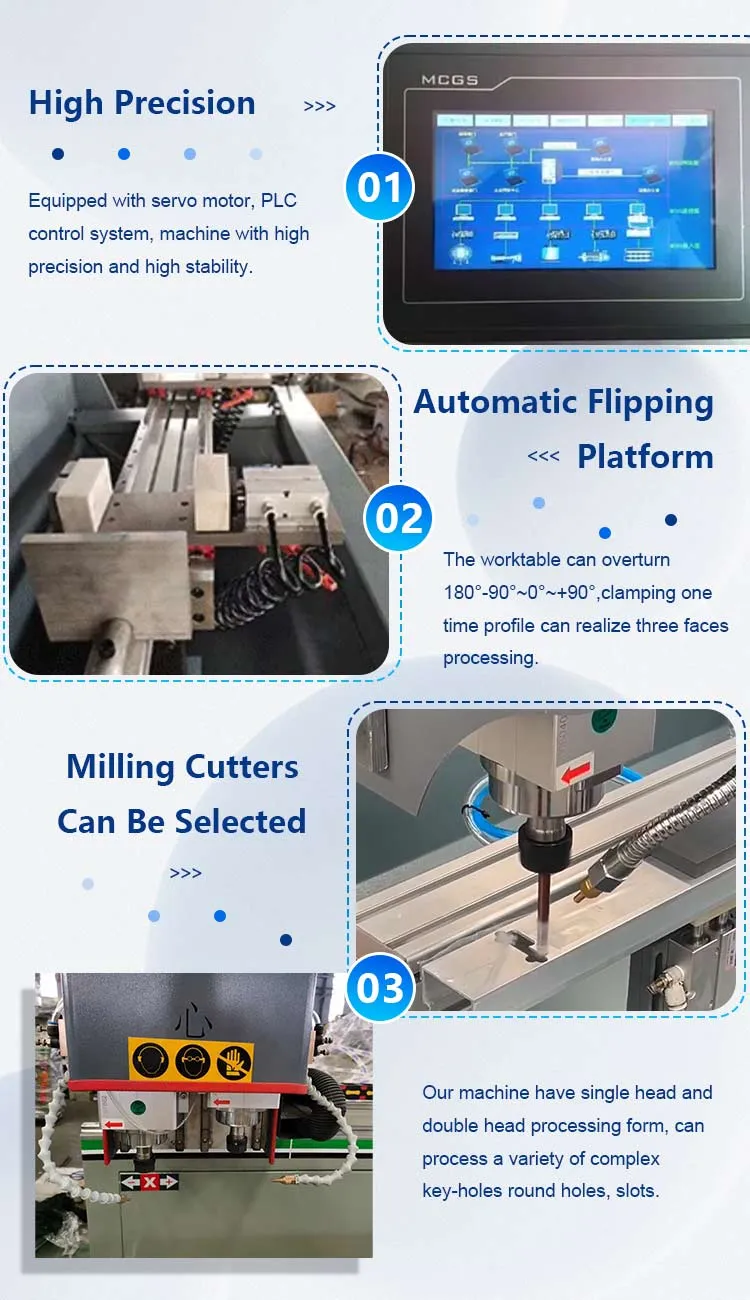

Machine Details
S

Technical Specifications

  • Angle
    • ModelCNC-1200
    Voltage380V 50HZ (Customizable)
    Power3 KW
    Working Pressure0.6 ~ 0.8mpa
    X Y Z Working Speed0-10m/min
    X/Y/Z Axis Travel3000mm / 500mm / 380mm
    180° (-90° to +90°)
    Dimensions2300x1500x1950mm
    Weight1000 kg
    F

    Processing Flow Chart

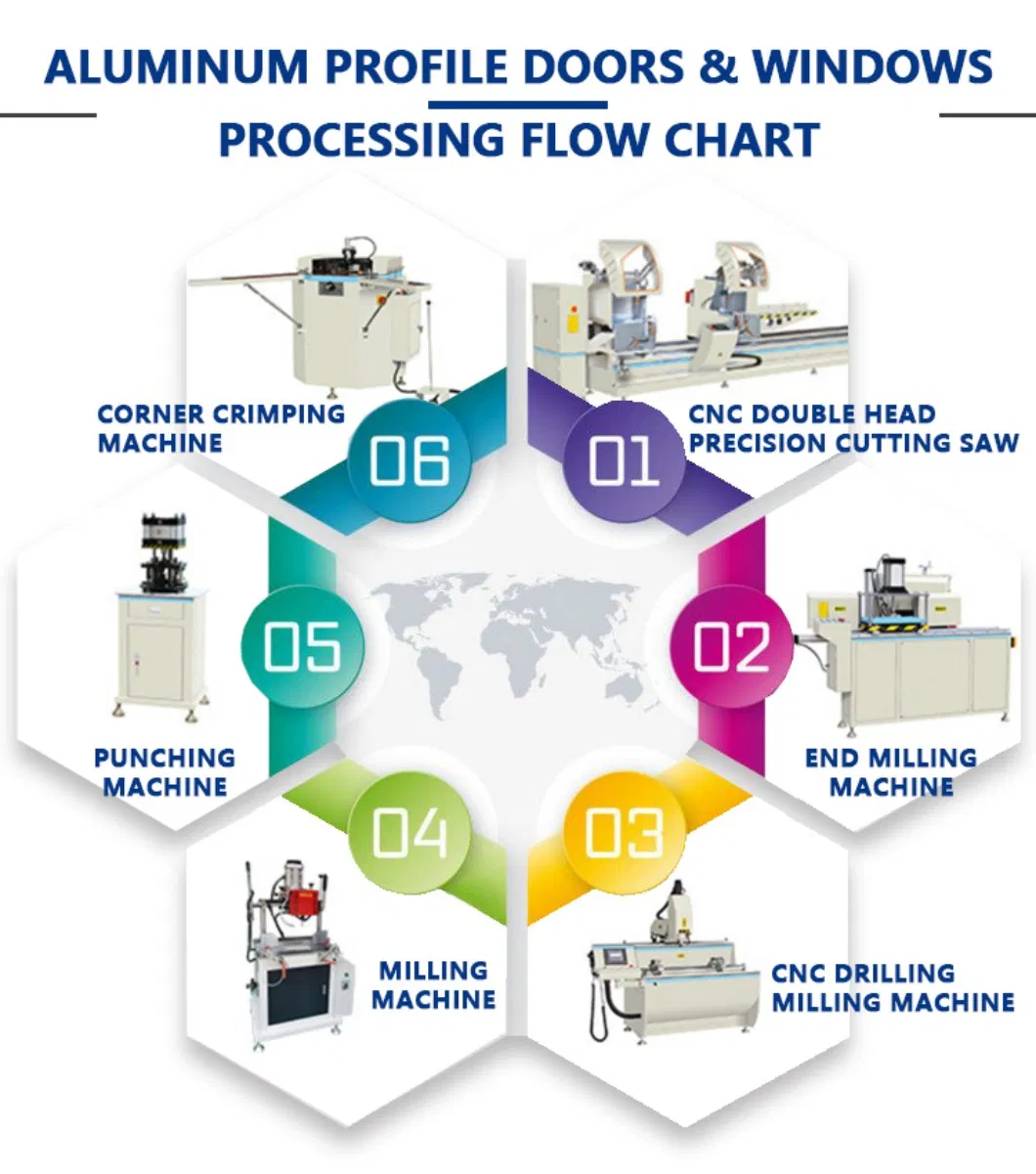

    Flow Chart 1
    Flow Chart 2
    C

    Industry Expertise & Certifications

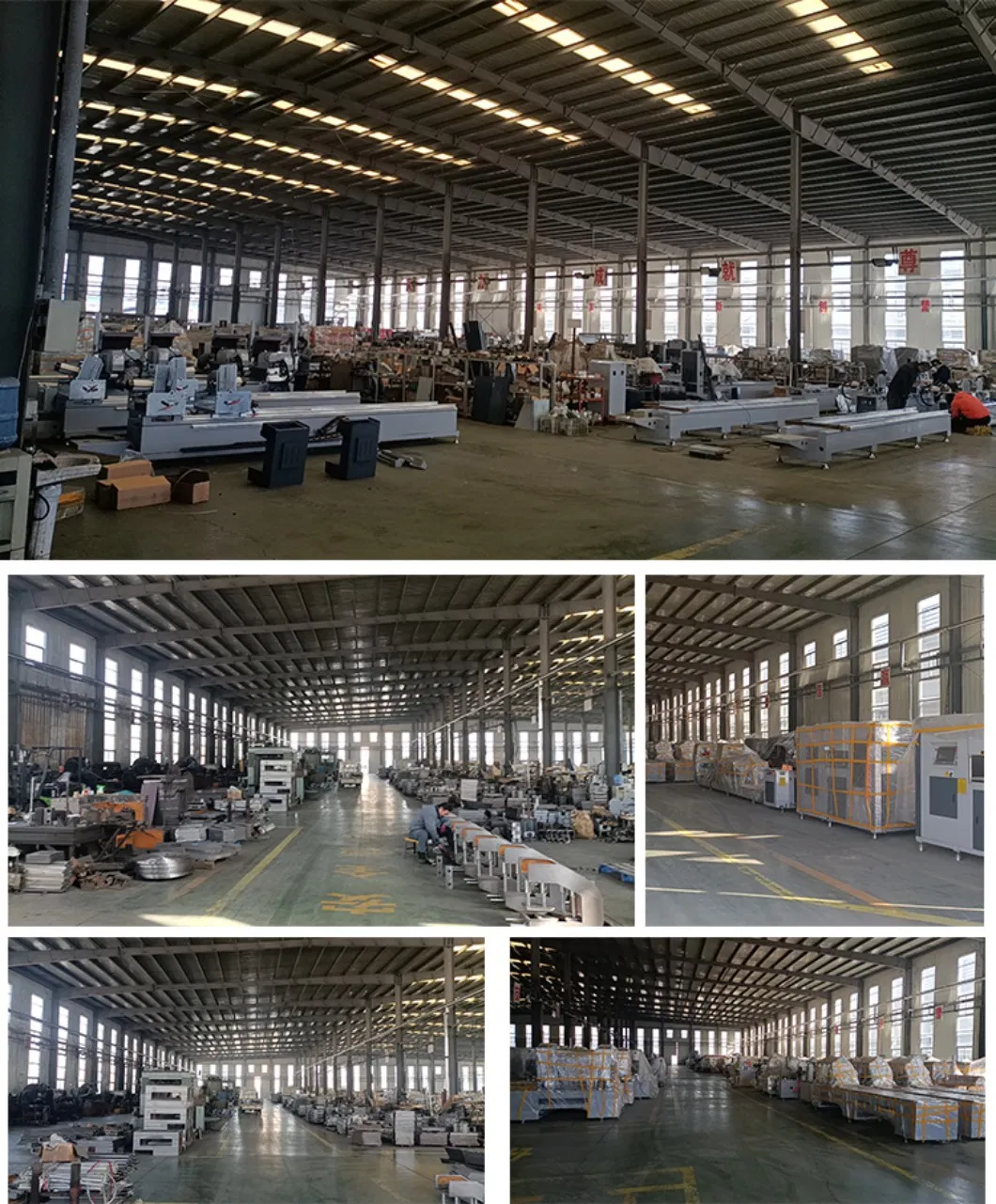

    Workshop
    Certificates

    We are dedicated to cutting-edge technology for aluminum profiles, doors, windows, and curtain wall processing equipment. Our expert team operates a large-scale mechanical processing workshop, integrating R&D, production, and service. We provide complete assembly equipment for aluminum profiles, plastic steel profiles, and high-end insulated glass production lines, covering industries such as rail transit, aerospace, and industrial manufacturing.

    U

    Our Global Clients

    Client 1
    Client 2
    ?

    Frequently Asked Questions

    Q1: Are you a manufacturer or trading company?
    A: We are the manufacturer with over 10 years of factory experience. Producing the machines ourselves allows us to ensure trusted quality and provide superior after-sales service.
    Q2: Can the voltage be customized for our local requirements?
    A: Yes, the voltage can be fully customized (e.g., 220V, 415V, etc.) as per the client's specific request.
    Q3: What is the estimated delivery time?
    A: For standard machines, it typically takes 7-10 days. For non-standard or customized machines, the delivery time is between 15 to 30 days.
    Q4: What are your payment terms and the purchase process?
    A: We require a 30% prepayment to begin production. Once the machine is ready, we provide photos/videos for your inspection, after which the balance is paid before shipment.
    Q5: How do you provide technical support and training?
    A: We provide instruction via email or video calls. Our engineers are highly experienced with CNC systems and speak fluent English to resolve any issues quickly.
    Q6: What kind of after-sales warranty do you offer?
    A: we offer a minimum 1-year complete warranty from the date of commissioning and provide life-time maintenance service and free consultation.
