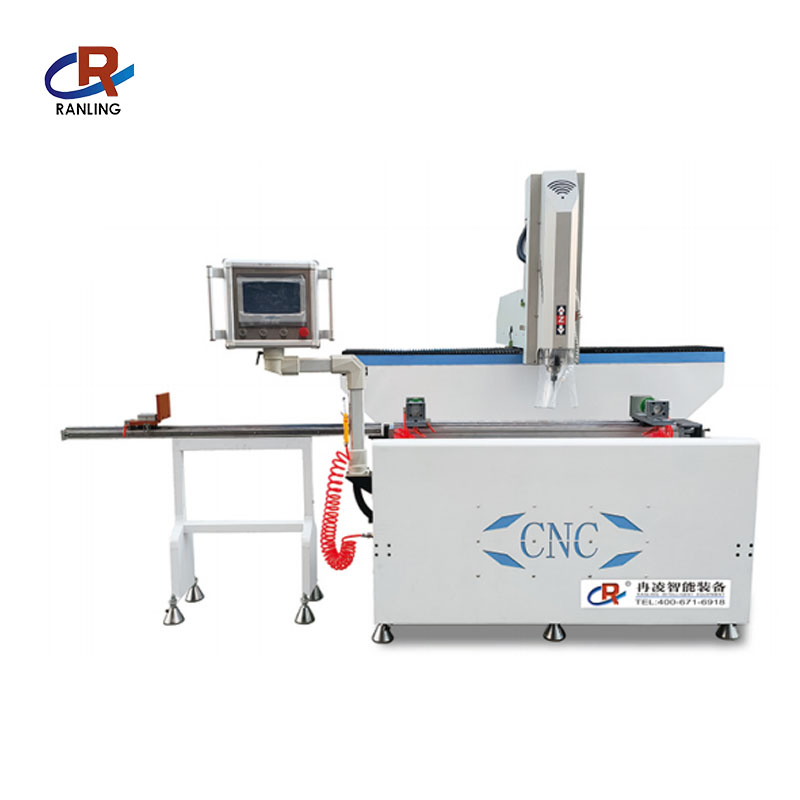

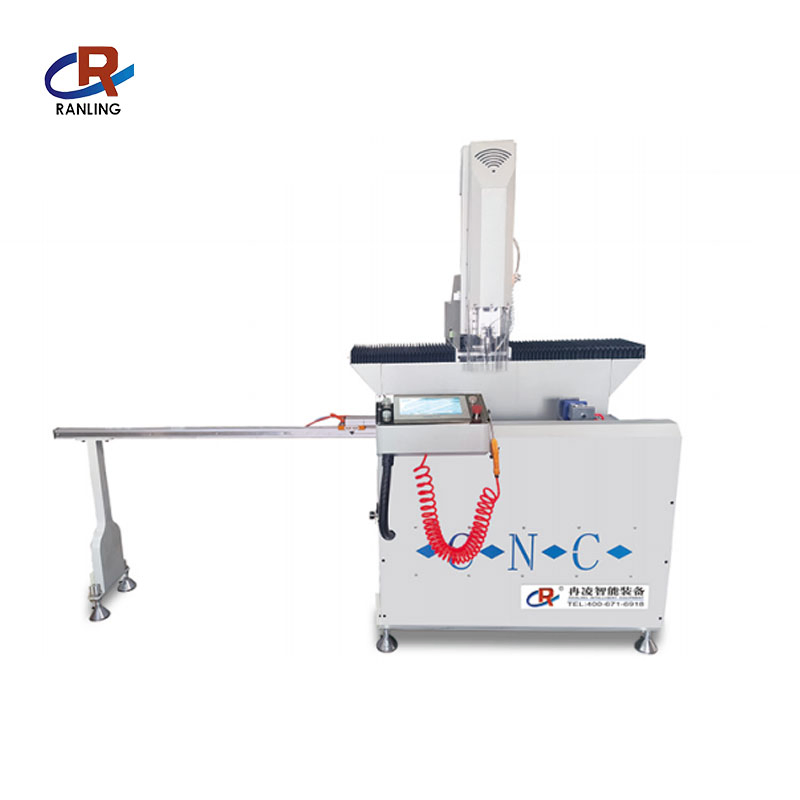

Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
1 / 5
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine
Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine

Factory Price Aluminum Window Door Making Machine CNC Door Lock Hole Drilling Milling Cutting Machine

Customization: Available
After-sales Service: Yes
Warranty: 2year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
LXZ-CNC-3000
Condition
New
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Input Power
9.3kw
Air Pressure
0.5-0.8MPa
Spindle Speed
18000r/Min
X Axis
3000mm
Y Axis
400mm
Z Axis
400mm
Transport Package
Wooden Box
Specification
3800x1500x1500mm
Production Capacity
100 Sets/Month
⚙️ Product Description
UPVC/PVC Aluminum Profile CNC Drilling and Milling Machine for Window and Door

It is suitable for the processing of round holes, slot holes, keyholes, special-shaped holes, etc. of industrial aluminum alloy profiles, doors, windows, and curtain wall aluminum profiles, as well as iron cutting, chamfering, and plane engraving of aluminum profiles.

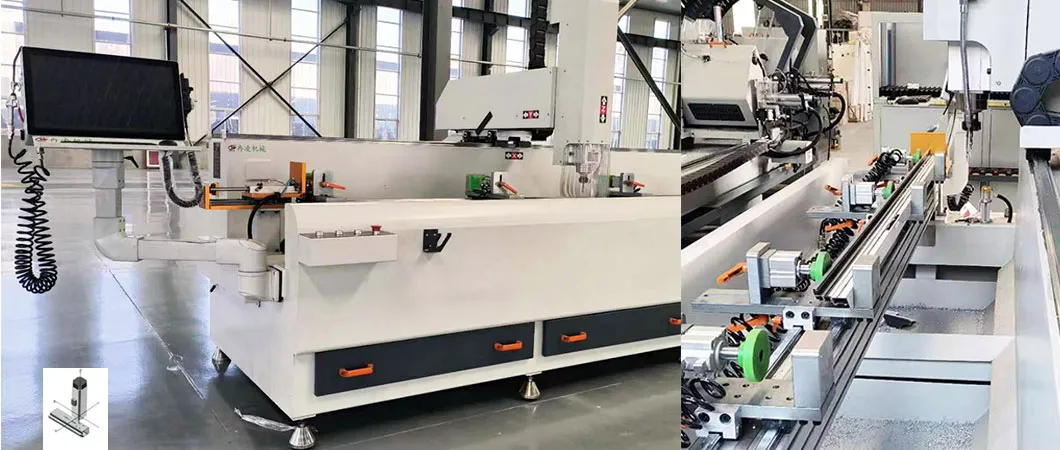

CNC Drilling and Milling Machine
🚀 Key Features
  • Processing of round holes, slot holes, keyholes, and special-shaped holes for metal profiles.
  • High-precision electric main shaft for stable transmission and improved accuracy.
  • H-level guide rails and sliders with high-precision ball screws for Y and Z axes.
  • Workbench rotation (-90° / 0° / +90°) allows processing on three sides in one clamping.
  • System-controlled spray cooling device and automatic motion lubrication system.
📊 Product Parameters
ModelLXZ-CNC-3000
X Axis Stroke3000mm
Y Axis Stroke400mm
Z Axis Stroke400mm
Machine Power9.3KW
Tool Mounting Length120mm
Working Pressure0.5-0.8Mpa
Spindle Speed0-18000rpm/min
🖼️ Detailed Photos

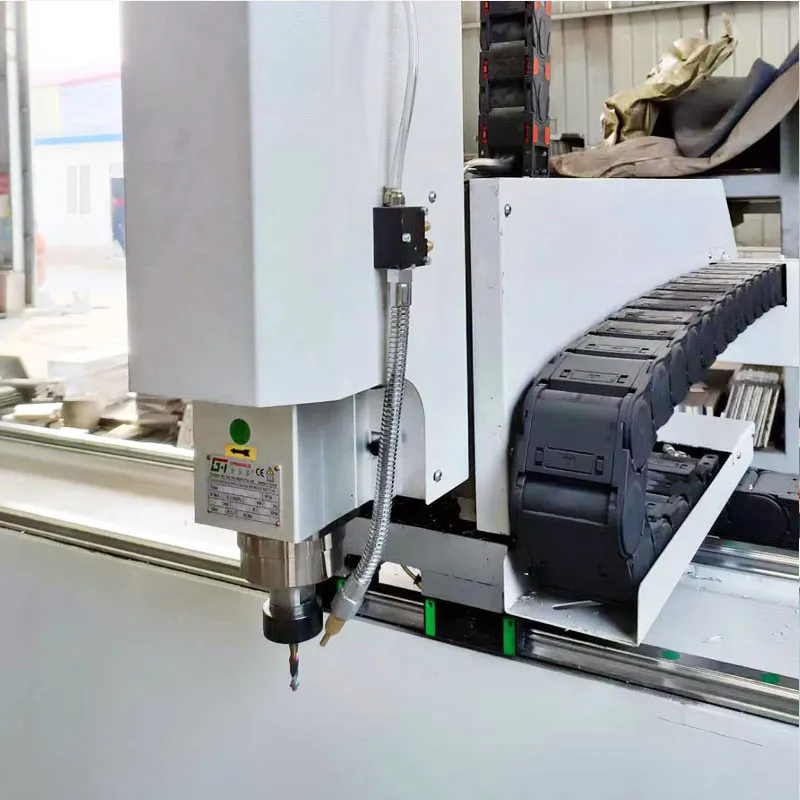

Detail 1

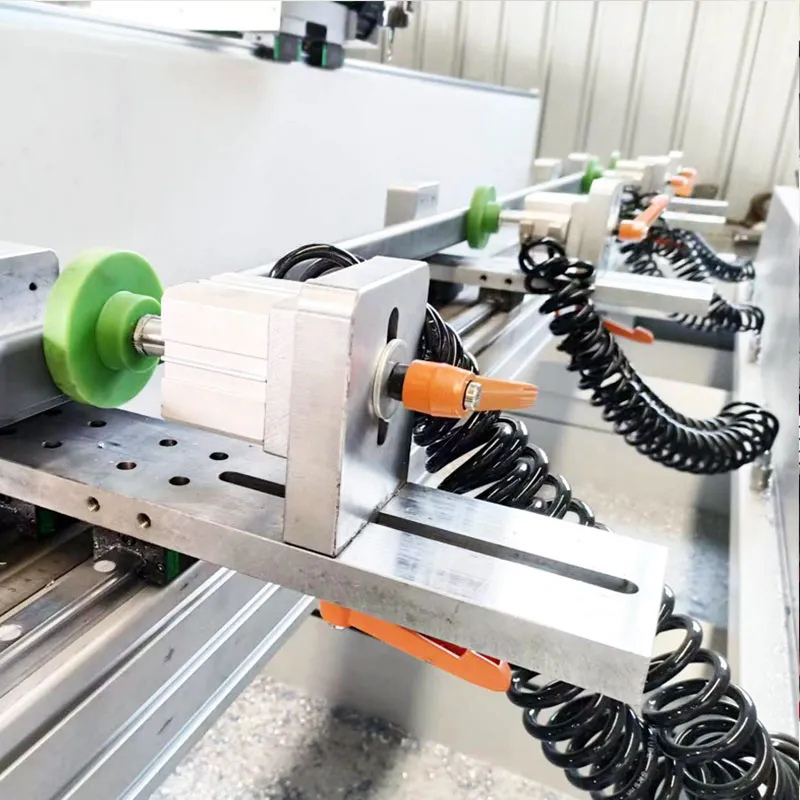

Detail 2

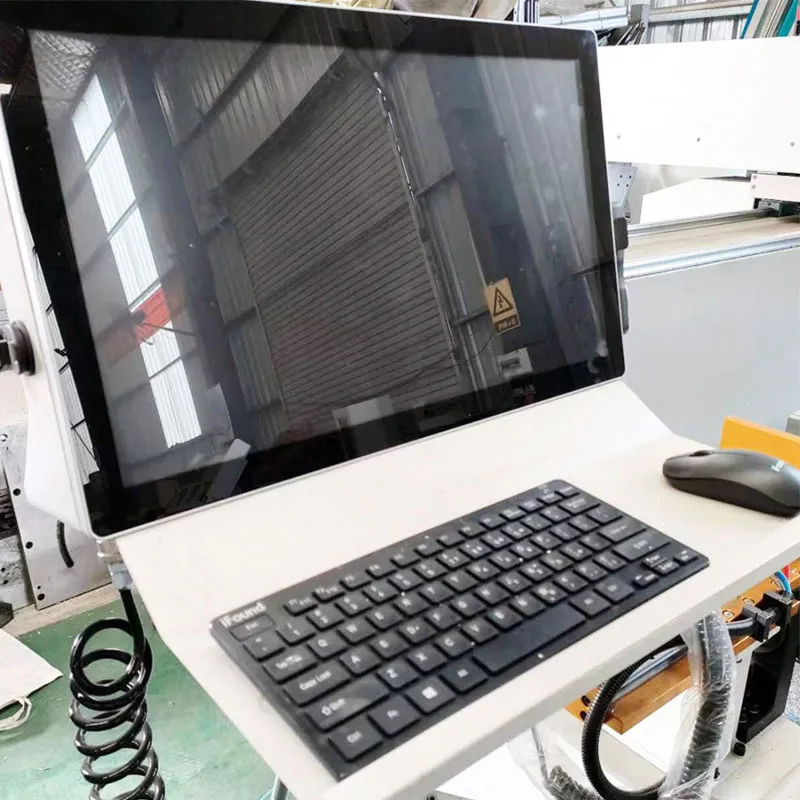

Detail 3

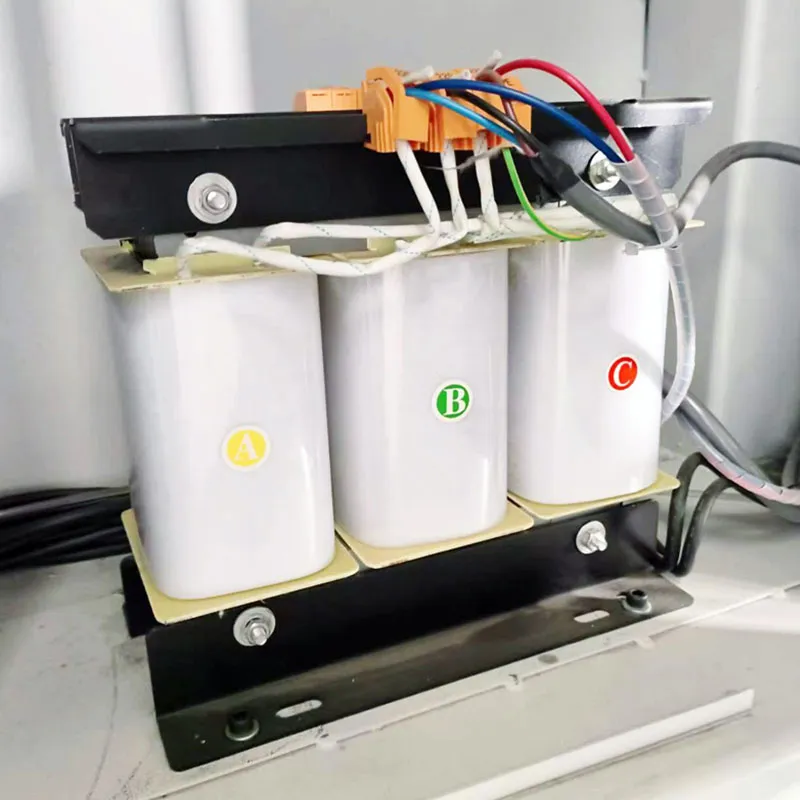

Detail 4
🏭 Factory Production

A high-tech enterprise specializing in the R&D, production and sales of high-grade aluminum door and window curtain wall processing equipment. Our equipment is safe to operate and stable in quality.

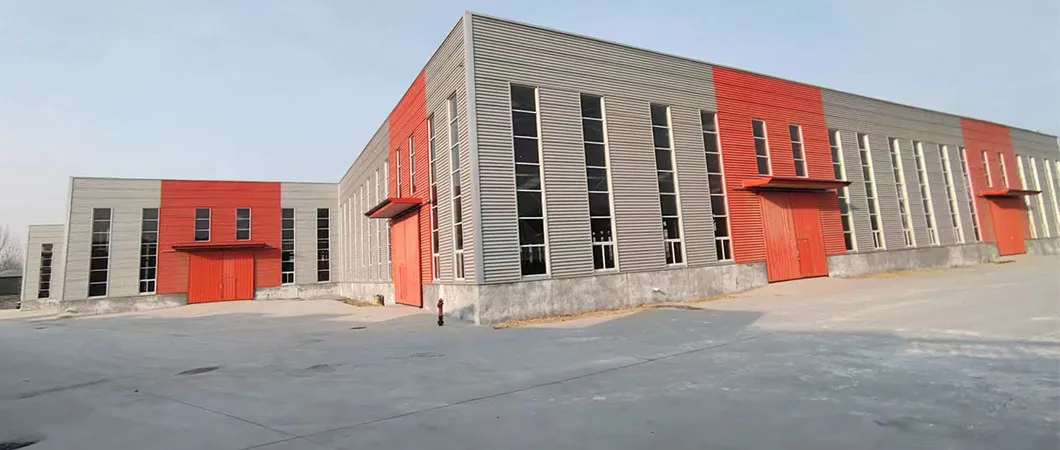

Production Line

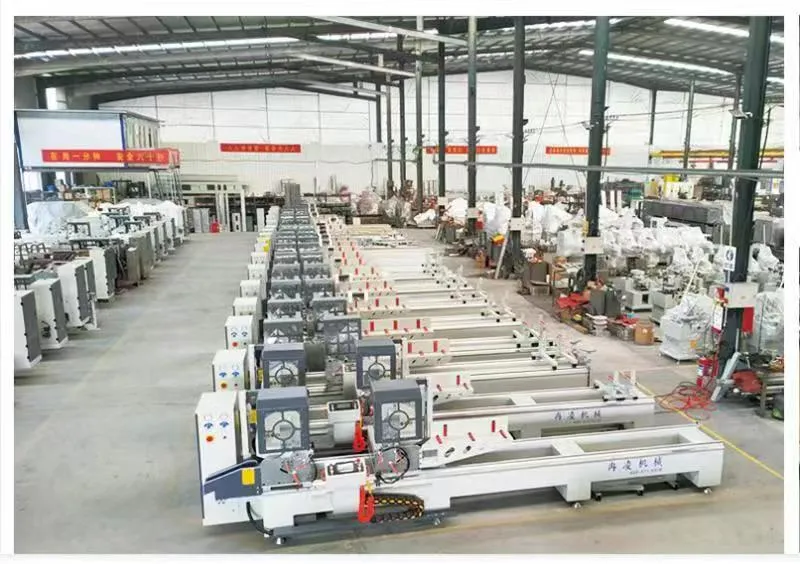

Production 1

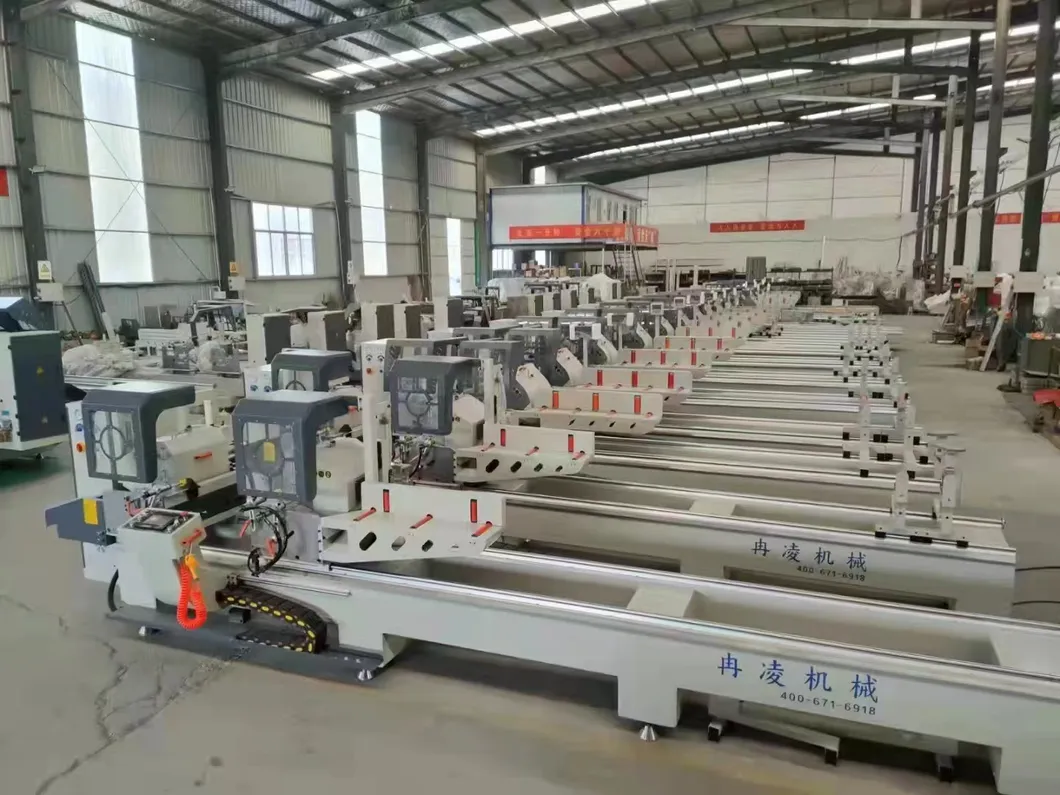

Production 2

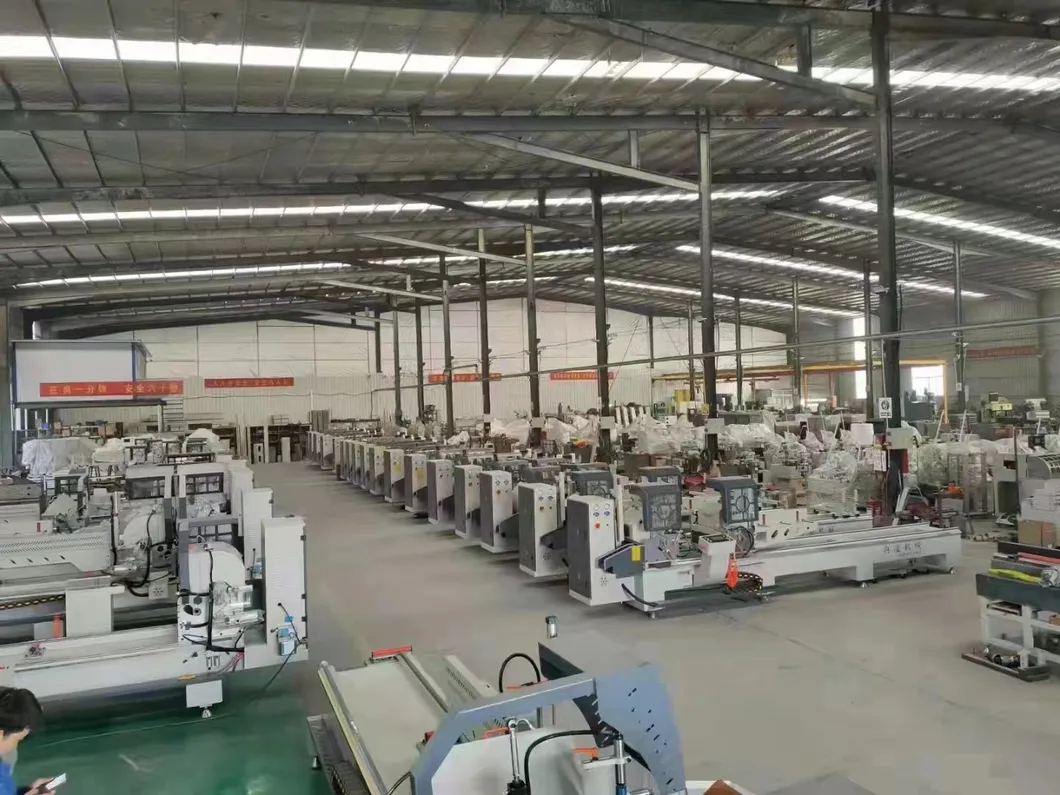

Production 3

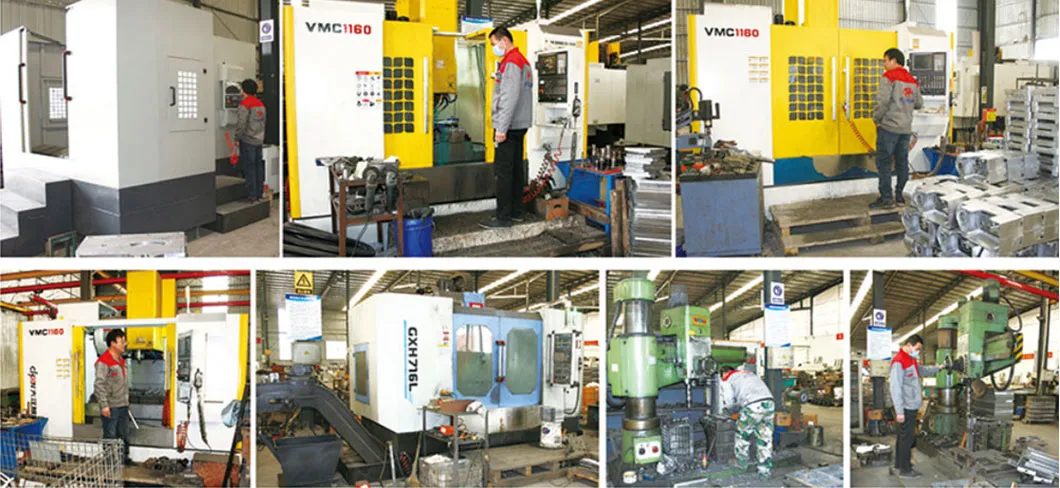

Standardized Production Processes
Standardized Process
📜 Exhibition & Certifications
Certificates

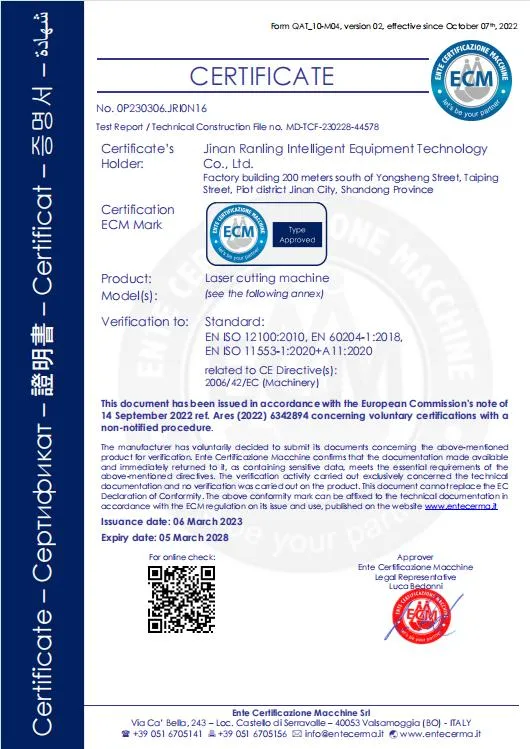

Cert 1
Cert 2

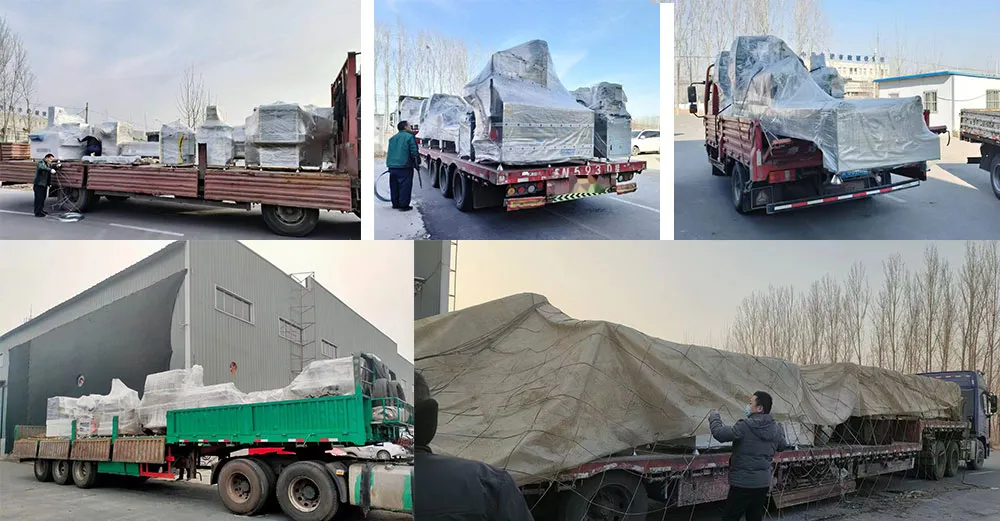

📦 Packaging & Shipping
Packaging
❓ Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are a manufacturer. We have specialized factories for aluminum window making machines and laser cutting machines.
2. What types of profiles can this machine process?
It is designed for industrial aluminum alloy profiles, UPVC/PVC profiles, and curtain wall aluminum components.
3. Can the workbench rotate for multi-side processing?
Yes, the workbench can turn 180 degrees (-90° to 0° to +90°), allowing the profile to be processed on three sides with a single clamping.
4. What is the precision level of the machine components?
We use H-level guide rails, high-precision electric spindles, and high-precision ball screws to ensure stable and accurate performance.
5. Is there a cooling system for the tools during operation?
Yes, the machine is equipped with a system-controlled spray cooling device to protect the tools and improve cutting quality.
6. What is the lead time for this CNC machine?
Our production capacity is approximately 100 sets per month. Specific lead times depend on current order volume and customization requirements.
