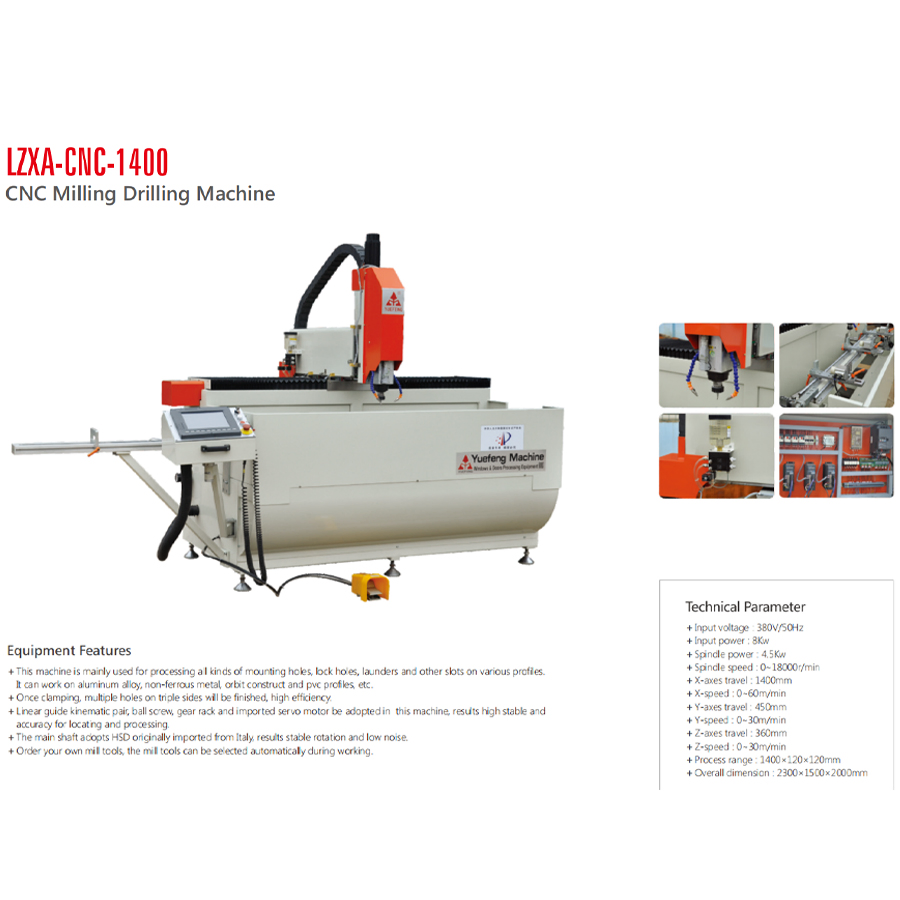

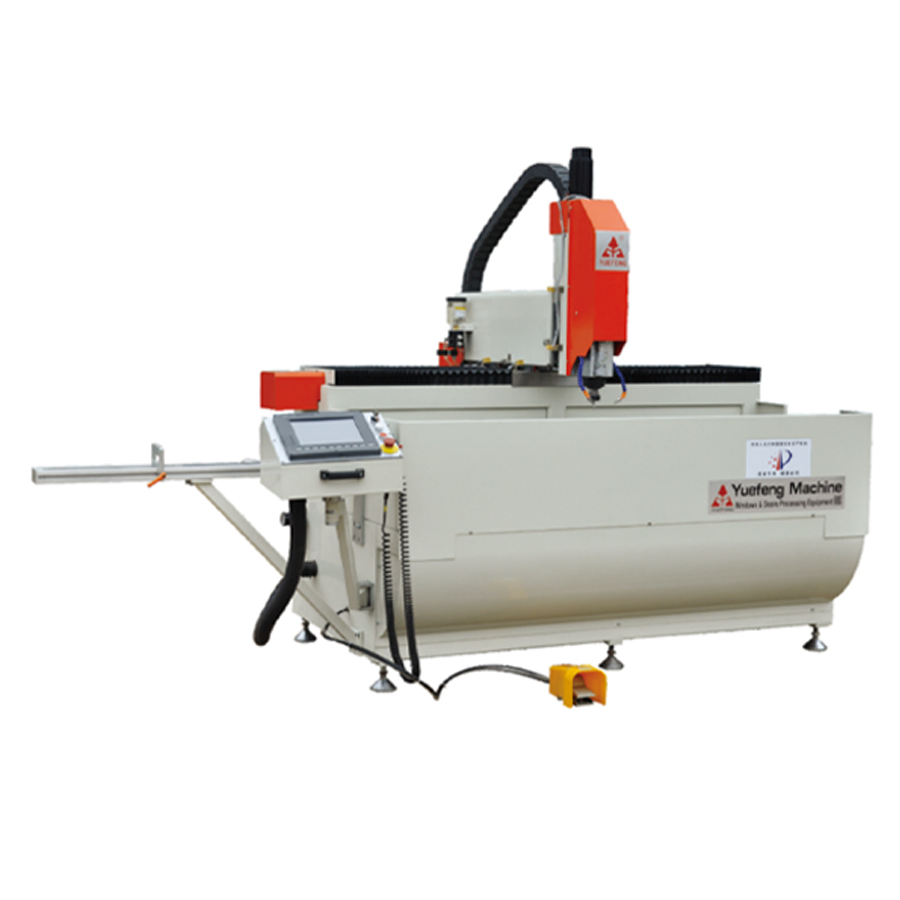

Aluminum Window and Door CNC Lock Hole Milling and Drilling Machine

Customization: Available
After-sales Service: Best
Warranty: 1year

Product Description

Basic Info.

Model NO.LZXA-CNC-1400
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Input Voltage380V 50Hz
Input Power8kw
Spindle Power4.5kw
Spindle Speed0~18000r/Min
X-Axes Travel1400mm
X-Speed0~60m/Min
Y-Axes Travel450mm
Y-Speed0~30m/Min
Z-Axes Travel360mm
Z-Speed0~30m/Min
Process Range1400×120×120mm
Overall Dimension2300×1500×2000mm
Production Capacity100 Sets Per Month

Product Description

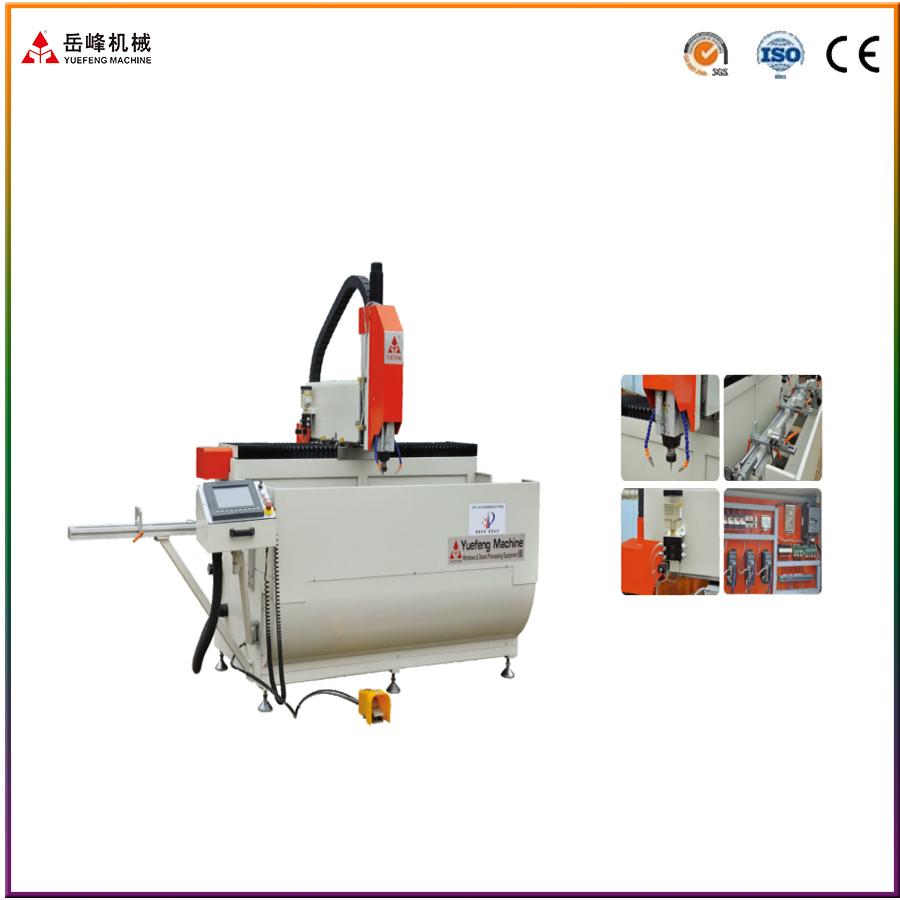

CNC Lock Hole Milling Machine
This machine is mainly used for processing all kinds of mounting holes, lock holes, launders and other slots on various profiles.
It can work on aluminum alloy, non-ferrous metal, orbit construct and pvc profiles, etc.
Once clamping, multiple holes on triple sides will be finished, high efficiency.
Linear guide kinematic pair, ball screw, gear rack and imported servo motor result in high stability and accuracy.
The main shaft adopts HSD originally imported from Italy, resulting in stable rotation and low noise.

Detailed Photos

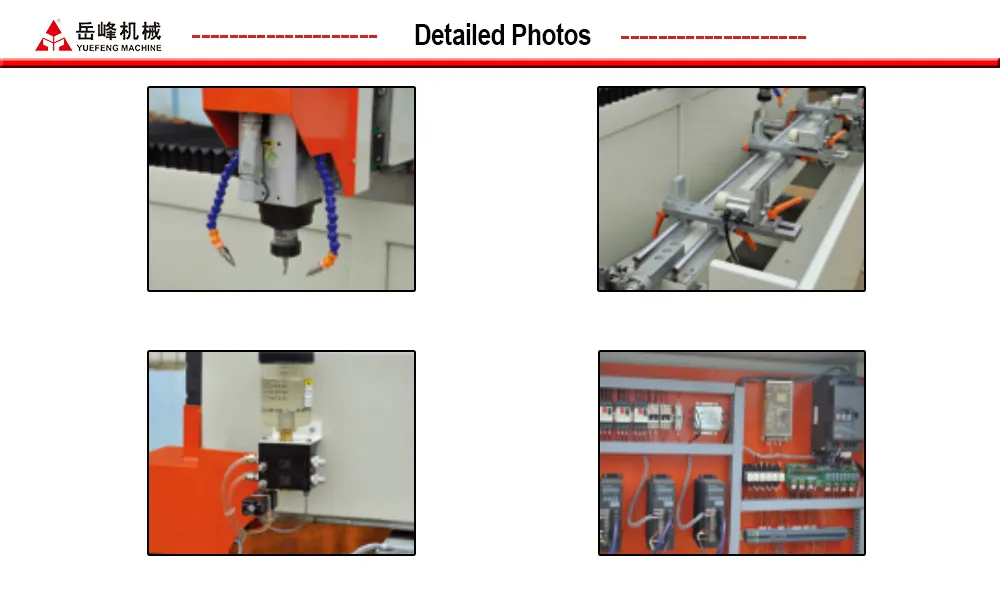

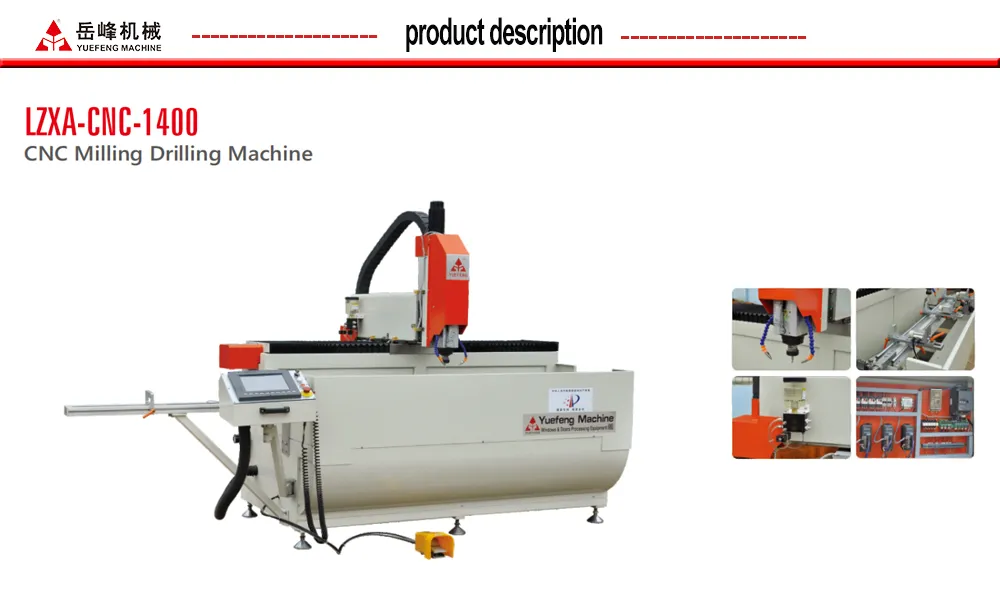

Machine Detail 1 Machine Detail 2

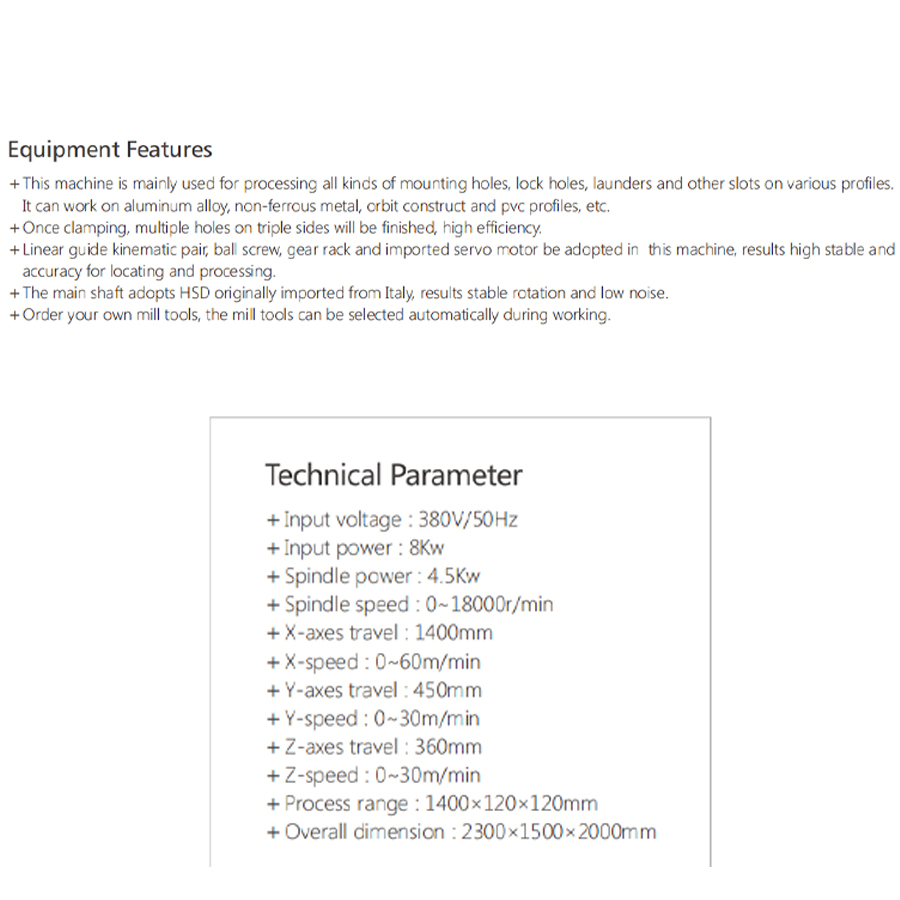

Technical Parameters

Parameters Banner
ModelLZXA-CNC-1400
Input Voltage380V/50Hz
Input Power8Kw
Spindle Power4.5Kw
Spindle Speed0~18000r/min
X-axes Travel1400mm
Y-axes Travel450mm
Z-axes Travel360mm
Process Range1400×120×120mm
Overall Dimension2300×1500×2000mm

Product Display

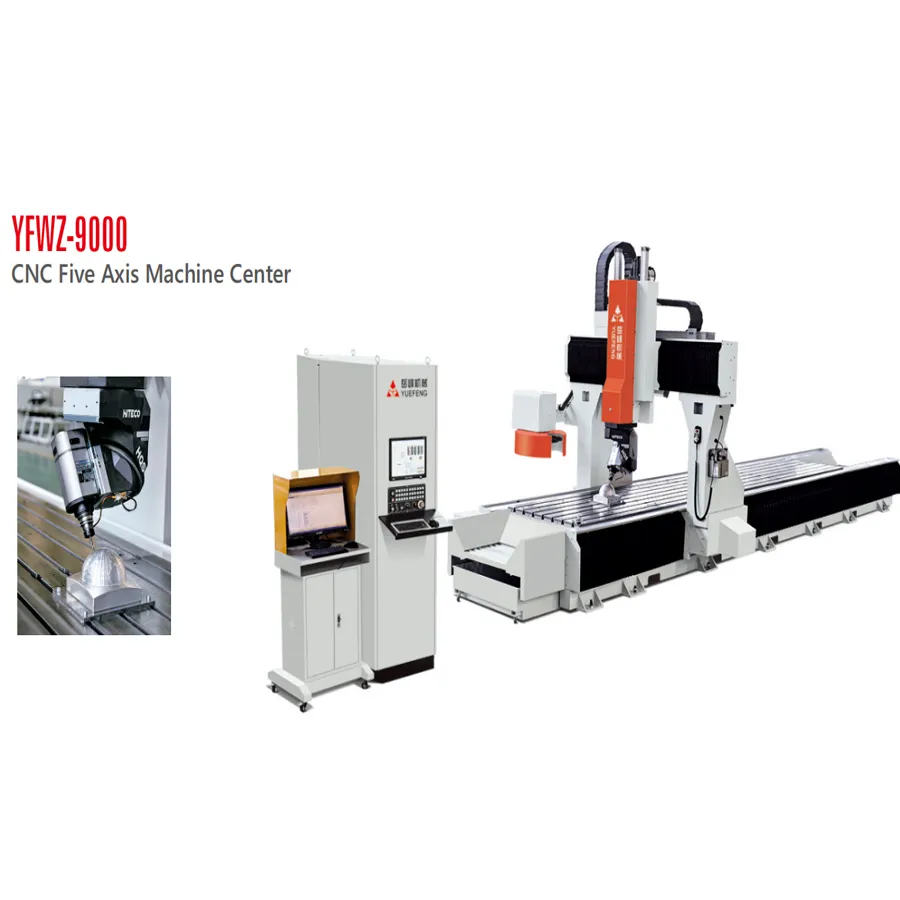

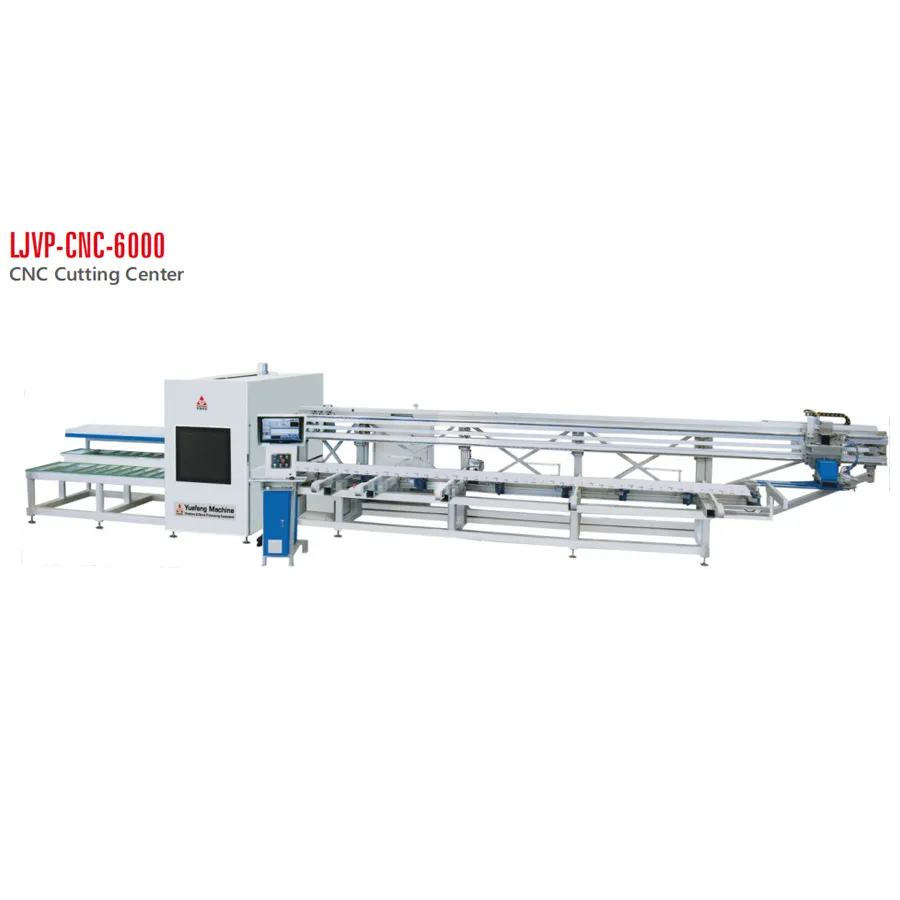

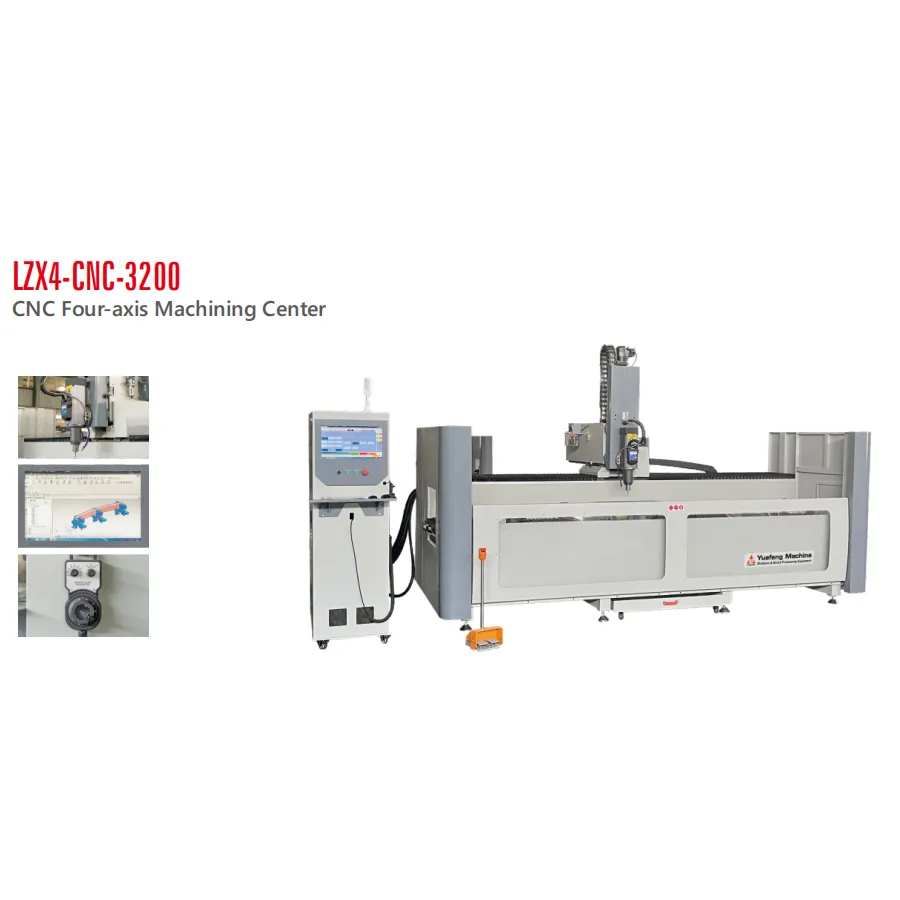

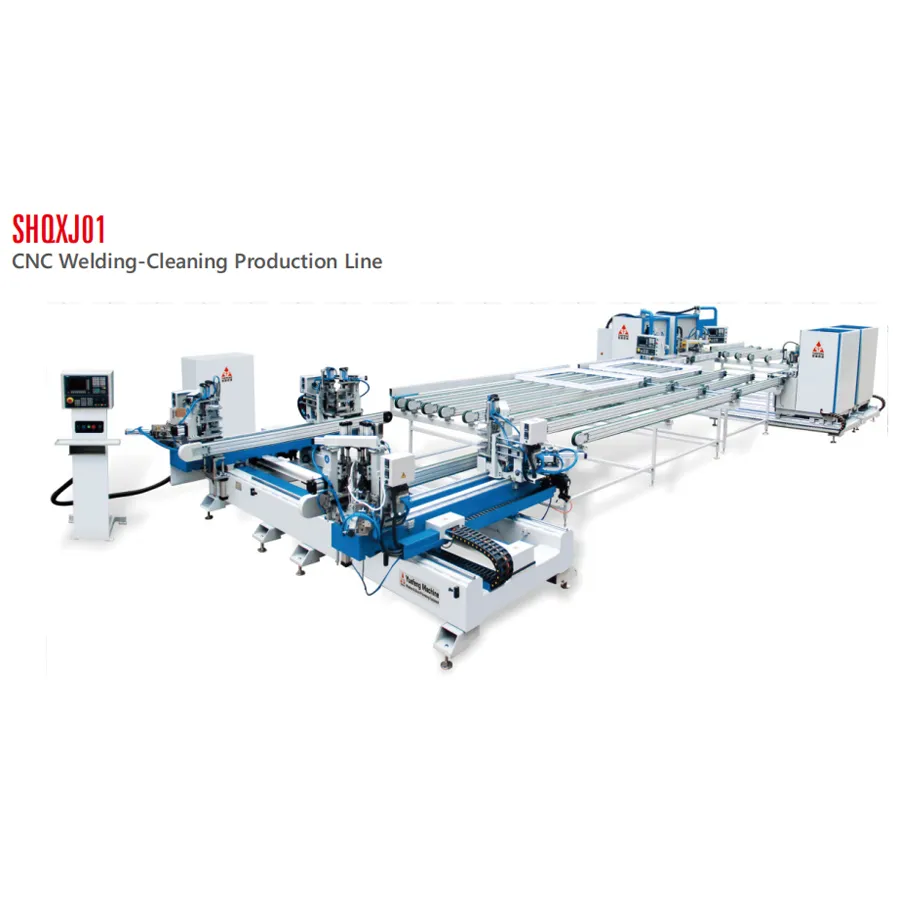

Display 1 Display 2 Display 3 Display 4

Our Advantages

Advantages 1
Advantages 2 Advantages 3

Frequently Asked Questions

1. Are you a trading company or a factory?
We are a factory and trade integration with 35 years' focus on Upvc, Aluminum Window and Doors Equipment, insulating glass equipment and curtain wall equipment.
2. After an order is placed, when will it be delivered?
Generally about 15 days. If we have inventory, we can arrange shipment within 5 days. Production lead times depend on specific items and quantities.
3. What about the warranty and after-sales service?
We provide a 12-month warranty. Our professional after-sales team provides technical support and helps solve problems encountered while using our products in a timely manner.
4. What about the quality of your services and products?
Each machine undergoes 100% quality examination and testing before shipment. All machines meet ISO and CE certification standards.
5. We don't know how to operate the machine, what should we do?
We can send an engineer to your location, or provide video training to show you how to install and operate the equipment. Engineering support is also available online.
6. Is the machine compatible with different profile materials?
Yes, this CNC machine can process various profiles including aluminum alloy, non-ferrous metals, and PVC profiles.
