Customization: Available
After-sales Service: Engineer to to Clients Site, on-Line Service
Warranty: 2 Years Key Selling Points Easy to Operate
Send Inquiry

Product Description

📊 Basic Information
Model NO.
SKX-CNC-1200
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Input Power
6.0kw
Air Pressure
0.5-0.8MPa
X Axis Range
1200mm
Production Capacity
3000sets/Year
⚙️ Product Description

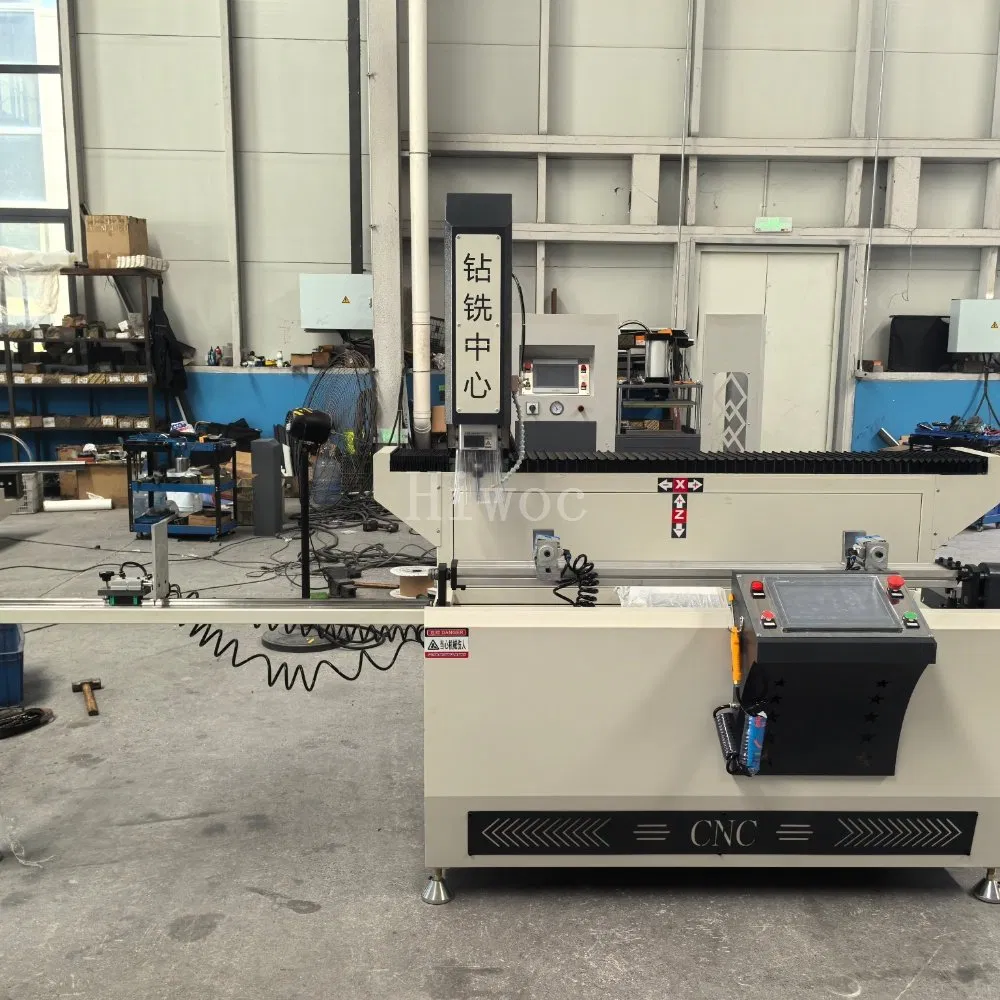

SKX-CNC-1200 CNC DRILL MILL MACHINE

  • Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
  • System adopts high-performance CNC controller.
  • Adopting electric spindle with high precision, high safety, and reliability.
  • X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission for steady movement.
  • Workbench can turn -90° to +90°. It realizes three-side processing by clamping one time, ensuring high efficiency.

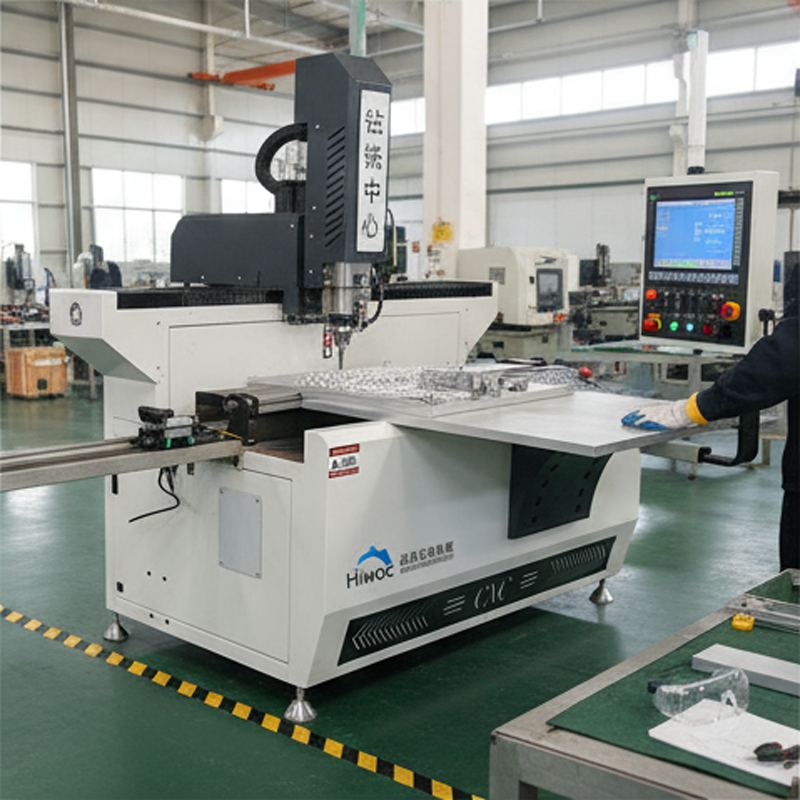

CNC Drilling and Milling Machine

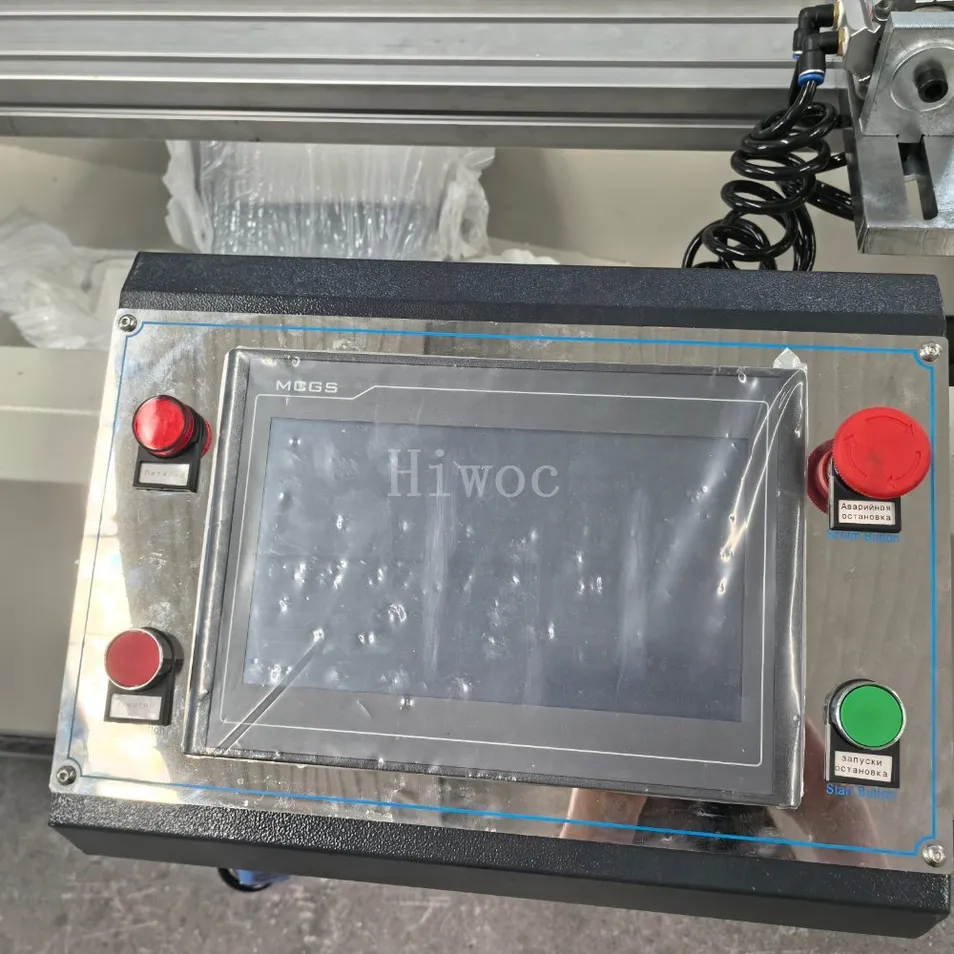

CNC Machine Detail
No. Technical Specifications Data Details
1Power3.5KW (Customizable)
2Work PositionOverturn 180°, 0°, 90°, -90°
3X Axis Journey1200mm
4Y Axis Journey300mm
5Z Axis Journey300mm
6Positioning Accuracy (X)±0.03mm
7Positioning Accuracy (Y/Z)±0.03mm
8Spindle Max. Speed24000r/min
9Air Consumption60L/min
10Clamping SystemAuto (ER25, 2~16mm diameter)
11CAD/CAM SystemIncluded
12Air Pressure0.5~0.8Mpa
📦 Packing & Delivery
Package Size
228.00cm * 800.00cm * 200.00cm
Gross Weight
1200.000kg
Package Type
Wood Box

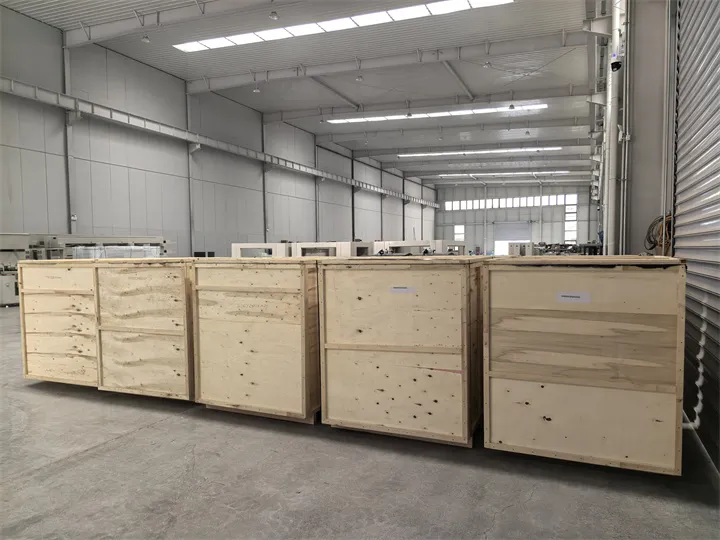

Packing Process

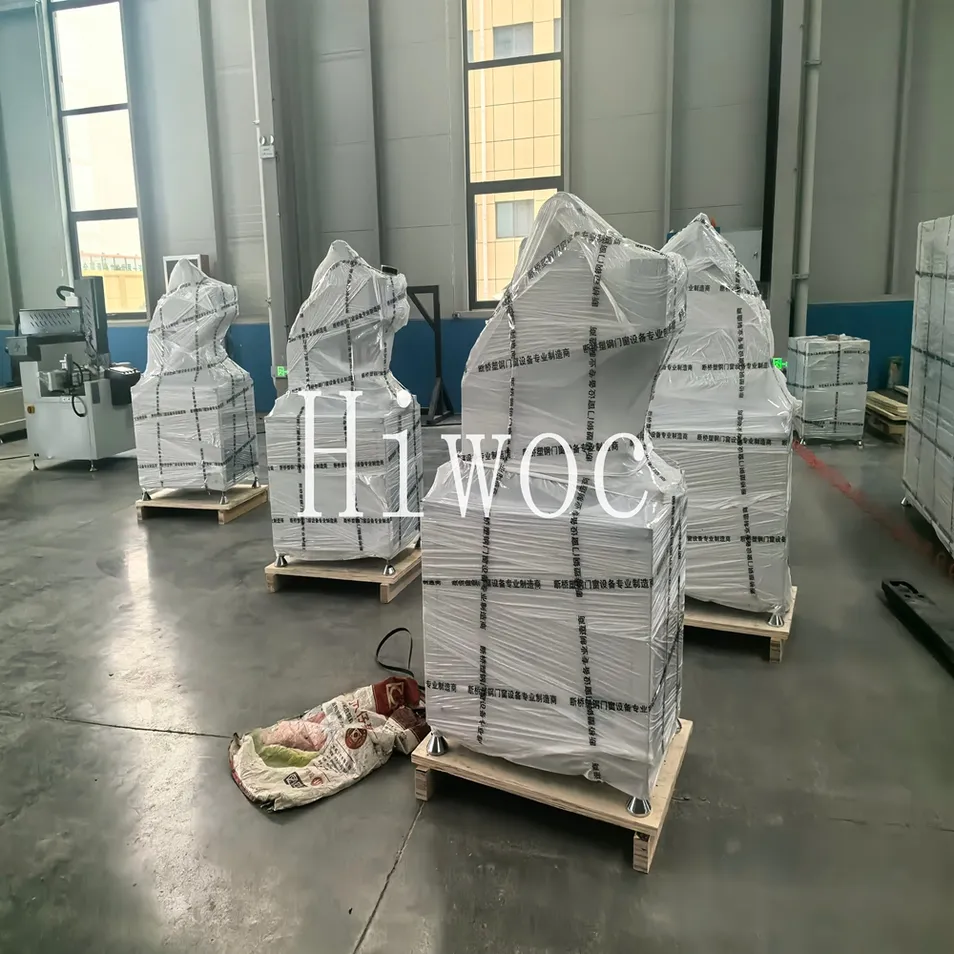

Machine Delivery
❓ Frequently Asked Questions
Q1: What types of profiles can this CNC machine process?
A: It is specifically designed for aluminum alloy profiles, including drilling holes, milling grooves, and engraving.
Q2: How many sides of a profile can be processed at once?
A: Thanks to the 180° overturn workbench (-90° to +90°), it can realize three-side processing with a single clamping.
Q3: What is the positioning accuracy of the SKX-CNC-1200?
A: The machine offers high precision with a positioning accuracy of ±0.03mm for X, Y, and Z axes.
Q4: Does the machine require a special power supply?
A: The standard voltage is 380V, and the input power is 6.0kw. The spindle power can be customized.
Q5: What is the maximum spindle speed?
A: The electric spindle can reach a maximum rotary speed of 24,000 r/min.
Q6: Is software included for designing the processing paths?
A: Yes, the machine is equipped with a CAD/CAM system for efficient operation and programming.
