📍 Basic Specifications
After-sales Service
12 Months
Transport Package
Plywood Package
Specification

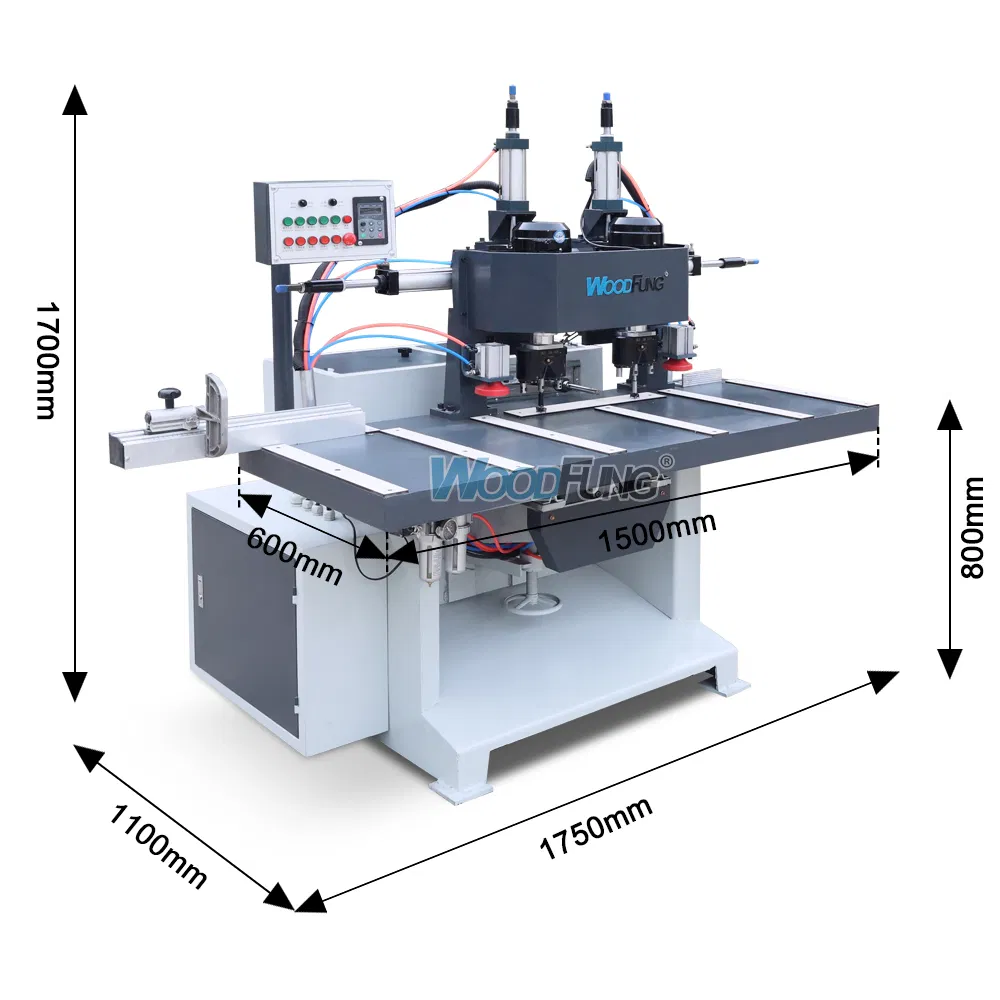

890*770*1610mm
Production Capacity
5000 Unit / Month
⚙️ Product Description

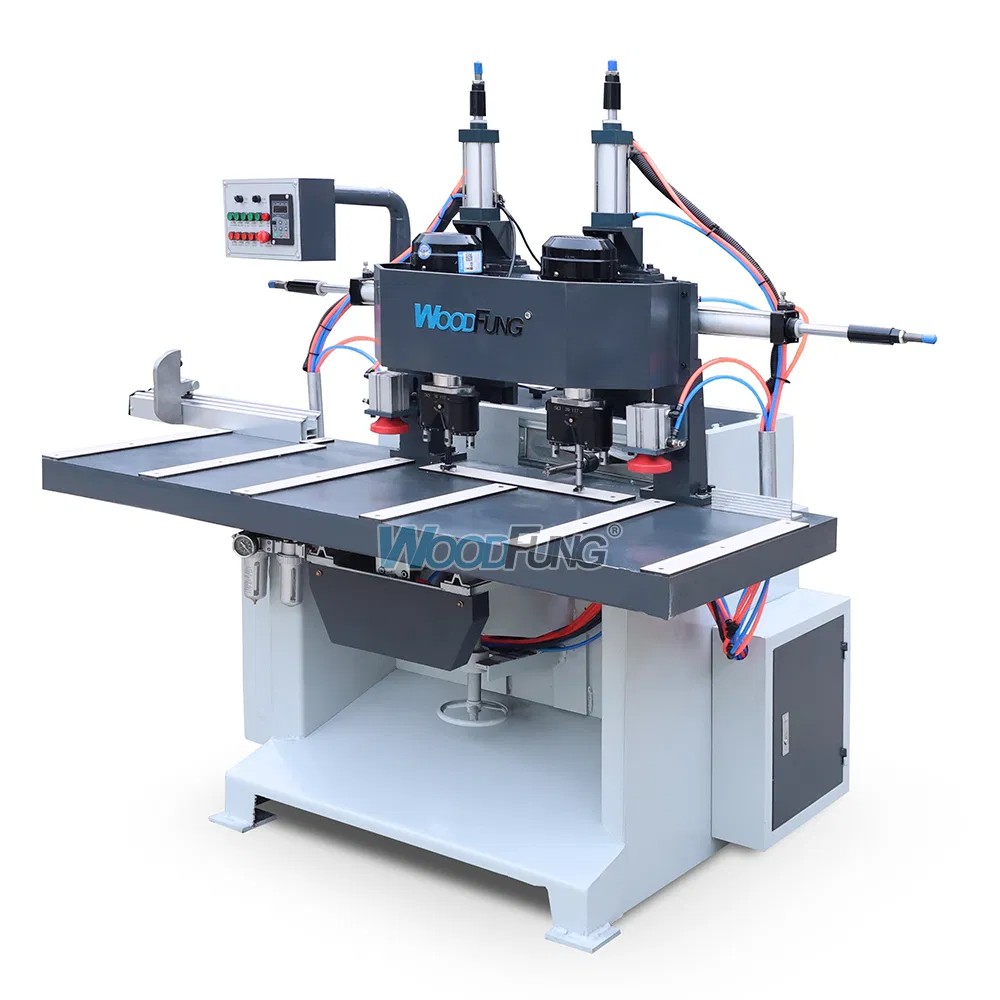

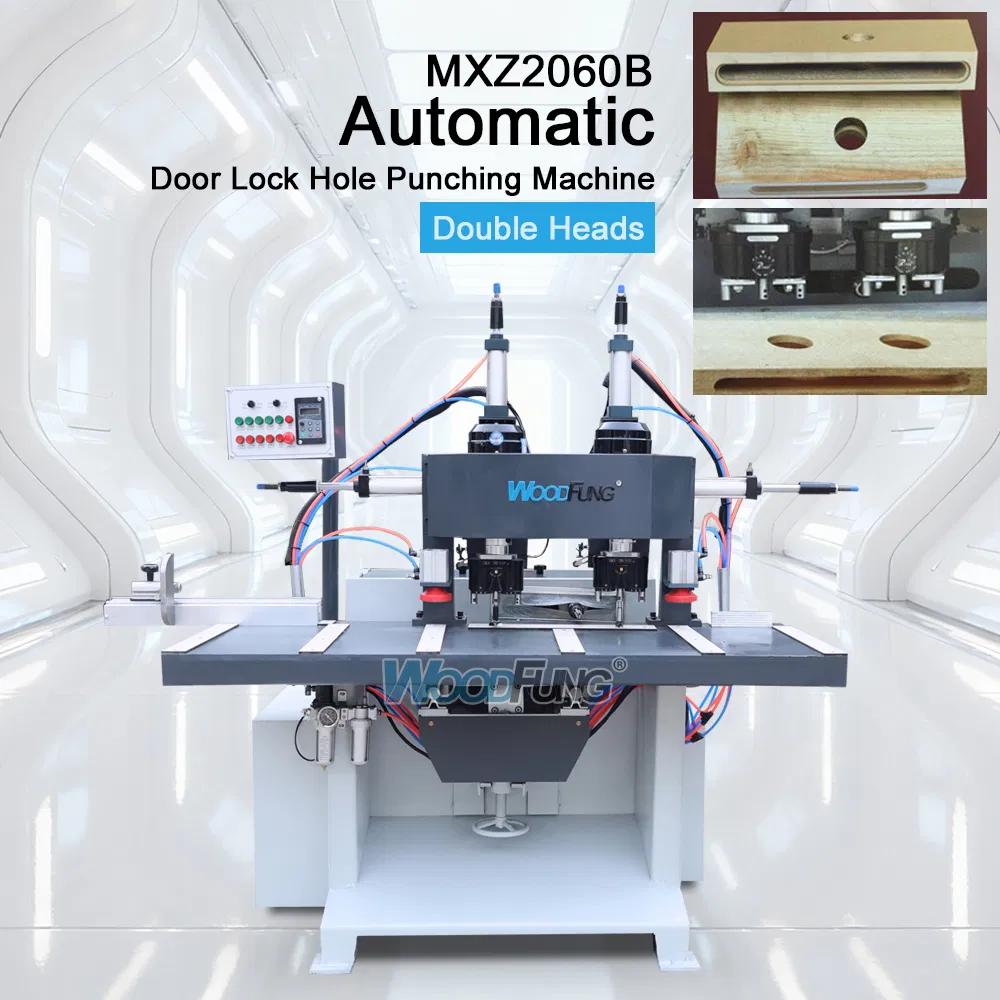

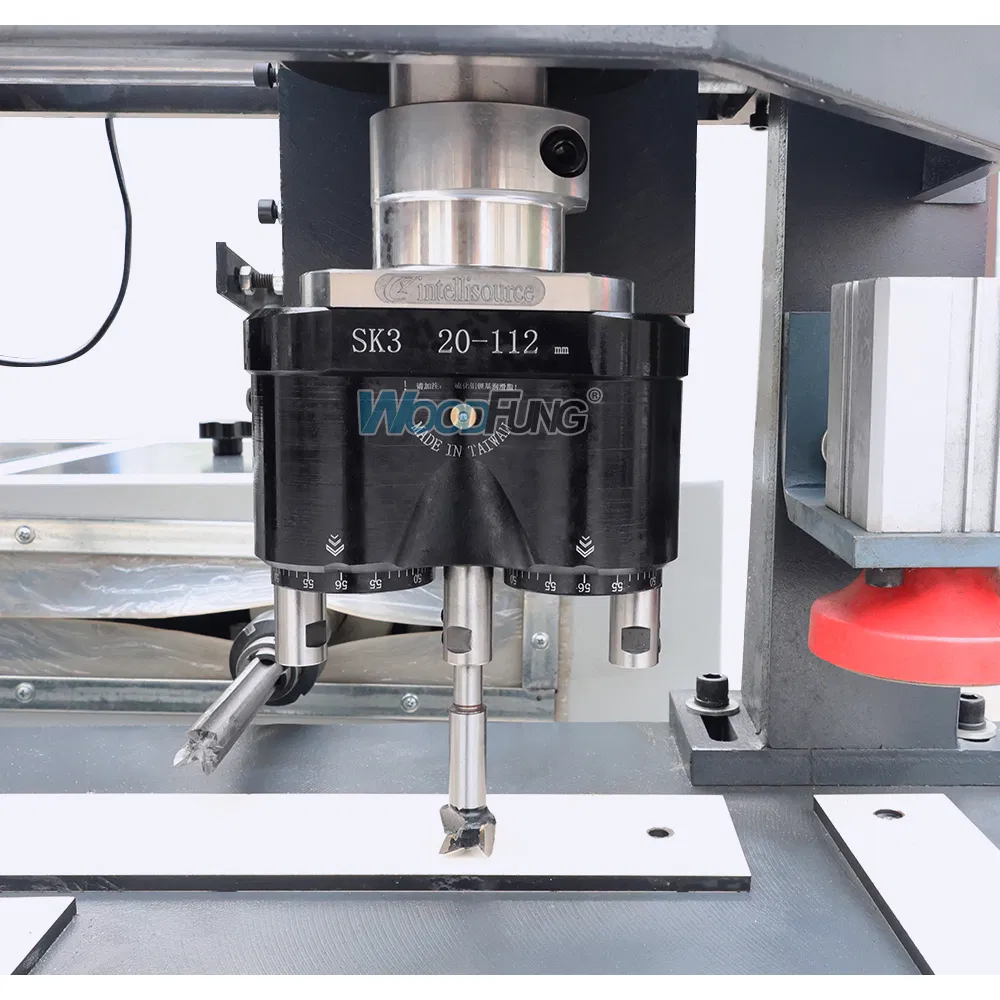

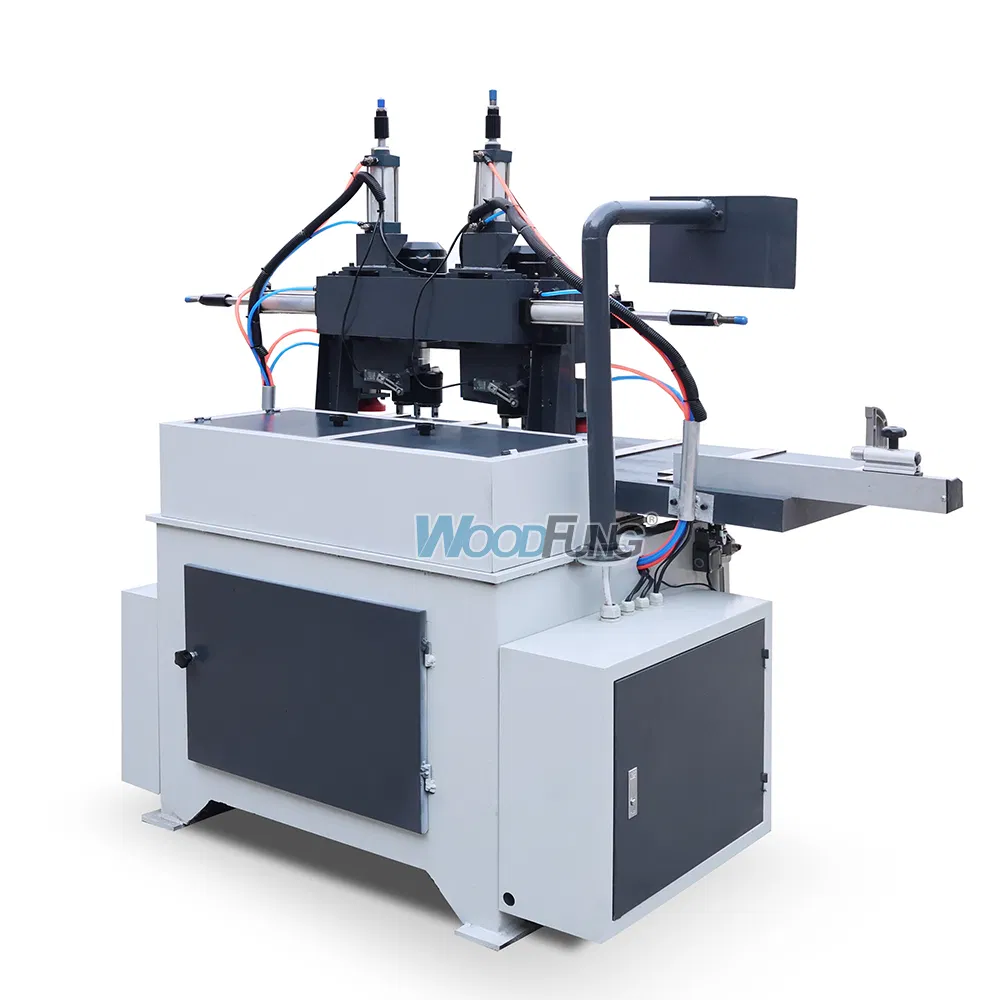

High Precision Woodworking Mortiser Machine
This advanced door lock hole mortiser is available in single head and double head configurations, specifically designed for high-efficiency wooden door and furniture production.
✔

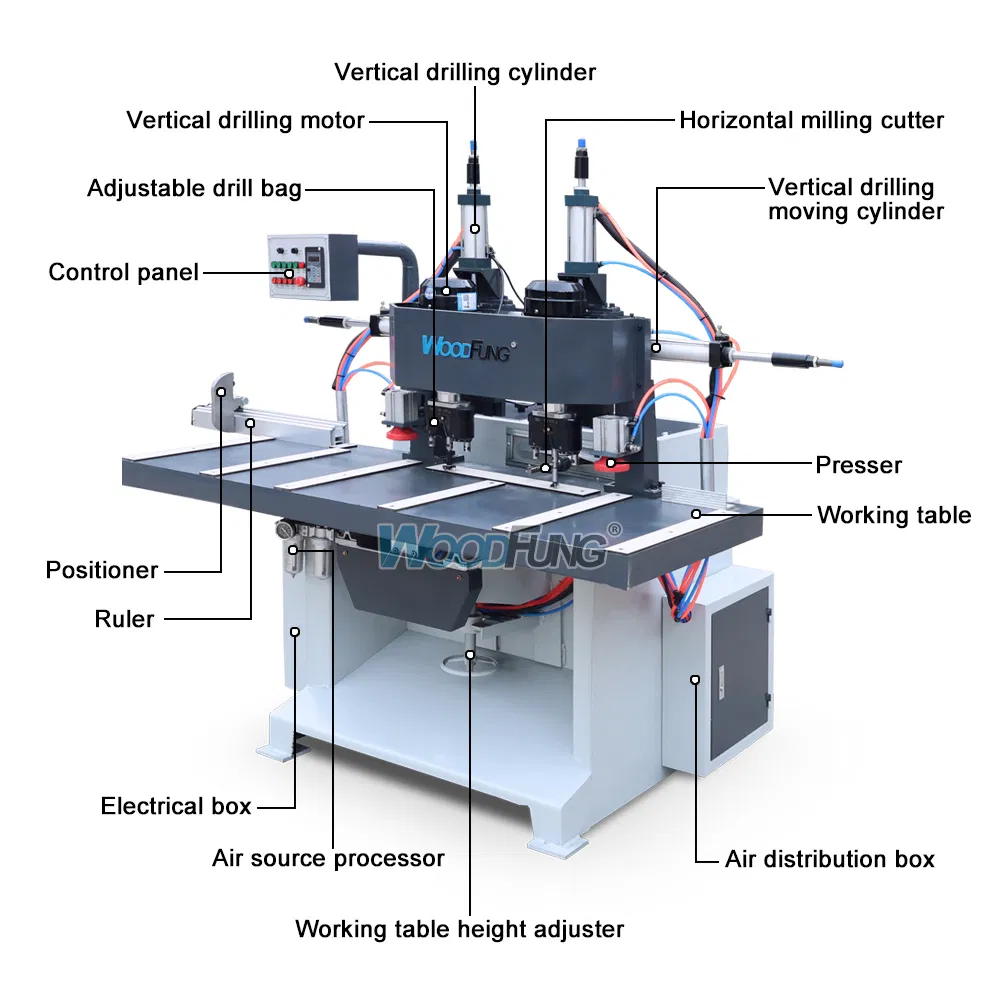

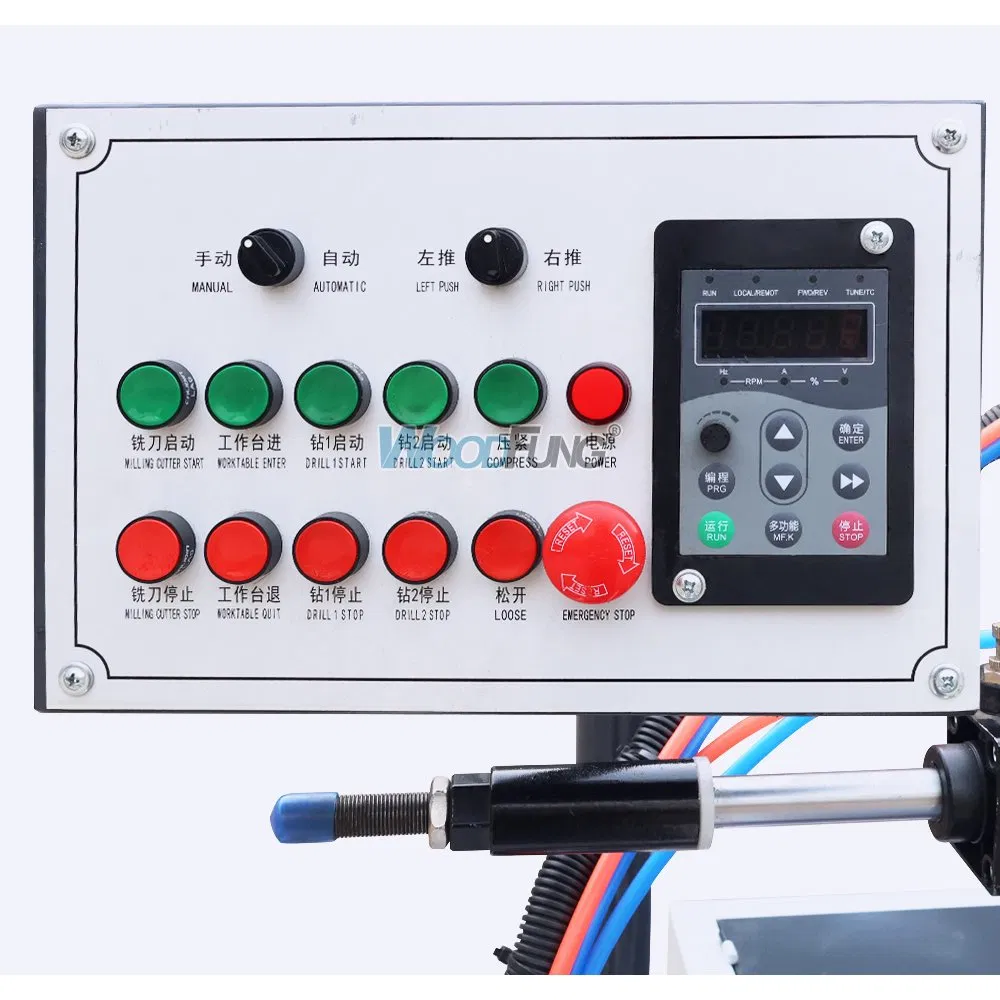

Control System: Features a push-button control board allowing for seamless switching between manual and automatic modes. Intuitive design for immediate operation.
✔
Durability: Integrated electrical components from well-known brands with clear wiring for an extended service life.
✔

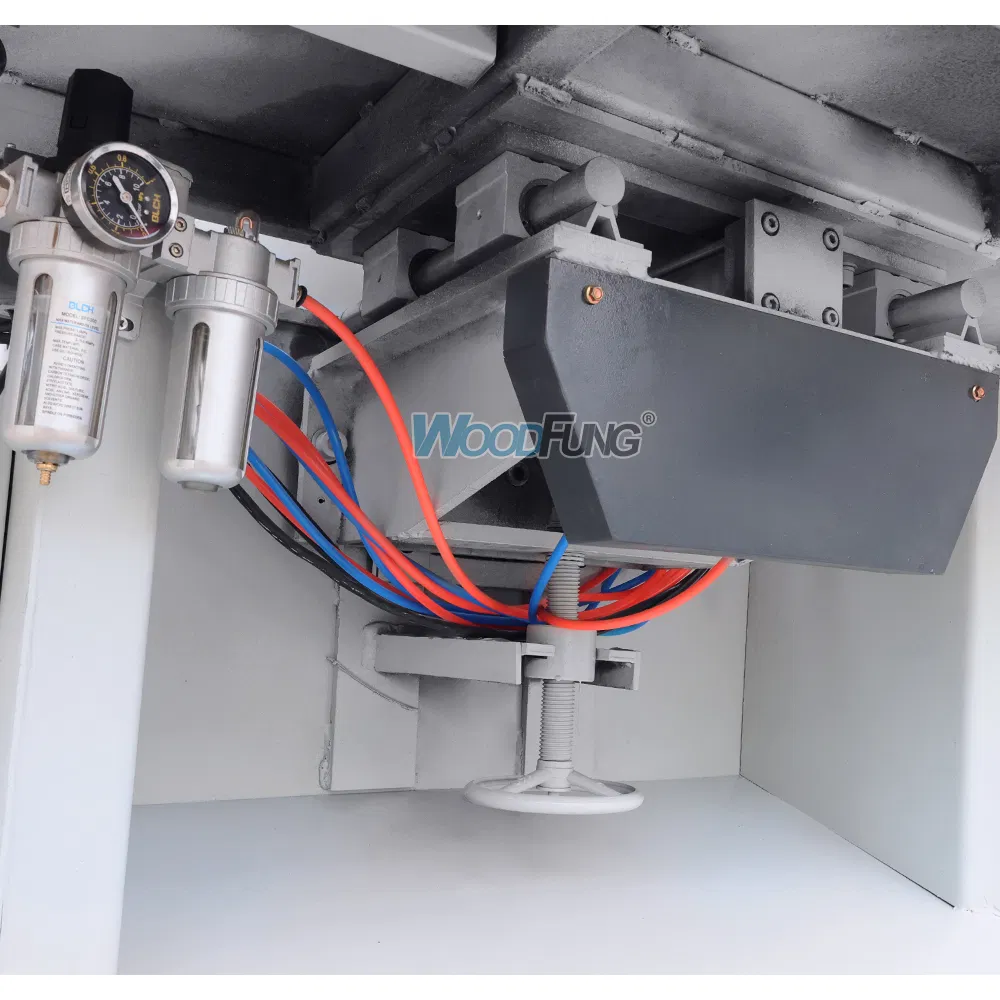

Adjustability: Equipped with a lifting and adjusting handwheel at the bottom, making it suitable for various plate thicknesses.
✔
Stability & Protection: Utilizes a movable pressure cylinder to fix plates firmly. Protective rubber pads prevent any damage to the workpiece surface.
✔
Maintenance: Built-in oil-water separator removes water vapor to protect internal components and prolong machine performance.
📊 Technical Parameters
| Model |
MXZ2060 (One Head) |
MXZ2060B (Two Head) |
| Max Working Length | 220mm | 220mm |
| Max Working Depth | 100mm | 100mm |
| Max Working Width | 28mm | 28mm |
| Table Adjust Height | 50mm | 50mm |
| Air Pressure | 0.5~0.8Mpa | 0.5~0.8Mpa |
| Spindle Speed | 10000r/min | 10000r/min |
| Motor Power | 5.2KW | 6.2KW |
| Voltage | 380V/220V | 380V/220V |
| Weight | 450kg | 550kg |
🖼️ Product Gallery
❓ Frequently Asked Questions
Q1: What is the warranty for the machine?
For our woodworking machines, we provide an 18-month warranty.
Q2: Can I choose the voltage for my country?
Yes, we offer both 380V and 220V options to suit your local power requirements.
Q3: What is the lead time after payment?
Normally, we maintain stock for 380V models. For 220V customized units, the lead time is approximately 5 days.
Q4: How long will it take to receive the machine?
For small machines shipped by air, it takes about 7 days. Larger machines shipped by sea take approximately 20 to 45 days depending on your port.
Q5: Is it possible to print my logo on the product?
Yes. Please inform us formally before production and confirm the design with us.
Q6: How is the machine packaged for shipping?
We use professional wooden boxes to package the machine, ensuring maximum protection and safety during transit.
