Premium 45X45 Aluminium T Slot Profile System Components

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SGPA040106

Type

180°Hinge

Finish

Anodic Oxidation

Material

Alloy

Product Name

Aluminum Profile Accessories

MOQ

1PC

Color

Silver, Black

Application

Window and Door

Specification

4545

HS Code

76042100

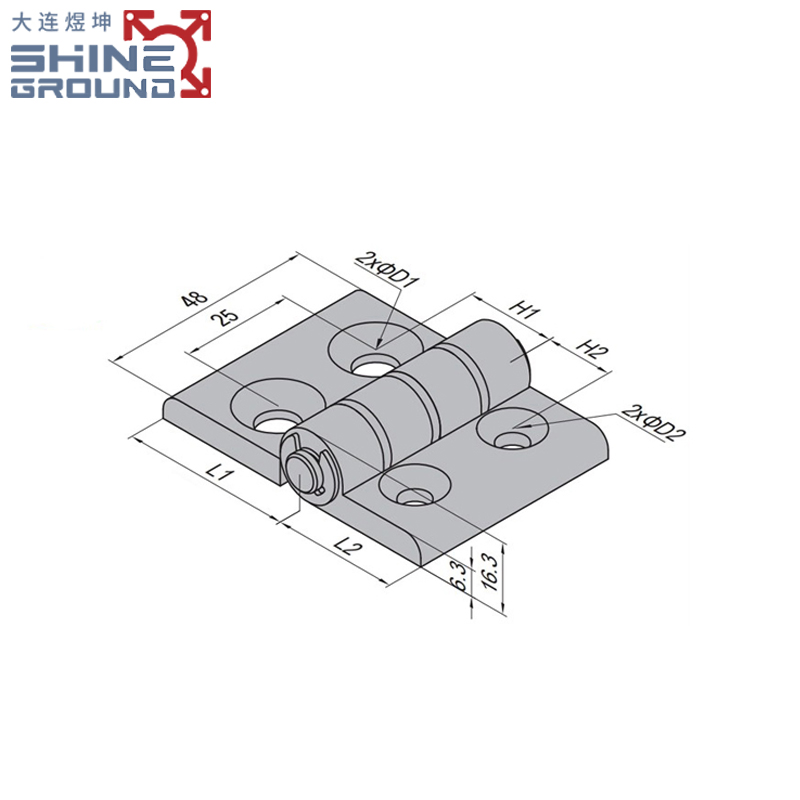

Technical Dimensions

Description	Fastener Sets	L1 (mm)	L2 (mm)	H1 (mm)	H2 (mm)	D1 (mm)	D2 (mm)	Weight (g)	Matching Profile
Al Hinge 30/30	4xN1	28	28	15	15	Ø6.5	Ø6.5	80	PG30
Al Hinge 30/40	2xN1 + 2xP1	28	38	15	20	Ø6.5	Ø8.5	97	PG30/PG40
Al Hinge 30/45	2xN1 + 2xP1	28	38	15	22.5	Ø6.5	Ø8.5	97	PG30/PG45
Al Hinge 40/40	4xP1	38	38	20	20	Ø8.5	Ø8.5	113	PG40/PG4

★

Product Introduction

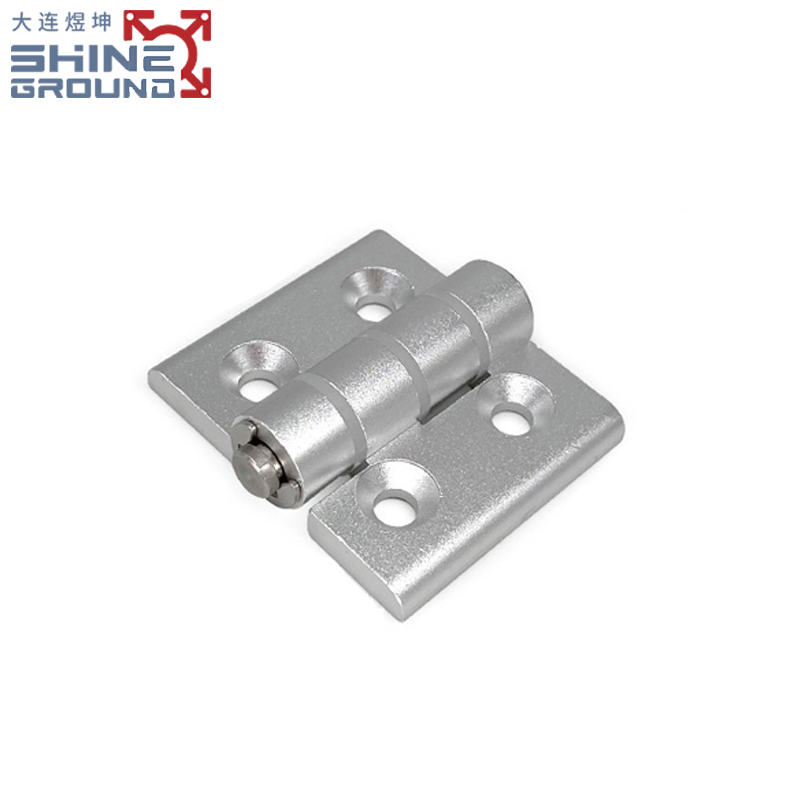

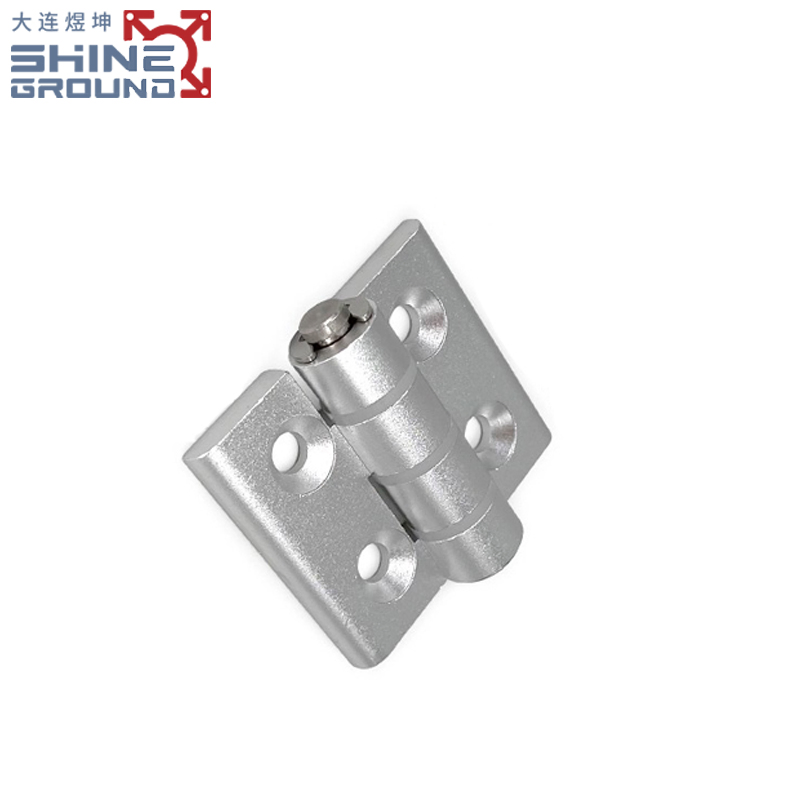

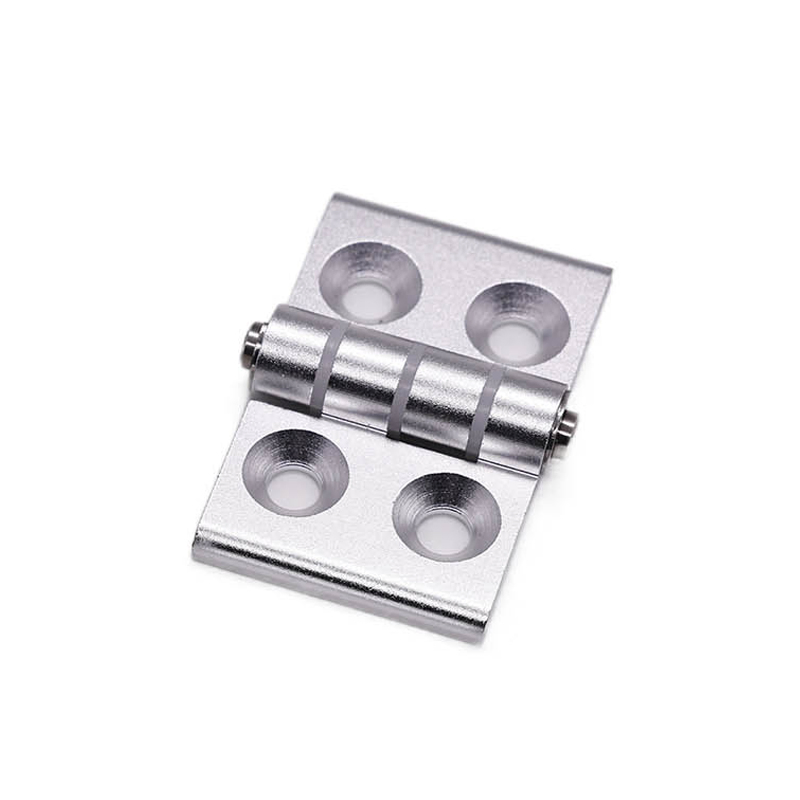

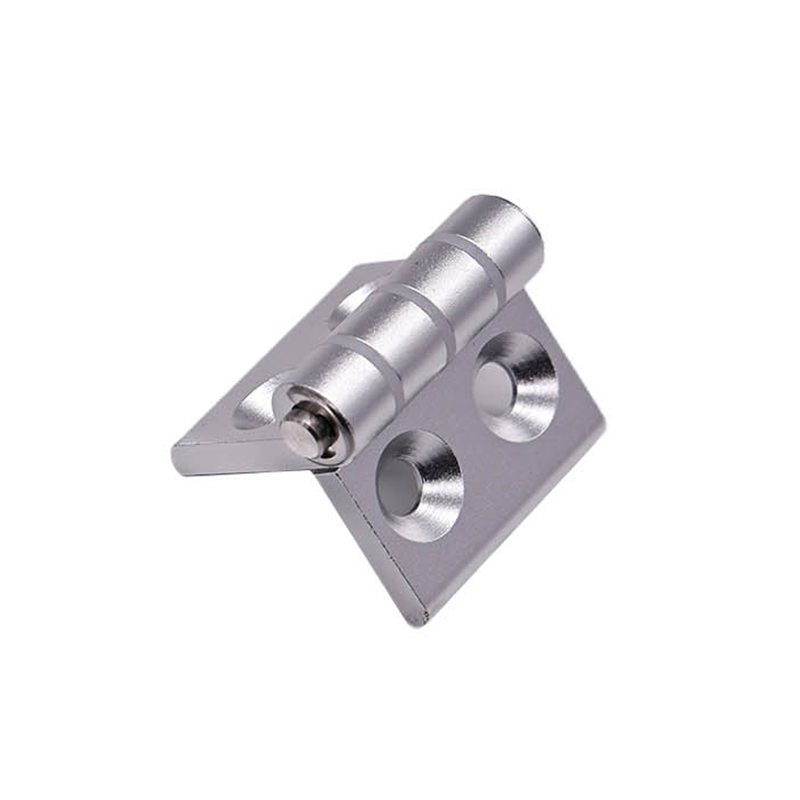

Our Aluminum Alloy Hinges are engineered specifically for T-slot aluminum profiles, serving as a premium choice for high-performance industrial applications. These hinges feature hinge leaves crafted from high-grade aluminum alloy paired with a stainless steel heart shaft, combining lightweight properties with exceptional durability.

Key Material Features:

Aluminum Alloy Leaves: Offers excellent corrosion resistance and lightweight handling without compromising strength for heavy loads.
Stainless Steel Heart Shaft: Ensures high tensile strength and rust resistance for smooth, long-term rotation under heavy use.
Durable Metal Design: Precision assembly reduces maintenance costs and prevents deformation.

✔

Product Advantages

Exceptional Load-Bearing Capacity: Ideal for industrial doors and heavy-duty storage lids, providing safe and reliable operation.

Long-Term Reliability: Built to withstand harsh environments, including moisture, chemicals, and extreme temperatures.

Easy Installation: Modular design compatible with T-slot profiles for a quick and secure assembly process.

📊

Commitment to Quality

Indicator Dimension	Industry Benchmark	Our Commitment	Difference
Design Response	5-7 working days	≤3 working days	57% faster
Defective Rate	≤1.2%	0.08%	15x improvement
On-Time Delivery	85%	99%	+14% points
Exception Response	6 hours	1.5 hours	4x efficiency

Frequently Asked Questions

Are you a manufacturer or trading company?

We operate a self-owned manufacturing base offering full-chain services from product R&D and mold development to smart warehousing and global logistics.

What is the MOQ for customized products?

Standard stocked profiles accept MOQ from 1 unit. Customized development requires a 300kg base MOQ for efficiency, though we offer mold cost-sharing for trials starting at 50kg.

What is the timeline for mass production?

Mold development takes 7-10 days. Once samples are confirmed (approx. 3 days), mass production for standard volumes is completed within 12 working days.

How is cutting precision controlled?

Equipped with 5-axis CNC centers, we provide custom cutting with ±0.05mm precision, including automated chamfering and deburring.

Do you provide systematic assembly solutions?

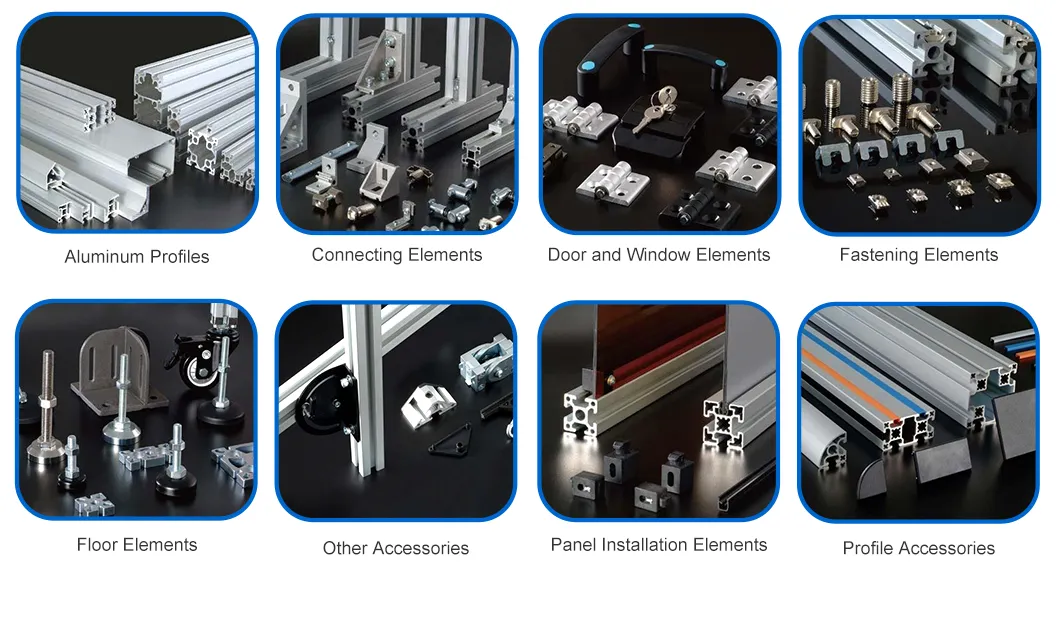

Yes, our modular ecosystem includes over 2000 standard parts including structural brackets, functional hinges, aesthetic end caps, and anti-vibration technical parts.

What is your quality assurance system?

We utilize a triple-layer system: ISO9001 certification, real-time dimension monitoring during production, and final AQL 1.0 full inspection.
