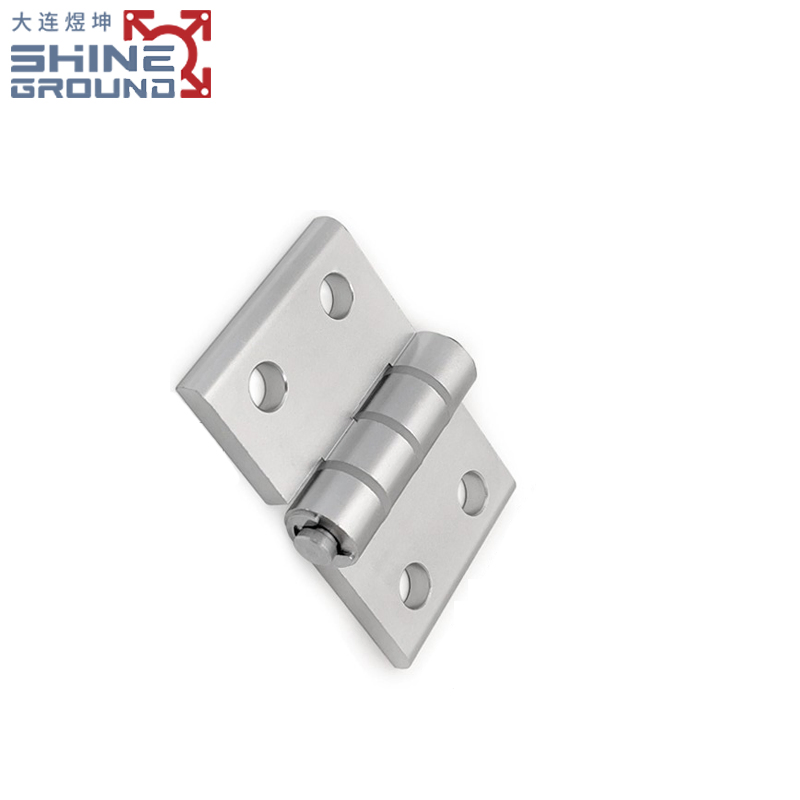

Aluminum Profiles 20X20 Hardware Components Custom Hinge

1 / 5

Aluminum Profiles 20X20 Hardware Components Custom Hinge

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specification

Model NO.

SGPA040207

Type

180°Hinge

Finish

Anodic Oxidation

Material

Alloy

Product Name

Aluminum Profile Accessories Hardware Hinge

MOQ

1PC

Color

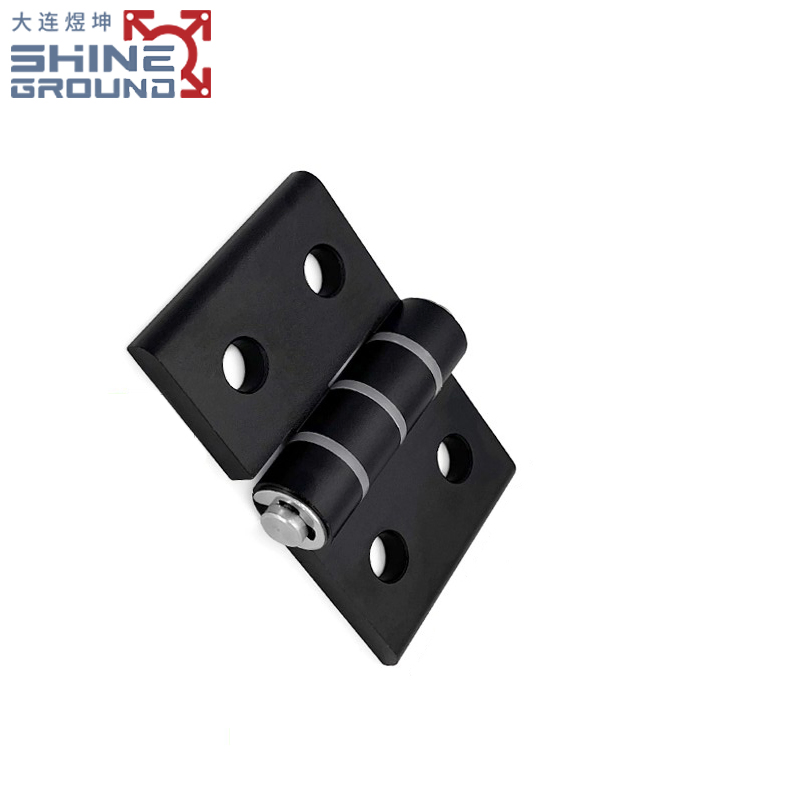

Silver, Black

Application

Window and Door

Package

Mail Order Package

Specification

5050

HS Code

76042100

Capacity

100000meters/Month

Product Description

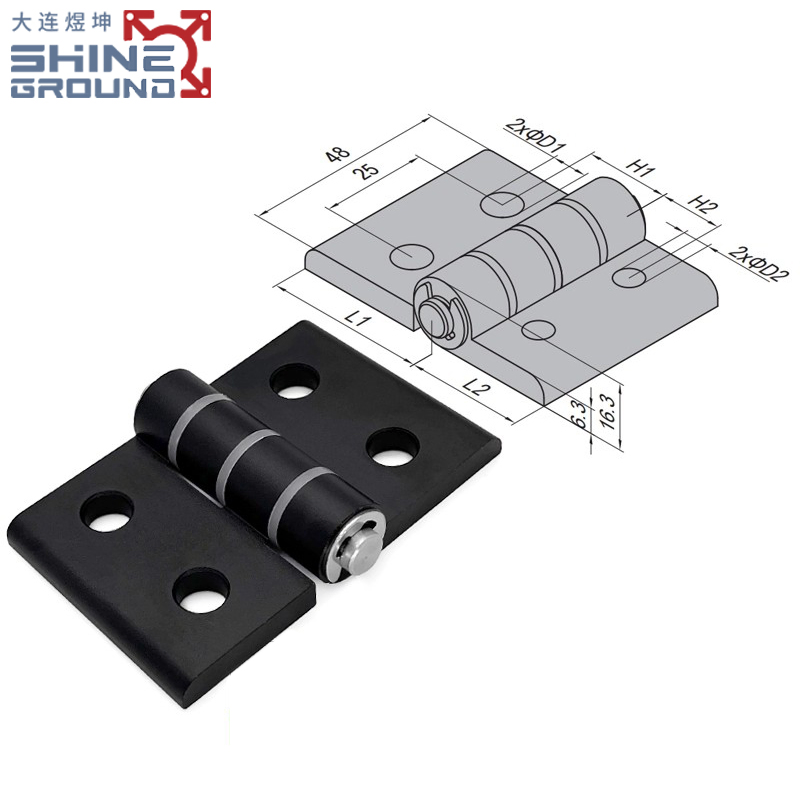

Description	Fastener Sets	L1 (mm)	L2 (mm)	H1 (mm)	H2 (mm)	D1 (mm)	D2 (mm)	Unit Weight	Part No.	Matching Profile
Al Hinge 30/30	4xN1	28	28	15	15	Ø6.5	Ø6.5	80g	30.4.03.02.3030.01	PG30
Al Hinge 30/40	2xN1 + 2xP1	28	38	15	20	Ø6.5	Ø8.5	97g	30.4.03.02.3040.01	PG30/PG40
Al Hinge 30/45	2xN + 2xP	28	38	15	22.5	Ø6.5	Ø8.5	131g	30.4.03.02.3045.02	PG30/PG45
Al Hinge 40/40	4xP1	38	38	20	20	Ø8.5	Ø8.5	113g	40.4.03.02.4040.01	PG40

Product Introduction:

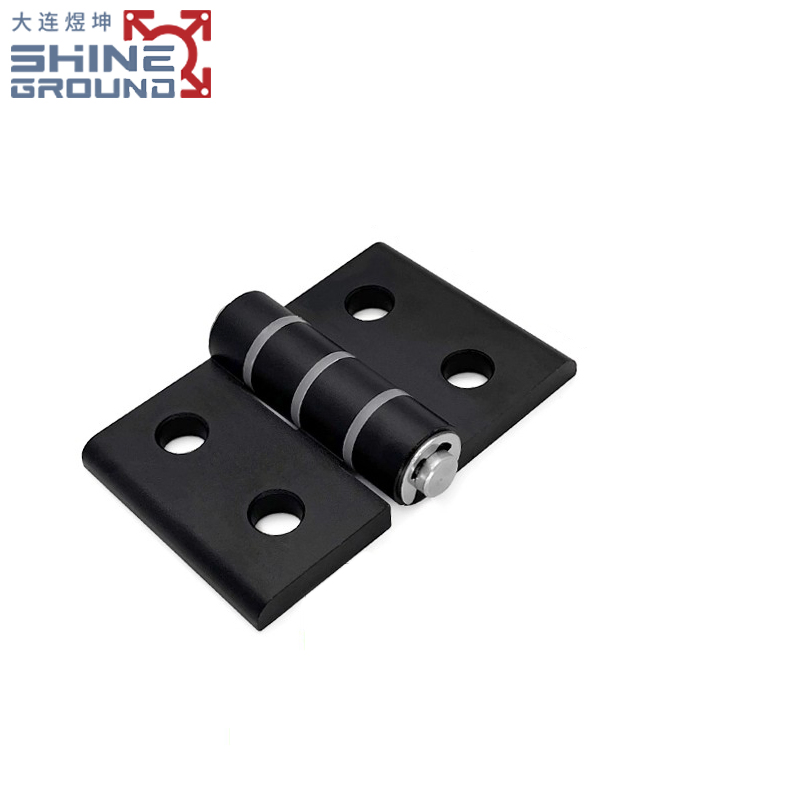

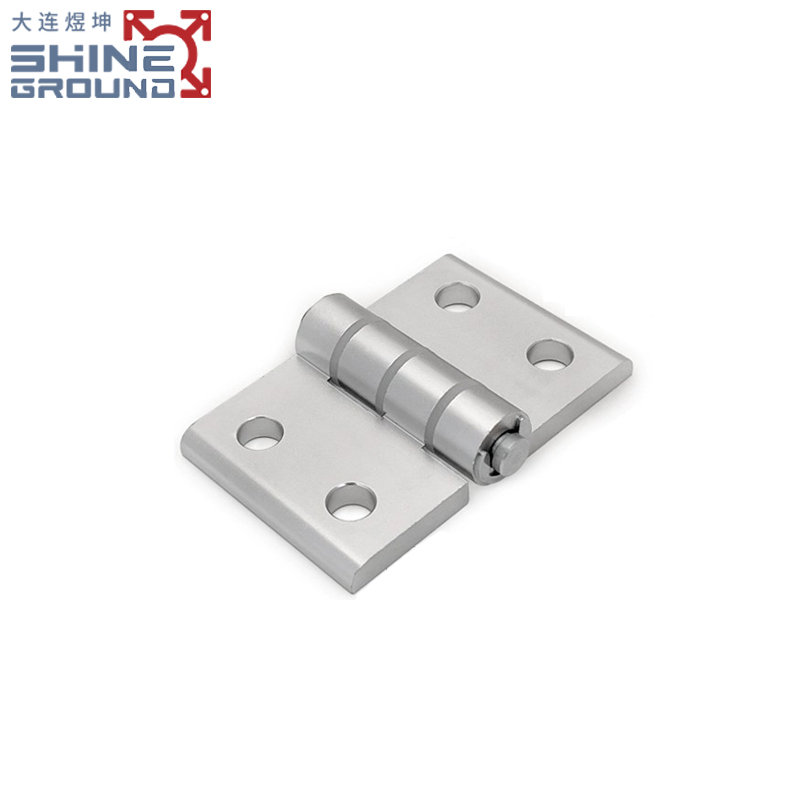

Our Aluminum Alloy Hinges, designed specifically for T-slot aluminum profiles, are a top-tier choice for applications demanding high-performance hinge solutions. These hinges feature a unique construction where the hinge leaves are crafted from high-quality aluminum alloy, while the heart shaft is made of stainless steel.

★

High-Quality Material Construction:
Aluminum Alloy Hinge Leaves offer lightweight nature with excellent corrosion resistance. The Stainless Steel Heart Shaft ensures high tensile strength and smooth rotation over extended periods.

★

Heavy-Load Applications:
Engineered to handle the weight of heavily loaded doors and lids in industrial or storage environments without deformation.

★

Durable Metal Design:
Combined aluminum alloy and stainless steel create a mechanism resistant to wear and tear, requiring minimal maintenance.

Applications & Strengths

Our products are widely used in various industrial applications, including:

Mechanical frame structures and component connections
Industrial assembly and transmission lines
Automated equipment and safety protection systems
Electronics and automotive parts assembly lines
Medical, food, and cleaning equipment

Performance Commitment

Indicator Dimension	Industry Benchmark	Our Commitment	Advantage Difference
Design Response	5-7 working days	≤3 working days	57% faster
Defective Rate	≤1.2%	0.08%	15x quality improvement
On-Time Delivery	85%	99%	+14 percentage points
Exception Response	6 hours	1.5 hours	4x efficiency increase

Frequently Asked Questions

Are you a manufacturer?

Yes, we operate a self-owned manufacturing base offering full-chain services from product R&D and mold development to smart warehousing and global logistics.

What's the MOQ for customized products?

Standard stocked profiles accept MOQ from 1 unit. Customized development typically requires a 300kg base MOQ, though we offer mold cost-sharing for trial runs starting at 50kg.

How is profile cutting precision controlled?

Equipped with 5-axis CNC cutting centers, we provide custom cutting with ±0.05mm precision and automated chamfering/deburring.

Do you provide systematic assembly solutions?

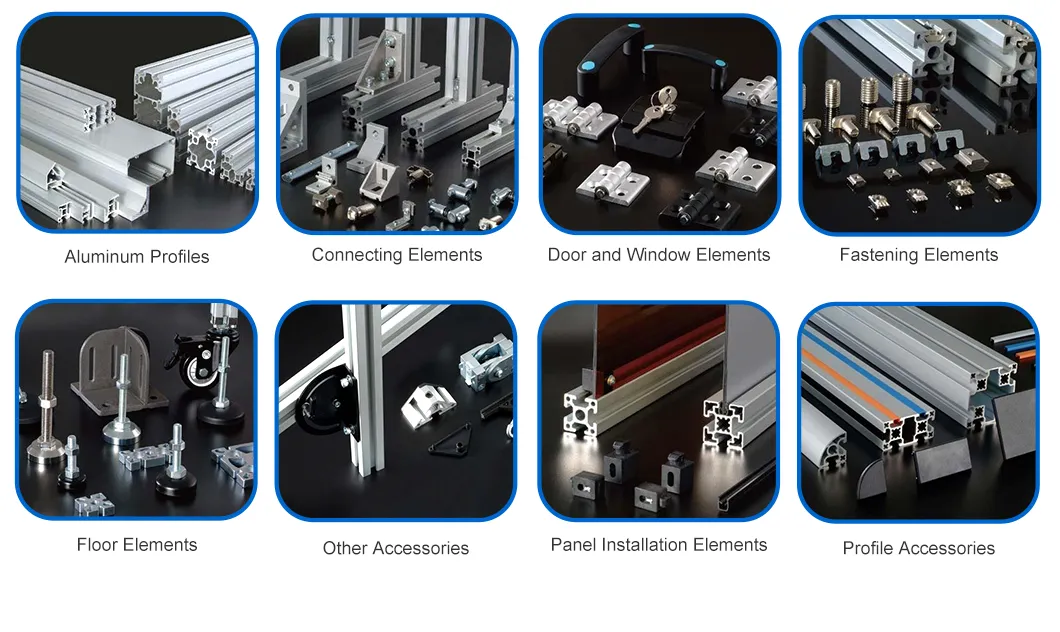

Yes, our modular ecosystem covers over 2000 standard parts including brackets, hinges, dampers, and technical anti-vibration components.

What is your quality assurance system?

We utilize a triple-layer assurance: ISO9001 certification, real-time dimension monitoring/load testing, and final AQL 1.0 full inspection with third-party report options.

What is the timeline for new mold development?

Mold development takes 7-10 working days, sample confirmation takes 3 days, and mass production is usually completed within 12 working days post-approval.
