Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
1 / 5
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors
Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors

Fastlink High Quality Suppliers Companies Overhead Insulated Sectional Garage Doors

Customization: Available
After-sales Service: 2 Years
Warranty: 1year
Send Inquiry

Product Description

📋 Basic Information
Material
Aluminum Alloy / Steel
Thickness
50mm
Opening Style
Electric / Manual
Panel Pattern
Embossed on Metal Surface
Door Panel
PU Sandwich Panel (42mm Total)
Design Style
Modern
Feature
Anti-Theft, Thermal Insulation
Operating Speed
0.25m/S
Wind Resistance
700pa (Grade 7)
Application
Villa, Commercial, Underground Parking
Overhead Insulated Sectional Garage Doors
⚙️ Product Specifications
Attribute Detail Specification
Size RangeMin: 2000x2000mm | Max: 11500x6000mm

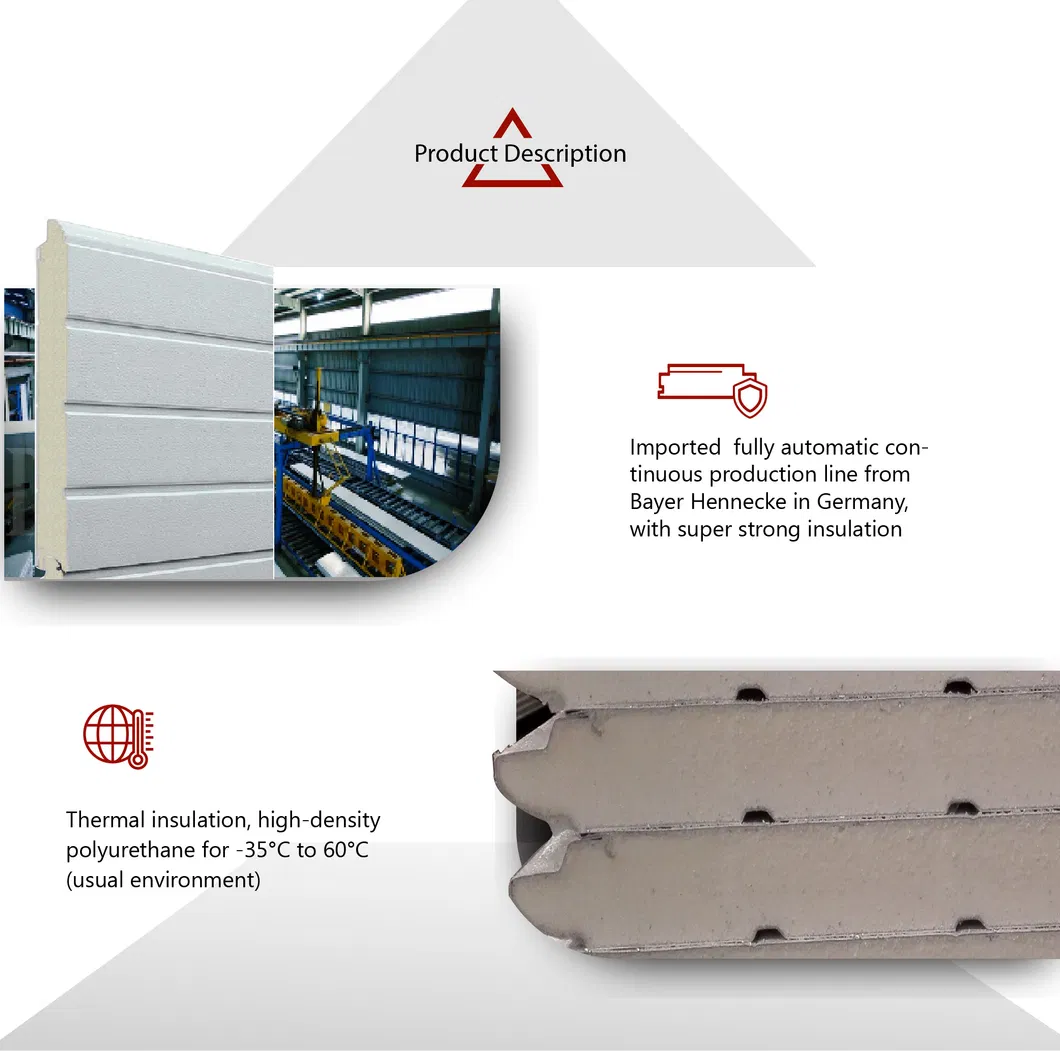

Polyurethane Density48kg/m³, closed-cell rate > 95%
Lifting ModeVertical / High / Standard (Right Angle) Lift
Motor TypeDedicated DC Motor, 70w-200w (Single 220V)
Spring MaterialHigh-strength steel, shot blasting electrophoresis
Rail DesignPatented wind-resistant bolted connection
Control OptionsRemote, Bluetooth, License Plate Recognition, App, Manual
Safety FeaturesRebound on obstacle, Anti-pinch design, Anti-breakage springs
Available ColorsRAL9002, RAL9006, RAL7040, RAL7045 (Custom Optional)
🖼️ Product Gallery

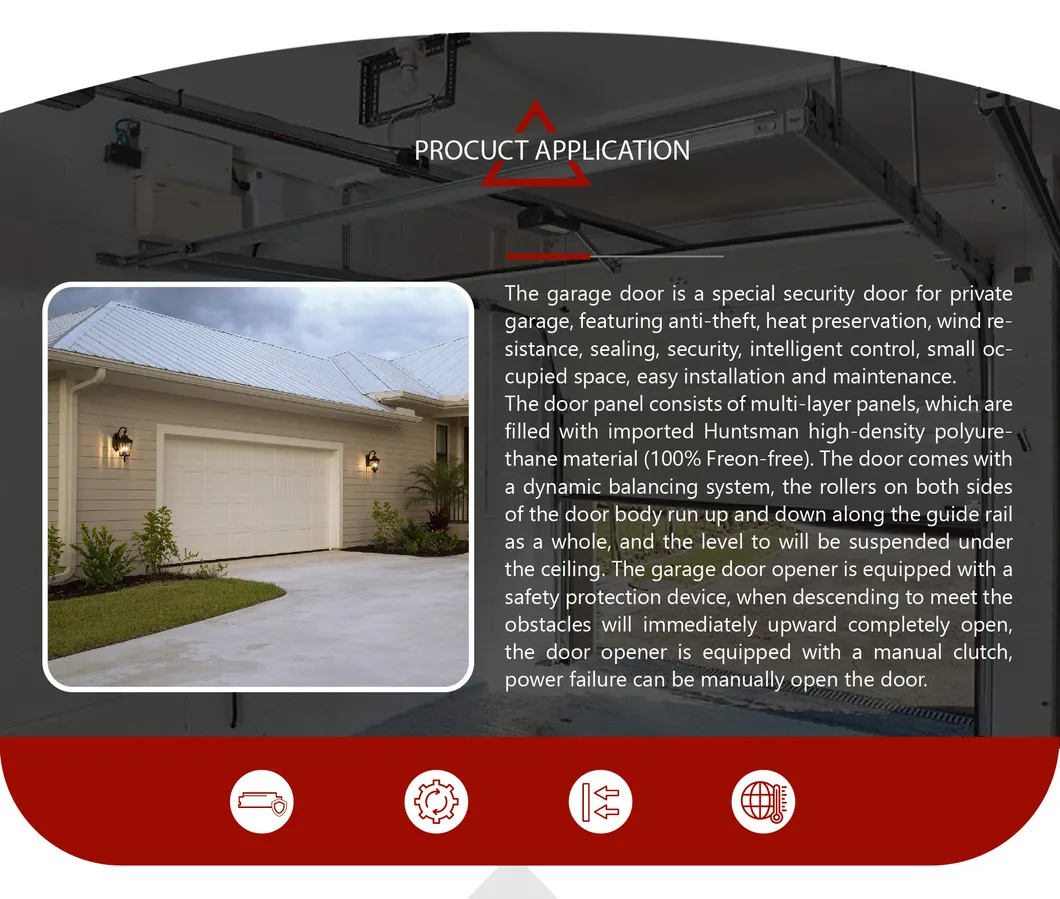

Garage Door Detail 1
Garage Door Detail 2

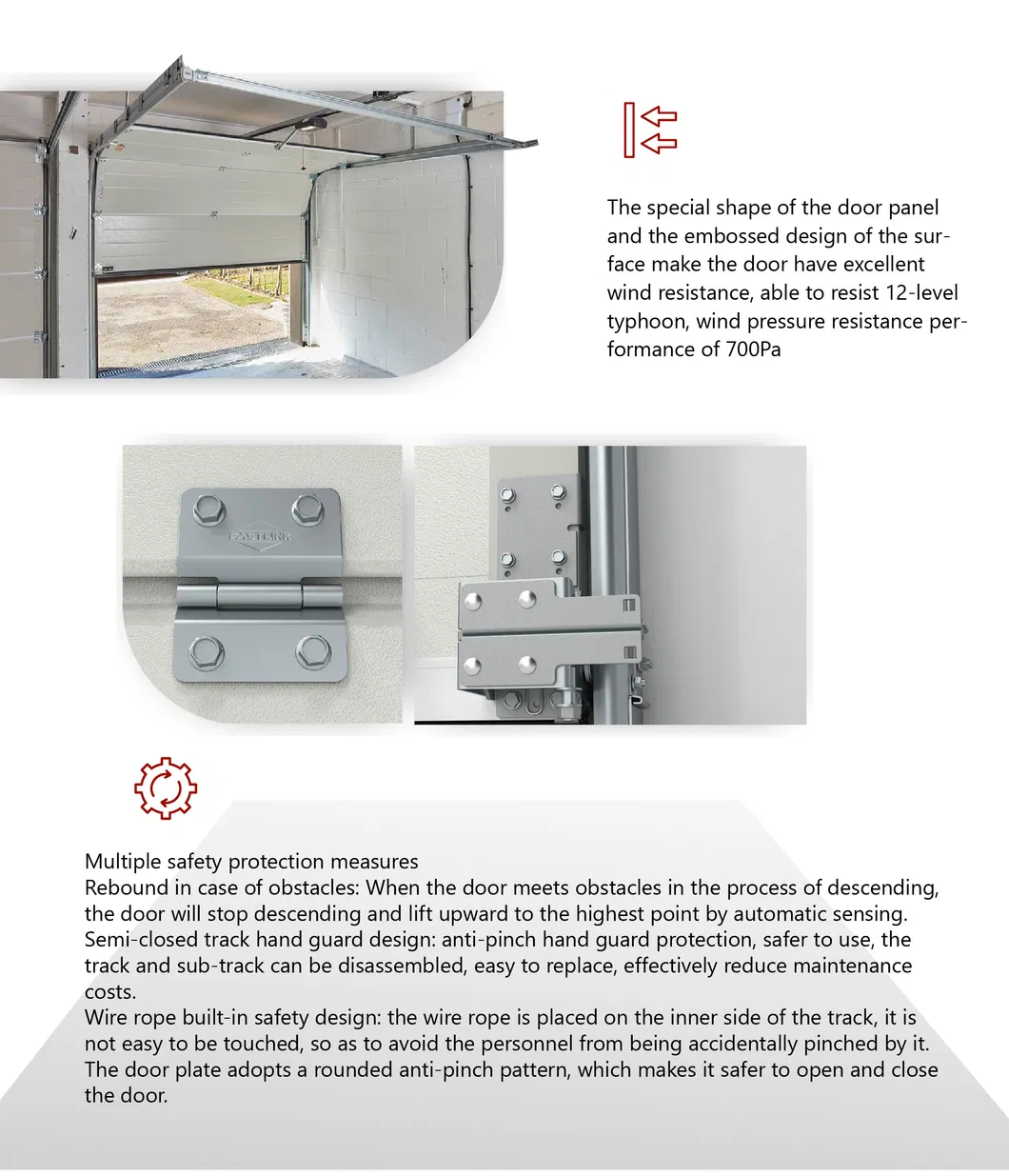

Garage Door Detail 3

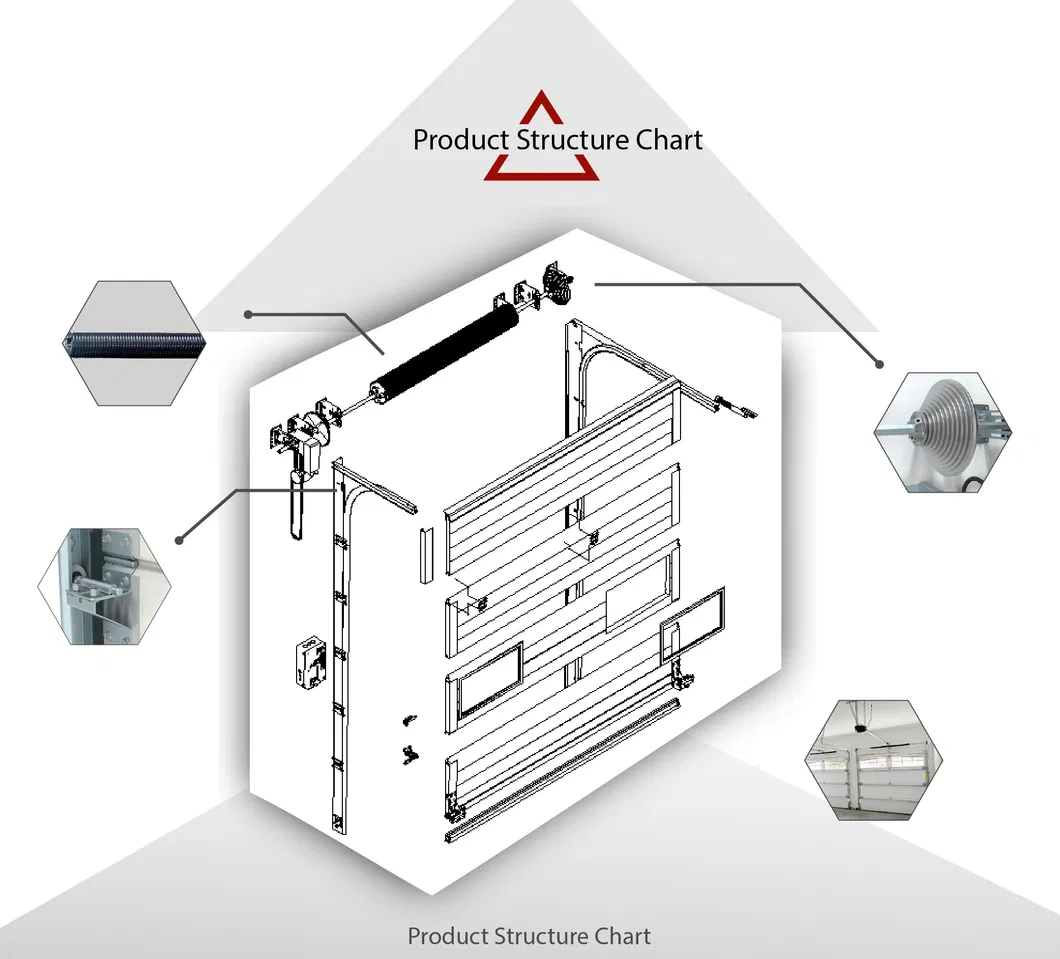

Garage Door Detail 4

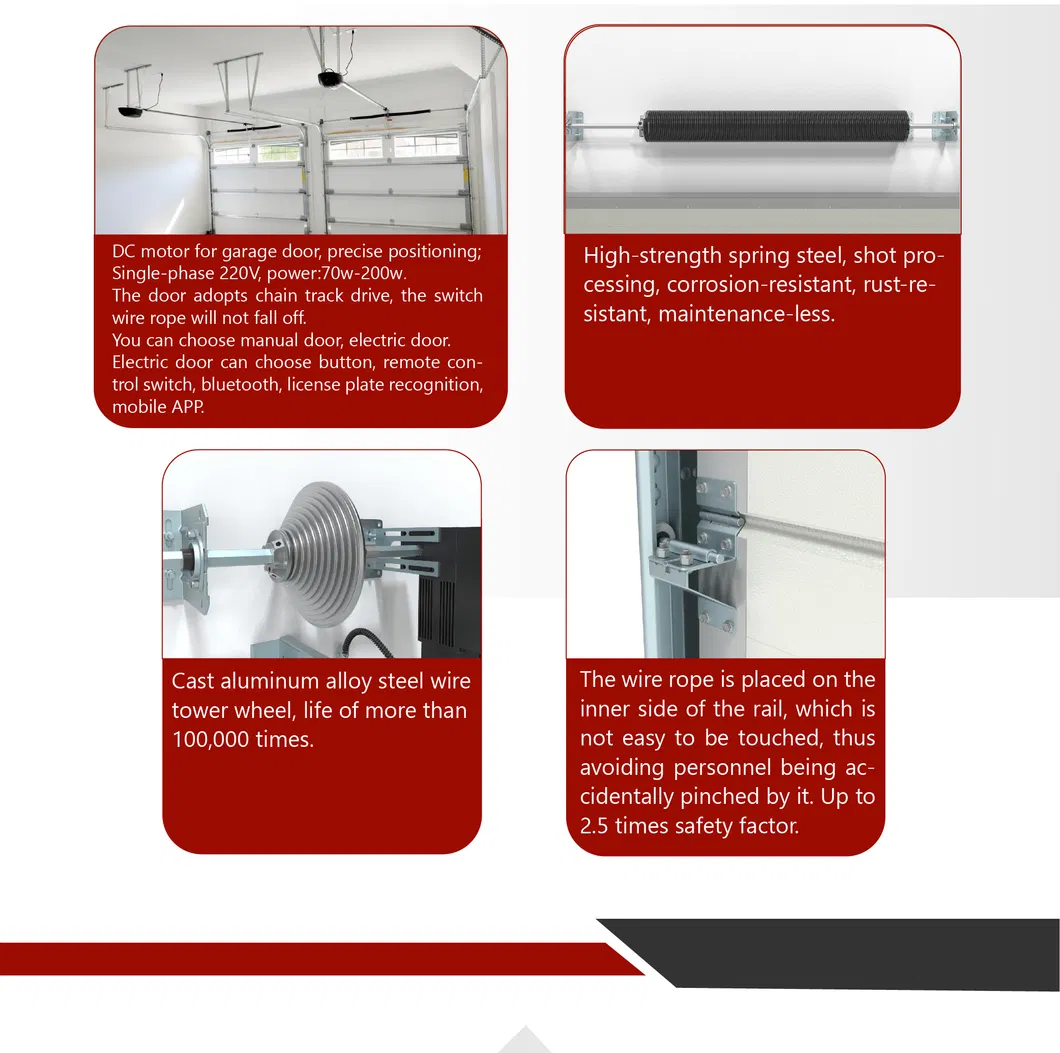

Garage Door Detail 5

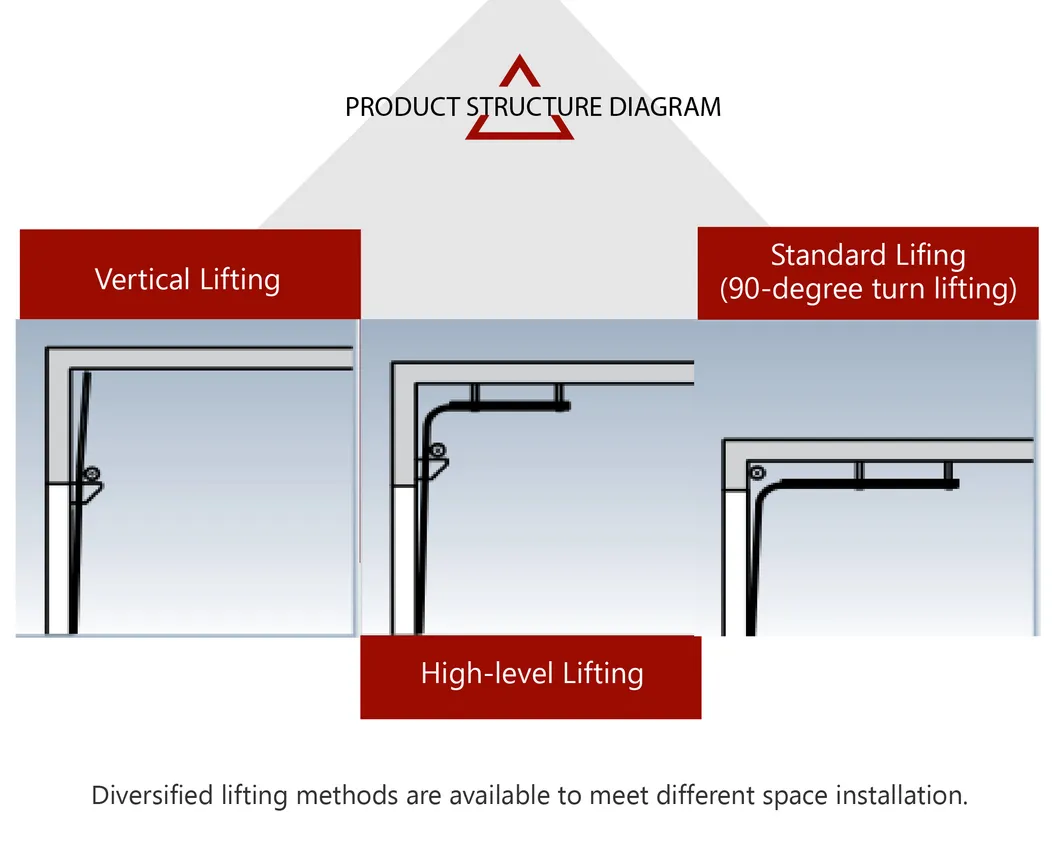

Garage Door Detail 6

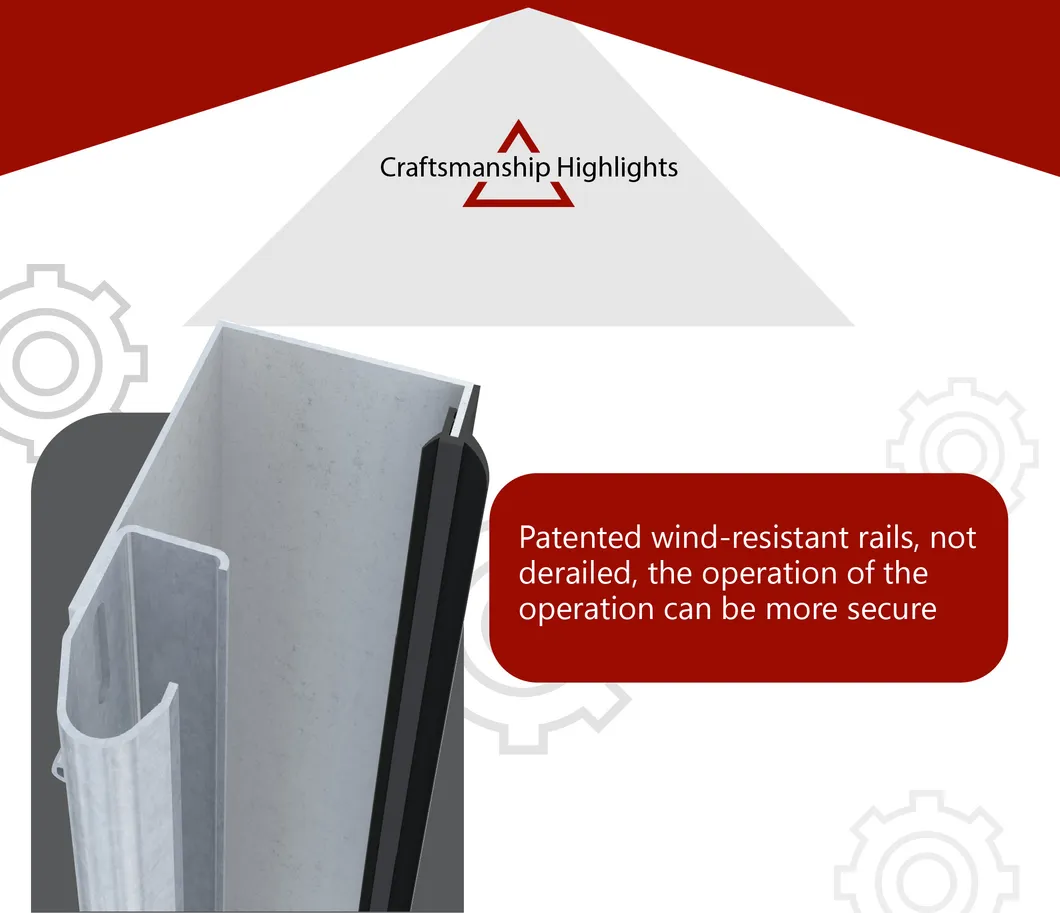

Garage Door Detail 7
Garage Door Detail 8

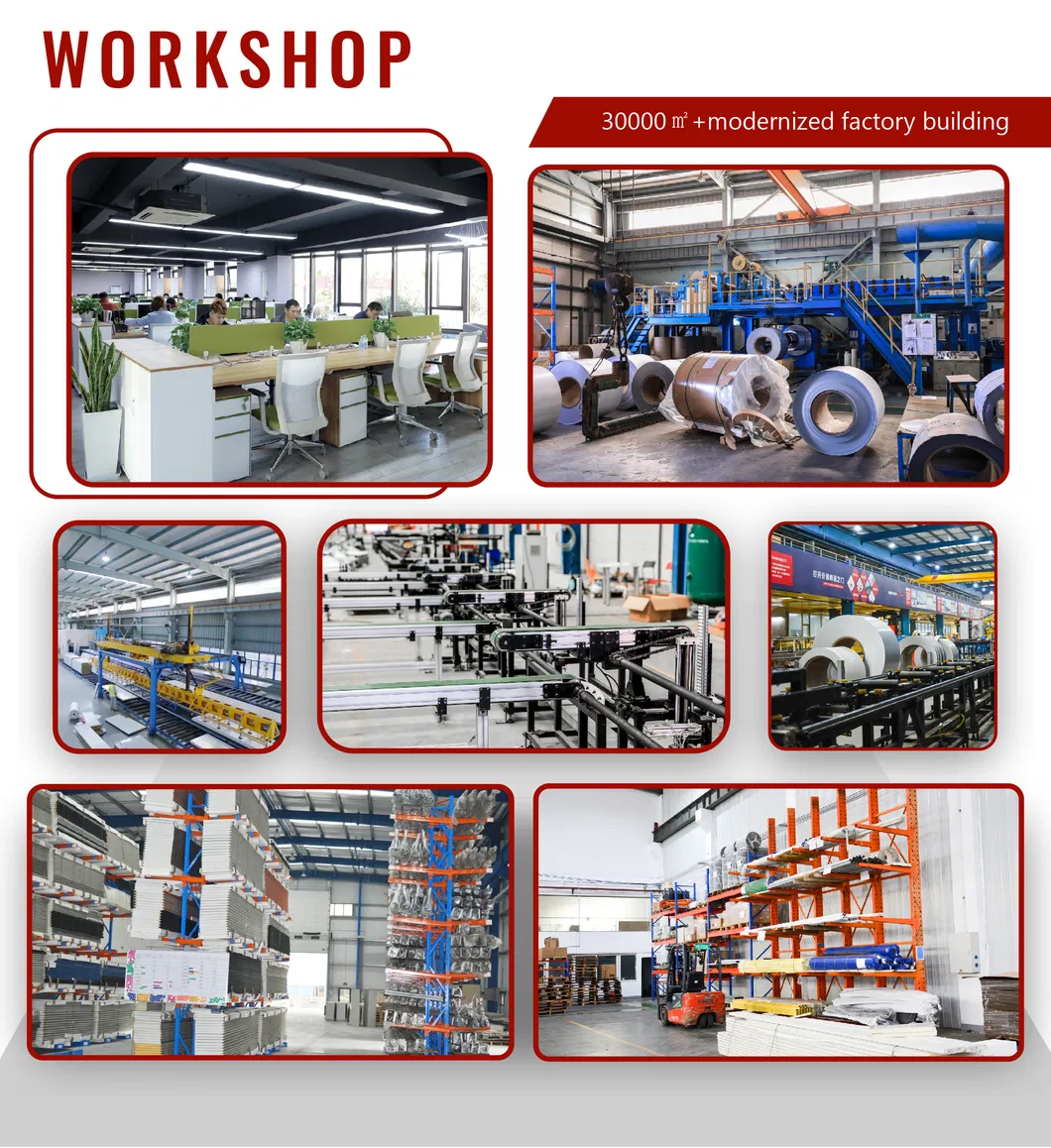

Garage Door Detail 9

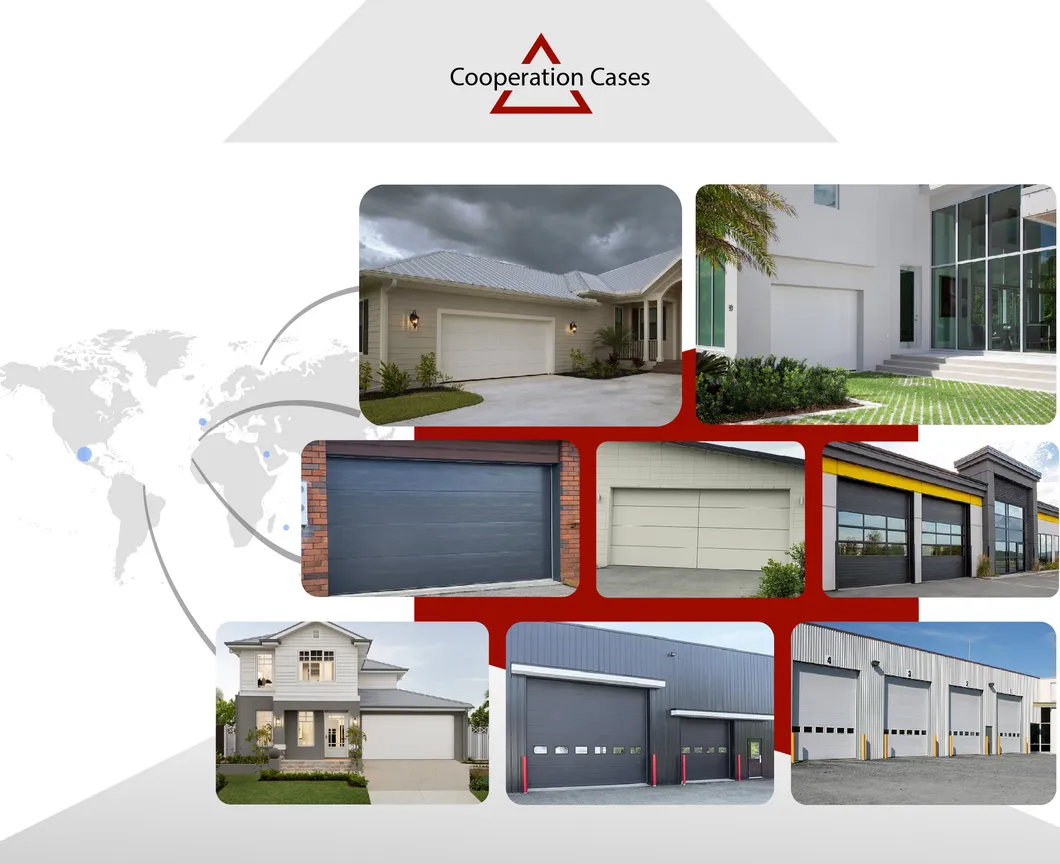

Garage Door Detail 10
Garage Door Detail 11
Garage Door Detail 12
Garage Door Detail 13

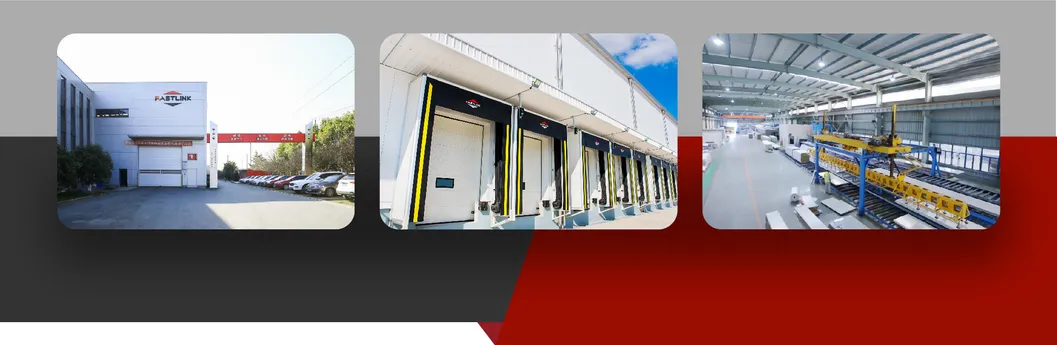

Garage Door Detail 14
📦 Packaging & Delivery
Package Size
406.40cm * 66.40cm * 9.10cm
Gross Weight
350.000kg
Transport Package
Wooden Box
Lead Time
30 Days
❓ Frequently Asked Questions
Is the Insulated Sectional Door safe to use?
Yes, the doors are designed with comprehensive safety features including bottom panel rebound sensors, anti-breakage protection for wire ropes and springs, and an anti-pinch design. All units meet CE certification standards.
How well does the door resist wind compared to roll-up doors?
Sectional garage doors offer superior wind resistance due to their structural design, meeting at least 700Pa ratings. They are proven to remain safe and sound even in coastal areas prone to typhoons.
What is the required installation space?
A minimum headroom of 350mm above the opening is required, and at least 150mm of side room is needed on each side of the door opening for proper installation.
What is the expected life span of the door?
With regular maintenance and correct usage, these doors typically last more than 10 years. High-quality components like shot-blasted springs and PU panels contribute to long-term durability.
Can the door be operated during a power failure?
Yes, the doors feature an electric/manual opening mode, allowing for manual operation when necessary. Internal and external door locks are also available as optional safety additions.

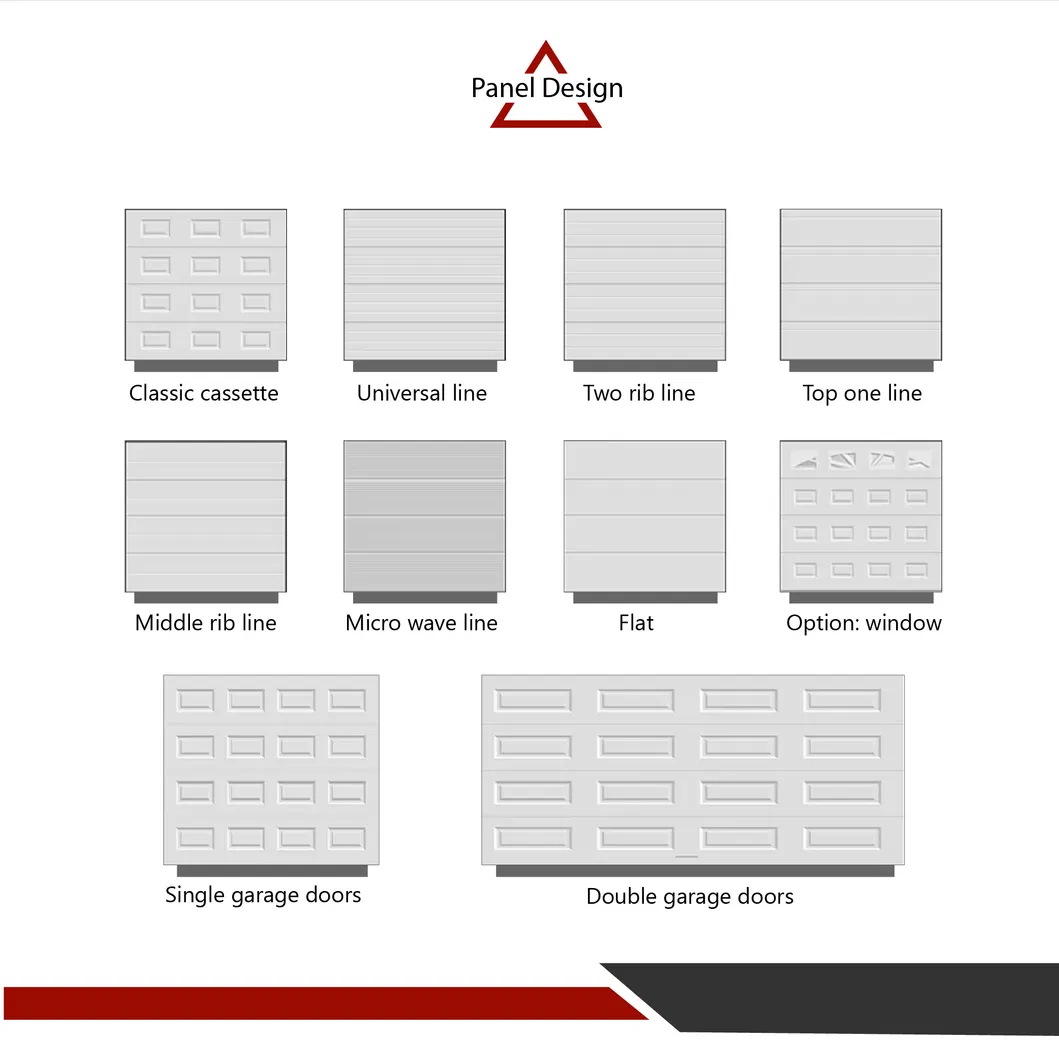

Are there customization options for the panels?
Absolutely. Customers can choose from various RAL colors (9002, 9006, 7040, etc.), add windows or vent windows, and even include a pass-door-in-door for pedestrian access.
